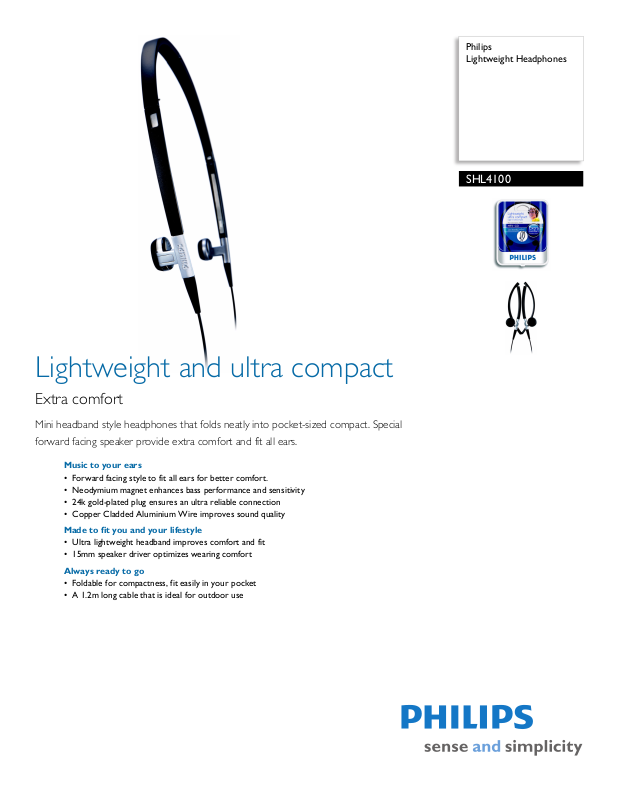

Philips SHL4100-37 User Manual

Philips Lightweight Headphones

SHL4100

Lightweight and ultra compact

Extra comfort

Mini headband style headphones that folds neatly into pocket-sized compact. Special forward facing speaker provide extra comfort and fit all ears.

Music to your ears

• Forward facing style to fit all ears for better comfort.

• Neodymium magnet enhances bass performance and sensitivity

• 24k gold-plated plug ensures an ultra reliable connection

• Copper Cladded Aluminium Wire improves sound quality

Made to fit you and your lifestyle

• Ultra lightweight headband improves comfort and fit

• 15mm speaker driver optimizes wearing comfort

Always ready to go

• Foldable for compactness, fit easily in your pocket

• A 1.2m long cable that is ideal for outdoor use

Lightweight Headphones

SHL4100/37

Specifications Product highlights

Sound

• Acoustic system: Open

• Magnet type: Neodymium

• Diaphragm: Mylar dome

• Frequency response: 10 - 20 000 Hz

• Voice coil: CCAW

• Impedance: 16 Ohm

• Maximum power input: 50 mW

• Sensitivity: 102 dB

• Speaker diameter: 15 mm

• Type: Dynamic

Connectivity

• Cable Connection: Two-parallel, symmertic

• Cable length: 1.2 m

• Connector: 3.5 mm stereo

• Finishing of connector: 24k Gold-plated

• Type of cable: OFC

Packaging dimensions

• Packaging dimensions (W x H x D):

6.9

x 8.7 x 1.5 inch

• Nett weight: .057 lb

• Gross weight: .231 lb

• Tare weight: .174 lb

Outer Carton

• Outer carton (L x W x H): 19.3 x 18.6 x 16.1 inch

• Nett weight: 2.751 lb

• Gross weight: 19.18 lb

• Tare weight: 16.429 lb

Inner Carton

• Inner carton (L x W x H): 9.4 x 9 x 7.6 inch

• Nett weight: 1.382 lb

• Gross weight: 1.922 lb

• Tare weight: .54 lb

•

Forward facing style

Designed to be forward facing style, to release most of the clamping force on the ears, for better comfort.

Neodymium magnet

Neodynium is the best material for producing a strong magnetic field for greater sensitivity in a voice coil, better bass response and higher overall sound quality.

24k Gold-plated plug

Rest assured that the precious metal gold finishing on the plug will give you a more reliable connection for better quality audio.

CCAW voice coil

By using top-quality Copper Cladded Aluminium Wire (CCAW) in the headphone driver's voice coil, the sound quality is considerably improved.

Ultra lightweight headband

The slim, lightweight stainless steel headband is so light you'll hardly notice you're wearing it.

15 mm speaker driver

Small enough for optimum wearing comfort and big enough to deliver crisp, non-distorted sound, the 15 mm speaker driver is an ideal size for listening enjoyment.

Foldable for compactness

The headphone is designed to fold extremely small, so it fits in your pocket.

1.2 meter cable

The ideal cable length to give you the freedom to put your audio device where you want.

Issue date 2008-08-19

Version: 5.0.4

12 NC: 9082 100 05701 UPC: 0 26616 02888 7

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com
