Philips SHH9757/10 leaflet

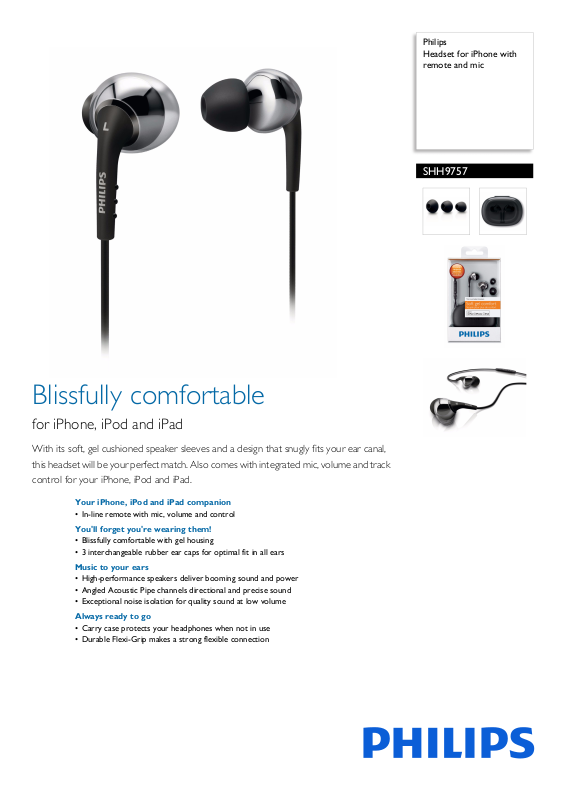

Page 1

Philips Headset for iPhone with remote and mic

SHH9757

Blissfully comfortable

for iPhone, iPod and iPad

With its soft, gel cushioned speaker sleeves and a design that snugly fits your ear canal, this headset will be your perfect match. Also comes with integrated mic, volume and track control for your iPhone, iPod and iPad.

Your iPhone, iPod and iPad companion

• In-line remote with mic, volume and control

You'll forget you're wearing them!

• Blissfully comfortable with gel housing

• 3 interchangeable rubber ear caps for optimal fit in all ears

Music to your ears

• High-performance speakers deliver booming sound and power

• Angled Acoustic Pipe channels directional and precise sound

• Exceptional noise isolation for quality sound at low volume

Always ready to go

• Carry case protects your headphones when not in use

• Durable Flexi-Grip makes a strong flexible connection

Page 2

Headset for iPhone with remote and mic

SHH9757/10

Highlights

In-line remote with mic

Want to skip a track? Change the volume? Accept or reject a call? Record a voice memo? The remote features a sensitive mic as well as volume controls, call and skip functions. It can also trigger voice control. With this headset, control is at your fingertips - no need to keep your iPhone or iPod accessible or to unlock the screen.

Blissfully comfortable

Designed for blissful comfort, these headphones are wrapped in a gel sleeve. The soft sleeve gently moulds to the shape of your outer ear to make these your new favourite headphones.

For optimal fit in all ears

With a choice of 3 interchangeable ear caps from size small to large, there is sure to be a pair that makes these Philips earphones fit your ear perfectly.

For booming sound and power

The speaker driver is made of a composite Mylar material for a highly sensitive yet powerful element that enables superior power output and delivers high-fidelity sound without any audible distortion.

For most directional sound

Angled Acoustic Pipe is designed according to the curvature of the human ear canal so that sound waves from the speaker are directed precisely to your ear drum with the highest definition

For best sound at low volume

You don't have to turn up the volume in noisy places any more. Angled Acoustic Pipe and the perfectly sealing ear buds cut off background noise significantly, delivering the same quality sound at a lower volume and with a longer battery life.

Carry case

This case is the most convenient way to look after your headphones and prevent the cable tangling when not in use.

Flexi-grip design

The soft flexi-grip material that the body of the headphone is sheathed in enhances its performance and extends its durability. It protects the cable connection from damage that otherwise could occur due to repeated bending of the headphone body from frequent contact with the user's fingertips when being put on and removed.

Specifications

Sound

• Frequency response: 5 - 23,500 Hz

• Speaker diameter: 8.6 mm

• Acoustic system: Open

• Magnet type: Neodymium

• Voice coil: CCAW

• Diaphragm: Mylar dome

•Impedance: 16 Ohm

• Maximum power input: 50 mW

• Sensitivity: 103 dB

•Type: Dynamic

Connectivity

• Cable length: 1.2 m

• Connector: 3.5 mm stereo

• Finishing of connector: 24k Gold-plated

•Type of cable: OFC

• Compatible with:: iPad, iPhone 3GS, iPod nano (4th th generation), iPod shuffle (3rd generation),

and 5 iPod touch (2nd generation), iPod classic 120GB/ 160 GB (Your device may require the latest software for support)

• Cable Connection: Two-parallel, symmetric

• Microphone: Built-in microphone

Convenience

•Volume control

Inner Carton

• EAN: 87 12581 55706 5

• Number of consumer packages: 3

• Gross weight: 0.342 kg

• Inner carton (L x W x H): 17.5 x 13 x 11 cm

• Net weight: 0.0372 kg

• Tare weight: 0.3048 kg

Outer Carton

• EAN: 87 12581 55705 8

• Number of consumer packages: 24

• Gross weight: 3.436 kg

•Outer carton (L x W x H): 36.5 x 27.5 x 24.7 cm

• Net weight: 0.2976 kg

• Tare weight: 3.1384 kg

Issue date 2013-09-19

Version: 1.0.5

12 NC: 8670 000 66328 EAN: 69 23410 70472 3

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

Packaging dimensions

• EAN: 69 23410 70472 3

• Number of products included: 1

• Packaging type: Blister

• Packaging dimensions (W x H x D):

9.5 x 17.5 x 4 cm

• Gross weight: 0.093 kg

• Net weight: 0.0124 kg

• Tare weight: 0.0806 kg

•
