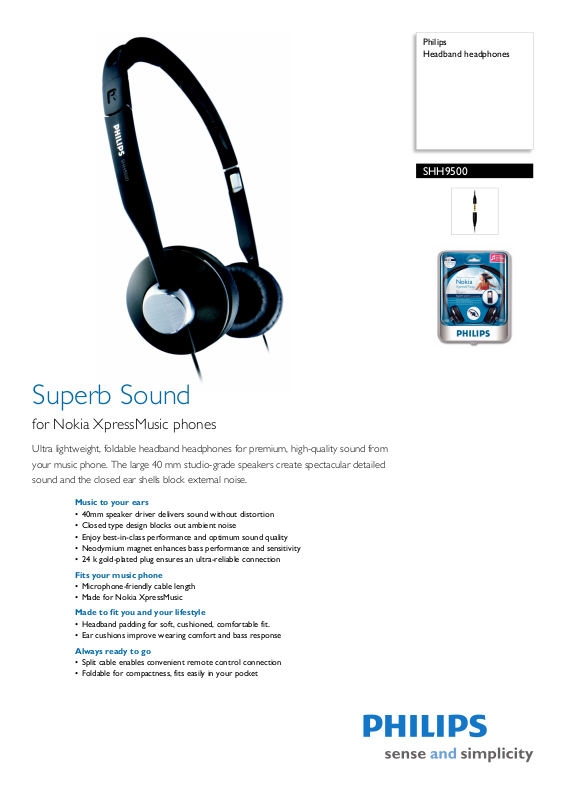

Philips SHH9500/00 leaflet

Page 1

Philips Headband headphones

SHH9500

Superb Sound

for Nokia XpressMusic phones

Ultra lightweight, foldable headband headphones for premium, high-quality sound from your music phone. The large 40 mm studio-grade speakers create spectacular detailed sound and the closed ear shells block external noise.

Music to your ears

• 40mm speaker driver delivers sound without distortion

• Closed type design blocks out ambient noise

• Enjoy best-in-class performance and optimum sound quality

• Neodymium magnet enhances bass performance and sensitivity

• 24 k gold-plated plug ensures an ultra-reliable connection

Fits your music phone

• Microphone-friendly cable length

• Made for Nokia XpressMusic

Made to fit you and your lifestyle

• Headband padding for soft, cushioned, comfortable fit.

• Ear cushions improve wearing comfort and bass response

Always ready to go

• Split cable enables convenient remote control connection

• Foldable for compactness, fits easily in your pocket

Page 2

Headband headphones

SHH9500/00

Specifications

Sound

• Acoustic system: Open

• Magnet type: Neodymium

• Voice coil: CCAW

• Diaphragm: Mylar dome

• Frequency response: 10–28,000 Hz

•Impedance: 32 Ohm

• Maximum power input: 50 mW

• Sensitivity: 96 dB

• Speaker diameter: 40 mm

•Type: Dynamic

Connectivity

• Cable Connection: Two-parallel, symmetric

• Cable length: 0.35 m + 1 m

• Connector: 3.5 mm stereo

• Finishing of connector: 24k Gold plated

•Type of cable: OFC

Accessories

•Extension cable

Inner Carton

• Inner carton (L x W x H): 21 x 18.5 x 27 cm

• Gross weight: 1.03 kg

• Net weight: 0.3 kg

• Tare weight: 0.73 kg

Outer Box

•Outer carton (L x W x H): 39 x 22.5 x 29 cm

• Gross weight: 2.52 kg

• Net weight: 0.6 kg

• Tare weight: 1.92 kg

Packaging dimensions

• Packaging dimensions (W x H x D):

19.7 x 24.8 x 5.6 cm

• Gross weight: 0.25 kg

• Net weight: 0.1 kg

• Tare weight: 0.15 kg

•

Highlights

40 mm speaker driver

The 40 mm speaker driver is made of a composite Mylar material for a highly sensitive yet powerful element that delivers sound without audible distortion.

Closed type design

Sounds around you are perfectly blocked out while the sound from the headphone is kept in a sealed chamber for perfect quality. This makes the headphones ideal for monitoring during live music or recording sessions.

Excellent sound quality

Acoustically-tuned design and high-quality drivers ensure best-in-class audio performance.

Neodymium magnet

Neodymium is the best material for producing a strong magnetic field for greater sensitivity in a voice coil, better bass response and higher overall sound quality.

24 k Gold-plated plug

You can rest assured that the precious metal gold finishing on the plug will give you a more reliable connection for better quality audio.

Headband padding

The soft materials used for the headband cushion ensure comfortable prolonged use.

Issue date 2009-08-27

Version: 2.0.6

12 NC: 8670 000 34281 EAN: 87 12581 36666 7

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

Comfortable ear cushions

The special shape and luxurious materials used for the ear cushions ensure a perfect fit for maximum comfort. They prevent audio leakage and enhance bass performance too. The ear cushions are shaped in such a way that they perfectly align with the area around a person's ear.

Mic-friendly headphones

The cable length of these headphones is designed to optimise sound pick up from the microphone of your headset connector. It also optimises the overall cable length of these headphones combined with a headset connector. Headset connectors allow the use of standard headphones (without a mic and with a standard 3.5 mm headphones plug) with a mobile phone. They often come with mobile phones but can also be purchased separately. For most mobile phone brands, Philips SHH1XXX headset connectors are available. It also optimises overall cable length to the mobile phone.

Split cable

This standard cable has a 3.5 mm socket on one end and a 3.5 mm plug on the other for extending your freedom of movement with headphones.

Foldable for compactness

The headphone is designed to fold extremely small, so it fits in your pocket.

Made for Nokia XpressMusic

This product has been designed for use with Nokia XpressMusic phones. Extensive testing has been carried out with these phones to make sure you will get the best out of your phone in combination with this Philips product.
