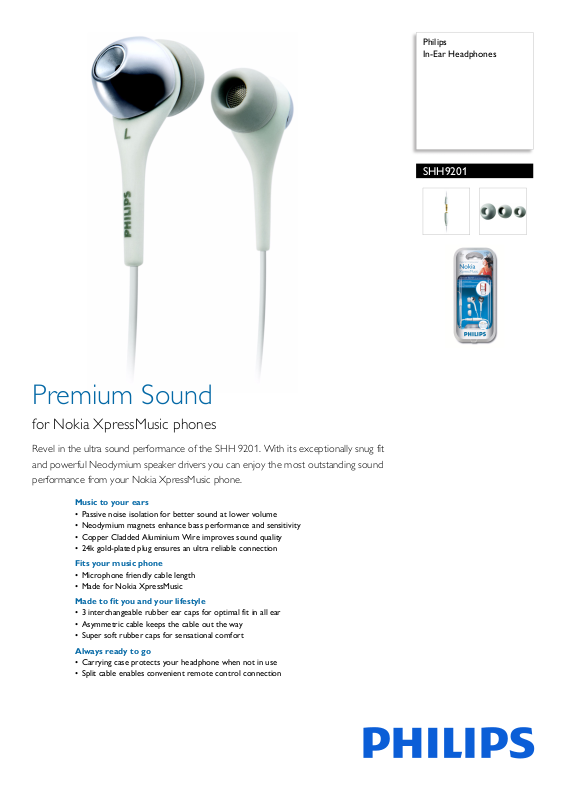

Page 1
Philips
In-Ear Headphones
SHH9201
Premium Sound
for Nokia XpressMusic phones
Revel in the ultra sound performance of the SHH 9201. With its exceptionally snug fit
and powerful Neodymium speaker drivers you can enjoy the most outstanding sound
performance from your Nokia XpressMusic phone.
Music to your ears
• Passive noise isolation for better sound at lower volume
• Neodymium magnets enhance bass performance and sensitivity
• Copper Cladded Aluminium Wire improves sound quality
• 24k gold-plated plug ensures an ultra reliable connection
Fits your music phone
• Microphone friendly cable length
• Made for Nokia XpressMusic
Made to fit you and your lifestyle
• 3 interchangeable rubber ear caps for optimal fit in all ear
• Asymmetric cable keeps the cable out the way
• Super soft rubber caps for sensational comfort
Always ready to go
• Carrying case protects your headphone when not in use
• Split cable enables convenient remote control connection
Page 2
In-Ear Headphones
SHH9201/97
Specifications
Sound
• Acoustic system: Open
• Magnet type: Neodymium
• Voice coil: CCAW
• Diaphragm: Mylar dome
• Frequency response: 6 - 23 500 Hz
•Impedance: 32 Ohm
• Maximum power input: 50 mW
• Sensitivity: 99 dB
• Speaker diameter: 10 mm
•Type: Dynamic
Connectivity
• Cable Connection: Two-parallel, asymmetric
• Cable length: 0.35 m + 1 m
• Connector: 3.5 mm stereo
• Finishing of connector: 24k Gold-plated
•Type of cable: OFC
Accessories
• Carrying case
•Extension cable
Inner Carton
• Inner carton (L x W x H): 23.3 x 18.5 x 11.3 cm
• Gross weight: .531 kg
• Nett weight: .096 kg
• Tare weight: .435 kg
Outer Carton
•Outer carton (L x W x H): 48.8 x 39.8 x 49.2 cm
• Gross weight: 10.016 kg
• Nett weight: 1.536 kg
• Tare weight: 8.48 kg
Packaging dimensions
• Packaging dimensions (W x H x D):
9.9 x 21.9 x 2.9 cm
• Gross weight: .064 kg
• Nett weight: .016 kg
• Tare weight: .048 kg
•
Highlights
Passive noise isolation
The perfect, snug fit inside your ear stops unwanted
background noise detracting from the pure pleasure
of your favorite music. This means you still enjoy the
headphones' superb sound quality at lower volume
settings, and also benefit from a longer battery life.
Neodymium magnets
Neodynium is the best material for producing a
strong magnetic field for greater sensitivity in a voice
coil, better bass response and higher overall sound
quality.
CCAW voice coil
By using top-quality Copper Cladded Aluminium
Wire (CCAW) in the headphone driver's voice coil,
the sound quality is considerably improved.
24k Gold-plated plug
Rest assured that the precious metal gold finishing
on the plug will give you a more reliable connection
for better quality audio.
For optimal fit in all ears
With a choice of 3 interchangeable ear caps from
size small to large, surely there is a pair that makes
these Philips earphones fit your ear perfectly.
Asymmetric cabling system
This simple yet highly effective solution to cable
tangling works effectivly by enabling you to hang the
cable behind your neck instead of under your chin.
Issue date 2014-02-10
Version: 4.0.4
12 NC: 8670 000 33992
EAN: 87 12581 36428 1
Super soft rubber caps
The ultra soft rubber material on the rubber caps are
sensational to the touch and adapts effortlessly to
your ear. In-ear headphones have never been this
comfortable.
Carrying Case
This case is the most convenient way to look after
your headphones and prevent cable tangling when
not in use.
Split cable
This standard cable has a 3.5mm socket on one end
and a 3.5mm plug on the other for extending your
freedom of movement with headphones.
Mic friendly headphones
The cable length of these headphones is designed to
optimize sound pick up from the microphone of your
headset connector. It also optimizes overall cable
length of these headphones combined with a headset
connector. Headset connectors allow the use of
standard headphones (without a mic and with a
standard 3.5mm headphones plug) with a mobile
phone. They often come with mobile phones but can
also be purchased seperatley. For most mobile
phone brands Philips SHH1XXX headset connectors
are available. It also optimizes overall cable length to
the mobile phone.
Made for Nokia XpressMusic
This product has been designed for use with Nokia
XpressMusic phones. Extensive testing with these
phones make sure you will get the best out of your
phone in combination with this Philips product.
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
