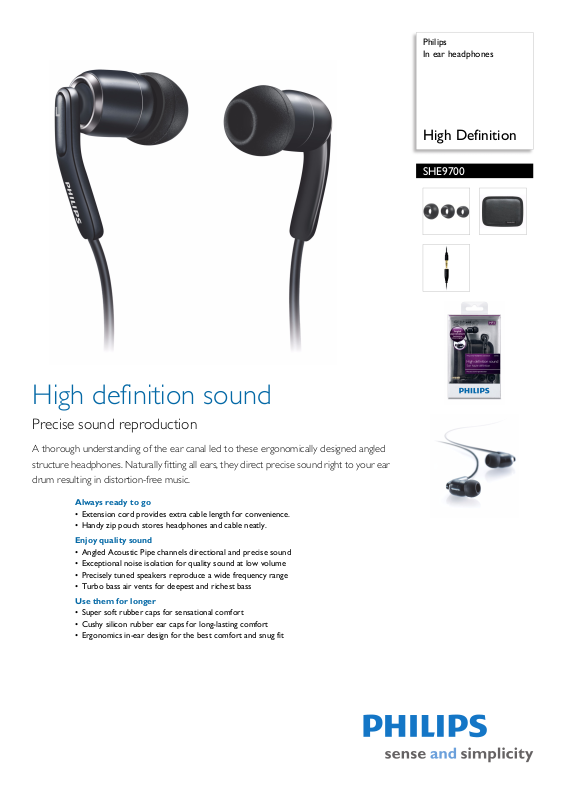

Philips SHE9700-10 User Manual
Philips
In ear headphones
High Definition
SHE9700
High definition sound
Precise sound reproduction
A thorough understanding of the ear canal led to these ergonomically designed angled
structure headphones. Naturally fitting all ears, they direct precise sound right to your ear
drum resulting in distortion-free music.
Always ready to go
• Extension cord provides extra cable length for convenience.
• Handy zip pouch stores headphones and cable neatly.
Enjoy quality sound
• Angled Acoustic Pipe channels directional and precise sound
• Exceptional noise isolation for quality sound at low volume
• Precisely tuned speakers reproduce a wide frequency range
• Turbo bass air vents for deepest and richest bass
Use them for longer
• Super soft rubber caps for sensational comfort
• Cushy silicon rubber ear caps for long-lasting comfort
• Ergonomics in-ear design for the best comfort and snug fit
In ear headphones
High Definition
SHE9700/10
Specifications
Sound
• Acoustic system: open
• Magnet type: Neodymium
• Voice coil: CCAW
• Diaphragm: Mylar dome
• Frequency response: 6 - 23 500 Hz
•Impedance: 16 ohm
• Maximum power input: 50 mW
• Sensitivity: 103 dB
• Speaker diameter: 8.6 mm
•Type: Dynamic
Accessories
• Included: transport case
• Extension cable: 1.2 m
Connectivity
• Cable Connection: two-parallel, symmetric
• Cable length: 0.6 m + 0.6 m
• Connector: 3.5 mm
• Finishing of connector: gold-plated
•Type of cable: OFC
Inner Carton
• Gross weight: 0.355 kg
• Inner carton (L x W x H): 13 x 10.2 x 16 cm
• Nett weight: 0.0279 kg
• Tare weight: 0.3271 kg
• EAN: 87 12581 49727 9
• Number of consumer packagings: 3
Outer Carton
• Gross weight: 3.43 kg
•Outer carton (L x W x H): 54.1 x 21.8 x 18.1 cm
• Nett weight: 0.2232 kg
• Tare weight: 3.2068 kg
• EAN: 87 12581 49728 6
• Number of consumer packagings: 24
Packaging dimensions
• Packaging dimensions (W x H x D):
9.5 x 15 x 4 cm
• Gross weight: 0.0975 kg
• Nett weight: 0.0093 kg
• Tare weight: 0.0882 kg
• EAN: 87 12581 49726 2
• Number of products included: 1
• Packaging type: Blister
•
Highlights
Super soft rubber caps
The ultra soft rubber material on the rubber caps are
sensational to the touch and adapts effortlessly to
your ear. In-ear headphones have never been this
comfortable.
For most directional sound
Angled Acoustic Pipe is designed according to the
curvature of the human ear canal so that soundwaves
from the speaker are directed precisely to your ear
drum with the highest definition
For long-lasting comfort
The ear caps are made of extra soft silicon material
which is sensational to the touch and fits effortlessly
into your ear. They feel so good that you simply
don't want to take them off.
For a snug and natural fit
Angled Acoustic Pipe is ergonomically designed
according to the anatomy of the human ear canal. It
fits in the ear so snugly and comfortably that you can
put it on and simply forget about it.
For best sound at low volume
You don't have to turn up the volume in noisy places
anymore. Angled Acoustic Pipe and the perfectly
sealing earbuds cut off background noise significantly,
delivering the same quality sound at lower volume
and a longer battery life.
Provides extra cable length
With the extra length provided by the extension
cord, you have more freedom to move around
without carrying your audio source. You can also
customize the cable length according to your specific
needs.
Neatly stores headphones away
This sumptuous little zip pouch not only looks hip,
but also stores your headphones and cable neatly
when they're not in use.
reproduce wide frequency range
Acoustically tuned speaker drivers are carefully
designed to reproduce the widest possible frequency
range in any recording, delivering the deepest rich
bass and crystal clear treble in every piece of music
you listen to
For deepest and richest bass
Issue date 2013-01-31
Version: 2.0.6
12 NC: 8670 000 55346
EAN: 87 12581 49726 2
Turbo Bass air vents allow air movement for highfidelity reproduction of the deepest and richest bass.
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
