Philips SHE8005-00 User Manual

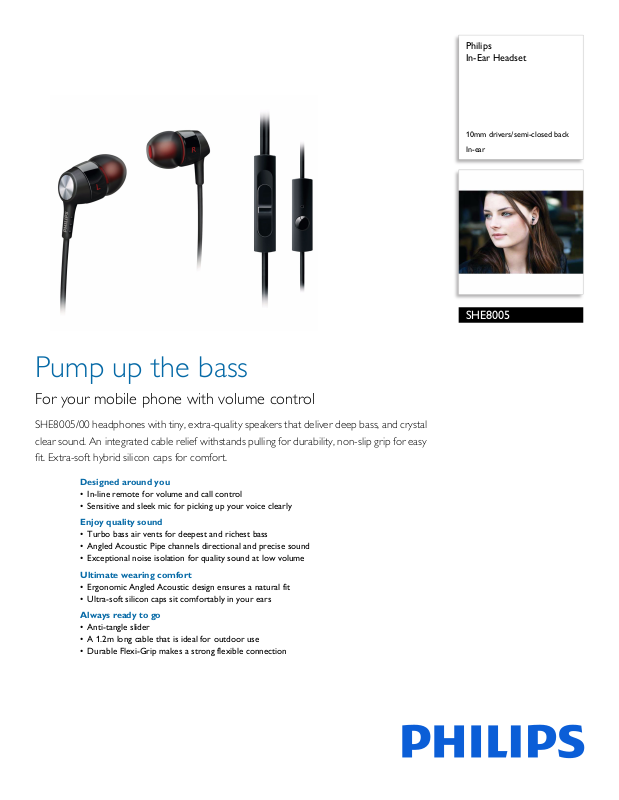

Page 1
Philips In-Ear Headset
10mm drivers/semi-closed back
In-ear
SHE8005
Pump up the bass
For your mobile phone with volume control
Designed around you
• In-line remote for volume and call control
• Sensitive and sleek mic for picking up your voice clearly
Enjoy quality sound
• Turbo bass air vents for deepest and richest bass
• Angled Acoustic Pipe channels directional and precise sound
• Exceptional noise isolation for quality sound at low volume
Ultimate wearing comfort
• Ergonomic Angled Acoustic design ensures a natural fit
• Ultra-soft silicon caps sit comfortably in your ears
Always ready to go
• Anti-tangle slider
• A 1.2m long cable that is ideal for outdoor use
• Durable Flexi-Grip makes a strong flexible connection
Page 2
In-Ear Headset
10mm drivers/semi-closed back In-ear
Highlights
SHE8005/00
In-line vol and call control
Want to change the volume? Accept or reject a call? The remote features volume and call controls. With this headset control is at your fingertips!
Sensitive and sleek microphone
Sensitive and sleek microphone for picking up y
our voice clearly
For deepest and richest bass
For best sound at low volume
You don't have to turn up the volume in noisy p
laces anymore. Angled Acoustic Pipe and the perfectly sealing earbuds cut off background noise significantly, delivering the same quality sound at lower volume and a longer battery life.
Ear fitting design
The design superiority of a slight 15-degree tilt in
the Angled Acoustic model based on the anatomy of the human ear achieves a natural fit and supreme comfort.
3-size ultra-soft silicon caps
The 3 sizes of ultra-soft silicon caps of these Philips earphones sit comfortably in your ears without adding pressure to them whilst blocking out unwanted noise.
Anti-tangle slider
makes it a hassle to store the headphones and get them ready for listening. Simply slide the anti-tangle slider towards the earpieces to keep the two earpiece cables neatly together, and to minimze the risk of the cables tangling.
1.2m cable
The ideal cable length to give you the freedom to pu
t your audio device where you want.
Flexi-grip design
The soft flexi-grip material that the body of the headphone is sheathed in enhances its performance and extends its durability. It protects the cable connection from damage that otherwise could occur due to repeated bending of the headphone body from frequent contact with the user's fingertips when being put on and removed.
Turbo Bass air vents allow air movement for high-fidelity reproduction of the deepest and richest bass.
For most directional sound
Angled Acoustic Pipe is designed according to the
curvature of the human ear canal so that soundwaves from the speaker are directed precisely to your ear drum with the highest definition
When storing your headphones there is a risk that the cables tangle if not stored carefully.This
Page 3
In-Ear Headset
10mm drivers/semi-closed back In-ear
Specifications
SHE8005/00
Sound
• Acoustic system: Semi-closed
• Diaphragm: Mylar dome
• Frequency response: 8 - 24 000 Hz
•Impedance: 16 Ohm
• Magnet type: Neodymium
•Type: Dynamic
• Voice coil: CCAW
• Sensitivity: 100 dB
• Speaker diameter: 10 mm
• Maximum power input: 30 mW
Connectivity
• Connector: 3.5 mm stereo
• Microphone: Built-in microphone
• Compatible with:: Blackberry, HTC, iPhone, LG,
torola, Palm, Sony Ericsson, Nokia, Samsung
Mo
• Type of cable: OFC
• Cable Connection: two-parallel, symmetric
• Cable length: 1.2 m
• Finishing of connector: gold-plated
Convenience
• Volume control
Packaging dimensions
• Packaging dimensions (W x H x D):
9.5 x 15 x 2.5 cm
• Nett weight: 0.0144 kg
• Gross weight: 0.05291 kg
• Tare weight: 0.03851 kg
• EAN: 69 23410 71469 2
• Number of products included: 1
• Packaging type: Carton
• Packaging dimensions (W x H x D):
3.7 x 5.9 x 1 inch
• Gross weight: 0.117 lb
• Nett weight: 0.032 lb
• Tare weight: 0.085 lb
• Type of shelf placement: Both
Outer Carton
• Outer carton (L x W x H): 37 x 22 x 18.7 cm
• Nett weight: 0.3456 kg
• Gross weight: 1.813 kg
• Tare weight: 1.4674 kg
• Number of consumer packagings: 24
• Gross weight: 3.997 lb
• GTIN: 1 69 23410 71469 9
• Outer carton (L x W x
• Nett weight: 0.762 lb
• Tare weight: 3.235 lb
H): 14.6 x 8.7 x 7.4 inch
Inner Carton
•Inner carton (L x W x H): 17.4 x 8.5 x 17 cm
• Nett weight: 0.0864 kg
• Gross weight: 0.4069 kg
• Tare weight: 0.3205 kg
• Number of consumer packagings: 6
• Gross weight: 0.897 lb
• GTIN: 2 69 23410 71469 6
•Inner carton (L x W x H): 6.9 x 3.3 x 6.7 inch
• Nett weight: 0.19 lb
• Tare weight: 0.707 lb
Product dimensions
• Product dimensions (W x H x D):
2.15 x 2.2 x 1.2 cm
• Product dimensions (W x H x D):
0.8 x 0.9 x 0.5 inch
• Weight: 0.0135 kg
• Weight: 0.030 lb
•
Issue date 2014-08-08
Version: 2.1.5
12 NC: 8670 000 90089 EAN: 69 23410 71469 2
© 2014 Koninklijke Philips N.V. All Rights reserved.
Specifications are subject t Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
www.philips.com
o change without notice.
