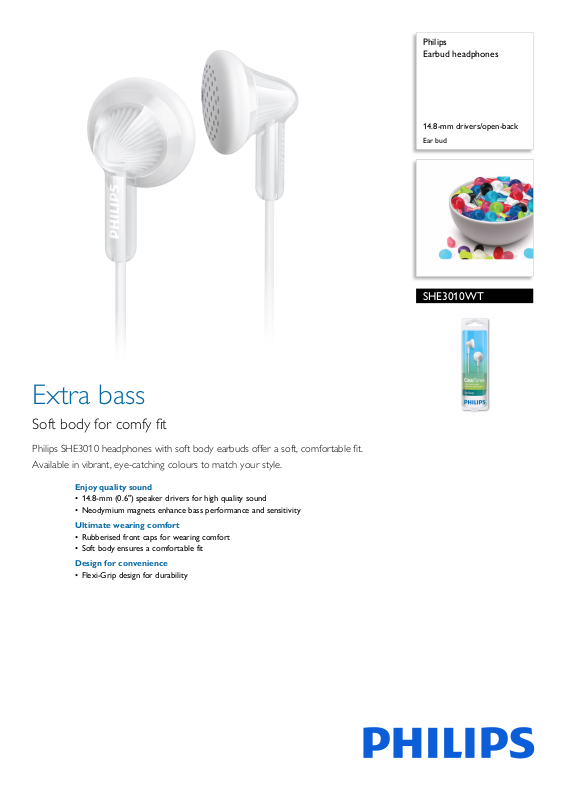

Philips SHE3010 Operating Instructions

Philips Earbud headphones

14.8-mm drivers/open-back

Ear bud

SHE3010WT

Extra bass

Soft body for comfy fit

Philips SHE3010 headphones with soft body earbuds offer a soft, comfortable fit. Available in vibrant, eye-catching colours to match your style.

Enjoy quality sound

• 14.8-mm (0.6") speaker drivers for high quality sound

• Neodymium magnets enhance bass performance and sensitivity

Ultimate wearing comfort

• Rubberised front caps for wearing comfort

• Soft body ensures a comfortable fit

Design for convenience

• Flexi-Grip design for durability

SHE3010WT/00

Earbud headphones

14.8-mm drivers/open-back Ear bud

Specifications

Design

•Colour: White

Sound

• Acoustic system: open

• Magnet type: Neodymium

• Voice coil: copper

• Diaphragm: PET

•Impedance: 16 ohm

• Maximum power input: 25 mW

• Sensitivity: 107 dB

• Speaker diameter: 14.8 mm

•Type: Dynamic

• Frequency response: 9 - 22 000 Hz

Connectivity

• Cable Connection: two-parallel, symmetric

• Cable length: 1 m

• Connector: 3.5 mm

• Finishing of connector: nickel plated

• Type of cable: copper

Packaging dimensions

• EAN: 69 23410 73220 7

• Packaging dimensions (W x H x D):

5.2 x 17.5 x 2.8 cm

• Gross weight: 0.03217 kg

• Net weight: 0.01167 kg

• Number of products included: 1

• Packaging type: Blister

• Tare weight: 0.0205 kg

• Type of shelf placement: Both

Inner Carton

• Gross weight: 0.12351 kg

• GTIN: 2 69 23410 73220 1

• Inner carton (L x W x H): 17.9 x 8 x 6 cm

• Net weight: 0.03501 kg

• Number of consumer packages: 3

• Tare weight: 0.0885 kg

Outer Carton

• Gross weight: 1.21708 kg

• GTIN: 1 69 23410 73220 4

•Outer carton (L x W x H): 34.5 x 19.7 x 16.3 cm

• Net weight: 0.28008 kg

• Number of consumer packages: 24

• Tare weight: 0.937 kg

Product dimensions

• Product dimensions (W x H x D):

1.6 x 2.1 x 1.25 cm

• Weight: 0.01167 kg

•

Highlights

Flexi-Grip

A soft, flexible part protects the cable connection from damage that otherwise would occur due to repeated bending.

Neodymium magnets

Neodymium is the best material for producing a strong magnetic field for greater sensitivity in a voice coil, better bass response and higher overall sound quality.

Soft body

The transparent, rubberised headphone body moulds itself to the shape of the ear for comfortable listening.

14.8-mm (0.6") speakers

Large 14.8-mm (0.6") speaker drivers squeezed into earbud headphones deliver high quality sound.

Rubberised front cap

A rubberised front cap provide a totally soft body for wearing comfort.

Issue date 2017-07-12

Version: 3.2.4

12 NC: 8670 001 17079 EAN: 06 92341 07322 07

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
