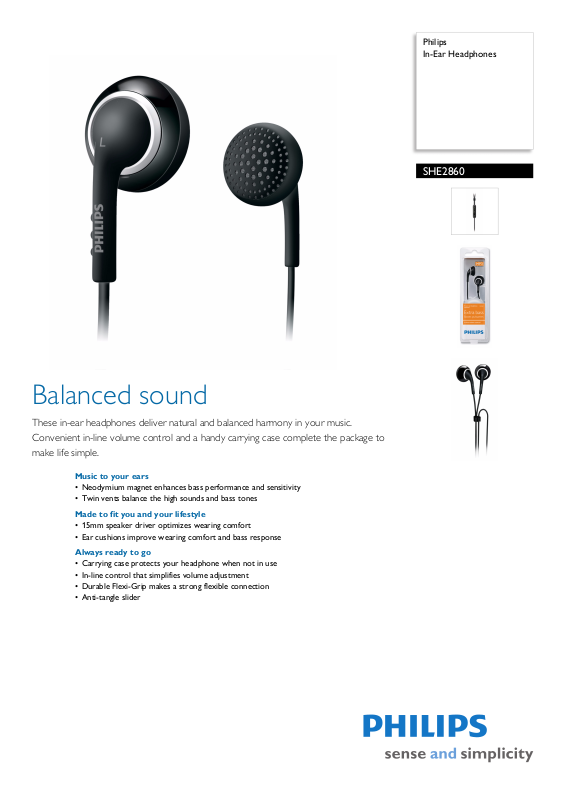

Philips SHE2860-28 User Manual

Philips
In-Ear Headphones

SHE2860

Balanced sound

These in-ear headphones deliver natural and balanced harmony in your music.
Convenient in-line volume control and a handy carrying case complete the package to
make life simple.

Music to your ears

• Neodymium magnet enhances bass performance and sensitivity

• Twin vents balance the high sounds and bass tones

Made to fit you and your lifestyle

• 15mm speaker driver optimizes wearing comfort

• Ear cushions improve wearing comfort and bass response

Always ready to go

• Carrying case protects your headphone when not in use

• In-line control that simplifies volume adjustment

• Durable Flexi-Grip makes a strong flexible connection

• Anti-tangle slider

In-Ear Headphones

SHE2860/28

Specifications

Sound

• Acoustic system: open

• Magnet type: Neodymium

• Voice coil: copper

• Diaphragm: Mylar dome

• Frequency response: 12 - 22 000 Hz

•Impedance: 16 ohm

• Maximum power input: 50 mW

• Sensitivity: 103 dB

• Speaker diameter: 15 mm

Connectivity

• Cable Connection: two-parallel, symmetric

• Cable length: 1 m

• Connector: 3.5 mm

• Finishing of connector: nickel plated

• Type of cable: copper

Convenience

•Volume control

Accessories

• Included: transport case

Packaging dimensions

• Packaging dimensions (W x H x D):

5.2 x 17 x 3.5 cm

• Packaging dimensions (W x H x D):

2.0 x 6.7 x 1.4 inch

• Nett weight: 0.0134 kg

• Nett weight: 0.030 lb

• Gross weight: 0.04 kg

• Gross weight: 0.088 lb

• Tare weight: 0.0266 kg

• Tare weight: 0.059 lb

• UPC: 6 09585 18694 1

• Number of products included: 1

• Packaging type: Blister

Outer Carton

• GTIN: 1 06 09585 18694 8

• Number of consumer packagings: 24

• Gross weight: 3.810 lb

• Gross weight: 1.728 kg

•Outer carton (L x W x H): 13.0 x 9.6 x

•Outer carton (L x W x H): 33 x 24.4 x 15.1 cm

• Nett weight: 0.3216 kg

• Nett weight: 0.709 lb

• Tare weight: 3.101 lb

• Tare weight: 1.4064 kg

5.9 inch

Inner Carton

• GTIN: 2 06 09585 18694 5

• Number of consumer packagings: 6

• Gross weight: 0.833 lb

• Gross weight: 0.378 kg

• Inner carton (L x W x H): 12.1 x 4.5 x 2.6 inch

• Inner carton (L x W x H): 30.8 x 11.5 x 6.5 cm

• Nett weight: 0.0804 kg

• Nett weight: 0.177 lb

• Tare weight: 0.656 lb

• Tare weight: 0.2976 kg

•

Highlights

15 mm speaker driver

Small enough for optimum wearing comfort and big
enough to deliver crisp, non-distorted sound, the 15
mm speaker driver is an ideal size for listening
enjoyment.

Carrying Case

This case is the most convenient way to look after
your headphones and prevent cable tangling when
not in use.

Comfort ear cushions

The special shape and luxurious materials used for
the ear cushions of these Philips headphones ensure
a perfect fit for maximum comfort. They prevent
audio leakage and enhance bass performance too.
The ear cushions are shaped in such a way that they
perfectly align with the area around a person's ear.

In-line volume control

Adjust the volume to your preferred level without
having to go to the audio source unit.

Neodymium magnet

Neodynium is the best material for producing a
strong magnetic field for greater sensitivity in a voice
coil, better bass response and higher overall sound
quality.

Twin vents

Specially designed vents that channel the air balance
the high tones and bass for a more rounded listening
experience.

Flexi-Grip design

A soft, flexible part protects the cable connection
from damage that otherwise would occur due to
repeated bending.

Issue date 2012-07-31

Version: 1.0.3

12 NC: 8670 000 60818
UPC: 6 09585 18694 1

© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com
