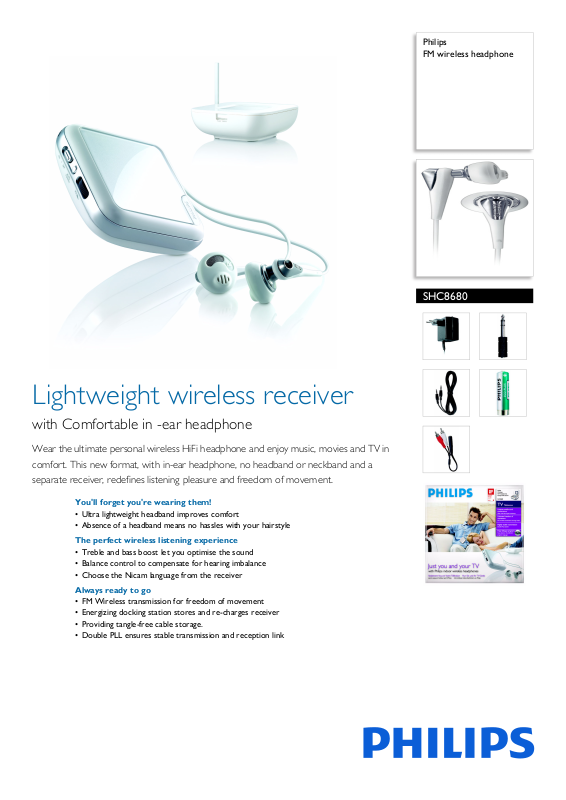

Philips
FM wireless headphone
SHC8680
Lightweight wireless receiver
with Comfortable in -ear headphone
Wear the ultimate personal wireless HiFi headphone and enjoy music, movies and TV in
comfort. This new format, with in-ear headphone, no headband or neckband and a
separate receiver, redefines listening pleasure and freedom of movement.
You'll forget you're wearing them!
• Ultra lightweight headband improves comfort
• Absence of a headband means no hassles with your hairstyle
The perfect wireless listening experience
• Treble and bass boost let you optimise the sound
• Balance control to compensate for hearing imbalance
• Choose the Nicam language from the receiver
Always ready to go
• FM Wireless transmission for freedom of movement
• Energizing docking station stores and re-charges receiver
• Providing tangle-free cable storage.
• Double PLL ensures stable transmission and reception link
Page 2
FM wireless headphone
SHC8680/00
Specifications
Sound
• Signal/noise ratio: ~60dB
• Sound Enhancement: Bass Boost, Treble Boost
•THD: < 2%
Tuner/Reception/Transmission
• Channel separation: > 30 dB
• Pilot tone frequency: 19 kHz
• Signal modulation: FM
• Carrier frequency range: 863.0 - 865.0 MHz
•Automatic mute
• Automatic channel selection
• Number of channels: 3
Convenience
• Automatic power off
• Base Station Features: Power LED Indicator
• Battery charging indication
• Battery low indication
•Double PLL
• Operating time: ~10hrs
Accessories
• AC/DC Adaptor: 12V, 200mA
• Adaptor plug: 3.5-6.3 mm
• Battery charger: recharg
• Belt clip
• Neck strap
ing docking station
Power
• Power supply headphone: 1 x AA NiMH
rechargeable
• Power supply transmitter: AC/DC adapter 12V/
0mA
20
Outer Carton
• Gross weight: 3.55 kg
•Outer carton (L x W x H): 37 x 20.7 x 21.3 cm
• Nett weight: 2.28 kg
• Tare weight: 1.27 kg
Packaging dimensions
• Packaging dimensions (W x H x D):
18.6 x 18.9 x 11.5 cm
• Gross weight: 1.406 kg
• Nett weight: .76 kg
• Tare weight: .646 kg
•
Highlights
Ultra-lightweight design
The slim, lightweight stainless steel headband is so
light you'll hardly notice you're wearing it.
Headband-free
This is the only wireless headphone that does not
mess up your hair!
Bass and Treble boost
Enjoy the most natural sound reproduction for your
choice of music by boosting the treble and bass.
Balance Control
If you have better hearing in one ear than the other,
you can easily compensate for this using the
adjustable left-right balance, and enjoy a personalized
listening experience.
Nicam Language control (I/II)
In countries that transmit some TV programmes in
two languages, you can remotely choose which one
to listen to from a control on the receiver unit.
FM Wireless transmission
With high frequency FM wireless transmission,
which can even pass through walls, you can even
listen to your music when you're in another room.
Energizing docking station
The docking station is the most convenient way to
store your receiver when not in use. At the same
time, it will recharge your reciever unit and have it
ready for use at any moment.
Cable storage
An easy accessable storage area in the transmitter
allows for the headphone along with its cable to be
stored.
Double PLL
Both the transmitter and the wireless headphone
have precision microprocessor-controlled Phase
Locked Loop (PLL) systems to ensure the most
stable transmission.
Issue date 2014-02-06
Version: 9.0.13
12 NC: 9082 100 04341
EAN: 87 10895 88009 1
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
