Philips SFF 6135D User Manual

SFF 6135d

Register your product and get support at

www.philips.com/welcome

EN

User Manual

EN

Introduction

Dear Customer

Introduction Brand Variable

With the purchase of this device, you have chosen a quality PHILIPS product brand. Their device fulfils the most varied requirements for private use or in your office and business everyday.

Energy Saving Mode

You use the power and toner saving functions to save electricity and toner, by switching the device to power saving mode or printing in toner saving mode. Use the ECO- button to make toner saving copies quickly and simply.

Starter Cartridge

For printing purposes, your device utilises the most upto-date laser printing technology. A starter cartridge is provided with the device. This starter cartridge is already installed; however you must remove the packaging used for transportation before you can use the device.

Paper Tray

You can insert a supply of paper into the paper tray of up to 250 sheets. You can insert special paper formats, envelopes, slides, sheets of labels or printed documents into the manual paper feed.

Document Feed Slot

The device is equipped with an automatic document feeder. Up to 50 Documents can be feed automatically into the machine to be scanned, faxed or copied. You can scan single documents or smaller templates using the flatbed scanner.

Crystal

Your device has the image and text enhancement function Crystal with which you achieve optimal printing and copying quality for your documents.

Introduction

Using the business card copy, you can copy both sides of a small document (for example of a business card) onto one page

Print Calendar

Your device prints a weekly overview as a calendar page for you – for the current week, the coming week or a freely selectable week.

If you want, your device can print Sudoku puzzles in four different difficulty levels with solution.

Telephone Book

In the telephone book of your device, you can save entries with multiple numbers and collect multiple entries into groups. You can assign various ring tones to the entries.

You have many functions available to you for fax transmission, for example, different resolutions or the timer function. You can secure your fax reception with a code. In that case, incoming faxes are not printed out, but rather are stored in the fax memory. With the fax polling function, you can retrieve faxes that lie ready in the dialled device.

Time Stamp

The device prints the date and the exact arrival time on every incoming fax received. This allows you to document the exact time at which you have received a fax transmission. A memory buffer in the device ensures that the correct date and time of reception will be maintained even after a power loss.

Introduction

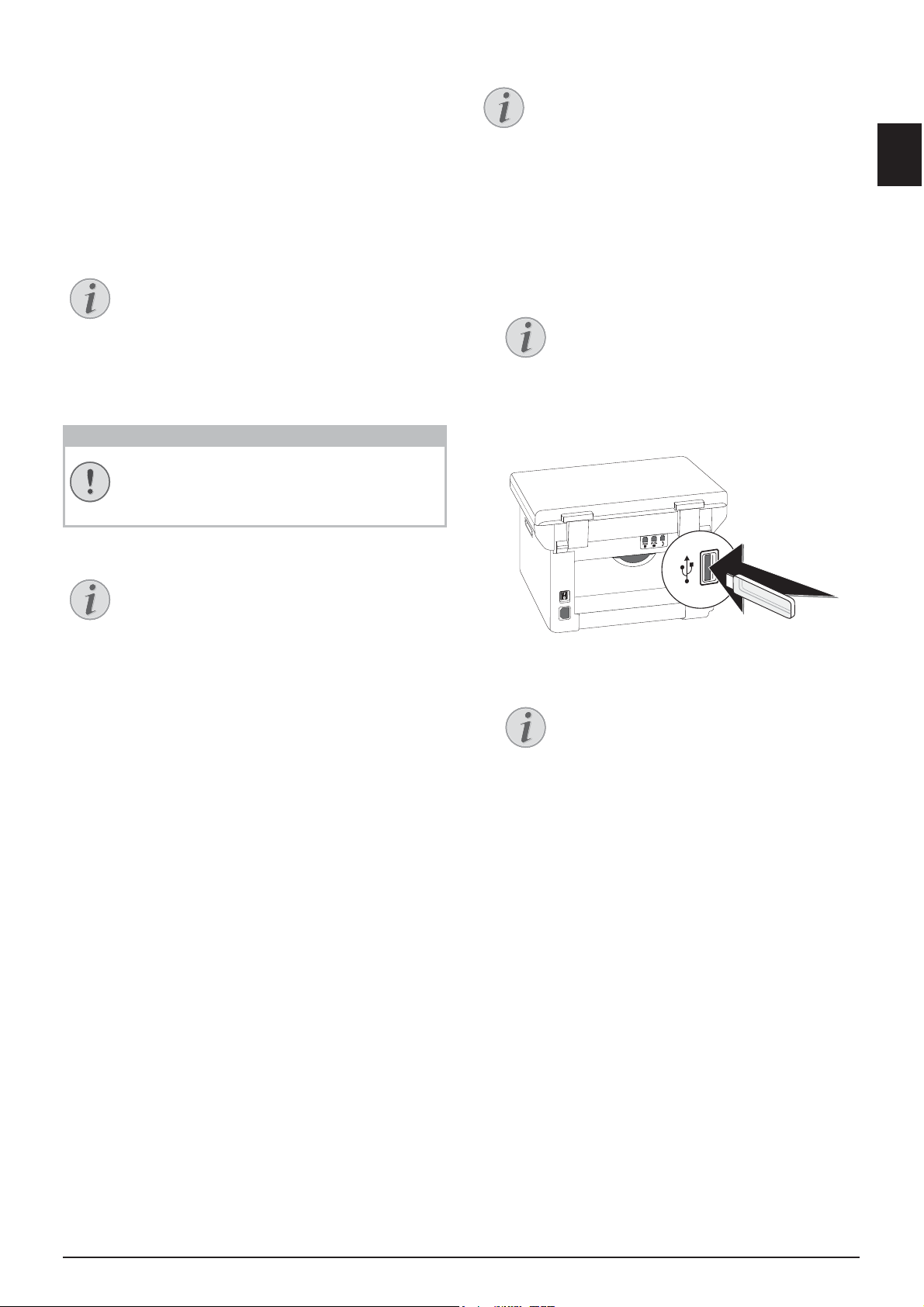

With fax reception onto a USB storage medium, the device saves incoming faxes onto a connected USB storage medium. Fax messages are saved as TIFF files with receipt date and time.

Introduction

The selection menu for USB storage media appears on the display as soon as you connect a USB storage medium (USB stick, external hard drive etc.) to the USB host port on the front of the device. You can print a list of all saved documents or individual documents as well as delete files. Save scanned documents or incoming faxes on to the USB storage medium.

Companion Center SFX

You can connect the device to a computer and use it as a printer or scanner. You'll find the software on the supplied installation CD Companion Center SFX. In this way, you can scan and edit photos and texts, send and receive faxes and access the device's web interfaces, with which you can change many settings.

WLAN

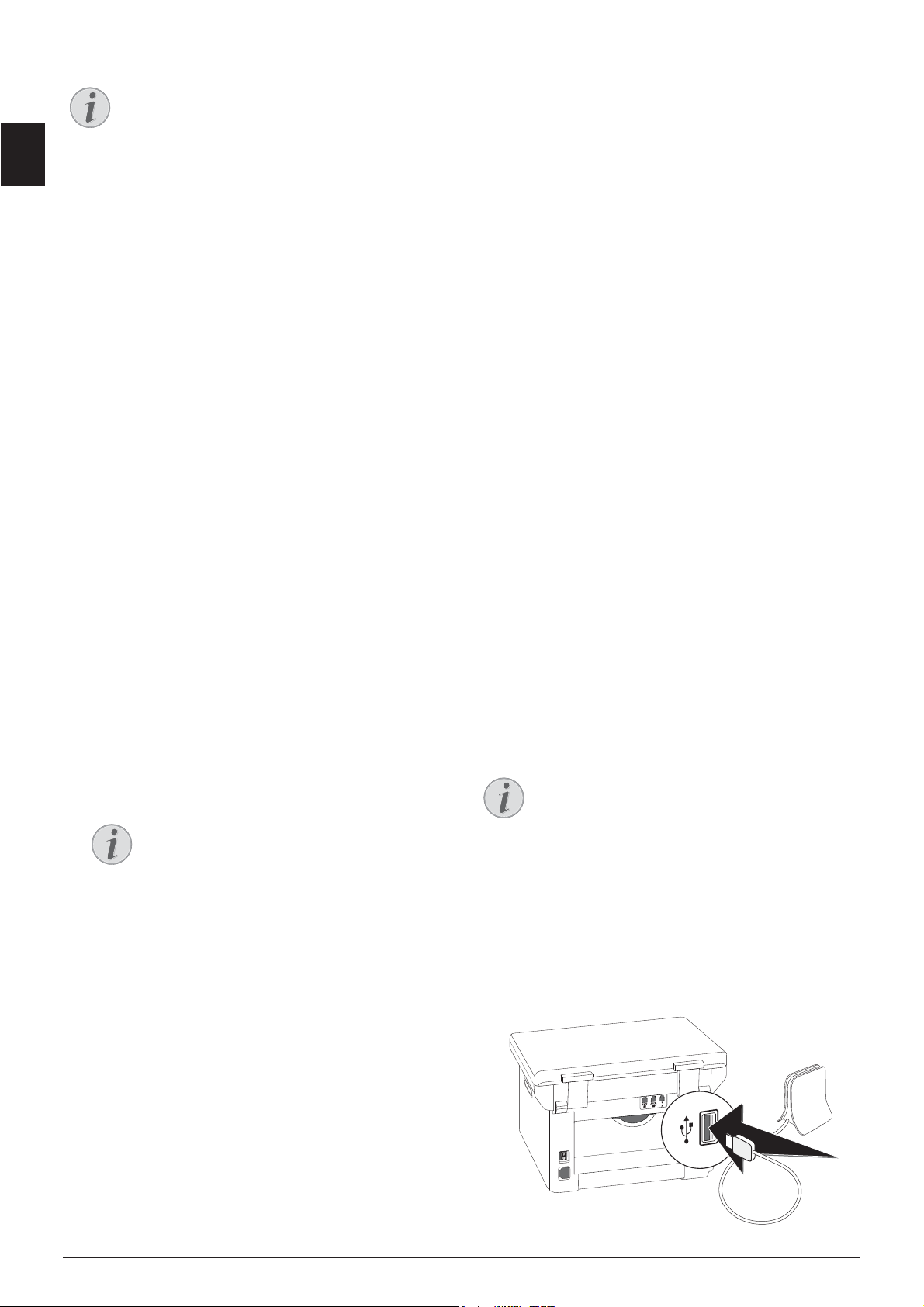

Your device has a WLAN connection. Thus, you can integrate the device into an existing wireless network (WLAN). All computers in the network can then access the device and scan or print.

We hope you enjoy your device and its many functions!

2 Philips · LaserMFD 6135hfd

Table of Contents

Introduction .............................................. 2

Dear Customer ................................................................... 2

1 General Safety Information................ 5

About this User Manual ..................................................... 7

2 Overview............................................... 8

Device Overview ................................................................ 8

Connections on the Rear Side ......................................... 8

Panel with Display ............................................................... 9

Overview of the Menu Functions ................................. 10

3 Initial Operation ................................ 12

Packing Contents ............................................................. 12

Removing Packaging Material ........................................ 12

Connecting the Telephone Handset ............................ 15

Connecting the Telephone Cable ................................ 15

Connecting the Mains Cable ......................................... 15

Initial Installation ............................................................... 16

Connecting to the Computer ....................................... 16

4 Companion Center SFX ................... 18

Requirements .................................................................... 18

Installing the Driver and Software ............................... 18

5 Web Interface .................................... 20

Calling the Web Interface .............................................. 20

Access the Web Interface with an Internet Browser

............................................................................................... 20

6 Scanner ............................................... 21

Loading Documents ......................................................... 21

Scan Document and Save to a Computer .................. 22

Scan Document and Save onto a USB Storage Medium

............................................................................................... 23

Scanning with the Companion Center SFX ............... 24

7 Printer and Printing Media ............... 25

Specifications for Print Media ........................................ 25

Insert Paper into the Paper Tray .................................. 25

Load Paper into the Manual Paper Feed ..................... 27

Loading Envelopes ............................................................ 27

Inserting Slides and Labels .............................................. 27

Loading Pre-printed Material ......................................... 28

Print a List of Available Documents on USB Storage

Medium ............................................................................... 28

Print Document from USB Storage Medium ............. 29

Delete Files on USB Storage Medium ......................... 30

Print Calendar ................................................................... 30

Sudoku: Printing a Game ................................................ 31

8 Copier ................................................. 32

Loading Documents ......................................................... 32

Make Copy Using Standard Settings ............................ 33

Creating Multiple Copies ............................................... 33

Creating Crystal Copy with Image and Text Enhance-

ment (Crystal) ................................................................... 34

Make Copies Using the Second Profile ....................... 34

Make Copies Using User-Defined Settings ................. 34

Make Enlarged or Compressed Copies ....................... 35

Copying both Sides of a Document onto One Side

(= Business Card Copy) .................................................. 35

Configure Settings for Second Profile .......................... 36

9 Telephone Functions......................... 37

Placing a Call on the Device ........................................... 37

Chain Dialling ..................................................................... 37

Getting Outside Line ....................................................... 37

Insert Dialling Pause ......................................................... 37

Calling Additional Telephone Functions ...................... 37

Calling Line Identification (CLIP) ................................... 37

Missed Calls ....................................................................... 38

10 Telephone Book of the Device......... 39

Looking up an Entry ......................................................... 39

Saving Entry ........................................................................ 39

Edit Entry ............................................................................ 39

Delete an Entry ................................................................. 40

Delete all Entries .............................................................. 40

Printing the Telephone Book ......................................... 40

Groups ................................................................................ 40

Exporting/Importing the Telephone Book .................. 41

11 Fax....................................................... 42

Send a Fax Using Standard Settings .............................. 42

Loading Documents ......................................................... 42

Dialling a Number ............................................................ 43

Chain Dialling ..................................................................... 43

Getting Outside Line ....................................................... 43

Insert Dialling Pause ......................................................... 44

Sending Fax Later (= Timer Function) ......................... 44

Sending Fax Manually ....................................................... 44

Using Fax Templates ........................................................ 44

Faxing with the Companion Center SFX .................... 45

Fax Reception .................................................................... 47

Receiving Fax Manually .................................................... 47

Receive Faxes Silently ...................................................... 47

Receiving Faxes onto USB Storage Medium ............... 47

Time Stamp ........................................................................ 47

Setting Protected Fax Reception .................................. 48

Polling Faxes ....................................................................... 48

Jobs ....................................................................................... 48

12 Networks............................................ 50

Wireless Network (WLAN) .......................................... 50

Setting Up a Wireless Network (WLAN) .................. 50

Connect WLAN Adapter ............................................... 51

Switching Wireless Networking (WLAN) On/Off ... 51 Setting up a Wireless Network (WLAN) Using the

Wizard ................................................................................ 51

Setting Up a Wireless Network (WLAN) Manually 52

Additional Wireless Network Settings ........................ 54

EN

Table of Contents 3

EN

13 Settings ............................................... 55

Set Up Power Saving Function ...................................... 55

Set Up Toner Saving Function ...................................... 55

Set Up Paper Saving Function ....................................... 55

Selecting the Country ..................................................... 56

Selecting the Language .................................................... 56

Setting the Date and Time ............................................. 56

Entering Your Telephone Number and Name ......... 57

Setting the Ring Tones .................................................... 57

Deactivating the Button Tones ..................................... 57

Configure Paper Settings ................................................ 57

Set Resolution ................................................................... 58

Setting the Contrast ........................................................ 58

Setting the Brightness ..................................................... 58

Additional Scanner Options .......................................... 58

Additional Copier Options ............................................ 59

Setting the Fax Reception Mode .................................. 59

Silent Fax Reception ........................................................ 59

Additional Options for Fax Transmission .................. 59

Additional Fax Reception Options ............................... 60

Locking the Device .......................................................... 61

Print Lists and Reports ................................................... 62

14 Telephone Lines and Additional

Devices..................................................... 63

Switching Caller Line Identification (CLIP) On/Off .. 63

Selecting the Dialling Process ........................................ 63

Set up the Public Switch Telephone Network (PSTN)

............................................................................................... 63

Set up Private Branch Exchange (PABX) .................... 63

DSL Connection ............................................................... 64

ISDN Connection ............................................................ 64

Registering and De-Registering Additional Cordless

Telephones ........................................................................ 64

Connecting Additional Devices .................................... 65

Using Additional Telephones (Easylink) ...................... 65

Using an External Answering Machine ........................ 66

15 Service................................................. 67

Access Help Pages ........................................................... 67

Display Counter Levels .................................................. 67

Displaying the Toner Level ............................................ 67

Checking the Firmware Version ................................... 67

Updating Firmware .......................................................... 68

Changing the Toner Cartridge ...................................... 68

Fixing a Paper Jam ............................................................ 70

Cleaning .............................................................................. 73

Calibrating the Scanner ................................................... 73

Using Service Codes ........................................................ 74

Power Cycling ................................................................... 74

Problems and Possible Causes ...................................... 75

Error Messages and Possible Causes ........................... 77

16 Glossary .............................................. 81

17 Appendix............................................. 84

Technical Data .................................................................. 84

Guarantee .......................................................................... 85

Declaration of Conformity (DoC) ............................... 86

Customer Information .................................................... 88

4 Philips · LaserMFD 6135hfd

1 General Safety Information

Introduction 3

Your device has been tested in conformity with standards EN 60950-1 and IEC 60950-1 and should only be operated with telephone systems and power equipment that meet these standards. The device was built exclusively for use in the indicated sales region.

Introduction 2

Do not make any changes or settings that are not described in this user manual. Physical injury or damage to the device or loss of data can result from improper handling. Take note of all warning and safety notes indicated.

Setting Up the Device

The device should rest securely on a stabile, flat surface.

The device should rest securely on a stabile, flat surface. If the device should fall, it can be damaged or can cause injury to people, especially small children. Position all cables in such a way that no one will stumble on them, thus avoiding possible injuries to persons or damage to the device itself. If the device is dropped it should be inspected by a technical service center.

The distance between the device an d other appliances or objects, m ust be at least 15 centimetres.

The distance between the device and other devices or objects must be at least 15 centimetres; this also applies to the use of additional cordless telephones. Do not place the device in the vicinity of radios or televisions.

Protect the device against direct sunlight

Protect the device against direct sunlight, heat, large temperature fluctuations and moisture. Do not place the device in the vicinity of heaters or air conditioners. Observe the information on temperature and humidity in the technical data.

The device must have sufficient ventilation

The device must have sufficient ventilation and may not be covered. Do not put your device in closed cabinets or boxes. Do not place the machine on soft surfaces such as tablecloths or carpets and do not cover the ventilation slits. Otherwise, the device can overheat and catch on fire.

The area in which you operate the device must be adequately ventilated

The area in which you operate the device must be adequately ventilated, especially if the device is used frequently. Set up your device in such a way that the flow of the exhaust air stream points away from the work station.

In the event that the device becomes too hot, or if you see smoke coming from the device

In the event that the device becomes too hot, or if you see smoke coming from the device, you must immediately pull the power cable out of the power socket. Have your device examined by trained professionals at a technical service location. To prevent the spread of fire, open flames should be kept away from the device.

Do not plug in the device in moist rooms.

Do not plug in the device in moist rooms. Never touch the mains cable, the mains connection or the telephone socket with wet hands.

Do not allow liquids to enter into the device.

Do not allow liquids to enter into the device. Disconnect the device from the electrical power source and from the telephone network, if liquids or foreign objects have entered the device and have your device examined by trained professionals at a technical service location.

Do not allow children to handle the device without su pervision.

Do not allow children to handle the device without supervision. The packing materials should be kept out of the hands of children.

Do not press down or use any force on the scanner cover

Do not press forcefully on the scanner cover when you scan thicker documents or three-dimensional items, this could damage the scanner cover and/or the scanner glass.

Power Supply/Telephone Line

Check whether the mains voltage of your device

Check whether the mains voltage of your device (indicated on the type label) matches the mains voltage available at the setup location.

Emissions

This device complies with EN 55022 Class B. Use only the power and telephones cables supplied. Before you use the device make sure that you connected the telephone cable supplied as described.

Never touch t he power or telep hone cable if the insulation is damaged.

Never touch the power or telephone cable if the insulation is damaged. Replace damaged wires immediately. Use suitable cables only; if necessary please contact our technical customer service or your retailer.

Disconnect your device from the power and telephone networks during an electrical storm.

Disconnect your device from the mains and telephone network during an electrical storm in order to avoid electrical surge damage. If this is not possible, do not use the device during an electrical storm.

Before cleaning the surface of your device, disconnect it from the power and telephone networks.

Before cleaning the surface of your device, disconnect it from the power and telephone networks. Use a soft, lint-free cloth. Never use liquid, gaseous or easily flammable cleansers (sprays, abrasives, polishes, alcohol). Do not allow any moisture to reach the interior of the device.

Only clean the display with a dry, soft cloth.

Only clean the display with a dry, soft cloth. If the display breaks, a mildly corrosive liquid may escape. Avoid all contact with your skin and eyes.

In the event of a power failure, your device will not function;

In the event of a power failure, your device will not function; saved data is retained.

Computer Connection

Only Use High Speed USB Cable

Use only a custom high speed certified USB cable to connect the device to your computer. The cable should be no longer than 1.5 metres.

Wireless Network (WLAN)

The functioning of security systems, medical equipment or sensitive devices can be disrupted by the transmission power of the device. Observe any usage regulations (or restrictions) in the vicinity of such equipment.

High frequency radiation affects medical devices.

The use of this device can affect the operation of insufficiently shielded medical devices and hearing aids and pacemakers through the release of high frequency radiation. Also consult a doctor or the manufacturer of the medical device to establish whether these are sufficiently shielded from external high frequency radiation.

USB Storage Media

Only use storage media that are compatible with the device.

Only use storage media that are compatible with the device. Ensure that the power of a USB device does not exceed the permitted amp limit of the USB connection. You can only connect one high power device (USB 2.0)

EN

General Safety Information · 5

EN

to each USB connection. Do not connect additional devices—such as batteries, fans, charging devices—to your machine. The device only recognises storage media which are formatted with FAT16 or FAT32. NTFS is not supported.

Never pull out the storage medium while the device is ac cessing it.

Never pull out the storage medium while the device is accessing it. This could cause data to be damaged or lost.

Updating Firmware

When carrying out a Firmware update only use the Firmware file for your device from the website: www.sagemcom.com. Using other Firmware files can lead to your device not functioning properly. Sagemcom accepts no liability for device malfunctions which can be traced back to the use of third party Firmware.

GPL Text

The firmware running on the device is partly licensed under GPL. If you have any questions about the licensing of a specific part of the firmware, feel free to contact us on the email address: support.service@sagemcom.com. We can send you a CD containing the relevant source code for the cost of production.

Consumable Materials

Original Consumable Material

Use only original consumable materials. These are available from a specialised retailer or through our order service (see back side of this user manual). Other consumable materials could damage the device or shorten its service life.

Environment

Dispose of old consumable materials according to the waste regulations of your country.

Caution when Handling Toner Powder:

If you breathe in toner powder, go into the fresh air immediately. Call a doctor immediately! If you get toner powder in your eyes, rinse them with a lot of water for at least 15 minutes. Call a doctor immediately! If you have swallowed toner powder, drink small amounts of water. Try NOT to vomit. Call a doctor immediately!

Toner Cartridge 1

Never open a toner cartridge. Store both new and used cartridges in a place where they will not come into the hands of children.

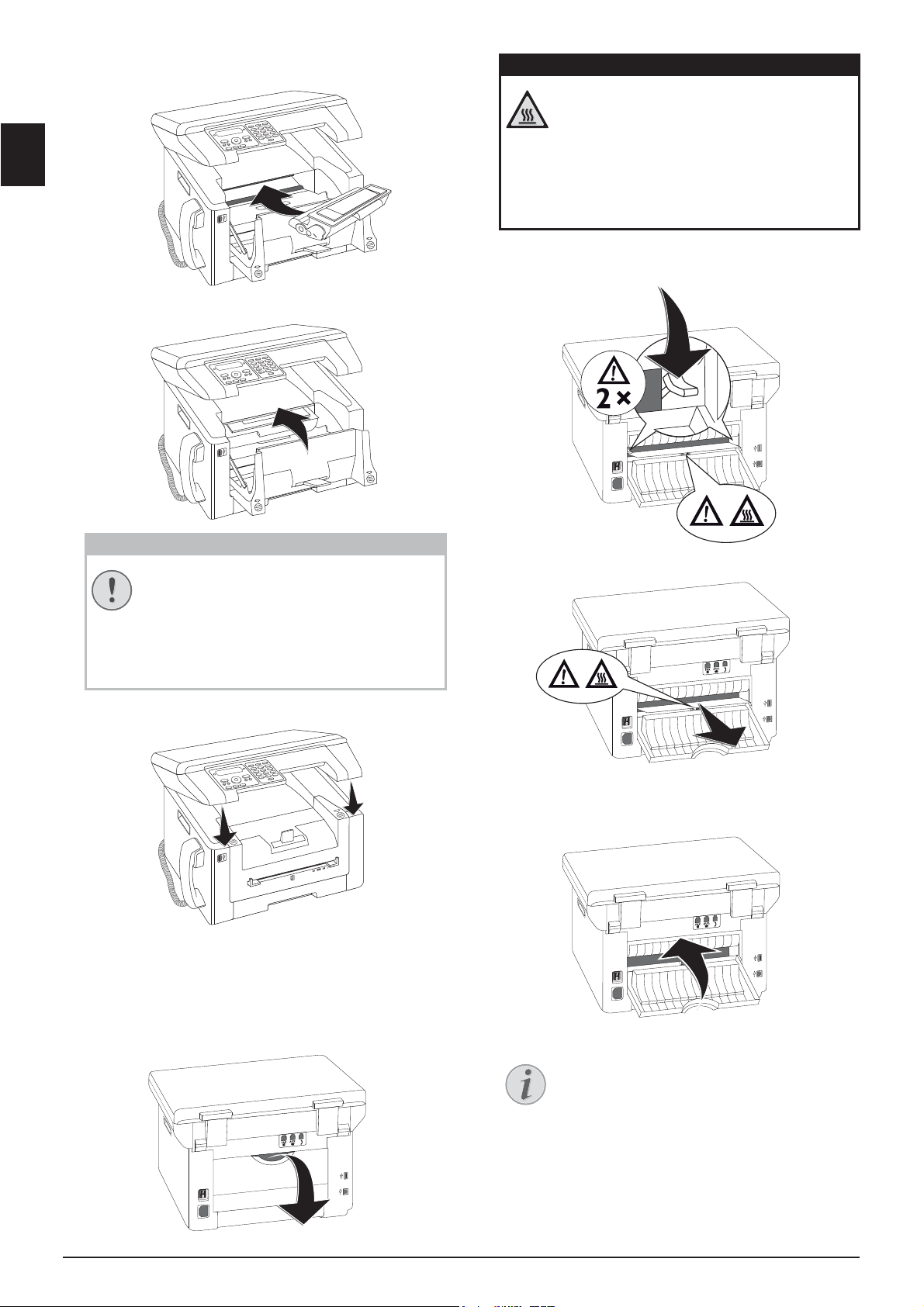

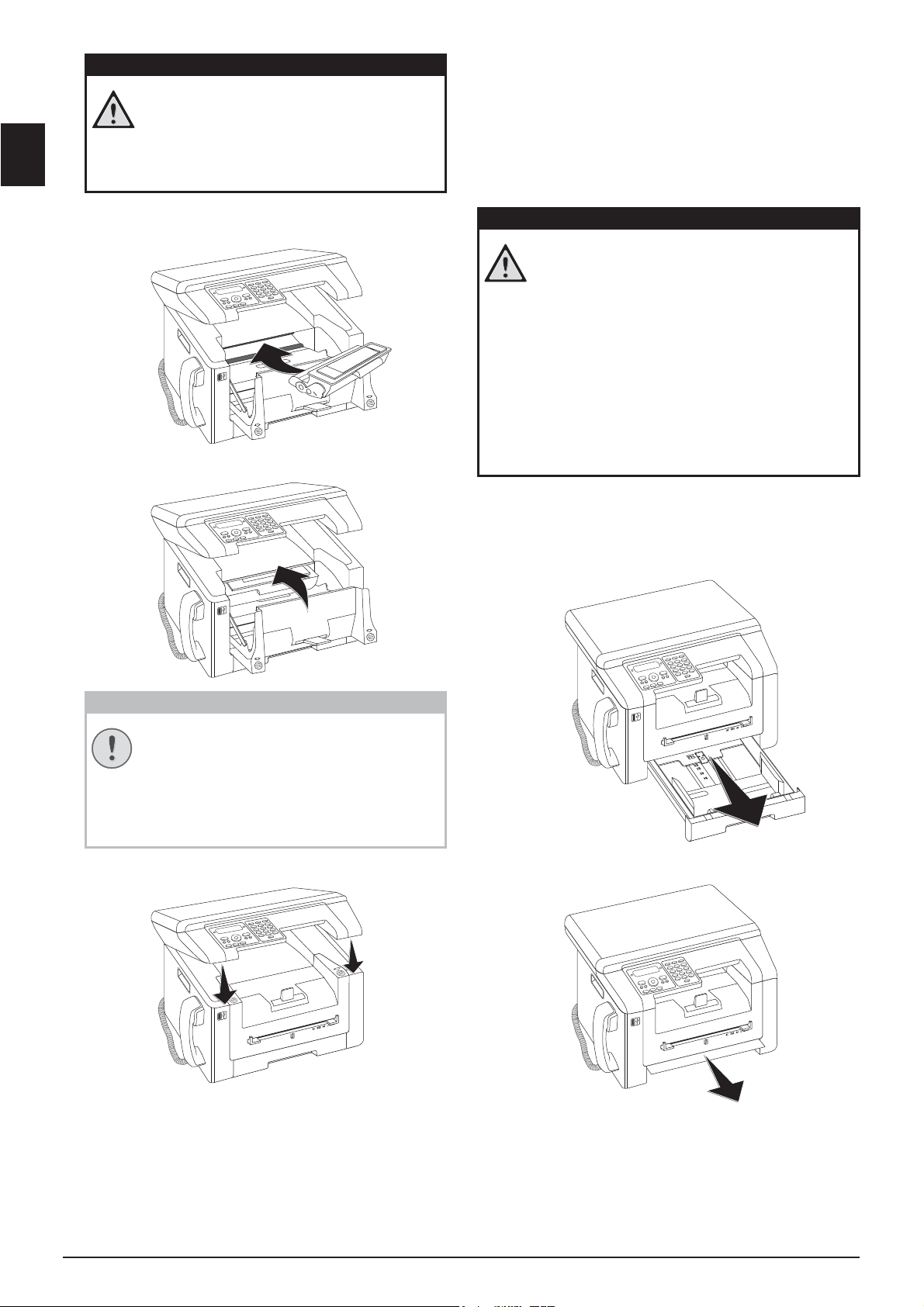

Paper Jam

In case of a paper jam, remove the paper carefully out of the device. Throw the paper away carefully: It is possible that the toner may not be completely set on the print-out, and toner dust could be released into the air.

If toner dust is released into the air, you should avoid al lowing it to contact your skin and eyes.

If toner dust is released into the air, you should avoid allowing it to contact your skin and eyes. Do not inhale the released toner dust. Remove the toner dust from clothing or objects with cold water; hot water would only cause the toner to set. Never remove loose toner dust with a vacuum cleaner.

Repairs

Do not make any repairs to the device yourself. Improper maintenance can result in injuries or damage to the device. Only have your device repaired by an authorised service centre.

Do not remove the type label from your device; this would void the warranty.

Laser Safety

With specific reference to lasers, the equipment complies with laser product performance standards set by governmental, national, and international agencies as a Class 1 Laser Product. It does not emit hazardous light, as the beam is totally enclosed during all phases of customer operation and maintenance.

Direct (or indirect reflected ) eye contact with the laser beam might cause serious eye damage. Safety precautions and interlock mechanisms have been designed to prevent any possible laser beam exposure to the operator. Only a qualified service technician should open the device and carry out service operations.

Class 1 Laser Product

Ã Class 1 Laser Product

Repairs

Danger—Heat!

The fuser unit and and its surroundings inside the device become hot during operation. Do not touch these parts if you have opened the device. Proceed with care when you are removing a paper jam for instance.

Display

Should disruptions occur, follow the instructions on the display and on the error report.

6 Philips · LaserMFD 6135hfd

About this User Manual

Notice

CAUTION!

DANGER!

DANGER—LASER!

DANGER—HEAT!

With the installation guide on the following pages, you can start using your device quickly and easily. Detailed descriptions can be found in the following sections of this user manual.

Read the entire user manual carefully. Follow all safety instructions in order to ensure proper operation of your device. The manufacturer accepts no liability if these instructions are not followed.

Symbols Used

Troubleshooting

This symbol designates tips that will help you to use your device more effectively and easily.

Damage to the Device or Loss of Data!

This symbol gives warning of damage to the device and possible loss of data. These damages can result from improper handling.

EN

Danger to Persons!

Radiation Hazard!

Heat risk!

Danger to Persons!

This symbol gives warning of danger to persons. Physical injury or damage can result from improper handling.

Radiation Hazard!

This symbol in the user manual or inside the device indicates a danger of visible and invisible radiation. Eye injuries or other damage can result from improper handling.

Heat risk!

This symbol in the user manual or inside the device indicates a danger of hot surfaces. Physical injury or damage can result from improper handling.

7

EN

2Overview

Device Overview

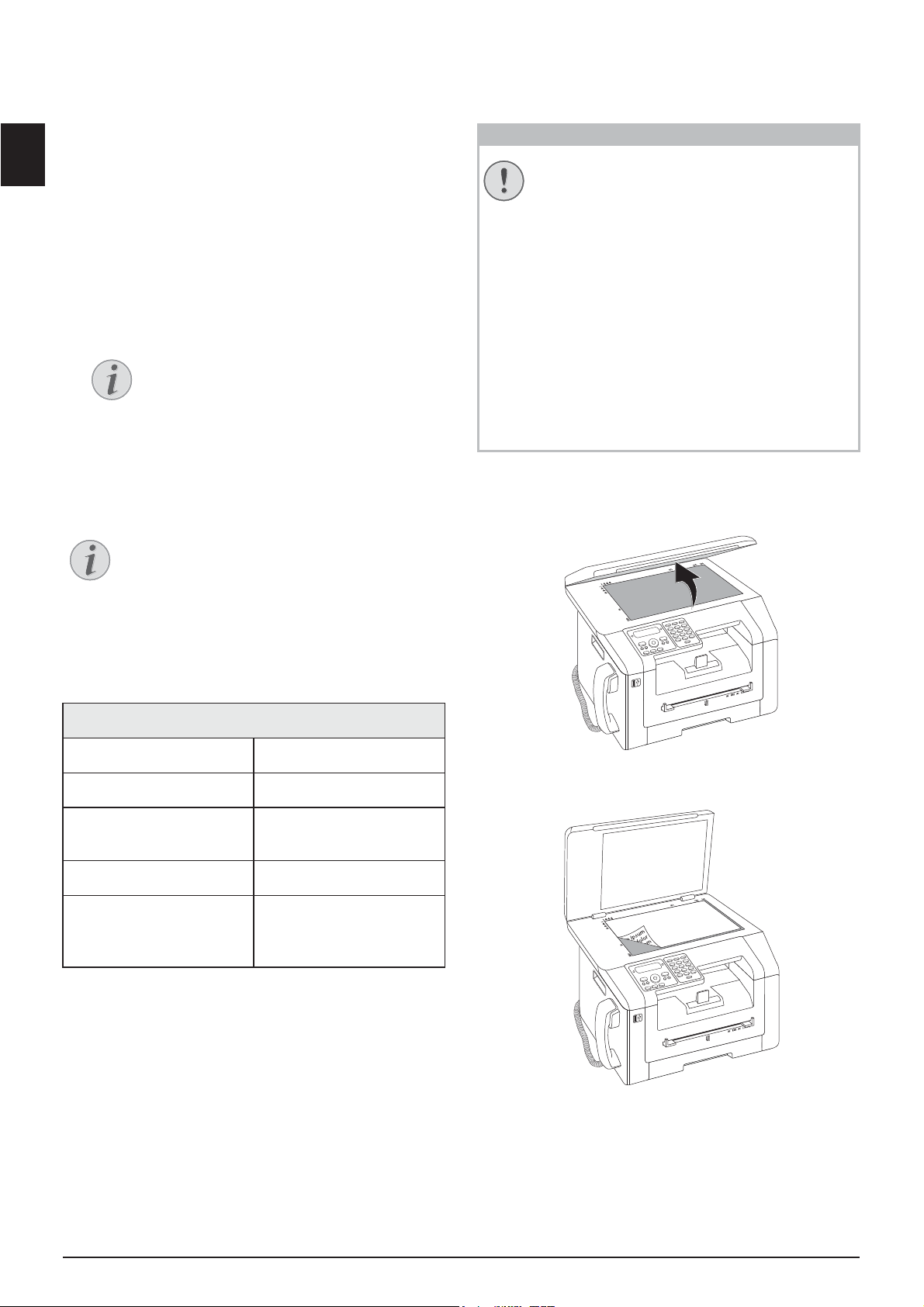

Scanner Cover

‚ Scanner cover

Panel with Display

ƒ Panel with display

Printout and Fax Outlet

„ Printout and Fax Outlet

Printer Output Tray

… Printer output tray

Paper Tray

† Paper tray

Manual Paper Feed

‡ Manual paper feed

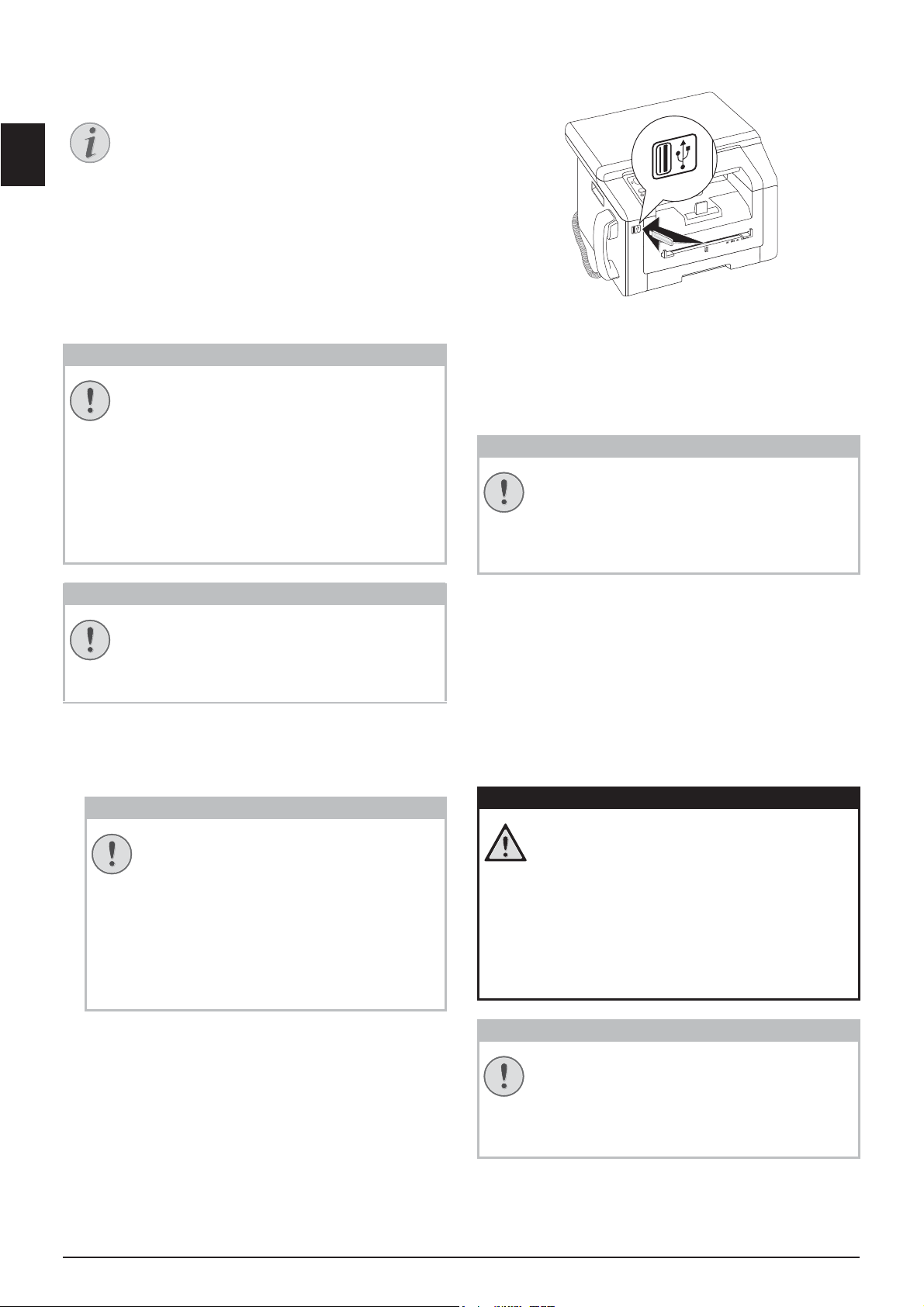

USB Host Connection (Front)

ˆ ý socket—USB Host connection for storage medium

Telephone Hand set with Spiral Cable

‰ Telephone handset with spiral cable

Übersicht nummeriert

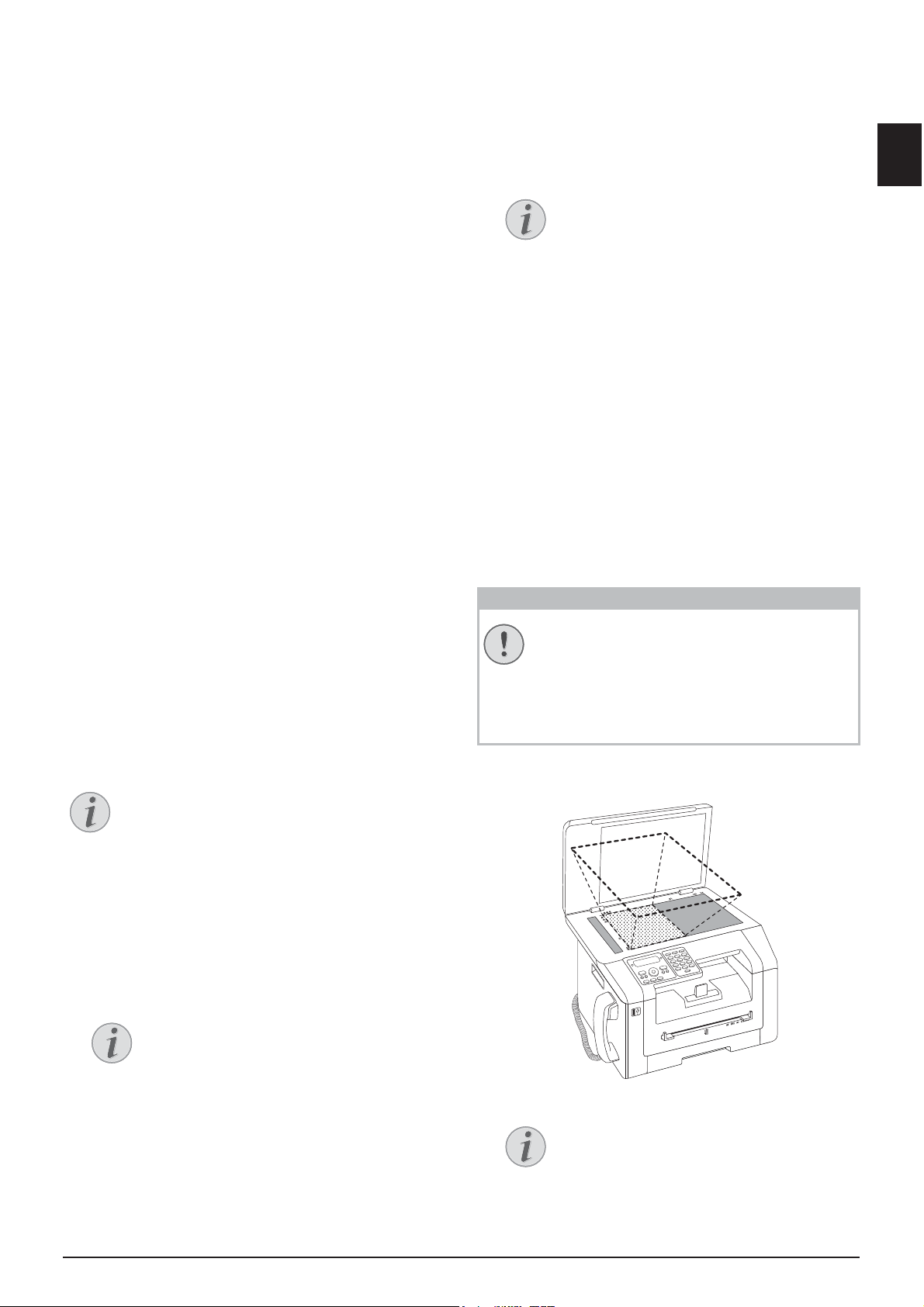

Scanner glass

‚ Scanner glass

Toner Cartridge

ƒ Toner cartridge

Paper Jam Door (Print Unit)

„ Paper jam door (print unit)

Übersicht nummeriert

Spaltenumbruch

Connections on the Rear Side

LINE Socket

‚ FAX/Ñ socket—Connection socket for telephone cable

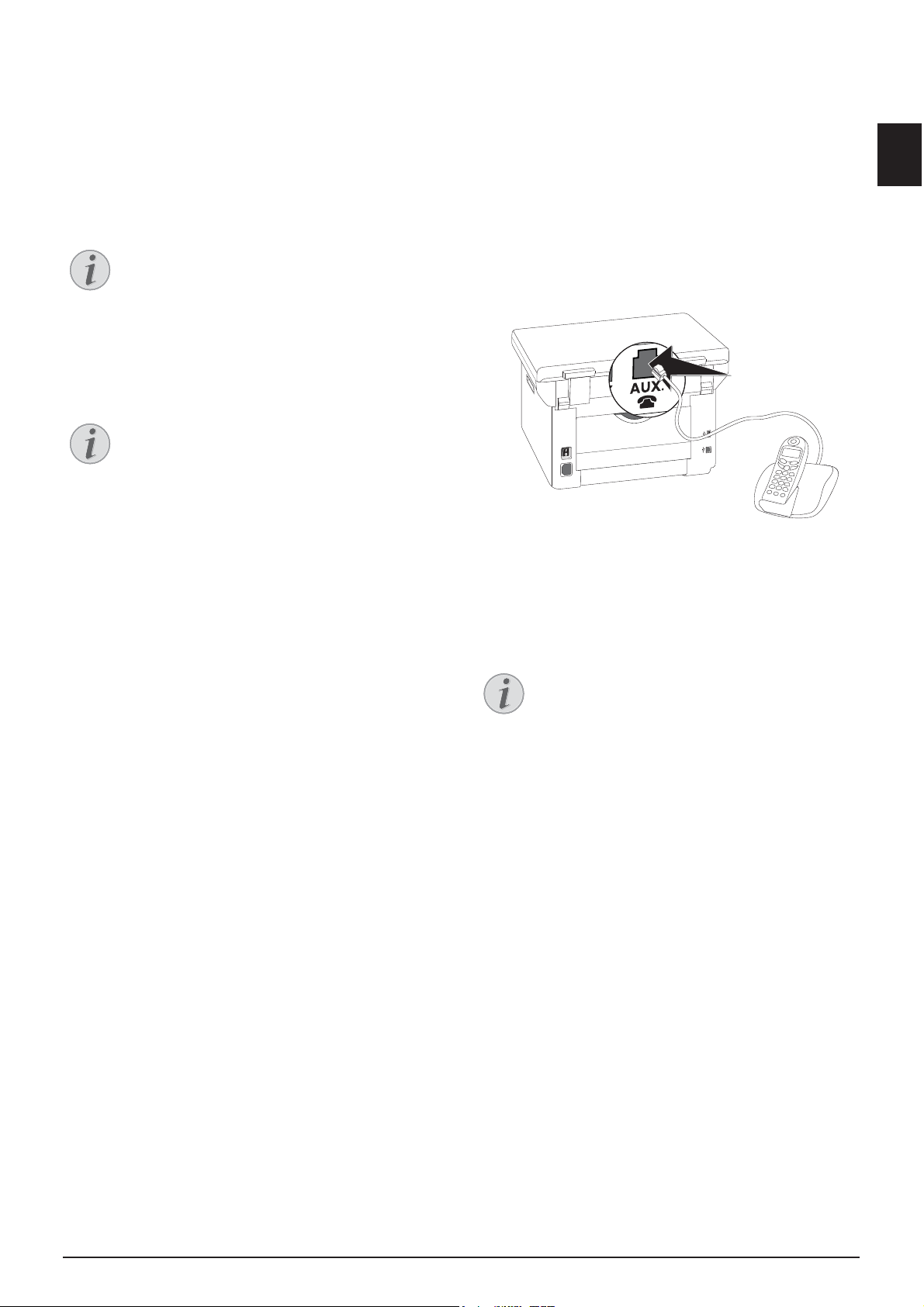

EXT Socket

ƒ AUX./Ò socket—Connection socket for additional devices

Telephone Handset Socket

„ Ó socket—Connection socket for the telephone handset

Tension lever of the fixer unit

… Tension lever of the fixer unit (Two levers!)

USB Host Connection

† ý

USB Connection for the Computer

‡ ý socket—USB connection for the computer

Paper Jam Door (Fuser Unit)

ˆ Paper jam door (fuser unit)

Mains Cable Socket

‰ Mains cable socket

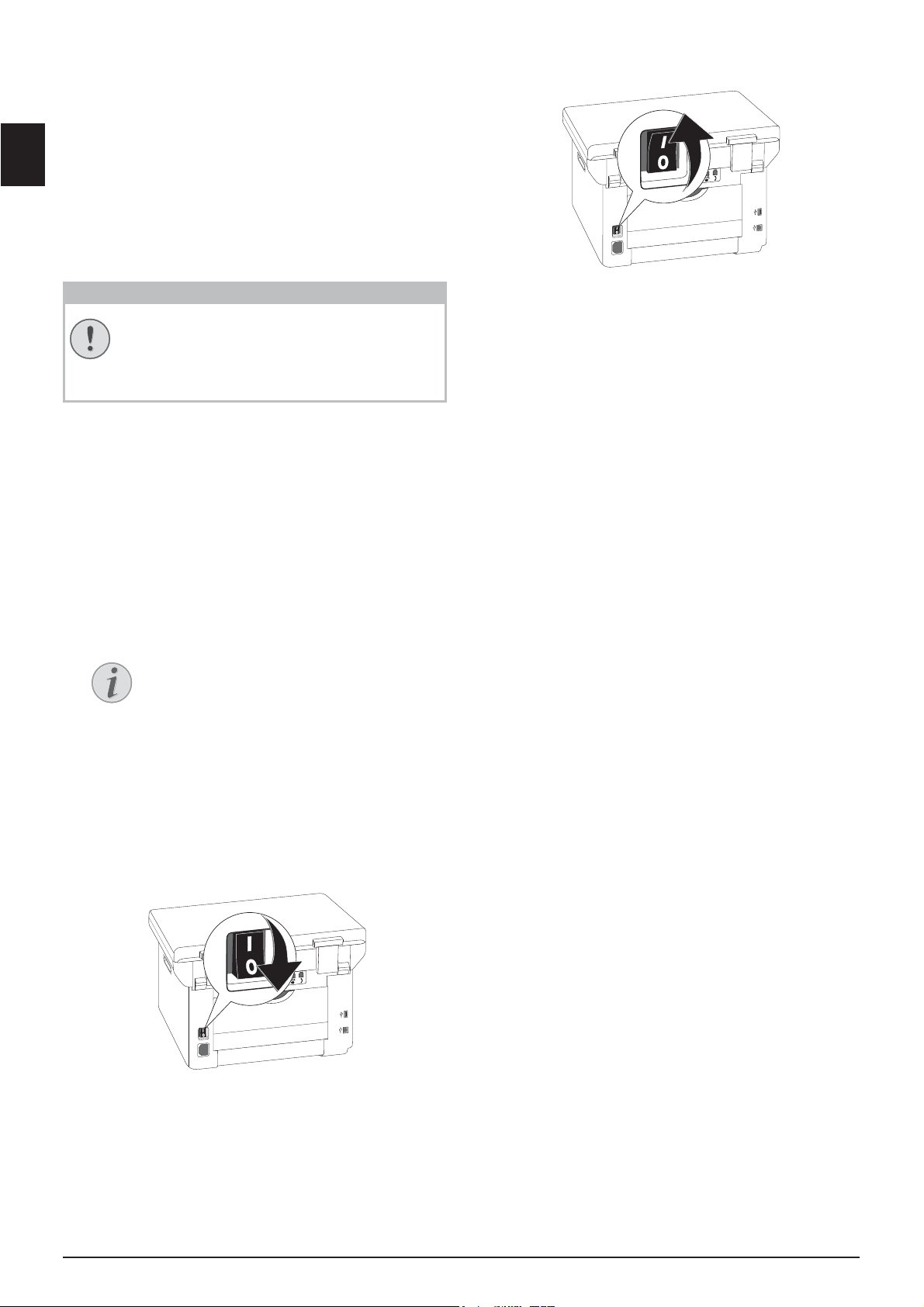

On/Off Switch

Š On/Off switch

Übersicht nummeriert

socket—USB Host connection for storage medium

8 Philips · LaserMFD 6135hfd

Panel with Display

Red Lamp

Red lamp Æ—If the lamp flashes or is lit, please read what is indicated on the display

Green Lamp

Green Lamp â—The green lamp â on the panel will flash whenever there is a fax present in the memory.

Stop 2

j—Function abort / return to the starting mode

C

C—Calling the menu functions / Returning to the previous menu level / deleting individual digits

Arrow Keys

[—Setting number of copies / navigation within the menu / selecting options / moving the cursor

OK

OK—Press twice: making copies automatically. Press once: adjusting copies / Menu Navigation: confirming input

Start (Starting Transmission of Messages / Starting Action)

o—Starting transmission of message / starting action

Contrast

¬—Set the contrast for the scanner

Zoom

Ô/ZOOM—Set the zoom parameter (reduced or enlarged scans)

Duplex

Õ/DUPLEX—Select double-sided or one-sided printing (Duplex/Simplex)

Resolution

f—Setting higher resolution for faxes (DEFAULT,

FINE, SFINE, PHOTO) and copying (AUTO, TEXT, QUALITY, PHOTO)

Fax

FAX—Start a fax transmission or fax reception

Copy

COPY—Press twice: making copies automatically. Press once: adjusting copies

Scan

SCAN—Open selection menu for scanning functions

Redial / caller list

@—Redial / caller list: The redial / caller list contains the last numbers dialled and the last calls received ( indicates the numbers dialled, ® the calls received and * the calls missed).

R

R—Insert short line interruption (Hook Flash) as office index on PABX or for calling special functions in the public telephone network (PSTN)

Telephone Book

m—Calls up telephone book functions

Number Buttons

Numeric keypad—Inputting digits, characters and special characters

ECO

ECO—Retrieves the paper, power and toner saving / make a copy using the toner saving function

LFF 6135hfd

EN

©

Spaltenumbruch Spaltenumbruch

Overview · Panel with Display 9

EN

Overview of the Menu Functions

Introduction

The following functions are available on your device. There are two ways in which you can call functions.

Menu Navigation

Navigating in the Menu: Press C to access the func- tion menu. Page through [ menu entries. Use OK to select a menu function. Press C to return to the previous menu level. Press j to close the menu and return to the starting mode.

Direct Loading

Calling Functions Directly: You can call a menu function directly using the function number. Press C and enter the appropriate function number using the numeric keypad. Confirm with OK. You will find the function number in the following list.

0 Settings

Setting the Paper, Power and Toner Saving Functions.

002 Setting the paper, power and toner saving

functions. .............................................................. page 55

Deactivating the Button Tones

007 Deactivating the Button Tones ...... page 57

Setting the Date and Time

01 Setting the date and time........................ page 56

Entering Name

021 Entering name .................................... page 57

Entering Number

022 Entering number ................................ page 57

Setting the Country

031 Setting the Country .......................... page 56

Setting the Telephone Network

032 Set the telephone network¦*........... page 63

Setting the Language

033 Setting the Language ......................... page 56

Setting the Fax Reception Mode

041 Setting the fax reception mode......page 59

Setting the Number of Ring Tones for Fax Reception

042 Set the number of ring tones for fax

reception .............................................................. page 57

Switch PABX Operation On/Off

051 Switch PABX operation on/off....... page 64

Enter a dialling code for the PA BX operation

0522 Enter a dialling code for the PABX

operation .............................................................. page 64

Selecting the Dialling Process

053 Set the dialling mode (tone/pulse dialling)¦*

................................................................................ page 63

Setting Ring Tone

054 Selecting the Ring Tone...................page 57

Setting the Ring Volume

055 Setting the ring volume .................... page 57

Switching Caller Line Identification (CLIP) On/Off

057 Switches Caller Line Identification (CLIP)

on/off ..................................................................... page 63

* Function is not supported in all countries and networks

*¦Function is not supported in all countries and networks

1 Copier

Set the copier settings

10 Set the copier settings............................. page 58

Make Copy Using Standard Settings

11 Make copies using standard settings .... page 33

Make copies using settings from the second pro file

12 Make copies using the second profile.. page 34

Make Enlarged or Compressed Copies

13 Make enlarged or compressed copies . page 35

Creating Crystal Copy with Image and Text Enhancement (Crystal)

15 Creates Crystal copy with image and text

enhancement (Crystal)...................................... page 34

Copying both Sides of a Document onto One Side (= Business Card Copy)

16 Copies both sides of a document onto one side

(= business card copy) ...................................... page 35

2 Printer

Configure Paper Settings

20 Configure paper settings ........................page 57

Print a List of Available Doc uments on USB Storage Medium

211 Print a list of available documents on USB

storage medium...................................................page 28

Print Document from USB Storage Medium

212 Print document from USB storage medium

.................................................................................page 29

3 Scanner

Scan Document and save to a Computer

31 Scan document and save to a computer

.................................................................................page 22

Scan Document and Save onto a USB Storage Medium

32 Scan document and save onto a USB storage

medium........................................................................page 23

Configure Scanner Settings

30 Configure scanner settings......................page 58

4 Fax

Settings for fax transmission

401 Set fax transmission...........................page 60

Settings for Fax Reception

402 Set fax reception ................................page 60

Setting Protected Fax Reception

403 Setting Protected Fax Reception....page 48

Switches Time Stamp On/Of f

404 Switches time stamp on/off..............page 60

Sending a Fax

41 Sending a Fax..............................................page 42

Poll Faxes

42 Poll faxes .....................................................page 48

Receiving Faxes onto USB S torage Medium

44 Receiving faxes onto USB storage medium

.................................................................................page 47

Printing the Fax Templates

45 Printing the Fax Templates .....................page 44

5 Telephone Book

Looking up an Entry

511 Looking up an entry...........................page 39

Saving Entry

512 Saving Entry .........................................page 39

Creating Group

513 Creating group....................................page 40

Edit Entry

514 Edit Entry .............................................page 39

Deleting an Entry

515 Deleting an Entry ...............................page 40

Printing the Telephone Book

516 Printing the telephone book............page 62

Load Telephone Book from US B Storage Medium

517 Load telephone book from USB storage

medium..................................................................page 41

Saving Telephone Book onto USB Storage Medium

518 Saving telephone book onto USB storage

medium..................................................................page 41

5 Cordless Telephone

Registering Cordless Telephone

521 Registering cordless telephone¦* ....page 64

Deregistering Cordless Telephone

522 De-registering cordless telephone¦*

.................................................................................page 65

Looking for Cordless Telephone

523 Locating cordless phones¦* ..............page 65

*¦Function is Optional

*¦Function is optional and functions only with an original adapter, which you can purchase through our order service. More information: support.service@sagemcom.com

10 Philips · LaserMFD 6135hfd

7 Jobs

Notice

Immediate Job Execution

71 Immediate job execution ........................ page 48

Changing a Job

72 Changing a job ........................................... page 49

Deleting a Job

73 Deleting a job ............................................ page 49

Printing a Job

74 Printing a job.............................................. page 49

Printing the Job List

75 Printing the jobs list ................................. page 62

8 Lists and Reports

Printing List of Settings

80 Printing list of settings ............................. page 62

Printing the List of Available Functions

81 Printing the List of Available Functionspage 62

Printing Fax Journal

82 Printing fax journal ................................... page 62

Printing the Telephone Book

83 Printing the telephone book .................. page 62

Printing the Job List

84 Printing the jobs list ................................. page 62

Print Calendar

85 Print Calendar ........................................... page 30

Printing Sudoku

86 Sudoku: printing a game .......................... page 31

Printing the Fax Templates

87 Printing the Fax Templates..................... page 44

9 USB Storage Medium

Print a List of Available Docu ments on USB Storage Medium

911 Print a list of available documents on USB

storage medium .................................................. page 28

Print Document from US B Storage Medium

912 Print document from USB storage medium

................................................................................ page 29

Scan Document and Save onto a USB Storage Medium

913 Scan document and save onto a USB

storage medium .................................................. page 23

Receiving Faxes onto USB Storage Medium

914 Receiving faxes onto USB storage medium

................................................................................ page 47

Delete Files on USB Storag e Medium

915 Delete files on USB storage medium

................................................................................ page 30

Set IP Address Assignment

083 Set IP address assignment ................page 53

Set Static IP Address Assignment

084 Set static IP address assignment .....page 53

Verify DHCP Settings

085 Verify DHCP settings........................page 54

Additional Wireless Network Settings

086 Additional wireless network settings

.................................................................................page 54

EN

9 Miscellaneous

Locking the De vice

92 Locking the Device................................... page 61

Calibrating the Scanner

931 Calibrating the Scanner....................page 73

Using Service Codes

933 Using service codes........................... page 74

Checking the Firmware Version

934 Checking the firmware version ...... page 67

Query the counter levels

94 Query the counter levels........................ page 67

Displaying the Toner Level

946 Displaying the Toner Level ............. page 67

08 Wireless Network (WLAN)

optional and original

WLAN is optional

WLAN is optional and functions only with an original adapter, which you can purchase through our order service. More information: www.sagemcom.com

Switching Wireless Network (WLAN ) On/Off

080 Switches wireless network (WLAN) on/off

................................................................................ page 51

Setting up a Wireless Network (WLAN) Using the Wizard

081 Sets up a Wireless Network (WLAN) using

the wizard............................................................. page 51

Setting Up a Wireless Network (WLAN) Manually

082 Sets up a Wireless Network (WLAN)

manually ................................................................ page 52

Overview · Overview of the Menu Functions 11

3 Initial Operation

Notice

EN

Packing Contents

Device

‚ Device

Starter Cartridge (Already Install ed)

ƒ Starter cartridge (already installed)

Mains Cable with Plug (Country-specific)

„ Mains cable with plug (country-specific)

Telephone Cable with Plug (Country-specific)

… Telephone cable with plug (country-specific)

Paper Tray (Already Installed)

† Paper tray (already installed)

Spiral cable for telephone h andset

‡ Spiral cable for telephone handset

Telephone Ha ndset

ˆ Telephone handset

Installation-CD (not depic ted)

Installation-CD (not depicted)

User manual with installation guide (not depicted)

Verpackungsi nhalt

Removing Packaging Material

Removing Packaging Material from the Device

Remove the existing tape used for transportation from the device.

Verpackungsmaterial entfernen

Remove the Packaging Material from the Toner Cartridge

Missing Package Contents

Spaltenumbruch

Missing Package Contents

If any of the parts are missing or damaged, please contact your retailer or our customer service.

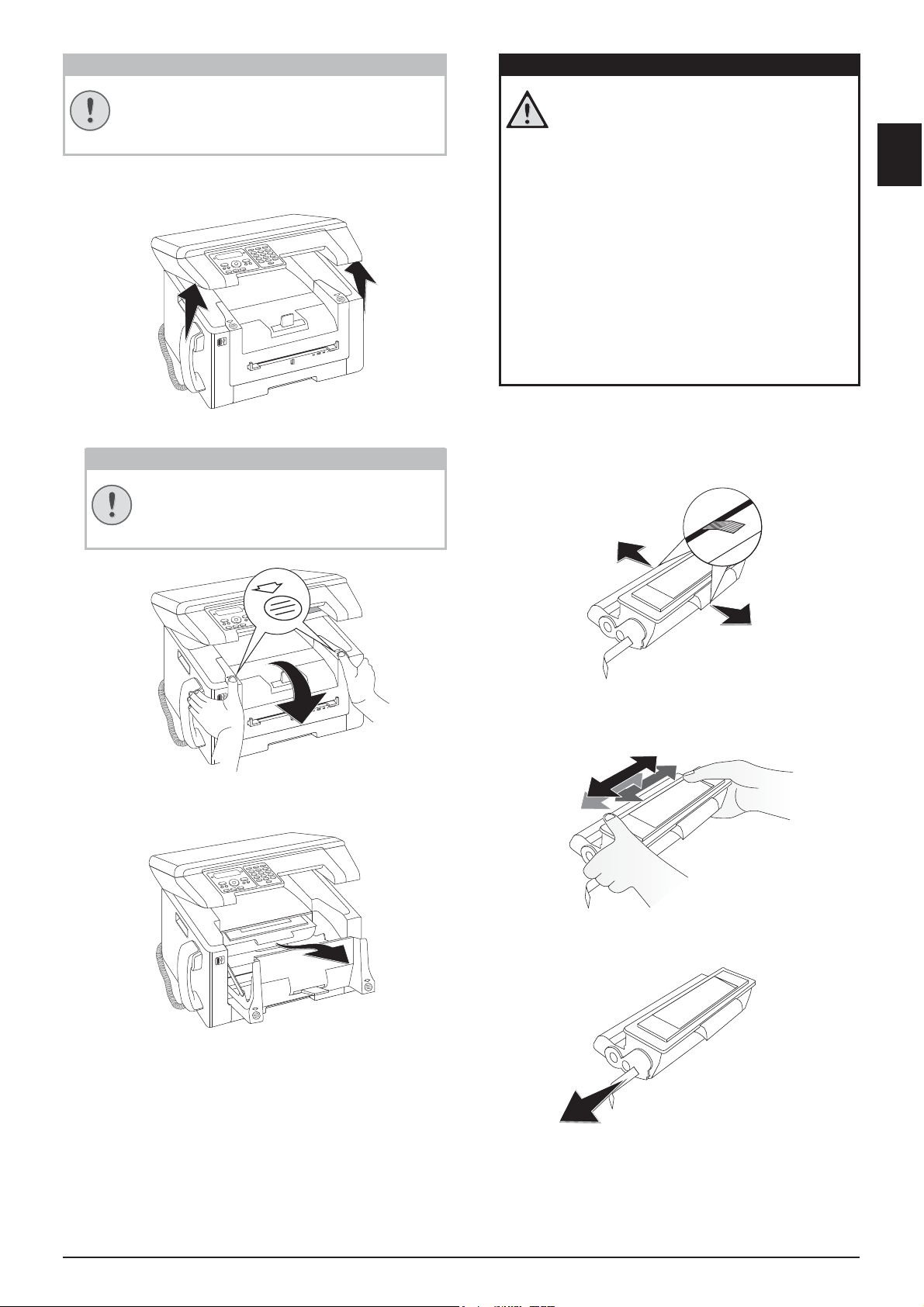

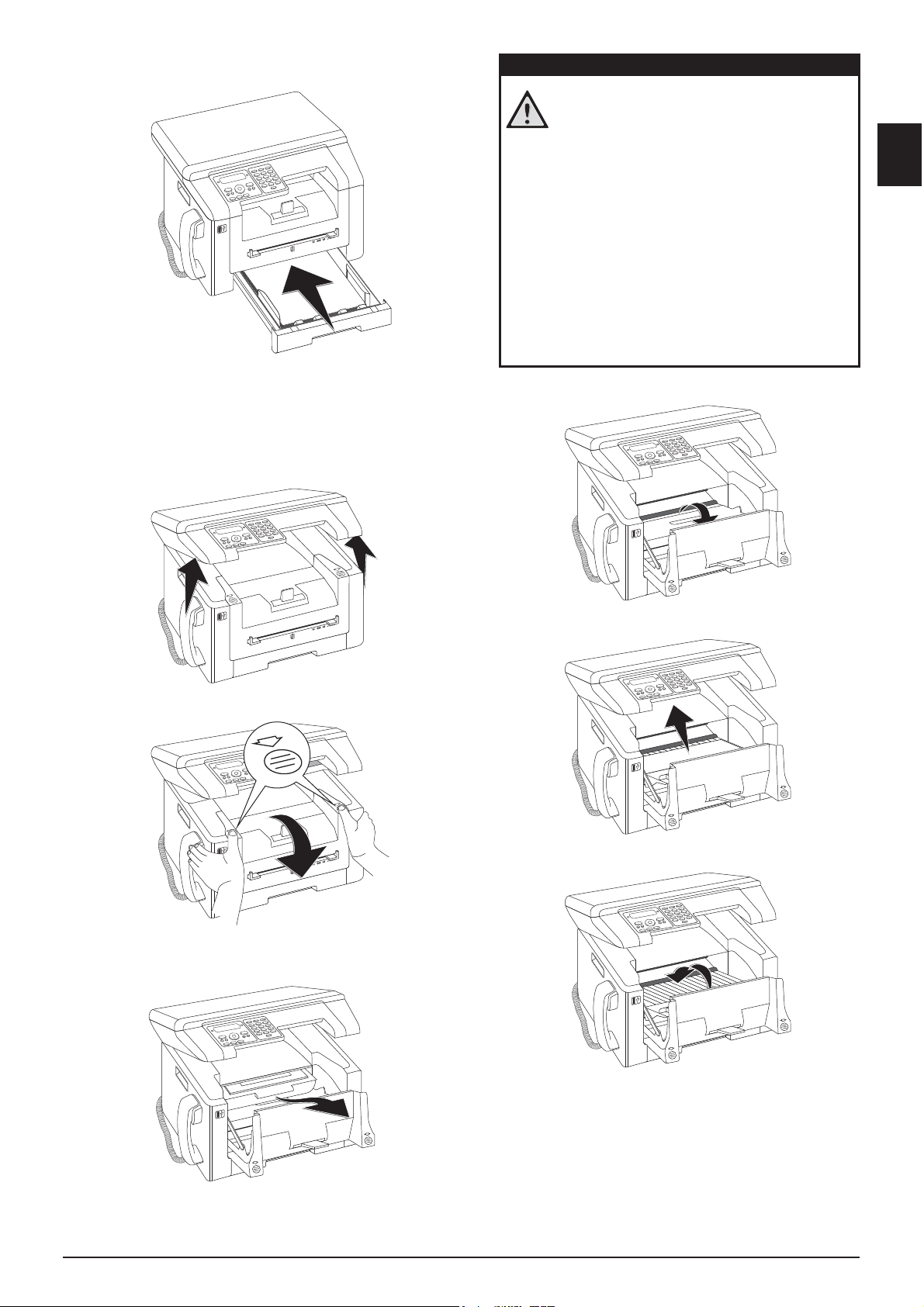

1 Open the upper device cover by gripping the cover

on the arrow marks on the outside and lift upwards,

2 Open the device by lifting the device cover forwards

12 Philips · LaserMFD 6135hfd

3 Remove the toner cartridge by gripping the handle in

DANGER!

CAUTION!

the middle and pulling it forwards out of the device

4 Remove the tape and protective paper, but do not

remove the protective strip from the cartridge yet .

Escaping Toner Dust!

Once you have removed the protection strip, do not shake the toner cartridge any more. Otherwise, it is possible that toner dust will be released into the air.

7 Place the toner cartridge into your device. The car-

tridge should snap securely into position.

8 Close the device.

EN

Escaping Toner Dust!

Never open a toner cartridge. If toner dust is released into the air, you should avoid allowing it to contact your skin and eyes. Do not inhale the released toner dust. Remove the toner dust from clothing or objects with cold water; hot water would only cause the toner to set. Never remove loose toner dust with a vacuum cleaner.

5 Shake the new toner cartridge back and forth several

times in order to distribute the toner evenly, thereby improving the print quality.

6Only after completely pull off the protection strip

located on the left side of the cartridge.

Toner Cartridge Not Inserted Correctly!

If the device cover would not close, the toner cartridge is not inserted correctly. Take the toner cartridge out and insert it again correctly.

9 Close the upper device cover.

Initial Operation · Removing Packaging Material 13

EN

Notice

Remove the Packaging Material from the Paper Tray

1 Pull the paper tray out of the device.

2 Lift up the cover of the paper tray

5 Close the paper tray cover.

Cover of the Paper Tray

If the cover of the paper tray has become detached, fasten the lid into the supports Ensure that the flat side of the cover (with the inscription) faces upwards.

3 Please remove the protective cardboard from the

paper tray before loading paper.

4 Removing the tape in the paper tray which was used

for transportation purposes.

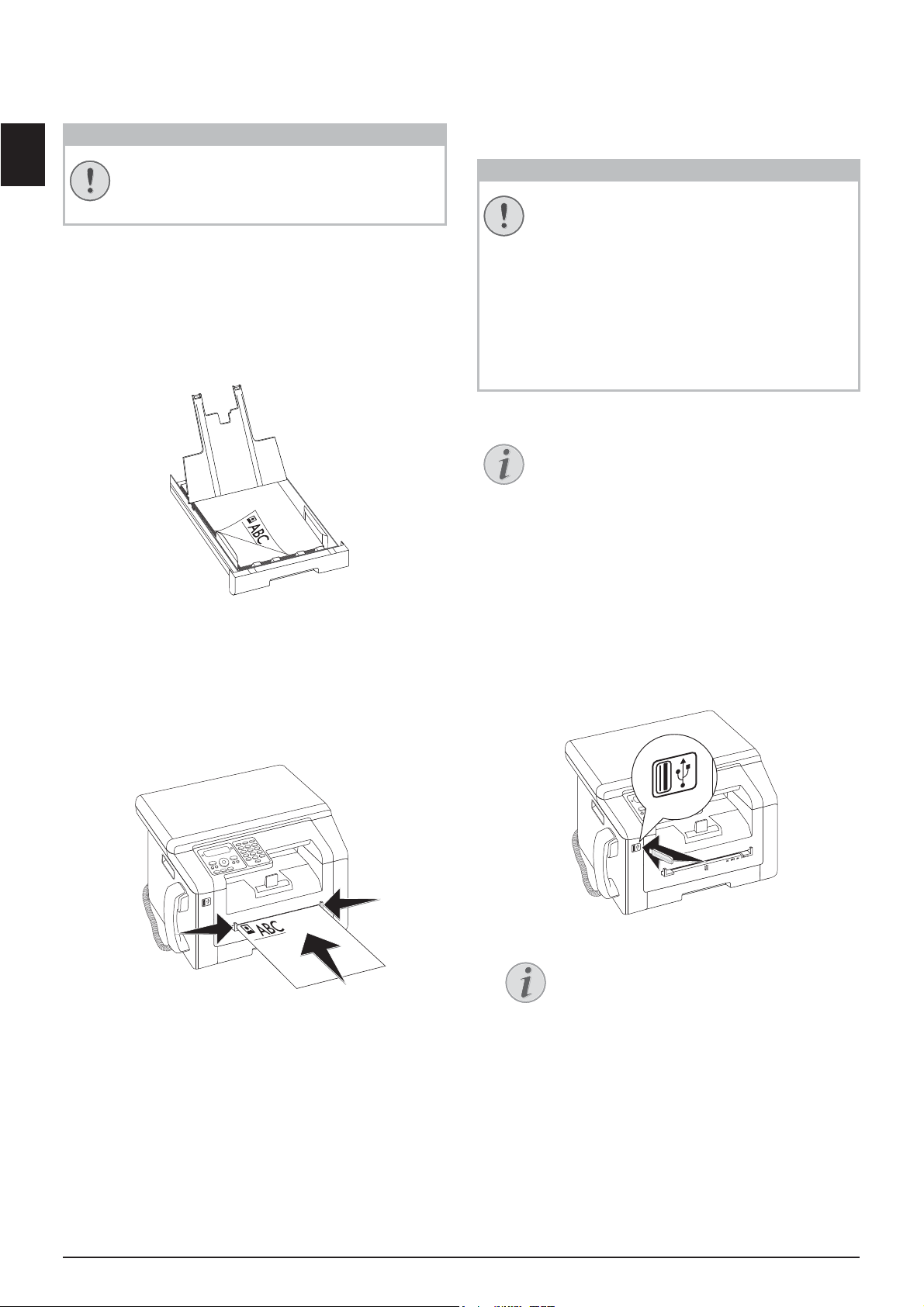

Loading Paper

Adjust the paper tray to the paper and insert the paper (see also chapter Printing Media, page 25).

6 Push the paper tray into the device all the way to the

stopping point.

14 Philips · LaserMFD 6135hfd

Connecting the Telephone

CAUTION!

Notice

CAUTION!

Handset

Connecting the Handset

Plug one end of the spiral cable into the socket on the telephone handset. Insert the other end into the socket designated with the Ó symbol.

Telefonhörer anschließen

Connecting the Telephone Cable

Connect the telephone cable to the device by inserting it in the socket designated with FAX/Ñ (RJ-11-Connector). Insert the telephone plug into your PTT line socket.

Telefonkabel anschließe n

Connecting the Mains Cable

Mains Voltage at the Site of Installati on

Mains Voltage at the Site of Installation!

Check whether the mains voltage of your device (indicated on the type label) matches the mains voltage available at the setup location.

1 Insert the mains cable into the connection located

on the rear side of the device. Plug the power cable into the electrical outlet.

2 Switch the device on using the on/off switch on the

rear.

EN

Connection to an ISDN system!

PABX Systems 1

Connection to an ISDN system!

You can not connect your devices directly to the digital output of the ISDN system. Details for ISDN connections can be found in the instructions provided with the terminal adapter or the dial-up router.

Connection to Private Automatic Branch Exchange

If you connect your device as extension to a telephone system, you must set it for working as an extension (also see Chapter Telephone Lines and Additional Devices, page 63).

Initial Operation · Connecting the Telephone Handset 15

EN

CAUTION!

Notice

Initial Installation

After you connect your device to the mains voltage, the device starts. During the booting process, the lights flash. Wait until the initial installation process begins.

Selecting the Language

1 Use [ to select the desired display language. 2 Confirm with OK.

Selecting the Country

Setting the Country Correctly

Setting the Country Correctly!

You must set the country in which you are operating the device. Otherwise your device is not adapted to the telephone network. If your country is not included in the list, you must select a different setting and use the correct telephone cable for the country. Consult your retailer.

Entering Name

Page Header

Your name and number are added together with date, time and page number at the top edge of each fax transmission (= header).

Entering Your Name

1 Enter your name. You can enter characters using the

numeric keys (see button labels). Enter special characters using 0. Press the respective button several times until the desired character or special character appears on the display.

Navigating in the Editor

You can move the cursor using [. Use C to delete individual characters.

2 Confirm with OK.

Entering Number

1 Enter your number. 2 Confirm with OK.

Setting the Country

1 Use [ to select the country in which you are oper-

ating the device.

2 Confirm with OK.

Set the Time Zone

Function is not supported in all countries and networ ks

(Function is not supported in all countries and networks)

Set the Time Zone

In countries with several time zones, you can select from preset time zones or manually enter the deviance of your time zone from UTC (see also chapter on setting the time zone, page 56). In countries with one time zone, the setting is adjusted automatically if you set the country correctly.

1 Use [ to select the time zone in which you are

operating the device.

2 Confirm with OK.

Automatic Changeover Between Summer Tim e/Winter Time

Automatic Changeover Between Summer Time/Winter Time

With setting the country and time zone, the automatic changeover between summer and winter time is switched on. The automatic changeover is switched off if you enter the deviance from UTC manually using the time zones editor

Spaltenumbruch

Entering the Date and Time

1 Enter the date (two digits for each field), for example

31¦05¦25 for May 31th, 2025.

2 Enter the time, e.g. 14 00 for 2 pm. 3 Confirm with OK.

Connecting to the Computer

USB Port

Using the USB cable, you can connect your device to a PC that is connected to a network. Other PCs on this network can then access the device if it is shared for use on the network. You cannot connect the device directly to a network with a USB cable, unless you have a USB print server connection.

Companion Center SFX

You can connect the device to a computer and use it as a printer or scanner. You'll find the software on the supplied installation CD Companion Center SFX. In this way, you can scan and edit photos and texts, send and receive faxes and access the device's web interfaces, with which you can change many settings.

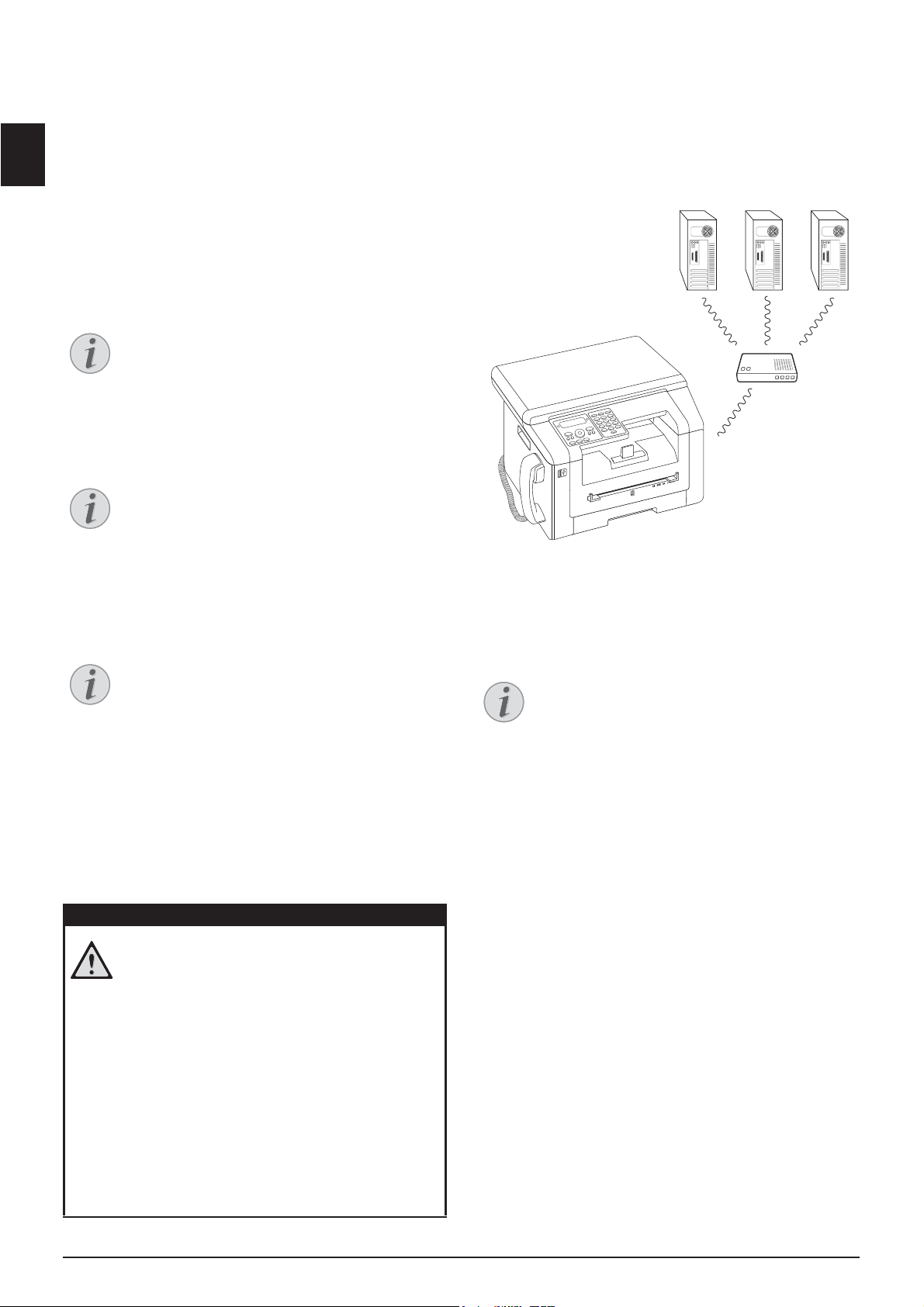

Network Connection

You can find information about installing your device in a network in chapter Networks (see also chapter Networks, page 50)

16 Philips · LaserMFD 6135hfd

Requirements

Notice

Requirements

Your computer must have one of the following operating systems.

Microsoft Windows

2000 (SP¦4) · XP · Vista · Windows 7 Windows Server 2003/2008

Apple Macintosh

OS 10.4 · 10.5 · 10.6

Linux

Redhat 9.0 · Debian 5.0 · Suse 11.1 · Fedora 11 Ubuntu 9.10

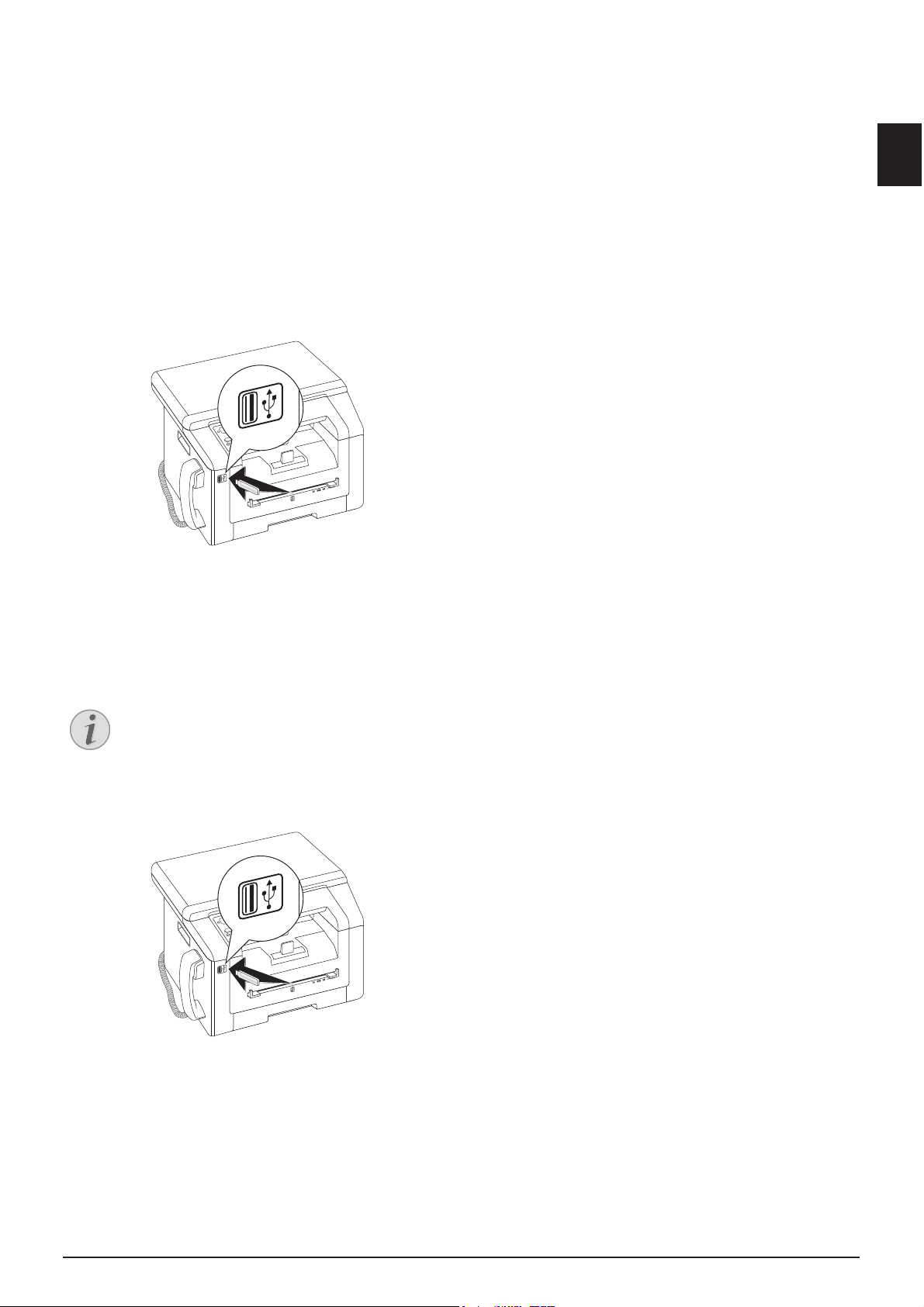

Connecting USB Cable

1 Close all open programs and applications before

beginning the installation process. Place the installation CD in the CD-ROM drive of your computer. The program will start automatically.

EN

2 Connect the device to your PC with a typical USB

cable. The USB port of your device can be found on the rear side.

Only high-speed certified USB cable

Use only a custom high speed certified USB cable to connect the device to your computer. The cable should be no longer than 1.5 metres.

Initial Operation · Connecting to the Computer 17

EN

Notice

CAUTION!

Notice

4 Companion Center SFX

Companion Center SFX

You can connect the device to a computer and use it as a printer or scanner. You'll find the software on the supplied installation CD Companion Center SFX. In this way, you can scan and edit photos and texts, send and receive faxes and access the device's web interfaces, with which you can change many settings.

Network Connection

You can find information about installing your device in a network in chapter Networks (see also chapter Networks, page 50)

Requirements

Your computer must have one of the following operating systems.

Microsoft Windows

2000 (SP¦4) · XP · Vista · Windows 7 Windows Server 2003/2008

Apple Macintosh

OS 10.4 · 10.5 · 10.6

Linux

Redhat 9.0 · Debian 5.0 · Suse 11.1 · Fedora 11 Ubuntu 9.10

Information for the techn ical customer services

Informations for the Technical Customer Services

Should problems with the computer connection arise, have the following information to hand when you contact technical customer services: hardware configuration of your computer, operating system installed and security programmes used (anti-virus programmes, firewall). Then we can help you more quickly.

Installing the Driver and Software

Installing the Software fi rst!

Installing the Software first!

First install the software. The device may not

be connected to the PC before this. After the software installation, the PC must be restarted. Only then should you connect your PC and the device with a USB cable.

1 Close all open programs and applications before

beginning the installation process. Place the installation CD in the CD-ROM drive of your computer. The program will start automatically.

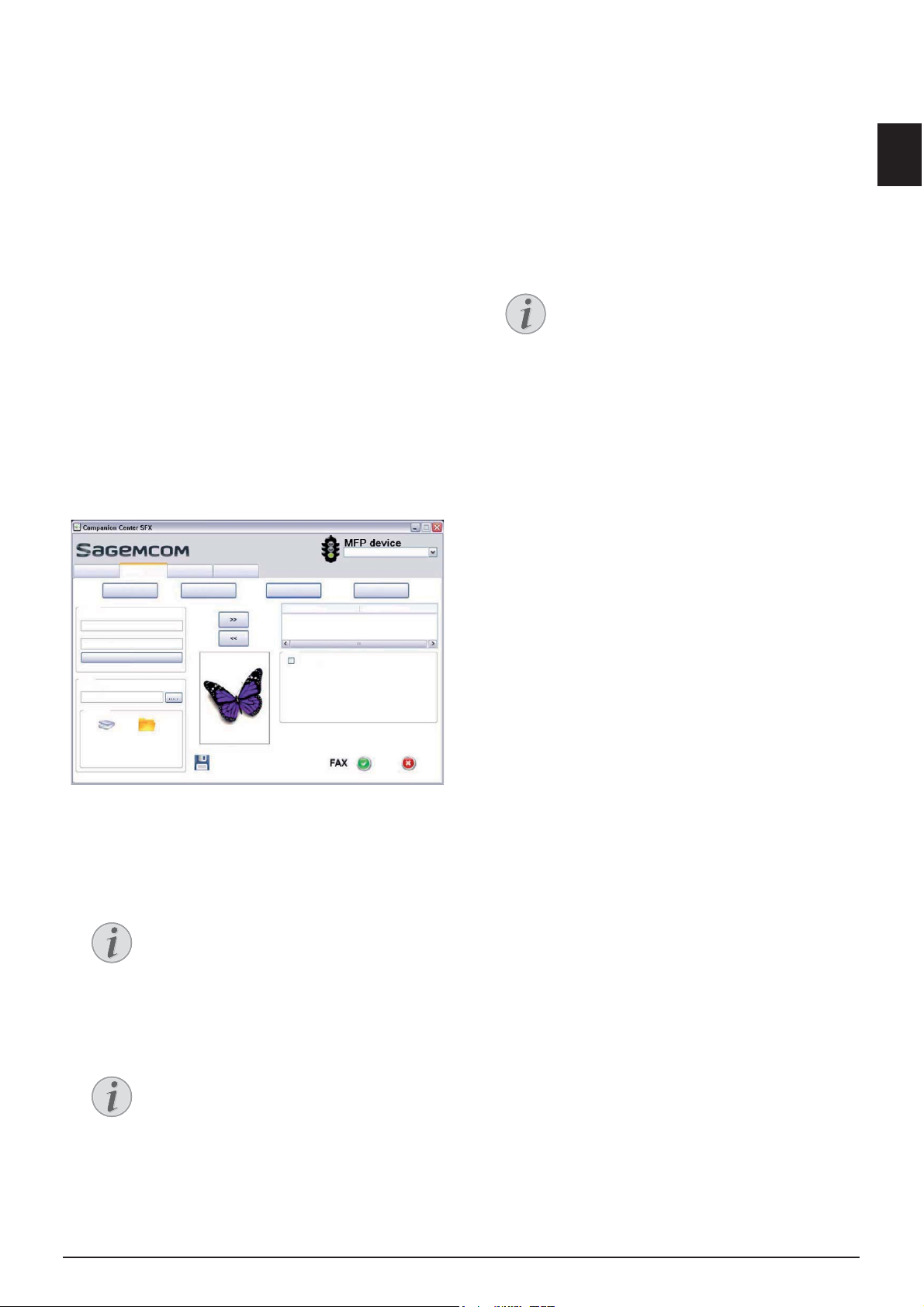

2 The Companion Center SFX window appears on

the screen. Click on Install All to install the software and all drivers.

Click on Browse contents to view the files on the installation CD. Click on View user guides to access the device's instruction manual.

,QVWDOO$OO

,QVWDOO&XVWRPL]HG

8QLQVWDOOSURGXFWV

9LHZXVHUJXLGHV

%URZVHFRQWHQWV

Starting Program Manually

If the program does not start automatically, select the CD-ROM drive in the Windows Explorer and start the program Setup.exe with a double-click.

3 Next you will be asked to accept the licensing con-

ditions. Click on Yes.

4 The software and drivers are installed. This Process

May Take a Few Moments.

5 At the conclusion of the install process you must

restart your computer. Make your selection as to whether the computer should restart automatically or whether you would like to restart the computer yourself at a later time.

18 Philips · LaserMFD 6135hfd

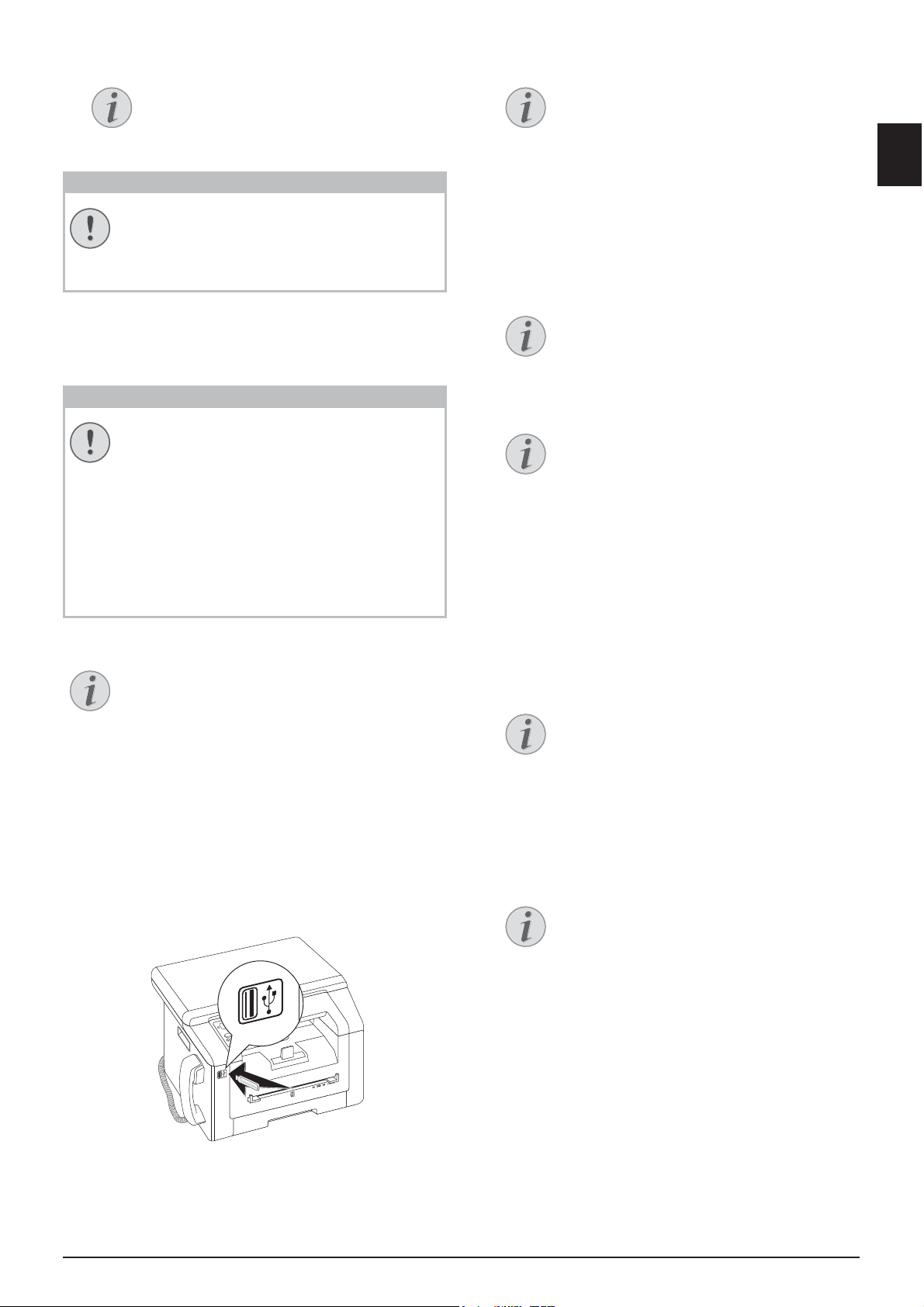

6Only after the restart, connect the device to your

Notice

PC with a typical USB cable. The USB port of your device can be found on the rear side.

Only high-speed certified USB cable

Use only a custom high speed certified USB cable to connect the device to your computer. The cable should be no longer than 1.5 metres.

7 Your device is detected as a new peripheral device

and registered.

8 If your operating system is Windows XP (Service

Pack 2), an additional window will appear during the final installation. Select No, not this time, and click on Next.

9 Under Windows XP, select Install software auto-

matically during the final installation and click on Next.

EN

Companion Center SFX · Installing the Driver and Software 19

EN

CAUTION!

>,3$GGUHVV@

+HOS6FDQ )D[ 6HWWLQJV

3DVVZRUG

8VHUQDPH

6WDWXV 6HWWLQJV $GGUHVVERRN

3OHDVHORJLQ

,QIRUPDWLRQ0HQX 6\VWHP&RQILJ0HQX 1HWZRUN0HQX :/$1 6\VWHP$GMXVW0HQX 0DLQWHQDQFH0HQX )LUPZDUH8SJUDGH

/RJLQ

6HWWLQJV/RJLQ

Notice

5Web Interface

Introduction

The web interface is available to you on all operating systems. You can access the web interface with the software Companion Center SFX or with an internet browser on your computer. The web interface shows you the current status of the device and all settings. You can edit the device settings and the telephone book.

You can access the internet interface if you have connected the device directly with a computer via the USB port or if the device is connected to a network.

Calling the Web Interface

Access the Web Interface with an Internet Browser

Introduction

You need the current IP address of the device in order to access the web interface with an internet browser. You will find the IP address on the settings list.

Prints the List of Settings

Press C, 80 and OK to print a list of all settings of your device.

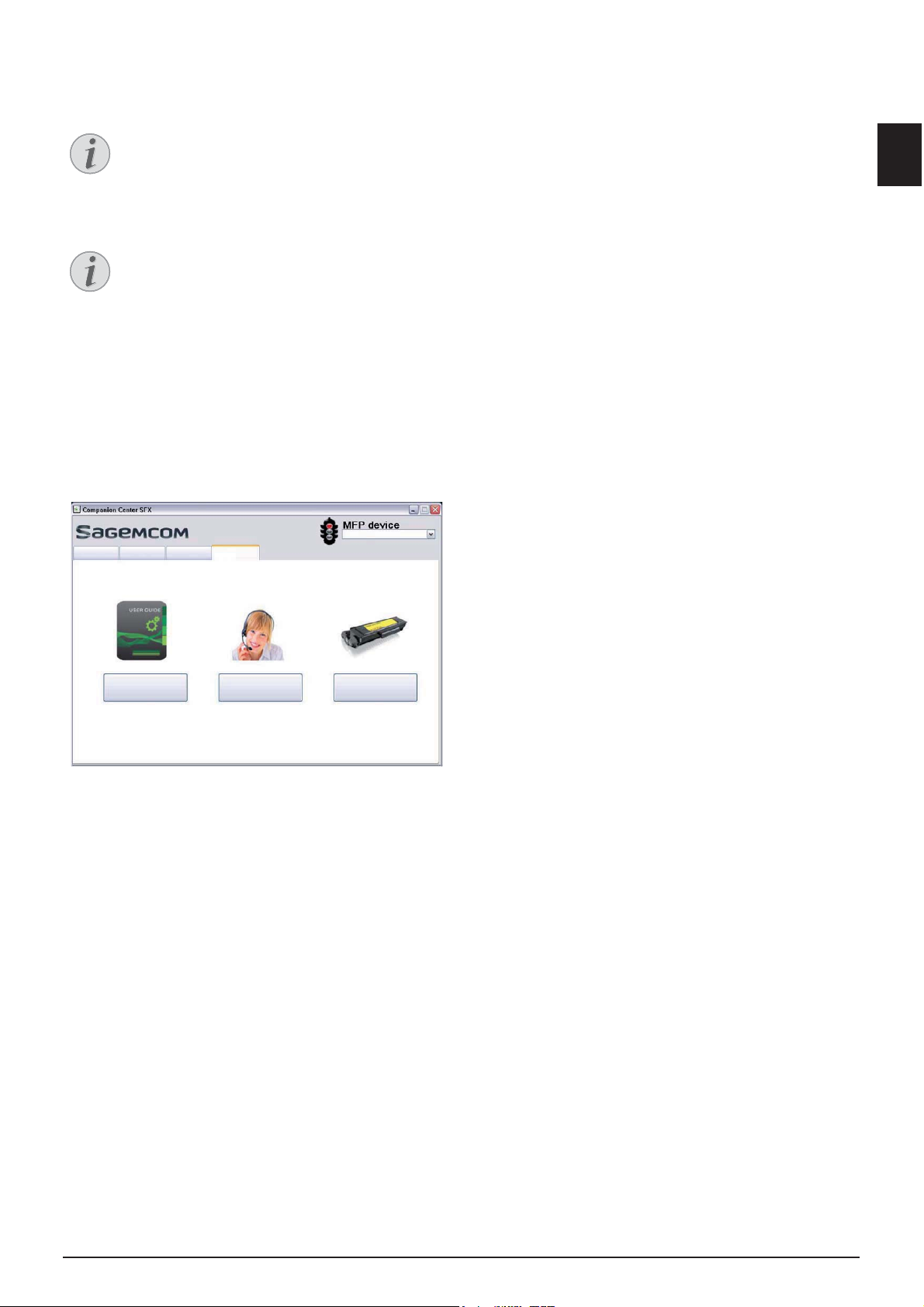

1 Start the software Companion Center SFX, by

clicking on the Companion Center SFX icon on your desktop or selecting Start > Programs >

Companion Center SFX > Laser SFX > Companion Center SFX in the Start Menu.

2 The light in the upper-right corner shows whether

or not the device is connected to the computer and is functioning properly.

3 Selecting the Settings tab.

1 Start an Internet browser on a computer, which is

connected to the network.

Suitable Internet Browser

We recommend the following Internet browser. Windows PC: Internet Explorer (Version 6.0 or above), Apple Macintosh: Safari (version 1.3 or above), Linux: Conquerer (version 3.2.1 or above).

2 Enter the IP address of the device in the address bar

of the browser.

3 Confirm using Return.

4 The internet interface’s settings pages are protected

with a password. Enter the login data: Name: user Password: user

5 Click on Login.

20 Philips · LaserMFD 6135hfd

Changing Password and Noting!

Change the password when you call the web interface for the first time, so that there is no unauthorised access to your device. Note down your password in a safe place. Should you forget your password, you must reset your device to factory settings, in order to be able to access it again. All personal settings will be deleted.

6 Scanner

CAUTION!

Notice

Introduction

You can scan a document and save it onto a USB storage medium or on a network computer.

Companion Center

You'll find the software on the supplied installation CD Companion Center SFX. In this way, you can scan documents from your computer, send faxes, and manage the device settings via the web interface (see also the chapter Installing Driver and Software, page 18).

Specifications for Documen ts

Specifications for Documents

Width of Documents 208¦–¦218¦mm

Length of Documents 277¦–¦600¦mm

2 Lay the document onto the scanner glass with the

written side down.

EN

Paper Weight of the

60¦-¦90¦g/m

Documents

Capacity 50 page (80¦g/m)

Manufacturer’s Recommendation for Optimum Operation

Unsuitable Documents!

A4 · A5 · Letter · Legal (80¦g/m

Unsuitable Documents!

Do not insert any documents into the device that ...

... are wet, have been edited with correction fluid, are soiled or have a coated surface.

… that are written on with a soft pencil, with paint, chalk or charcoal.

… originate from newspapers or magazines (printing ink).

… that are held together with office or notebook staples or with tape or glue.

… are pasted with note papers. … are creased, crumpled or torn.

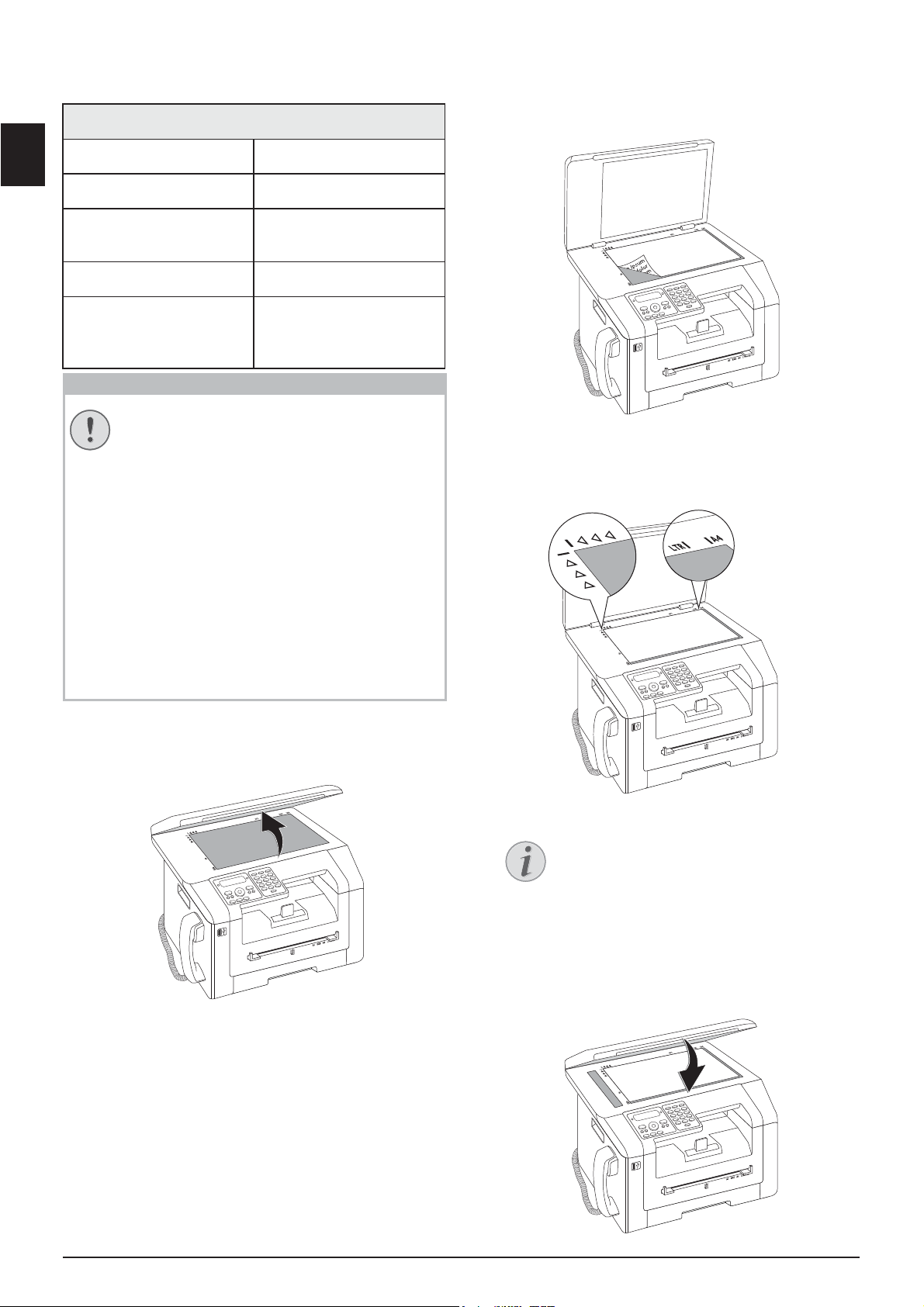

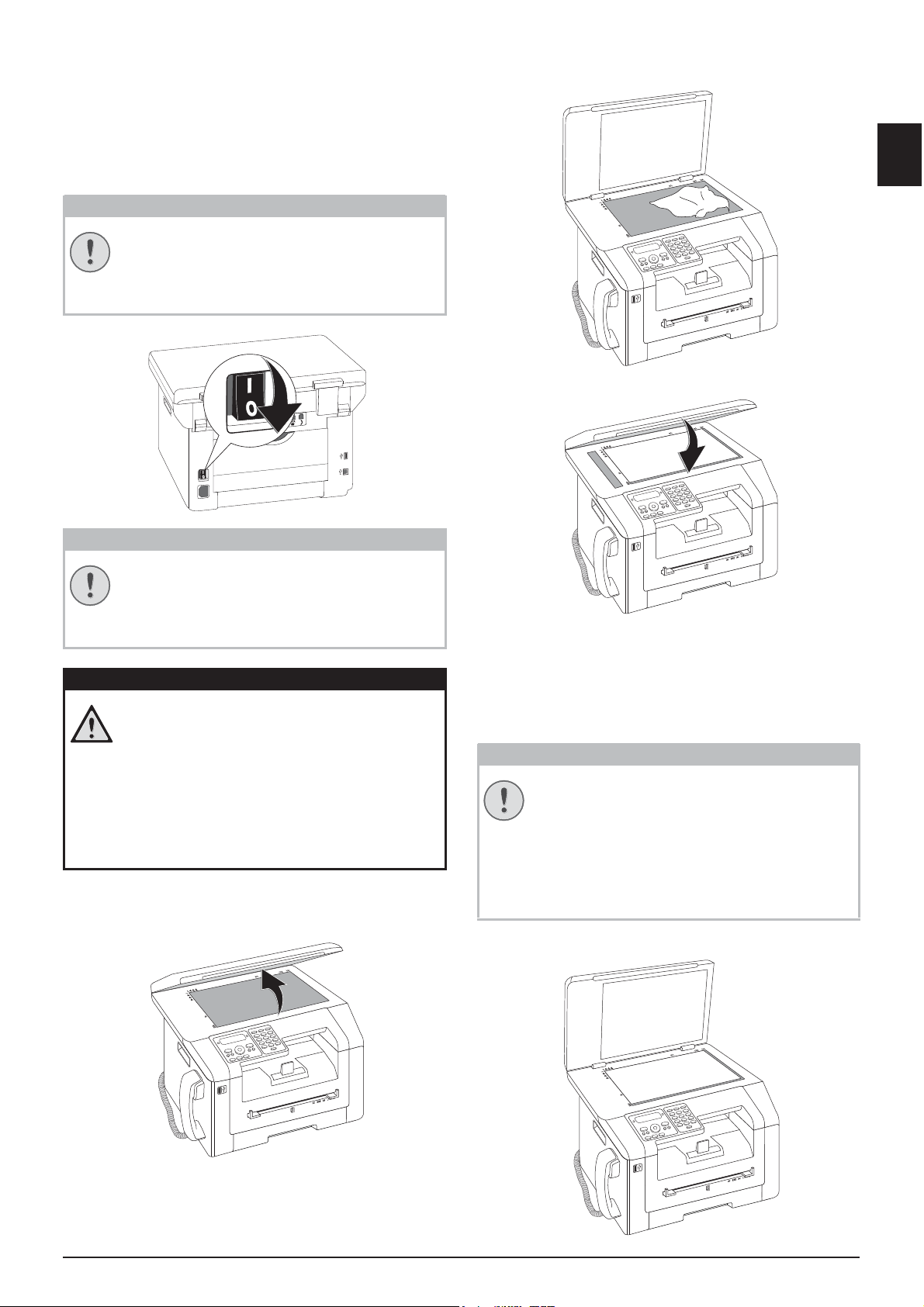

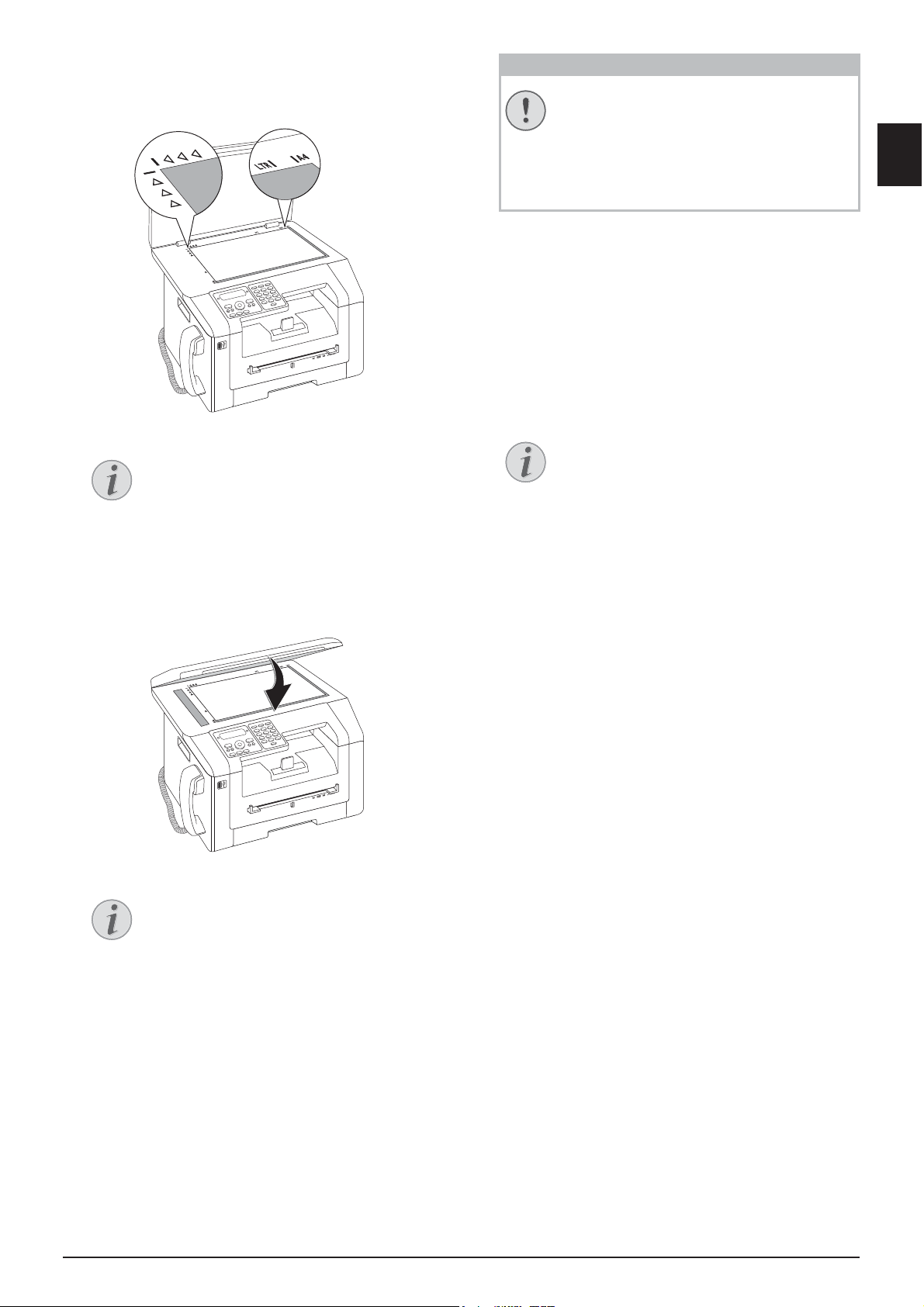

Loading Documents

1 Open the scanner cover.

3 Align the document with the rear left corner of the

scanner glass (arrow marks). The markings on the scanner border for the A4 and A5 formats will help you to position the document correctly.

Enlarge Detail

If you would like to copy a detail (such as a graphic) of your document, position the document so that the detail view is close to the source . Using the zoom function, you can separate the desired area from rest of the document.

4 Close the scanner cover.

Scanner · Loading Documents 21

Make Scans Using User-defined

Notice

CAUTION!

Notice

EN

Adjust Scanner Cover

The scanner cover is equipped with adjustable hinges, allowing you to lay even thicker documents (e.g. books) in the flatbed scanner. Carefully lift the scanner cover so that it rests as evenly as possibly.

Use clear sheets of plastic when copying three-dimensional objects (e.g. coins, flowers) to avoid damaging the scanner glass.

Do Not Press on the Scanner Cover!

Do not press forcefully on the scanner cover when you scan thicker documents or three-dimensional items, this could damage the scanner cover and/or the scanner glass.

Scan Document and Save to a Computer

Introduction

Using this function, scan a document with your device and transfer it onto a computer which is connected directly to the device using a USB cable.

Start Scanning from Computer

Using the Companion Center SFX software, you can call up the scan on the computer. You can also start the scanning process from any other graphics program if it is supported by the Twain Driver. Select the Twain Scanner Driver as your scanner.

Make Scans Using Standard Settings

1 Press SCAN. 2 Use [ to select 3 Confirm with OK.

Access Function

You can also call the function by pressing C, 31 and OK.

4 Press OK.

SCANTO PC USB.

Settings

1 Press SCAN. 2 Use [ to select 3 Confirm with OK. 4 Use [ to select 5 Confirm with OK.

Access Function

You can also call the function by pressing C, 31 and OK.

6 Using [, select whether you want to scan the doc-

ument in greyscale or in colour.

7 Confirm with OK. 8 Enter a name for the file.

You can enter characters using the numeric keys (see key labels). Enter special characters using 0. Press the respective key several times until the desired character or special character appears on the display.

Navigating in the Editor

You can move the cursor using [. Use C to delete individual characters.

9 Confirm with OK. 10 Using [, select whether you would like to save the

file as an image file or as a PDF file.

Select the File Format

For an image file, you can select whether you would like to save the file in TIFF or JPEG format (see also chapter on Selecting File Format, page 58).

11 Confirm with OK. 12 Select the desired resolution using f:

DRAFT(100)—Scanning with reduced resolu-

tion—for use on the Internet, for example

TEXT B&W (300)—Black and white scan with high

resolution for optical character recognition of text documents (OCR)

PHOTO(200)—Scanning with higher resolution -

for photographs, for example

HQ(300)—Scanning with highest resolution

13 Confirm with OK.

SCANTO PC USB.

SETTINGS.

22 Philips · LaserMFD 6135hfd

14 Set the desired contrast using [.

CAUTION!

Notice

-/1—Reduces the contrast / typeface appears lighter 4 (Factory settings)—Optimized adaptation for all

documents

+/7—Increases the contrast / typeface appears

darker (for example, documents with faint print)

15 Confirm with OK. 16 Using [, select the desired level of brightness:

-/1—Reproduction is lighter 4 (Factory settings)—Optimized adaptation for all

documents

+/7—Reproduction is darker

17 Press o. The document is scanned and transferred

to the computer.

18 If you want to scan a multiple page document with

the flatbed scanner, insert another page and select

NEXT PAGE with [NEXT PAGE .

19 Confirm with OK.

Scan Document and Save onto a USB Storage Medium

USB Storage Media

1 Insert the document. 2 Make sure that a USB storage medium is connected

to the USB host port on the front or on the backside of the device. Connect a USB storage medium as required.

Selection Menu for USB Storage Media

The selection menu for USB storage media appears on the display as soon as you connect a USB storage medium (USB stick, external hard drive etc.) to the USB host port on the front of the device.

3 Using [

SCAN TO USB select from the menu or

press C, 913 and OK.

EN

Compatible USB Storage Media!

Ensure that the power of a USB device does not exceed the permitted amp limit of the USB connection. You can only connect one high power device (USB 2.0) to each USB connection. Do not connect additional devices— such as batteries, fans, charging devices—to your machine. The device only recognises storage media which are formatted with FAT16 or FAT32. NTFS is not supported.

Analysing USB Storage Medium

If a lot of documents are saved on the USB storage medium, it can take a while for the USB storage medium to be analysed. You can interrupt the process at any time, by pressing j.

Introduction

You can scan documents with your device and save them as JPG-, PDF-, or TIFF-files on a connected USB storage medium.

Folder Destination

Access Function

You can also call the function by pressing C, 32 and OK.

4 Using [, select whether you want to scan the doc-

ument in greyscale or in colour.

5 Confirm with OK. 6 Enter a name for the file.

You can enter characters using the numeric keys (see key labels). Enter special characters using 0. Press the respective key several times until the desired character or special character appears on the display.

Navigating in the Editor

You can move the cursor using [. Use C to delete individual characters.

7 Confirm with OK. 8 Using [, select whether you would like to save the

file as an image file or as a PDF file.

Folder Destination

The files will be stored in the folder \[device name]\Scan on the USB storage medium. If

this folder does not exist, then it will be created.

Select the File Format

For an image file, you can select whether you would like to save the file in TIFF or JPEG format (see also chapter on Selecting File Format, page 58).

9 Confirm with OK.

Scanner · Scan Document and Save onto a USB Storage Medium 23

EN

CAUTION!

10 Select the desired resolution using [:

DRAFT(100)—Scanning with reduced resolu-

tion—for use on the Internet, for example

TEXT B&W (300)—Black and white scan with high

resolution for optical character recognition of text documents (OCR)

PHOTO(200)—Scanning with higher resolution -

for photographs, for example

HQ(300)—Scanning with highest resolution

11 Confirm with OK. 12 Set the desired contrast using [.

-/1—Reduces the contrast / typeface appears lighter 4 (Factory settings)—Optimized adaptation for all

documents

+/7—Increases the contrast / typeface appears

darker (for example, documents with faint print)

13 Confirm with OK. 14 Using [, select the desired level of brightness:

-/1—Reproduction is lighter 4 (Factory settings)—Optimized adaptation for all

documents

+/7—Reproduction is darker

15 Confirm with OK. The document is scanned and

saved on the USB storage medium.

16 If you want to scan a multiple page document with

the flatbed scanner, insert another page and select

NEXT PAGE with [.

Removing USB Storage Media!

Never pull out the storage medium while the device is accessing it. This could cause data to be damaged or lost.

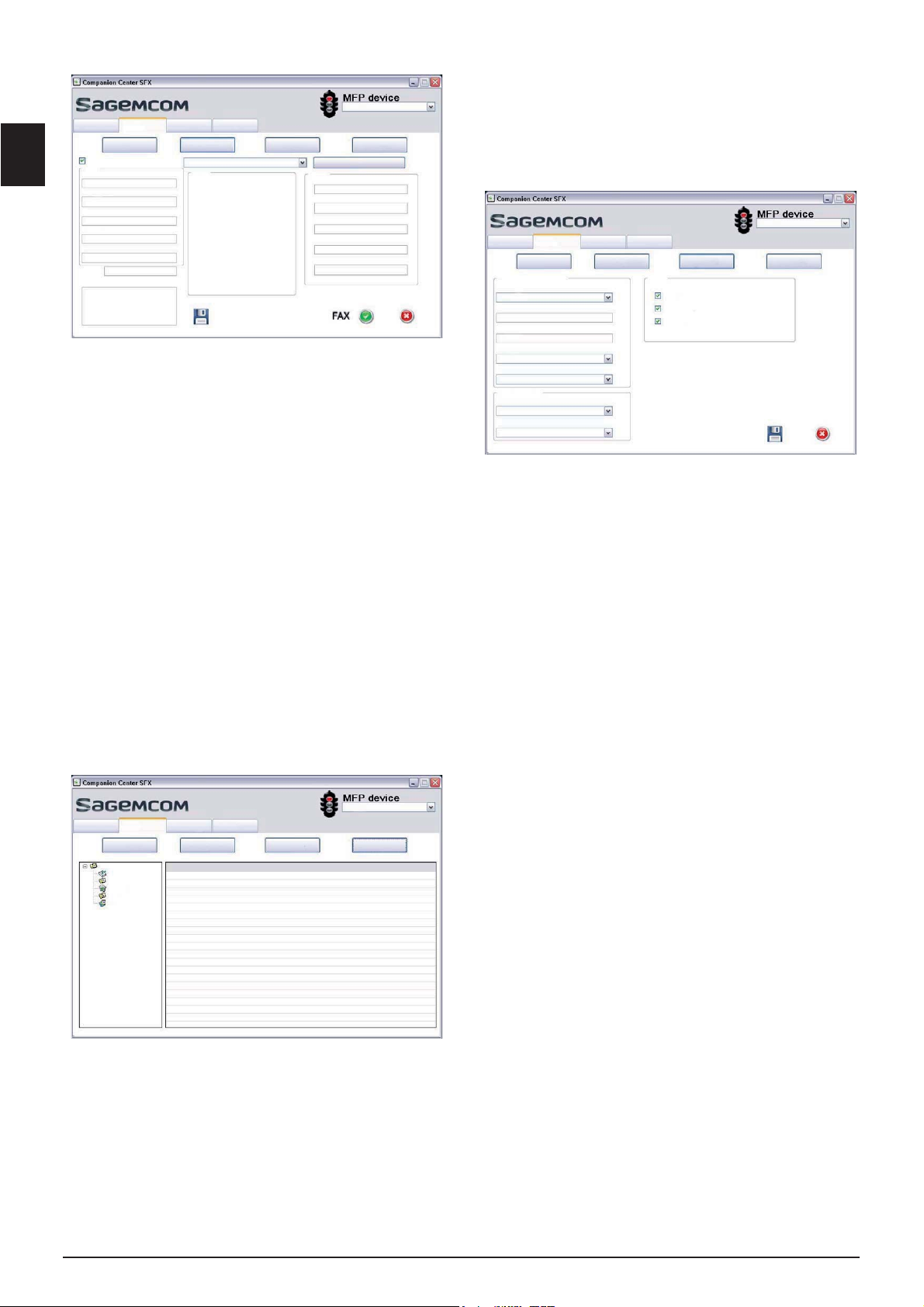

Scanning with the Companion Center SFX

With the Companion Center SFXsoftware, you can scan documents and then edit them on the computer.

1 Start the software Companion Center SFX, by

clicking on the Companion Center SFX icon on your desktop or selecting Start > Programs >

Companion Center SFX > Laser SFX > Companion Center SFX in the Start Menu.

2 The light in the upper-right corner shows whether

or not the device is connected to the computer and is functioning properly.

3 Selecting the Scan tab.

>,3$GGUHVV@

+HOS6FDQ )D[ 6HWWLQJV

6HWWLQJV

6RXUFHV

$XWR

0RGH

&RORU

5HVROXWLRQ

GSL

3DSHU)RUPDW

$

2XWSXW)RUPDW

MSHJ

6DYH

)LOH1DPH

,PJ

6DYH,PDJH

0\3LFWXUHV

!6DYHWRDIROGHUZLWKGDWH

2SHQZLWK

6FDQ3UHYLHZ

)LOH0DLO2&5,PDJH

4 Select from the default settings for various usage

profiles.

Image—Optimized settings for scanning photos. OCR—(Optical character recognition) Reading

printed text and importing it as a text document which can be edited and modified. Photos or handwritten texts are excluded from character recognition.

Mail—The scan is attached to an e-mail. File—The scan is saved as a file.

5 If you would like to change the current settings, the

following functions are available: Sources—Automatic document feeder or flat-bed

scanner as scan source Mode—Scan in the black-and-white mode (also

called “barcode mode”) or in the grey tone mode.

Resolution—Select the scan resolution Paper Format—Setting the paper format Output Format—Select the file format

6 In File Name, enter the name of the output file. 7 Under Save Image, select the folder where the file

is to be saved. With the option >Save to a folder with date, the file is saved in a folder with the cur-

rent date.

8 Activate the function Open with if you want to open

the scanned file after the scanning process is complete. Select the desired program. For example, you can open an image file in an image-editing program, an OCR in a word-processing program, or an email attachment in your email program.

9 Click on Scan Preview to see a preview of the

scanned document.

10 Click on the button Scan in order to start the scan-

ning process.

24 Philips · LaserMFD 6135hfd

7 Printer and Printing Media

Notice

CAUTION!

Printing from Computer

Forms from a Laser Printer!

Printing from Computer

When you install the Companion Center SFX on your computer, the device is also

installed as a printer under Windows. In the print menu under Start > Settings > Print-

ers, you will find your device listed as Laser Printer Scanner.

You can access your device from any program and use it to make black-and-white print-outs just as you would use any other printer. Simply select the Laser Printer Scanner as your printer.

Specifications for Print Media

Introduction

You can insert normal printing paper or printed documents (forms) into the paper tray. You can insert special paper formats, envelopes, slides, sheets of labels or printed documents into the manual paper feed.

Paper Tray

Forms from a Laser Printer!

Forms that have been printed out by a laser printer are not suitable for further printing.

Insert Paper into the Paper Tray

1 Pull the paper tray out of the device.

EN

Paper Sizes Size A4· A5 · B5 (JIS) ·

Letter · Legal (13/14¦") · Exec

Weight 60¦–¦105¦g/m

Capacity 250 sheets

Manual Paper Feed

Paper Sizes Width: 98¦–¦216¦mm

Length: 148¦–¦356¦mm

Weight 60¦–¦165¦g/m

Capacity 1 sheets

Unsuitable Paper!

Do not insert any sheets of paper into the paper tray …

... are wet, have been edited with correction fluid, are soiled or have a coated surface.

… that are held together with office or notebook staples or with tape or glue. Use sheets of labels for use in laser printers.

… are pasted with note papers. … are creased, crumpled or torn.

2 Lift up the cover of the paper tray

Initial Operation!

Please remove the protective cardboard from the paper tray before loading paper and replacing the paper tray into the device.

Printer and Printing Media · Specifications for Print Media 25

EN

Notice

CAUTION!

Notice

3 Adjust the length of the paper tray to the printer

paper. Press the lock key on the base of the paper tray. Slide the rear panel until it snaps into the suitable marking: Legal = LG, A4 = A4, A5 = A5, Letter = LE, B5 = B5.

4 Separate the paper sheets by fanning them out, then

align them by tapping edge of the stack lightly against a flat surface. This will prevent several sheets of paper from being drawn in all at once.

Forms from a Laser Printer!

Forms that have been printed out by a laser printer are not suitable for further printing.

6 Enclose the paper with the two side paper guides. Be

sure not to enclose it so tightly that it bends.

7 Close the paper tray cover.

5 Insert the paper into the paper tray. You can load up

to 250 sheets (80¦g/m).

Loading Pre-printed Material

If you would like to print on an input sheet (for example, forms or stationery), place the input sheet face down in the paper tray, with the top of the page towards the front.

Cover of the Paper Tray

If the cover of the paper tray has become detached, fasten the lid into the supports Ensure that the flat side of the cover (with the inscription) faces upwards.

26 Philips · LaserMFD 6135hfd

8 Push the paper tray into the device all the way to the

CAUTION!

stopping point.

Load Paper into the Manual Paper Feed

1 Press C, 202 and OK. 2 Select the manual paper feed using [. 3 Confirm with OK. 4 Load the paper into the manual paper feed on the

front of the device.

5 Enclose the paper with the two side paper guides. Be

sure not to enclose it so tightly that it bends.

Loading Envelopes

You can print on envelopes directly using the manual paper feed.

Unsuitable Envelopes!

Do not use envelopes with self-adhesive flaps, window envelopes or envelopes with metal fasteners.

1 Load the envelope into the manual paper feed on the

front of the device. The short edge must face the direction of the device. The side which is to be printed should lay face up. The envelope flap must be face down on the left hand side.

2 Enclose the envelope with the two side paper guides.

Ensure that the envelope is not inserted so tightly that it bends.

EN

Reset Settings

Reset the standard setting again after the print job so that the paper feed from the paper tray is guaranteed for incoming fax transmissions.

Inserting Slides and Labels

Use slides which are designed for copiers and laser printers as they must stand up to high temperatures and printing. The printing side is usually somewhat rougher than the reverse side.

You can insert slides and sheets of labels into the paper tray and into the manual paper feed. It is preferable to use the manual paper feed for printing on this print media (see also chapter onLoad Paper into the Manual Paper Feed, page 27).

Unsuitable Slides and Labels!

Do not use slides which are designed for manual inscription or for an overhead projector. These slides can melt in the device and damage it.

Use sheets of labels for use in laser printers. The labels must cover the entire sheet otherwise they could peel off in the device.

Printer and Printing Media · Load Paper into the Manual Paper Feed 27

Loading Pre-printed

CAUTION!

Notice

Print a List of Available

EN

Material

Forms from a Laser Printer!

Forms that have been printed out by a laser printer are not suitable for further printing.

Insert the Template into the Paper Tray

Insert the Template into the Pa per Tray

If you would like to print on an input sheet (for example, forms or stationery), place the input sheet face down in the paper tray, with the top of the page towards the front.

Vorlagen einlegen

Documents on USB Storage Medium

USB Storage Media

Compatible USB Storage Media!

Ensure that the power of a USB device does not exceed the permitted amp limit of the USB connection. You can only connect one high power device (USB 2.0) to each USB connection. Do not connect additional devices— such as batteries, fans, charging devices—to your machine. The device only recognises storage media which are formatted with FAT16 or FAT32. NTFS is not supported.

Analysing USB Storage Medium

If a lot of documents are saved on the USB storage medium, it can take a while for the USB storage medium to be analysed. You can interrupt the process at any time, by pressing j.

Load Templates into the Manual Paper Feed

If you would like to print on an input sheet (for example, forms or stationery), place the input sheet face up with the top of the page facing forwards (towards the device) into the manual paper feed.

Manuelle Zufuhr: Vorlagen einlegen

Introduction

You can print a list of all the TXT-, JPEG-, and TIFF files on the connected USB storage medium.

1 Make sure that a USB storage medium is connected

to the USB host port on the front or on the backside of the device. Connect a USB storage medium as required.

Selection Menu for USB Storage Media

The selection menu for USB storage media appears on the display as soon as you connect a USB storage medium (USB stick, external hard drive etc.) to the USB host port on the front of the device.

2 Using [

PRINT LIST select from the menu or

press C, 911 and OK. The list is printed.

28 Philips · LaserMFD 6135hfd

Removing USB Storage Media!

Notice

CAUTION!

Notice

Access Function

You can also call the function by pressing C, 211 and OK.

Removing USB Storage Media!

Never pull out the storage medium while the device is accessing it. This could cause data to be damaged or lost.

Selection Menu for USB Storage Media

The selection menu for USB storage media appears on the display as soon as you connect a USB storage medium (USB stick, external hard drive etc.) to the USB host port on the front of the device.

2 Using [

PRINT FILE select from the menu or

press C, 912 and OK.

EN

Print Document from USB Storage Medium

USB Storage Media

Compatible USB Storage Media!

Ensure that the power of a USB device does not exceed the permitted amp limit of the USB connection. You can only connect one high power device (USB 2.0) to each USB connection. Do not connect additional devices— such as batteries, fans, charging devices—to your machine. The device only recognises storage media which are formatted with FAT16 or FAT32. NTFS is not supported.

Analysing USB Storage Medium

If a lot of documents are saved on the USB storage medium, it can take a while for the USB storage medium to be analysed. You can interrupt the process at any time, by pressing j.

Introduction

You can print one or more of the TXT-, JPEG-, and TIFF files on the connected USB storage medium.

1 Make sure that a USB storage medium is connected

to the USB host port on the front or on the backside of the device. Connect a USB storage medium as required.

Access Function

You can also call the function by pressing C, 212 and OK.

Navigating within the Directory

Press OK to open a folder in the directory. Use C to return to the next upper level directory

3 Enter the initial letters or select the file you would

like to print [.

4 Press OK to highlight the file. Files to be printed are

flagged with a star (

*).

5 To add more files, select the file using the arrow keys

and press OK. You can only select files from the same directory.

Select Files Using the Arrow Keys

You can select multiple successive files. Press + and OK to switch the function on/ off. Highlight the desired files using [. Once files have been selected, they cannot be removed from the selection .

6 Press o to complete the selection.

Navigating in the Menu

Press j to close the menu and return to the starting mode.

7 Enter the number of times you would like to copy

the document (maximum of 99 copies).

8 Confirm with OK. 9 Using [ select the paper source. 10 Confirm with OK. 11 Use [ to select the desired paper format. Follow

the specifications in the technical data.

12 Confirm with OK. 13 Using [ select the weight of the inserted paper. 14 Press o to start the printing process.

Printer and Printing Media · Print Document from USB Storage Medium 29

EN

CAUTION!

Notice

CAUTION!

Removing USB Storage Media!

Never pull out the storage medium while the device is accessing it. This could cause data to be damaged or lost.

Delete Files on USB Storage Medium

USB Storage Media

Compatible USB Storage Media!

Ensure that the power of a USB device does not exceed the permitted amp limit of the USB connection. You can only connect one high power device (USB 2.0) to each USB connection. Do not connect additional devices— such as batteries, fans, charging devices—to your machine. The device only recognises storage media which are formatted with FAT16 or FAT32. NTFS is not supported.

Analysing USB Storage Medium

2 Using [

DELETE select from the menu or press

C, 915 and OK.

Navigating within the Directory

Press OK to open a folder in the directory. Use C to return to the next upper level directory

3 Enter the initial letters or select the file you would

like to delete [.

4 Press OK to highlight the file. Files that are to be

deleted are flagged with a star (

*).

5 To add more files, select the file using the arrow keys

and press OK. You can only select files from the same directory.

Select Files Using the Arrow Keys

You can select multiple successive files. Press + and OK to switch the function on/ off. Highlight the desired files using [. Once files have been selected, they cannot be removed from the selection .

Analysing USB Storage Medium

If a lot of documents are saved on the USB storage medium, it can take a while for the USB storage medium to be analysed. You can interrupt the process at any time, by pressing j.

Introduction

You can delete files from the connected USB storage medium.

1 Make sure that a USB storage medium is connected

to the USB host port on the front or on the backside of the device. Connect a USB storage medium as required.

Selection Menu for USB Storage Media

The selection menu for USB storage media appears on the display as soon as you connect a USB storage medium (USB stick, external hard drive etc.) to the USB host port on the front of the device.

6 Press o to complete the selection.

Navigating in the Menu

Press j to close the menu and return to the starting mode.

7 Confirm the deletion with OK.

Delete Files!

You cannot interrupt the deleting process. Deleted files cannot be restored.

Removing USB Storage Media!

Never pull out the storage medium while the device is accessing it. This could cause data to be damaged or lost.

Print Calendar

Your device prints a weekly overview as a calendar page for you – for the current week, the coming week or a freely selectable week.

1 Press C, 85 and OK. 2 Using [, select whether you would like to print a

calendar page of the current week, the coming week or a freely selectable week.

3 Confirm with OK.

30 Philips · LaserMFD 6135hfd

4 User-Defined Week: Enter the year and the week

Notice

(two digits for each field) for which you would like to print a calendar page for example 25¦40 for the year 2025, week 40.

5 Confirm with OK.

Sudoku: Printing a Game

Sudoku

Sudoku is a Japanese number puzzle. The game has 3 × 3 squares divided into 3 × 3 fields. Depending on the difficulty level, lesser or more digits are already given at the beginning of the game. The aim of the game is to fill digits from 1 to 9 in the game field is such a way that each digit appears only once in a row, a column and each of the nine blocks. There is only one solution.

Printing a Game

1 Press C, 861 and OK. 2 Using [ select the difficulty level. 3 Confirm with OK. 4 Enter, how many copies of the Sudoku you would

like to print (maximum 9 copies).

5 Confirm with OK. 6 Using [ select if you would like to print the solu-

tion.

7 Confirm with OK.

6 Enter, how many copies of the Sudoku you would

like to print (maximum 9 copies).

7 Confirm with OK. 8 Using [ select if you would like to print the solu-

tion.

9 Confirm with OK. 10 Using [ indicate whether you would like to turn

printing on or off.

11 Confirm with OK.

Sudoku for Every Day 3

Switching Off Function

You can turn off the daily Sudoku print by selecting the function as described above and by switching off the automatic printing under point 10.

EN

Printing the Last Game Again

1 Press C, 862 and OK. 2 Enter, how many copies of the Sudoku you would

like to print (maximum 9 copies).

3 Confirm with OK. 4 Using [ select if you would like to print the solu-

tion.

5 Confirm with OK.

Printing the Solution

Last Solution Available

The solution of the last printed game is saved. The solutions of earlier games are no longer available.

Press C, 863 and OK.

Sudoku for Every Day

You can have a new Sudoku automatically printed each day.

1 Press C, 864 and OK. 2 Enter the time, e.g. 14 00 for 2 pm. 3 Confirm with OK. 4 Using [ select the difficulty level. 5 Confirm with OK.

Printer and Printing Media · Sudoku: Printing a Game 31

8Copier

CAUTION!

Notice

Specifications for Documen ts

Specifications for Documents

2 Lay the document onto the scanner glass with the

written side down.

EN

Width of Documents 208¦–¦218¦mm

Length of Documents 277¦–¦600¦mm

Paper Weight of the Documents

Capacity 50 page (80¦g/m)

Manufacturer’s Recommendation for Optimum Operation

Unsuitable Documents!

60¦-¦90¦g/m

A4 · A5 · Letter · Legal (80¦g/m

Unsuitable Documents!

Do not insert any documents into the device that ...

... are wet, have been edited with correction fluid, are soiled or have a coated surface.

… that are written on with a soft pencil, with paint, chalk or charcoal.

… originate from newspapers or magazines (printing ink).

… that are held together with office or notebook staples or with tape or glue.

… are pasted with note papers. … are creased, crumpled or torn.

3 Align the document with the rear left corner of the

scanner glass (arrow marks). The markings on the scanner border for the A4 and A5 formats will help you to position the document correctly.

Loading Documents

1 Open the scanner cover.

Enlarge Detail

If you would like to copy a detail (such as a graphic) of your document, position the document so that the detail view is close to the source . Using the zoom function, you can separate the desired area from rest of the document.

4 Close the scanner cover.

32 Philips · LaserMFD 6135hfd

Notice

Adjust Scanner Cover

CAUTION!

Notice

The scanner cover is equipped with adjustable hinges, allowing you to lay even thicker documents (e.g. books) in the flatbed scanner. Carefully lift the scanner cover so that it rests as evenly as possibly.

Use clear sheets of plastic when copying three-dimensional objects (e.g. coins, flowers) to avoid damaging the scanner glass.

Do Not Press on the Scanner Cover!

Do not press forcefully on the scanner cover when you scan thicker documents or three-dimensional items, this could damage the scanner cover and/or the scanner glass.

Make Copy Using Standard Settings

Starting Mode

In the starting mode, the selected settings for resolution, magnification/reduction factor, selected paper size and simplex or duplex appear in the display.

1 Insert the document. 2 Press COPY twice. The copy is created.

ECO Button

ECO button

Press COPY and ECO to make a copy using the toner saving function.

Making a Copy

Access Function

You can also call the function by pressing C, 11 and OK.

Modifying the Settings

Settings for the Next Print Job

Using this function, select the settings for the next print job. Change the basic settings using the functions of chapter Settings (see also chapter Settings, Page 55).

Set Resolution

Press f. The configured resolution appears on the display. Press f again to change the setting. You can choose between:

AUTO—Optimised adjustment for all types of docu-

ments

TEXT—For texts with small print or drawings

QUALITY—For documents with many details PHOTO—For the highest resolution

Set Resolution

Modifying the Basic Settings

Modify the basic setting by pressing C, 103 and OK.

Setting the Zoom Parameter

1 Press Ô/ZOOM. The magnification/reduction fac-

tor appears on the display.

2 Select the desired setting using [. Standard values

are saved, for example, for compressing A4 to A5 or for adjusting the European DIN formats to American letter and legal formats

3 Confirm with OK.

Select One Side/Both Side Printing (Simplex/Duplex)

Press Õ/DUPLEX, to select double sided printing (Duplex). Press f, twice to select single side printing (Simplex).

Select One Side/Both Side Printing (Simplex/Duplex)

Modifying the Basic Settings

Modify the basic setting by pressing C, 101 and OK.

Setting the Contrast

1 Press ¬. 2 Set the desired contrast using [.

-/1—Reduces the contrast / typeface appears lighter 4 (Factory settings)—Optimized adaptation for all

documents

+/7—Increases the contrast / typeface appears

darker (for example, documents with faint print)

3 Confirm with OK.

Creating Multiple Copies

1 Insert the document. 2 Enter the number of times you would like to copy

the document (maximum of 99 copies). You can also change the number by pressing [.

3 Press COPY twice.

ECO Button

ECO button

Press COPY and ECO to make a copy using the toner saving function.

EN

Copier · Make Copy Using Standard Settings 33

Creating Crystal Copy with

Notice

EN

Image and Text Enhancement (Crystal)

Crystal

Your device has the image and text enhancement function Crystal with which you achieve optimal printing and copying quality for your documents.

Introduction

Crystal automatically performs all adjustments and corrections with regard to image sharpness, colour management and contrast in order to obtain the best possible printing quality. Exposure errors are also corrected (underexposed images are brightened or parts of the image with extremely different contrasts are brought into balance).

1 Insert the document. 2 Press COPY. 3 Use [ to select 4 Confirm with OK. 5 A preview of the document is scanned for analysis.

Thereafter, the device creates the Crystal copy for the document The profile with the settings is saved for other documents.

CRYSTAL COPY.

Access Function

You can also call the function by pressing C, 12 and OK.

4 Press COPY.

Make Several Copies Using the Second Profile

1 Insert the document. 2 Enter the number of times you would like to copy

the document (maximum of 99 copies). You can also change the number by pressing [.

3 Press COPY. 4 Select the second profile using [.

Access Function

You can also call the function by pressing C, 12 and OK.

5 Press COPY.

ECO Button

Create Multiple Crystal Copies with a Saved Profile

1 Press C, 15 and OK. 2 Use [ to select 3 Confirm with OK. 4 A preview of the document is scanned for analysis.

Thereafter, the device creates the Crystal copy for the document The profile with the settings is saved for other documents.

5 If you would like to copy other documents with the

same settings, select using [ Only the last profile used is saved.

6 Confirm with OK.

PRE SCAN.

PREV. PROFILE.

Make Copies Using the Second Profile

Make Copies Using the Seco nd Profile

Save settings which you would like to use frequently in a second profile, for example in order to copy a frequently used document type (see also chapter, page 36).

Make Copy Using the Second Profile

1 Insert the document. 2 Press COPY. 3 Select the second profile using [.

ECO button

Press COPY and ECO to make a copy using the toner saving function.

Make Copies Using UserDefined Settings

Make Copies

You can start the copying process at any time, by pressing COPY. Press ECO to make a copy using the toner saving function.

1 Insert the document. 2 Press COPY. 3 Use [ to select the desired profile. 4 Confirm with OK. 5 Using [ select the paper source. 6 Confirm with OK. 7 For Paper in the Manual Paper Feed: Use [

to select the desired paper format.

8 Confirm with OK. 9 For Paper in the Manual Paper Feed: Use [

to select the weight of the inserted paper.

10 Confirm with OK.

34 Philips · LaserMFD 6135hfd

11 Select the desired resolution using [:

Notice

CAUTION!

Notice

AUTO—Optimised adjustment for all types of docu-

ments

TEXT—For texts with small print or drawings QUALITY—For documents with many details PHOTO—For the highest resolution

12 Confirm with OK. 13 Set the desired contrast using [.

-/1—Reduces the contrast / typeface appears lighter 4 (Factory settings)—Optimized adaptation for all

documents

+/7—Increases the contrast / typeface appears

darker (for example, documents with faint print)

14 Confirm with OK. 15 Using [, select the desired level of brightness:

-/1—Reproduction is lighter 4 (Factory settings)—Optimized adaptation for all

documents

+/7—Reproduction is darker

16 Confirm with OK. 17 Select one-sided print (Simplex) or double-sided

print (Duplex) using [.

18 Confirm with OK. 19 Select whether the copies should be output sorted

or unsorted using [.

20 Press COPY.

Make Enlarged or Compressed Copies

Make Copies

You can start the copying process at any time, by pressing COPY. Press ECO to make a copy using the toner saving function.

7 You can make copies of the document that are

enlarged or that are compressed in size. Size compression is possible down to 25 percent of the size of the original, and enlargements of up to 400 percent can be made. Enter the the desired value using the numeric keypad.

Select the Preset Values

Using [ select from the preset values. Standard values are saved, for example, for compressing A4 to A5 or for adjusting the European DIN formats to American letter and legal formats

8 Press COPY, to start the copying process or OK,

to configure further settings (see also chapter on make copies using adjusted settings , page 34).

Copying both Sides of a Document onto One Side (= Business Card Copy)

Introduction

Using the business card copy, you can copy both sides of a small document (for example of a business card) onto one page

Reproduction Not Permitted

The reproduction of certain documents (e.g. by scanning, printing, copying) is prohibited in many countries. Observe the legal notes for reproduction of certain documents in the appendix (page 84).

1 Insert the document. Place the document in the

upper half of the scanning area.

EN

1 Insert the document. 2 Press COPY. 3 Use [ to select 4 Confirm with OK.

ZOOM.

Access Function

You can also call the function by pressing C, 13 and OK.

5 Enter the number of times you would like to copy

the document (maximum of 99 copies).

6 Confirm with OK.

2 Press COPY.

Copier · Make Enlarged or Compressed Copies 35

Document Size

The document cannot be larger than half of the print paper (for example) A5 document with A4 printing paper)

3 Use [ to select ID CARD COPY.

Notice

4 Confirm with OK.

EN

Access Function

You can also call the function by pressing C, 16 and OK.

5 The first page of the document is scanned. 6 Turn the document over when the corresponding

messages appear on the display. Place it in the same place as the first page.

7 Confirm with OK. The second page of the docu-

ment is scanned and the copy is created.

Configure Settings for Second Profile

Select One Side/Both Side Printing (Simplex/Duplex)

1 Press C, 1061 and OK. 2 Select one-sided print (Simplex) or double-sided

print (Duplex) using [.

3 Confirm with OK.

Set Resolution

1 Press C, 1063 and OK. 2 Select the desired resolution using [:

AUTO—Optimised adjustment for all types of docu-

ments

TEXT—For texts with small print or drawings QUALITY—For documents with many details PHOTO—For the highest resolution

3 Confirm with OK.

Setting the Contrast

1 Press C, 1064 and OK. 2 Set the desired contrast using [.

-/1—Reduces the contrast / typeface appears lighter 4 (Factory settings)—Optimized adaptation for all

documents

+/7—Increases the contrast / typeface appears

darker (for example, documents with faint print)

3 Confirm with OK.

Setting the Brightness

1 Press C, 1065 and OK. 2 Using [, select the desired level of brightness:

-/1—Reproduction is lighter 4 (Factory settings)—Optimized adaptation for all

documents

+/7—Reproduction is darker

3 Confirm with OK.

36 Philips · LaserMFD 6135hfd

9 Telephone Functions

Notice

Connecting Additional Telephones

For information on how to connect additional telephones and which functions are available to you, please refer the chapter on Telephone Lines and Additional Devices, Page 63.

Placing a Call on the Device

Dial the desired number. There are several ways to do this: Then pick up the handset.

Direct Dialling

You can also lift up the receiver first, then dial a number. The dialling process begins immediately.

Manual Dialling: Dial the desired number using the numeric keypad.

Telephone Book

Telephone Book: 1 Press m.

desired number or select a stored entry. The outside line access code is usually 0.

Incorrect Outside Line Access Code

Setting Up an Extension

EN

Incorrect Outside Line Access Code

In rare cases, the outside line access code may be a different number or a two-digit number. For older telephone systems, the outside line access code can be R (= Flash). Press R to enter this outside line access code. If the connection to the public telephone network is not possible, contact your telephone system supplier.

Connection to Private Automatic Branch Exchange

If you operate your device permanently on an extension, save the outside line access code (see also chapter on setting Private Branch Exchange (PABX) , page 63).

Access Function

You can also search for an entry in the telephone book by pressing C, 511 and OK.

2 Select an entry using [. Enter the starting letters

with the numeric keypad to quickly navigate through the telephone book.

Redial / caller list

Redial / caller list: The redial / caller list contains the last numbers dialled and the last calls received ( cates the numbers dialled,

® the calls received and * the

calls missed).

1 Press @. 2 Select an entry using [.

Chain Dialling

You can combine and edit manually entered digits and saved entries, before the dialling process starts. If you have saved, for example, the telephone number prefix of an inexpensive telephone service provider (call-bycall) as a telephone book entry, select this entry and manually enter the subsequent telephone number or select another saved entry.

Insert Dialling Pause

It may be necessary to insert a dial pause in telephone number, for example, for a direct-inward dialling number, a sub-address or in a long distance number. Press . The second part of the number is dialled only after a short pause.

Calling Additional Telephone Functions

Function is not supported in all countries and networks

(Function is not supported in all countries and networks)

Additional Telephone Functions

You can use additional telephone functions with your device for example call toggling, three-way call or call forwarding. Contact your telephone company to inquire whether or not these functions are available for your connection. The signal to the switchboard to call these services is a short line interruption (Hook Flash). Press the R key to call the additional telephone functions. How to call up the functions, depends on your telephone company.

Calling Line Identification

Getting Outside Line

PABX Systems

Private branch exchanges (PABX) are typical in many offices and some households. You must dial an outside line access code in order to get a connection to the public telephone network (PSTN) from a PABX.

Inserting Outside Line Access Code

Enter the outside line access code with which you reach

(CLIP)

CLIP Definition

The number of an incoming call appears on the display. For this function to work, the Calling Line Identification Presentation (CLIP) must be activated for your telephone line. Enquire with your telephone company. Caller Line Identification may be associated with a fee.

the public telephone network before you enter the

Telephone Functions · Placing a Call on the Device 37

EN

Notice

Missed Calls

You can find reference to missed calls in the redial/caller list.

1 Press @. 2 Page through the dialled numbers, the calls received

and calls missed in the list using [ ( numbers dialled,

® the calls received and * the calls

missed).

Displaying Telephone Book Names

Your device displays the name with which you have saved the number in the telephone book. The number and name will not be shown if the caller suppresses his number.

38 Philips · LaserMFD 6135hfd

10 Telephone Book of the Device

Notice

Telephone Book of the Device

Calling the Web Interface

You can also edit the entries of the telephone book with the device's web interface (see also the chapter Web Interface, page 20).

Introduction

You can store new entries, search for entries as well as set and edit groups. You can save up to 250 entries in the telephone book of your device.

Cursor Navigation 1

Navigating in the Editor

You can move the cursor using [. Use C to delete individual characters. Press j to close the menu and return to the starting mode.

Looking up an Entry

1 Press m.

Access Function

You can also search for an entry in the telephone book by pressing C, 511 and OK.

Outside Line Access Code

If you have set your device up to work on a public telephone network (see Private Branch Exchange) and entered the outside line access code, save the number without the outside line access code (see also chapter Setting up outside line access code (PABX), page 63).

6 You can assign a ring tone to the number. Use [ or

the number buttons 1 to 7 to select a ring tone.

7 Confirm with OK.

Assigning the Standard Ring Tone

Select 1, in order to assign the standard ring tone to the number.

8 Select the speed for fax transmissions to this recipi-

ent. Normally you can select the highest speed. Set a lower transmission speed if you are sending faxes into networks with poor line quality.

9 Confirm with OK. The entry is saved.

EN

2 Select an entry using [.

Saving Entry

No Repeat Entries

You cannot save two entries under the same name.

1 Press C, 512 and OK. 2 Enter the name. You can enter characters using the

numeric keys (see key labels). Enter special characters using 0. Press the respective key several times until the desired character or special character appears on the display.

Navigating in the Editor

You can move the cursor using [. Use C to delete individual characters.

3 Confirm with OK. 4 Enter the number using the number pad. 5 Confirm with OK.

Number from the Last Number Redial List

You can retrieve a saved number from the list of the last numbers dialled and last calls received (redial/caller list). Press

[

an entry using

. Confirm with OK.

@

. Select

Edit Entry

1 Press C, 514 and OK. 2 Using [ select the entry which you would like to

edit.

3 Confirm with OK. 4 Edit the name. 5 Confirm with OK. 6 Edit the number. 7 Confirm with OK. 8 You can assign a ring tone to the number. Use [ or

the number buttons 1 to 7 to select a ring tone.

9 Confirm with OK.

Assigning the Standard Ring Tone

Select 1, in order to assign the standard ring tone to the number.

10 Select the speed for fax transmissions to this recipi-

ent. Normally you can select the highest speed. Set a lower transmission speed if you are sending faxes into networks with poor line quality.

11 Confirm with OK. The entry is saved.

Telephone Book of the Device · Looking up an Entry 39

EN

CAUTION!

Notice

Delete an Entry

1 Press C, 515 and OK. 2 Use [ to select 3 Confirm with OK. 4 Using [ select the entry which you would like to

delete.

5 Confirm with OK. 6 Use [ to select 7 Confirm with OK.

DELETE: SINGLE.

DELETE: YES.

Delete all Entries

All Telephone Book Entr ies are Deleted!

All Telephone Book Entries are Deleted!

This function deletes all entries and groups in your telephone book.

1 Press C, 515 and OK. 2 Use [ to select 3 Confirm with OK. 4 Use [ to select 5 Confirm with OK.

DELETE: ALL.

DELETE: YES.

5 Entries which belong to the group are highlighted

with a star ( selecting the entries and press OK. Remove group members by selecting the highlighted entry and press OK.

6 Press o to save the group.

*). Add other members to the group by

Saving Group

You can also save the groups using [ to

ACCEPT GROUP. You can find this

select menu entry at the end of the list of stored names. Confirm with OK.

Edit Group

1 Press C, 514 and OK. 2 Using [ select the group you would like to edit. 3 Confirm with OK. 4 If necessary, enter a new name for the group. 5 Confirm with OK. 6 Entries which belong to the group are highlighted

with a star ( selecting the entries and press OK. Remove group members by selecting the highlighted entry and press OK.

7 Press o to save the group.

*). Add other members to the group by

Printing the Telephone Book

Printing List of all Entries

Printing the Telephone Book

Press C, 83 and OK to print a list of all saved entries and groups in the telephone book.

Printing an Individual Entry

1 Press C, 511 and OK. 2 Select an entry using [. Enter the initial letters with

the letter keypad to quickly navigate through the telephone book.

3 Press COPY.

Groups

You can create groups containing several numbers. A message is sent to all members of this group in succession. A group is displayed as an individual telephone book entry.

Creating Group

Saving Group

You can also save the groups using [ to

ACCEPT GROUP. You can find this

select menu entry at the end of the list of stored names. Confirm with OK.

Deleting a Group

Entries are Not Deleted

This function only deletes the group but not the telephone book entries contained in it.

1 Press C, 515 and OK. 2 Use [ to select 3 Confirm with OK. 4 Using [ select the group you would like to delete. 5 Confirm with OK. 6 Use [ to select 7 Confirm with OK.

DELETE: SINGLE.

DELETE: YES.

1 Press C, 513 and OK. 2 Enter a name for the group. 3 Confirm with OK. 4 Enter the initial letters or select the entry you would

like to add to the group using [.

40 Philips · LaserMFD 6135hfd

Exporting/Importing the

Notice

Telephone Book

Exporting/Importing the Telephone Book

You can save your telephone book entries onto a USB storage medium or import your entries from a USB storage medium.

Saving Telephone Book onto USB Storage Medium

1 Make sure that a USB storage medium is connected

to the USB host port on the front or on the backside of the device. Connect a USB storage medium as required.

EN

2 Press C, 518 and OK. The telephone book

is saved on the USB storage medium.

Load Telephone Book from USB Storage Medium

Data Format

The entries must be saved to the file „phonebook.csv“ in the root directory of the USB storage medium. The data in the file must be separated by semicolons „;“.

1 Press C, 517 and OK. The entries are added

to the existing entries. Current entries with the same name will not be overwritten.

Telephone Book of the Device · Exporting/Importing the Telephone Book 41

EN

Notice

CAUTION!

11 Fax

Send a Fax Using Standard Settings

Send a Fax Using Standard Se ttings

Your fax message will be sent using the standard settings. If you would like to adjust the settings yourself (for example resolution or contrast) for a fax transmission use function Send Fax Later,page 44).

1 Insert the document. 2 Press FAX.

Call Up Function Immediately

You can also call the function by pressing C, 41 and OK.

3 Enter the desired number using the numeric keypad

or select a saved entry.

4 Press FAX or o.

Busy Number

Unsuitable Documents!

Do not insert any documents into the device that ...

... are wet, have been edited with correction fluid, are soiled or have a coated surface.

… that are written on with a soft pencil, with paint, chalk or charcoal.

… originate from newspapers or magazines (printing ink).

… that are held together with office or notebook staples or with tape or glue.

… are pasted with note papers. … are creased, crumpled or torn.

Loading Documents

1 Open the scanner cover.

Automatic Redial

If the subscriber is busy, the device dials the number again after some time. Press j, in order to cancel the transmission process. After the transmission, the device prints out a transmission report depending on the settings.

Specifications for Documen ts

Specifications for Documents

Width of Documents 208¦–¦218¦mm

Length of Documents 277¦–¦600¦mm

Paper Weight of the Documents

Capacity 50 page (80¦g/m)

Manufacturer’s Recommendation for Optimum Operation

60¦-¦90¦g/m

A4 · A5 · Letter · Legal (80¦g/m

2 Lay the document onto the scanner glass with the

written side down.

42 Philips · LaserMFD 6135hfd

3 Align the document with the rear left corner of the

Notice

CAUTION!

Notice

scanner glass (arrow marks). The markings on the scanner border for the A4 and A5 formats will help you to position the document correctly.

Enlarge Detail

If you would like to copy a detail (such as a graphic) of your document, position the document so that the detail view is close to the source . Using the zoom function, you can separate the desired area from rest of the document.

4 Close the scanner cover.

Do Not Press on the Scanner Cover!

Do not press forcefully on the scanner cover when you scan thicker documents or three-dimensional items, this could damage the scanner cover and/or the scanner glass.

Dialling a Number

Dial the desired number. There are several ways to do this:

Manual Dialling: Dial the desired number using the numeric keypad.

Telephone Book

Telephone Book:

1 Press m.

Access Function

You can also search for an entry in the telephone book by pressing C, 511 and OK.

2 Select an entry using [. Enter the starting letters

with the numeric keypad to quickly navigate through the telephone book.

Redial / caller list

Redial / caller list: The redial / caller list contains the last numbers dialled and the last calls received ( cates the numbers dialled,

® the calls received and * the

calls missed).

1 Press @. 2 Select an entry using [.

EN

Adjust Scanner Cover

The scanner cover is equipped with adjustable hinges, allowing you to lay even thicker documents (e.g. books) in the flatbed scanner. Carefully lift the scanner cover so that it rests as evenly as possibly.

Use clear sheets of plastic when copying three-dimensional objects (e.g. coins, flowers) to avoid damaging the scanner glass.

Chain Dialling

You can combine and edit manually entered digits and saved entries, before the dialling process starts. If you have saved, for example, the telephone number prefix of an inexpensive telephone service provider (call-bycall) as a telephone book entry, select this entry and manually enter the subsequent telephone number or select another saved entry.

Getting Outside Line

PABX Systems

Private branch exchanges (PABX) are typical in many offices and some households. You must dial an outside line access code in order to get a connection to the public telephone network (PSTN) from a PABX.

Inserting Outside Line Access Code

Enter the outside line access code with which you reach the public telephone network before you enter the desired number or select a stored entry. The outside line access code is usually 0.

Fax · Dialling a Number 43

EN

Notice

Incorrect Outside Line Access Code

Setting Up an Extension

Incorrect Outside Line Access Code

In rare cases, the outside line access code may be a different number or a two-digit number. For older telephone systems, the outside line access code can be R (= Flash). Press R to enter this outside line access code. If the connection to the public telephone network is not possible, contact your telephone system supplier.

9 Set the desired contrast using [.

-/1—Reduces the contrast / typeface appears lighter 4 (Factory settings)—Optimized adaptation for all

documents

+/7—Increases the contrast / typeface appears

darker (for example, documents with faint print)

10 Confirm with OK. 11 After a short warm up phase, the device will read the

document into the memory and will send out the fax at the specified time.

Connection to Private Automatic Branch Exchange

If you operate your device permanently on an extension, save the outside line access code (see also chapter on setting Private Branch Exchange (PABX) , page 63).

Insert Dialling Pause

It may be necessary to insert a dial pause in telephone number, for example, for a direct-inward dialling number, a sub-address or in a long distance number. Press . The second part of the number is dialled only after a short pause.

Sending Fax Later (= Timer Function)

Using fax transmission from the memory

This function is only available if you have set up your device in such a way that fax messages are sent from the memory (see also chapter on setting up fax messages from the memory, page 60).

Sending Fax Later

If you would like to make use of the lower telephone tariffs or if the recipient can be reached at some specific time only, you can send the fax at a later time—within 24 hours.

1 Insert the document. 2 Press FAX. 3 Enter the desired number using the numeric keypad

or select a saved entry.

4 Confirm with OK. 5 Enter the time, at which the document should be

transmitted, e.g. 14 00 for 2 pm.

6 Confirm with OK. 7 Select the desired resolution using [:

DEFAULT—For documents without special fea-

tures

FINE—For texts with small print or drawings SFINE—For documents with many details PHOTO—For photos

8 Confirm with OK.

Deleting a Job

To cancel a scheduled fax transmission, simply delete the document from the jobs list (also see chapter Jobs, page 48).

Sending Fax Manually

1 Insert the document. 2 Press μ. 3 Enter the desired number using the numeric keypad

or select a saved entry.

4 Press FAX or o.

Start Fax Reception from Additional Telephone

You can start the fax reception from an additional telephone that is connected to the device by pressing *5:

Using Fax Templates

Fax Templates

Five fax templates, which you can use, are stored in your device. With these templates you can quickly create, for example, a short fax note or an invitation.

1 Press C, 45 and OK. 2 Use [ to select the template you would like to

print.

3 Confirm with OK. The device prints the template. 4 Fill the template and send it to the desired recipient

per fax.

44 Philips · LaserMFD 6135hfd

Faxing with the Companion

Notice

6RXUFH)D[

:KDW"

&RYHUSDJH

7R:KR"

5HFLSLHQW1XPEHU

5HFLSLHQW1DPH

)$;%2;$GYDQFHG&RYHUSDJH6HQG

$GGFRQWDFWIURPDGUHVVERRN

6FDQ3UHYLHZ

5HFLSLHQW1XPEHU

5HFLSLHQW1DPH

:KHQ"

6HQG/DWHU

>,3$GGUHVV@

+HOS6FDQ )D[ 6HWWLQJV

Notice

Center SFX

Introduction

With the software Companion Center SFX you can send, receive and manage faxes on your computer. You can either send scanned documents or files saved on the computer. With the cover sheet editor, you can design your own cover pages for your faxes, or use an existing document as the cover sheet. Apart from that, you can select from numerous fax settings.

1 Start the software Companion Center SFX, by

clicking on the Companion Center SFX icon on your desktop or selecting Start > Programs >

Companion Center SFX > Laser SFX > Companion Center SFX in the Start Menu.

2 The light in the upper-right corner shows whether

or not the device is connected to the computer and is functioning properly.

3 Selecting the Fax tab.

5 Under Source Fax, select whether you want to scan

a document with the device or send a file that is already saved on the computer.

6 Scan a document: Insert the document into the

device. Select the desired resolution.

7 Sending a file: Select the saved file (file format

*.TIFF or *.FAX).

8 If you would like to add a cover/title page to your

fax, select the saved file under Cover page (file format *.TIFF).

Create Cover/Title Page with Editor

With the editor, you can create your own cover/title page for your fax. Click on Cover page (see also the Chapter Create Cover/Title Page with Editor, page 45.

9 Click on Fax in order to send the fax to all recipients

in the send list.

EN

Sending a Fax

1 Click on Send.

2 In the field To Who? enter the name of the recipient

under Recipient Name.

3 In Recipient Number, enter the recipient's fax

number.

Add Recipients from the Telephone Book

Click on Add contact from adressbook to access the device's telephone book.

4 Click on >> to add the recipients to the list.

Sending Fax Later (= Timer Function)

Introduction

If you would like to take advantage of cheaper telephone rates or if the recipient is only available at certain times, you can send the fax a later time.

1 In the field When?, activate the functionSend Later. 2 Select the time and date that the document is to be

sent.

3 Click on Fax. The fax will be sent automatically at

the specified time.

Send Fax from a Program

Introduction

You can send a file as a fax from any program with a printing function—such as, for example, a wordprocessing or text-editing program. The documents do not need to be printed out already.

1 In the program, click on the printing function. 2 Select FAX Laser SFX as the printer. 3 The software Companion Center SFX opens the

window for sending faxes.

Create Cover/Title Page with Editor

Introduction

With the cover sheet editor, you can design your own cover pages for your faxes, or use an existing document as the cover sheet.

Sending to Multiple Recipients (= Broadcasting)

You can send one fax to multiple recipients in succession. Enter other recipient names and numbers or select entries from the telephone book. Click on >> to add the recipients to the list. Click on >> to remove a recipient from the send list.

Fax · Faxing with the Companion Center SFX 45

1 Click on Cover page.

>,3$GGUHVV@

+HOS6FDQ )D[ 6HWWLQJV

6HQGHU

&RPPHQWV

6XEMHFW

7HOHSKRQH1XPEHU

)$;1XPEHU

(PDLODGGUHVV

&RPSDQ\QDPH

1DPH

:LWKWKHFRYHUSDJH

7HOHSKRQH1XPEHU

)$;1XPEHU

(PDLODGGUHVV

&RPSDQ\QDPH

1DPH

1HZ&RYHUSDJH

3UHYLHZ

5HFLSLHQW

)$;%2;$GYDQFHG&RYHUSDJH6HQG

)$;0DQDJHU

2XWER[ 6HQWLWHPV 'HOHWHG,WHPV 'UDIWV 6HQGORJ

>,3$GGUHVV@

+HOS6FDQ )D[ 6HWWLQJV

)$;%2;$GYDQFHG&RYHUSDJH6HQG

Send log—Information and transfer status of all faxes

Additional Options for Fax

EN

2 Activate the function With the cover page:. 3 Under Senderenter the data that is to appear on the

cover sheet.

4 Under Subject, enter a short title for your fax.

Under Comments you are able to add a note.

5 In Recipient, enter the recipient's information. 6 You can save created cover sheets as templates.

Click on New in order to open the template editor and save a new template. Select an existing cover sheet template from the list of created templates.

Managing Faxes with the Fax Manager

Introduction

The FAX Manager shows you the received faxes and provides you an overview of the status of the sent faxes. The outbox and inbox logs are automatically printed when their contents fill a page. After the automatic printing, the device creates a new journal.

1 Click on FAX BOX.

2 Select the desired folder.

Outbox—Faxes that have not yet been sent (current send requests, delayed send requests, interrupted send requests)

Sent items—Sent faxes Deleted Items—Deleted faxes (= recycle bin) Drafts—Saved faxes that have not yet been sent

Transmission

1 Click on Advanced.

>,3$GGUHVV@

+HOS6FDQ )D[ 6HWWLQJV

)$;%2;$GYDQFHG&RYHUSDJH6HQG

3URSHUWLHVRIWKHWHOHSKRQHOLQH

6HQGLQJVSHHG

/LQHQXPEHU

'LDOLQJSUHIL[

'LDOLQJW\SH

+HDGHU

5HVHQGDIWHUIDLOXUH

1XPEHURIWULHV



,QWHUYDOEHWZHHQWULHV



2 You have the following options available.

Sending speed—The device adjusts the transmission speed to the line quality. Set a lower reception speed if this adjustment takes a long time or no connection is made.

Line number—Enter your number. Dialing prefix—This dialing code is automatically

added to the number before sending (= external access code).

Dialing type—In some countries you can set the dialling mode to pulse dialling or tone dialling (DTMF tones).

Header—Your name and number appear in the page header of each fax transmission. If you do not wish to send out your information, you can turn this function off.

3 With the following options you set the number of

repeat attempts for incomplete fax transfers. Number of tries—Number of repeat attempts for

interrupted fax transfers. Interval between tries—Duration between two

transfer attempts

4 You can activate the following options.

Automatic printing of the sent document—Prints the sent fax after the sending process is complete

Print the send report—The transmission report will be printed after each successful fax transfer as well as after interrupted transfers.

Print the send log—The send report is printed after every successful or interrupted transfer attempt.

$XWRPDWLFSULQWLQJRIWKHVHQWGRFXPHQW

3ULQWWKHVHQGUHSRUW

3ULQWWKHVHQGORJ

46 Philips · LaserMFD 6135hfd

Fax Reception

Notice

CAUTION!

Notice

Memory

If you have not changed the factory settings, received faxes will be printed out automatically. If there is no paper or toner in your device, the device will store incoming fax transmissions in its memory. The green lamp â on the panel will be lit whenever there is a fax present in the memory. After you have loaded paper into the device or inserted a new toner cartridge, the saved messages are printed.

Abort Fax Reception

After receiving the first page of a fax message, you can abort the transmission at any time by pressing j.

Memory Philips

The fax memory can store up to 200 pages. Follow the specifications in the technical data.

Message Memory Full!

If the message memory is full, no additional messages can be received.

Function not available

The function is switched off if you remove the USB storage medium. You cannot use the Pro-

tected Fax Reception and Receive Fax on USB Storage Medium functions at the same time.

1 Make sure that a USB storage medium is connected

to the USB host port on the backside of the device. Connect a USB storage medium to the USB host port as required.

Connecting USB Storage Medium on the Backside

The USB storage medium must be connected to the USB port on the the backside of the device in order to use this function.

EN

Using Service Codes

Delete Fax Messages Sent

If there are problems with printing out saved fax messages, a service code is available (see also chapter on using service codes , page 74).

Receiving Fax Manually

Select manual fax reception under fax reception mode (see also chapter on Setting the Fax Reception Mode, Page

59). The device will not receive faxes on its own. This setting is useful, when you want to receive faxes via a modem connected to a computer. You can start fax reception manually, by pressing o.

Receive Faxes Silently

Silent Fax Reception

Set the number of rings 0 (see also chapter setting the number of rings, page 57) and set the fax reception mode to fax mode (see also chapter setting the fax reception mode, page 59), in order to receive faxes without your device ringing.

Receiving Faxes onto USB Storage Medium

Introduction

With fax reception onto a USB storage medium, the device saves incoming faxes onto a connected USB storage medium. Fax messages are saved as TIFF files with receipt date and time.

Print Document from US B Storage Medium

Use the Print Document from USB Storage Medium function to print the saved fax messages (see also chapter Print Document from USB Storage Medium, page 29)

2 Press C, 914 and OK.

Access Function

You can also call the function by pressing C, 44 and OK.

3 Use [ to select whether you would like to turn the

function on or off.

4 Confirm with OK.

Time Stamp

The device prints the date and the exact arrival time on every incoming fax received. This allows you to document the exact time at which you have received a fax transmission. A memory buffer in the device ensures that the correct date and time of reception will be maintained even after a power loss.

Switches Time Stamp On/Of f

If the time stamp function is activated, incoming faxes will be stored in the fax memory. As soon as the last page has arrived, the arrival time is stored and the device prints out all the pages. You can turn this function off (also see chapter Switches Time Stamp On/Off, page 60).

Fax · Fax Reception 47

EN

Notice

Setting Protected Fax Reception

Deactivating Automatic Fax Printout

You can secure your fax reception with a code. In that case, incoming faxes are not printed out, but rather are stored in the fax memory. Only after entering a PIN code can you print out these fax transmissions.

Function not available

You cannot use the Protected Fax Reception and Receive Fax on USB Storage Medium functions at the same time.

Entering the PIN Code

Default Access Code

The function is switched off with the factoryinstalled access code ( access code to switch on the function. If you want to switch the function off enter the factory-installed code

1 Press C, 4033 and OK.

0000). Change the

0000 again.

Polling Faxes

With the fax polling function, you can retrieve faxes that lie ready in the dialled device.

Polling Faxes Directly

1 Press C, 42 and OK. 2 Enter the desired number using the numeric keypad

or select a saved entry.

3 Press o.

Time-Deferred Polling

1 Press C, 42 and OK. 2 Enter the desired number using the numeric keypad

or select a saved entry.

3 Confirm with OK. 4 Enter the time, at which the document should be

polled, e.g. 14 00 for 2 pm.

5 Confirm with OK. 6 The device is now in standby mode. You can con-

tinue to carry on telephone conversations or send other fax transmissions during this time.

Deleting a Job SFL 2

Entering the PIN Code

If you have already saved a code, the device will ask you to provide the old code first before you can enter a new code.

2 Enter a four-digit PIN code. 3 Confirm with OK. 4 Enter the code again for confirmation purposes. 5 Confirm with OK.

Switching On and Off

1 Press C, 4032 and OK. 2 Enter the four-digit PIN code. 3 Confirm with OK. 4 Use [ to select whether you would like to turn the

function on or off.

5 Confirm with OK.

Printing Out Fax Transmissions

1 Press C, 4031 and OK. 2 Enter the four-digit PIN code. 3 Confirm with OK. The stored fax transmissions are

printed out and deleted from the memory.

Deleting a Job

To terminate the polling readiness, simply delete the document from the jobs list (also see chapter Jobs, page 48).

Jobs

Introduction

All messages that have just been sent, that have been prepared for polling or that are to be sent or polled at a later time are present in the jobs list.

Display

Jobs appear in the display one-at-a-time. After the job number and job status indicator, you will find the fax number to which a fax is to be sent or from which it is to be polled. Documents on the jobs list can fall into the following categories with regard to their status:

Jobs 1

TX—Time-Deferred Sending

Jobs 3

POL—Time-delayed Fax Polling

Jobs 4

TR—Job in progress

Stop

Navigating in the Menu

Press j to close the menu and return to the starting mode.

Immediate Job Execution

1 Press C, 71 and OK. 2 Using [ select the job that you would like to exe-

cute immediately.

3 Confirm with OK. The transmission or polling will

commence immediately.

48 Philips · LaserMFD 6135hfd

Changing a Job

1 Press C, 72 and OK. 2 Using [ select the job that you would like to mod-

ify.

3 Confirm with OK. 4 Enter the desired changes and confirm by pressing

OK.

Deleting a Job

1 Press C, 73 and OK. 2 Using [ select the job that you would like to

delete.

3 Confirm with OK. 4 Confirm the deletion with OK.

Printing a Job

1 Press C, 74 and OK. 2 Using [ select the job that you would like to print

out.

3 Confirm with OK.

EN

Printing the Job List

Press C, 75 and OK. The device will print out a list of all pending jobs.

Fax · Jobs 49

EN

Notice

DANGER!

Notice

12 Networks

USB Port

Using the USB cable, you can connect your device to a PC that is connected to a network. Other PCs on this network can then access the device if it is shared for use on the network. You cannot connect the device directly to a network with a USB cable, unless you have a USB print server connection.

Networks

A WLAN adapter enables you to connect the device to an existing network as a network printer. All computers in the network can then access the device and scan or print.

optional and original

WLAN is optional

WLAN is optional and functions only with an original adapter, which you can purchase through our order service. More information: www.sagemcom.com

Networks

Calling the Web Interface

You can also edit the device's network settings with the device's web interface (see also the chapter Web Interface, page 20).

Infrastructure Wireless Network

In an infrastructure network, multiple devices communicate via a central access point (gateway, router). All data are sent to the access point (gateway, router) and distributed from there.

Netzwerk: Infrastruktur

Wireless Network (WLAN)

optional and original

WLAN is optional

WLAN is optional and functions only with an original adapter, which you can purchase through our order service. More information: www.sagemcom.com

Introduction

In a wireless network (Wireless Local Area Network, WLAN) at least two computers, printers or other additional devices communicate with each other over radio waves (high frequency waves). The transmission of data in the radio network is based on the standards 802.11b and 802.11g.

Information on Using WLAN!

The functioning of security systems, medical equipment or sensitive devices can be disrupted by the transmission power of the device. Observe any usage regulations (or restrictions) in the vicinity of such equipment.

The use of this device can affect the operation of insufficiently shielded medical devices and hearing aids and pacemakers through the release of high frequency radiation. Also consult a doctor or the manufacturer of the medical device to establish whether these are sufficiently shielded from external high frequency radiation.

Setting Up a Wireless Network (WLAN)

Information on Configuration

We recommend that the settings of your WLAN network should only be changed by a person with a good knowledge of the configuration of your computer.

Three steps are required to integrate your device into a wireless network (WLAN).

Setting Up the Network

1 Configure the network on your PC. 2 Configure your device for network operation. 3 Install the software Companion Center SFX on

your computer using the required printer drivers.

You must carry out certain network and security settings (for example the Service Set ID (SSID) and the password). The settings must match the information for the network. The device guides you through setting up the network using a configuration wizard.

50 Philips · LaserMFD 6135hfd

Connect WLAN Adapter

Notice

Connect WLAN Adapter

Insert the WLAN adapter into the USB host port on the reverse of the device.

USB-Host hinten anschließen

Using WPS with Pin Code

1 Press C, 0811 and OK. 2 Use [ to select 3 A pin code appears on the display. Enter this pin

code in your access point (Access Point, Router).

4 Press OK on the device. The WLAN access point

and device connect automatically and create a WPA protected connection.

WPS PIN.

Using WPS with Push Button Configuration (PBC)

EN

WLAN is Optional

WLAN is optional and functions exclusively with an original adapter, which you can acquire from our order service (see Order Service on the back of this operating manual). Other wireless adapters can damage the device.

Switching Wireless Networking (WLAN) On/Off

Introduction

Wireless networking is activated by default. You have the option of turning this function off.

1 Press C, 080 and OK. 2 Use [ to select whether you would like to turn the

function on or off.

3 Confirm with OK.

1 Press C, 0811 and OK. 2 Use [ to select 3 Activate Push Button Configuration on the WLAN

access point. The WLAN access point and device connect automatically and create a WPA protected connection.

WPS PBC.

Using Network Scan

Introduction

Your device shows you a list of all available wireless networks. A wizard helps you connect with the desired wireless network.

1 Press C, 0812 and OK. 2 The available wireless networks are displayed. Use

[ to select the desired wireless network.

3 Confirm with OK. 4 Select an encryption standard or switch off network

security using [

5 Confirm with OK. 6 Enter the password for the network.

Setting up a Wireless Network (WLAN) Using the Wizard

Introduction

You can integrate your device very quickly and easily into an existing wireless network using Wi-Fi Protected Setup (WPS) or using a wireless network scan. Using WPS, all important settings like network name (SSID) are automatically configured and the connection protected with secure WPA Encryption.

Using Wi-Fi Protected Set-up (WPS)

WPS

Using Wi-Fi Protected Setup (WPS), you can integrate your device into an existing wireless network in two different ways very quickly and easily. You can activate the login with a pin code or using Push Button Configuration (PBC), if your access point (Access Point, Router) supports this method.

WEP Key

With 64-bit encryption, the WEP key must be either 5 characters (ASCII) or 10 numbers (hexadecimal). With 128-bit encryption, the WEP key must be either 13 characters (ASCII) or 26 numbers (hexadecimal). You can find the WEP key in the network settings of your PC.

WPA Key

Enter an 8 to 63 character long password. The password can contain alphanumerical characters—numbers and letters—and any other symbol available on the keypad. The only invalid character is "€” (the euro currency symbol).

7 Confirm with OK. 8 The device connects with the wireless network and

automatically attempts to obtain an IP address.

Networks · Connect WLAN Adapter 51

EN

CAUTION!

Notice

Setting Up a Wireless Network (WLAN) Manually

Introduction

The PC and all other devices must have their parameters set up to the same network as the multifunction machine. All required information for setting the parameters, like name of the network (SSID), type of wireless network, WEP key, IP address and subnet mask must match the data from the network. You can obtain the necessary information from the network configuration of your computer or the access point (Access Point, Router).

1 Press C, 0821 and OK. 2 Entering the SSID.

You can find the network name (Service Set ID) in the network settings of your computer. The SSID must match the SSID on the computer or on the access point (Access Point, Router).

3 Confirm with OK. 4 Select an encryption standard or switch off network

security using [

8 Select automatic or manual configuration using [. 9 Confirm with OK.

This Process May Take a Few Moments.

The automatic configuration of IP address and subnet mask on the connected network PCs may take a moment.

10 Manual Configuration: Enter the IP address (for

example 192.168.001.×××).

IP-Address

The first three blocks of numbers refer to the IP field; this information must match the IP address on your computer. The last three digits determine are the individual IP address of the device. You can enter any number between 000 and 255. However, this number must be unique within the network; it may not be used on any other PC or network component.

Unprotected Wireless Networks are Accessible to Others!

Unprotected Wireless Networks are Accessible to Others! Always protect your network against unauthorised access. You can toggle between different encryption standards.

5 Confirm with OK. 6 Enter the password for the network.

WEP Key

With 64-bit encryption, the WEP key must be either 5 characters (ASCII) or 10 numbers (hexadecimal). With 128-bit encryption, the WEP key must be either 13 characters (ASCII) or 26 numbers (hexadecimal). You can find the WEP key in the network settings of your PC.

WPA Key

Enter an 8 to 63 character long password. The password can contain alphanumerical characters—numbers and letters—and any other symbol available on the keypad. The only invalid character is "€” (the euro currency symbol).

11 Confirm with OK. 12 Manual Configuration: Enter the subnet mask

(for example 255.255.255.000).

Subnet Mask

In a network with a gateway or router, the subnet mask indicates whether the respective data packets are addressed to an internal recipient in the network or whether they should be sent to a recipient outside of the network.

13 Confirm with OK.

Modifying Wireless Network Settings

Entering the Network Name (SSID)

Introduction

You can find the network name (Service Set ID) in the network settings of your computer. The SSID must match the SSID on the computer or on the access point (Access Point, Router).

1 Press C, 0821 and OK. 2 Entering the SSID. 3 Confirm with OK.

7 Confirm with OK.

With the connection mode, you set the IP address and subnet mask. If you have a DHCP or BOOTP server in your network which dynamically assign IP addresses, you can assign the settings automatically.

52 Philips · LaserMFD 6135hfd

Setting Network Security

CAUTION!

Notice

Unprotected Wireless Networks are Accessibl e to Others!

Set Static IP Address Assignment

Available Function (WLAN)

Unprotected Wireless Networks are Accessible to Others!

Unprotected Wireless Networks are Accessible to Others! Always protect your network against unauthorised access. You can toggle between different encryption standards.

1 Press C, 0822 and OK. 2 Select an encryption standard or switch off network

security using [

3 Confirm with OK. 4 Enter the password for the network.

WEP Key

With 64-bit encryption, the WEP key must be either 5 characters (ASCII) or 10 numbers (hexadecimal). With 128-bit encryption, the WEP key must be either 13 characters (ASCII) or 26 numbers (hexadecimal). You can find the WEP key in the network settings of your PC.

Available Function

This function is only available if you have selected static IP address assignment with the function 083.

Enter IP Address

Introduction

The IP address is the address of the device in the network. It must not match the IP address of the computer or other network components, however it must be located in the IP field.

1 Press C, 0841 and OK. 2 Enter the IP address (for example 192.168.001.×××).

IP-Address

The first three blocks of numbers refer to the IP field; this information must match the IP address on your computer. The last three digits determine are the individual IP address of the device. You can enter any number between 000 and 255. However, this number must be unique within the network; it may not be used on any other PC or network component.

EN

WPA Key

Enter an 8 to 63 character long password. The password can contain alphanumerical characters—numbers and letters—and any other symbol available on the keypad. The only invalid character is "€” (the euro currency symbol).

5 Confirm with OK.

Set IP Address Assignment

Introduction

The IP address assignment allows you to select whether your device's IP address is assigned dynamically by a DHCP or BOOTP router/server or statically assigned by the user. You can enter IP addresses, subnet masks, gateways or two alternative domain name servers (DNS) for the configuration of the static network connection.

1 Press C, 083 and OK. 2 Select automatic or manual configuration using [. 3 Confirm with OK.

This Process May Take a Few Moments.

The automatic configuration of IP address and subnet mask on the connected network PCs may take a moment.

3 Confirm with OK.

Entering the Subnet Mask

Introduction

In a network with a gateway or router, the subnet mask indicates whether the respective data packets are addressed to an internal recipient in the network or whether they should be sent to a recipient outside of the network.

1 Press C, 0842 and OK. 2 Enter the subnet mask (for example

255.255.255.000).

3 Confirm with OK.

Enter IP Address of the Access Point (= Gateway)

1 Press C, 0843 and OK. 2 Enter the IP address of the access point (Access

Point, Router).

3 Confirm with OK.

Enter Domain Name Server (DNS)

Introduction

The DNS translates IP addresses in the names of internet pages and vice-a-versa. You can enter a primary and secondary DNS.

Enter Primary DNS

1 Press C, 0844 and OK. 2 Enter the address of the primary DNS. 3 Confirm with OK.

Networks · Setting Up a Wireless Network (WLAN) Manually 53

EN

Notice

Enter Secondary DNS

1 Press C, 0845 and OK. 2 Enter the address of the secondary DNS. 3 Confirm with OK.

Verify DHCP Settings

Available Function (WLAN)

Enter the Secondary Windows Internet Name Service (WINS) Server

1 Press C, 0862 and OK. 2 Enter the address of the secondary WINS server. 3 Confirm with OK.

Available Function

This function is only available if you have selected automatic IP address assignment with the function 083.

Introduction

With these functions, you can verify the assigned network settings from your network's DCHP router. You cannot modify the settings.

Displaying the IP Address

1 Press C, 0851 and OK. 2 The current IP address is displayed; it is the address

that your device is registered with on the network.

Display Subnet Mask

1 Press C, 0852 and OK. 2 The subnet mask being used is displayed.

Display IP Address of the Access Point (= Gateway)

1 Press C, 0853 and OK. 2 The IP address of the access point (router) is dis-

played.

Enter the First Network Name (= NetBIOS)

Introduction

The device is registered on the network with the NetBIOS name.

1 Press C, 0863 and OK. 2 Enter the first NetBIOS name. 3 Confirm with OK.

Enter the Second Network Name (= NetBIOS)

1 Press C, 0864 and OK. 2 Enter the second NetBIOS name. 3 Confirm with OK.

Display Primary DNS

1 Press C, 0854 and OK. 2 The primary DNS address is displayed

Display Secondary DNS

1 Press C, 0855 and OK. 2 The secondary DNS address is displayed

Additional Wireless Network Settings

Enter the Primary Windows Internet Name Service (WINS) Server

Introduction

WINS is a network service that converts the IP address of the connected network components into NetBIOS names and vice-versa on the local area network (LAN). You can enter a primary and secondary WINS server.

1 Press C, 0861 and OK. 2 Enter the address of the primary WINS server. 3 Confirm with OK.

54 Philips · LaserMFD 6135hfd

13 Settings

Notice

Modifying the Basic Settin gs

Set Up Toner Saving

Modifying the Basic Settings

The changed settings are stored as new default settings. If you select a special function for a one-time process, take care to restore the default settings or factory settings after that.

Settings

Calling the Web Interface

You can also edit the device settings with the device's web interface (see also the chapter Web Interface, page 20).

Cursor Navigation 6

Navigating in the Menu

You can move the cursor using [. Press C to return to the previous menu level. Press j to close the menu and return to the starting mode.

Set Up Power Saving Function

You use this function to set after what period of time the device switches to power saving mode following the print job. Whenever you receive a fax or if you would like to print or make a copy, your device will automatically switch back from its energy saving mode to its operating mode.

1 Press ECO. 2 Use [ to select 3 Confirm with OK.

POWER SAVE.

Function

Set Up Toner Saving Function

You use this function to switch on the toner saving function. The print appears a little paler, thereby increasing the number of pages that you are able to print with one toner cartridge.

1 Press ECO. 2 Use [ to select 3 Confirm with OK.

TONER SAVE.

Access Function

You can also call the function by pressing C, 0022 and OK.

4 Use [ to select whether you would like to turn the

function on or off.

5 Confirm with OK.

Set Up Paper Saving Function

Using this function, switch on automatic Duplex printing for printing and copying in order to save paper. With Duplex printing, both sides of the paper are printed.

1 Press ECO. 2 Use [ to select 3 Confirm with OK.

Access Function

You can also call the function by pressing C, 0023 and OK.

PAPER SAVE.

EN

Access Function

You can also call the function by pressing C, 0021 and OK.

4 Select the time (in minutes) after which the device

should switch to power saving mode using [. You can choose between: 0, 2, 10, 30 minutes (factory default: 2 minutes). Select switch to the power saving function immediately after a print job.

5 Confirm with OK.

Settings · Set Up Power Saving Function 55

0 if the device should

4 Select one-sided print (Simplex) or double-sided

print (Duplex) using [.

5 Confirm with OK.

EN

CAUTION!

Notice

Selecting the Country

Setting the Country Correctly

Setting the Country Correctly!

You must set the country in which you are operating the device. Otherwise your device is not adapted to the telephone network. If your country is not included in the list, you must select a different setting and use the correct telephone cable for the country. Consult your retailer.

1 Press C, 031 and OK. 2 Use [ to select the country in which you are oper-

ating the device.

3 Confirm with OK.

Selecting the Language

1 Press C, 033 and OK. 2 Use [ to select the desired display language. 3 Confirm with OK.

Setting the Date and Time

Time Zone Editor

Press [ to change the sign (+/-). You can also enter values under an hour, example,

0.15 (or 0.25) for a quarter of an hour,

0.30 (or 0.50) for half an hour or 0.45 (or

0.75) for three quarters of an hour.

4 Confirm with OK.

Automatic Changeover Between Summer Time /Winter Time

Automatic Changeover Between Summer Time/Winter Time

With setting the country and time zone, the automatic changeover between summer and winter time is switched on. The automatic changeover is switched off if you enter the deviance from UTC manually using the time zones editor

Spaltenumbruch

Set the Time Synchronization with SNTP Server

Introduction

With the simple time network protocol (SNTP), you can synchronize the date and time of your device with a server in the network automatically.

Entering the Date and Time

1 Press C, 011 and OK. 2 Enter the date (two digits for each field), for example

31¦05¦25 for May 31th, 2025.

3 Enter the time, e.g. 14 00 for 2 pm. 4 Confirm with OK.

Set the Time Zone

UTC

Coordinated Universal Time (UTC) is the current standardised universal time format used. Starting from Greenwich in London (Zero Meridian), the world is split into time zones. These time zones are indicated with a deviance from UTC (in hours) for instance UTC+1 for Central European Time (CET)

Set the Time Zone

In countries with several time zones, you can select from preset time zones or enter the deviance of your time zone from UTC. In countries with one time zone, the setting is automatically adjusted if you set country correctly (see also chapter Selecting the Country, page

56).

1 Press C, 012 and OK. 2 Use [ to select the time zone in which you are

operating the device.

3 Enter the Deviance from UTC Manually: Enter

the deviance (in hours) using the numeric keypad, for example, 1 for UTC+1, The display shows the time zone editor.

Activating the Server Access

1 Press C, 0103 and OK. 2 Use [ to select whether you would like to turn the

function on or off.

3 Confirm with OK.

Enter the SNTP Server Address

1 Press C, 0101 and OK. 2 Enter the name of the SNTP server.

Enter the Server Address

This name can be in the form of an IP address, a DNS address or a NetBIOS name.

3 Confirm with OK.

Enter the SNTP Server Port

1 Press C, 0102 and OK. 2 Enter the server port number (default setting: 123). 3 Confirm with OK.

56 Philips · LaserMFD 6135hfd

Entering Your Telephone

Notice

Deactivating the Button

Number and Name

Page Header

Your name and number are added together with date, time and page number at the top edge of each fax transmission (= header).

Entering Name

1 Press C, 021 and OK. 2 Enter your name. You can enter characters using the

numeric keys (see key labels). Enter special characters using 0. Press the respective key several times until the desired character or special character appears on the display.

Navigating in the Editor

You can move the cursor using [. Use C to delete individual characters.

3 Confirm with OK.

Entering Number

1 Press C, 022 and OK. 2 Enter your number. 3 Confirm with OK.

Tones

Deactivating the Button Tones

Every key press is accompanied by a sound. You can switch off the key tones on your device.

1 Press C, 007 and OK. 2 Use [ to select whether you would like to turn the

function on or off.

3 Confirm with OK.

Configure Paper Settings

Modifying the Basic Settings

The changed settings are stored as new default settings. If you select a special function for a one-time process, take care to restore the default settings or factory settings after that.

Set Paper Weight

1 Press C, 201 and OK. 2 Using [ select the weight of the inserted paper. 3 Confirm with OK.

EN

Setting the Ring Tones

Selecting the Ring Tone

You can use this function to select the standard ring tone. You can assign a separate ring tone to entries in the telephone book (see also chapter on saving an entry, page 39).

1 Press C, 054 and OK. 2 Select the desired ring tone using [. 3 Confirm with OK.

Adjusting Volume Level

1 Press C, 055 and OK. 2 Select the desired volume level using [. 3 Confirm with OK.

Setting the Number of Rings

You can use this function to set the number of rings for the fax reception mode. After the selected number of rings, the device switches to fax reception in the fax mode. Select (see also chapter on silent fax reception , page 59).

1 Press C, 042 and OK. 2 Select the desired number of rings using [. 3 Confirm with OK.

0 to switch off the ring tone completely

Set Paper Source

Introduction

You can insert normal printing paper or printed documents (forms) into the paper tray. You can insert special paper formats, envelopes, slides, sheets of labels or printed documents into the manual paper feed.

1 Press C, 202 and OK. 2 Using [ select the paper source. 3 Confirm with OK.

Spaltenumbruch

Setting the Paper Format

1 Press C, 203 and OK. 2 Using [ select whether you would like to configure

the paper format for the paper tray or whether you would like to use the manual feed.

3 Confirm with OK. 4 Use [ to select the desired paper format. Follow

the specifications in the technical data.

5 Confirm with OK.

Settings · Entering Your Telephone Number and Name 57

EN

Set Resolution

Setting the Resolution for Scanning

1 Press C, 303 and OK. 2 Select the desired resolution using [:

DRAFT(100)—Scanning with reduced resolu-

tion—for use on the Internet, for example

TEXT B&W (300)—Black and white scan with high

resolution for optical character recognition of text documents (OCR)

PHOTO(200)—Scanning with higher resolution -

for photographs, for example

HQ(300)—Scanning with highest resolution

3 Confirm with OK.

Set Resolution for Fax Transmission

1 Press C, 4013 and OK. 2 Select the desired resolution using [:

DEFAULT—For documents without special fea-

tures

FINE—For texts with small print or drawings SFINE—For documents with many details PHOTO—For photos

3 Confirm with OK.

Set the Contrast for Faxes and Copying

1 Press C, 104 and OK. 2 Set the desired contrast using [.

-/1—Reduces the contrast / typeface appears lighter 4 (Factory settings)—Optimized adaptation for all

documents

+/7—Increases the contrast / typeface appears

darker (for example, documents with faint print)

3 Confirm with OK.

Setting the Brightness

Set the Level of Brightness for Scanning

1 Press C, 305 and OK. 2 Using [, select the desired level of brightness:

-/1—Reproduction is lighter 4 (Factory settings)—Optimized adaptation for all

documents

+/7—Reproduction is darker

3 Confirm with OK.

Set the Level of Brightness for the Copier

Setting the Resolution for the Copier

1 Press C, 103 and OK. 2 Select the desired resolution using [:

AUTO—Optimised adjustment for all types of docu-

ments

TEXT—For texts with small print or drawings QUALITY—For documents with many details PHOTO—For the highest resolution

3 Confirm with OK.

Setting the Contrast

Setting the Contrast for the Scanner

1 Press C, 304 and OK. 2 Set the desired contrast using [.

-/1—Reduces the contrast / typeface appears lighter 4 (Factory settings)—Optimized adaptation for all

documents

+/7—Increases the contrast / typeface appears

darker (for example, documents with faint print)

3 Confirm with OK.

1 Press C, 105 and OK. 2 Using [, select the desired level of brightness:

-/1—Reproduction is lighter 4 (Factory settings)—Optimized adaptation for all

documents

+/7—Reproduction is darker

3 Confirm with OK.

Additional Scanner Options

Setting the Paper Format

1 Press C, 306 and OK. 2 Use [ to select the desired paper format. Follow

the specifications in the technical data.

3 Confirm with OK.

Select the File Format

Introduction

Using this function, select the file format that should be used as default for scanning documents.

1 Press C, 307 and OK. 2 Use [ to select the desired file format. 3 Confirm with OK.

58 Philips · LaserMFD 6135hfd

Additional Copier Options

Notice

Select One Side/Both Side Printing (Simplex/Duplex)

1 Press C, 101 and OK. 2 Select one-sided print (Simplex) or double-sided

print (Duplex) using [.

3 Confirm with OK.

Setting the Fax Reception Mode

Fax Switch

The built-in fax switch of your device distinguishes between fax messages and telephone calls. Faxes are automatically received, telephone calls can be received—even on additionally connected devices. While the device is checking the call, it continues to ring.

Setting the Fax Reception Mode

You have the following options available. The selected fax reception mode appears on the display.

1 Press C, 041 and OK. 2 Select the desired option using [.

Fax Reception Mode with Additional Devices

You should set the device to EXT/Answering device, Fax or Manual Mode if you have additional devices connected to the AUX./Ò socket of your device.

3 Confirm with OK.

Manual Mode

(MANUAL)

Manual Mode

The device will not receive faxes on its own. You can start fax reception manually, by pressing o. This setting is useful, when you want to receive faxes via a modem connected to a computer.

Fax Mode

(FAX)

Fax Mode

In the fax mode, the device will ring for as many times as you have set with function 042 (also see chapter Set- ting the Number of Rings, page 57). Then the fax reception switches on. You should select this mode if you primarily receive faxes at your device.

EXT/Answering Machine Mode

EXT/Answering Machine M ode

(FAX-ANSWER)

EXT/Answering Machine M ode

You should set the device to this mode if you have additional devices connected to the AUX./Ò socket of your device. If an additionally connected answering machine receives a call, your device will check to determine whether or not the incoming call is a fax transmis-

sion. If the device recognises a fax signal, it will automatically receive the fax transmission.

Answering Machine

If you do not have an answering machine connected or if a connected answering machine does not accept the call, the device will take over the call after a predetermined number of rings and automatically receive any possible fax transmission being sent.

Fax Switch 1

Fax at Additional Telephone

If you pick up at an additional device and hear that you are receiving a fax (whistling tone or silence), you can start the fax reception by pressing *5 on the additional telephone or pressing o on the device. To use this function, additional telephones must be set to the tone dialling mode (DTMF/MFV tones) (for this purpose see the operating manual of your additional telephone).

Automatic Mode

(AUTOMATIC)

Automatic Mode

If the Automatic Mode is active, the device will check to determine whether the incoming call is a fax transmission or a telephone call. The device will automatically receive fax transmissions. While the device is checking the call, it continues to ring. You can accept telephone calls at any time. After a predetermined number of rings, the device will take over the call and automatically receive a possible silent fax transmission.

Silent Fax Reception

Set the number of rings 0 (see also chapter setting the number of rings, page 57) and set the fax reception mode to fax mode (see also chapter setting the fax reception mode, page 59), in order to receive faxes without your device ringing.

Manual Fax Reception

If your device is set to the manual reception mode, you can neither hear nor receive incoming fax calls (see also chapter on setting the fax reception mode, , page 59).

Additional Options for Fax Transmission

Reducing Transmission Speed

The device adapts the transmission speed to the line quality. This may take some time, especially for overseas connections. Set a lower transmission speed if you are sending faxes into networks with poor line quality.

1 Press C, 4015 and OK. 2 Select the desired speed using [. 3 Confirm with OK.

EN

Settings · Additional Copier Options 59

EN

Notice

Configuring the Display

Configure which information should be shown on the display during transmission.

1 Press C, 4016 and OK. 2 Use [, to select whether the transmission speed

should be displayed or current page number being transmitted should be displayed.

3 Confirm with OK.

Set Fax Transmission from the Memory

You can set whether you would like to scan or send the documents immediately or whether you would like to send the documents from the cache memory. With direct transmission, the document is memorised during transmission. When sending from the memory, the document is read from the memory first and then the connection made with the recipient.

Message Memory Full

If the message memory is full, the documents are scanned and sent immediately.

1 Press C, 4012 and OK. 2 Select the desired setting using [. 3 Confirm with OK.

Additional Fax Reception Options

Switches Time Stamp On/Off

Time Stamp

The device prints the date and the exact arrival time on every incoming fax received (also see chapter Time Stamp, page 47). You have the option of turning this function off.

1 Press C, 404 and OK. 2 Use [ to select whether you would like to turn the

function on or off.

3 Confirm with OK.

Reducing the Reception Speed

The device adjusts the transmission speed to the line quality. Set a lower reception speed if this adjustment takes a long time or no connection is made.

1 Press C, 4026 and OK. 2 Select a reception speed using [. 3 Confirm with OK.

Set Page Adjustment

Received faxes can automatically be adjusted to the paper format inserted. You can also enter a fixed value (percentage) for the paper adjustment

Setting the Paper Format

Turning Page Header On/Off

Page Header

Your name and number appear in the page header of each fax transmission. If you do not wish to send out your information, you can turn this function off.

1 Press C, 4014 and OK. 2 Use [ to select whether you would like to turn the

function on or off.

3 Confirm with OK.

Switching Transmission Report On/Off

Switching Transmission Report On /Off

After every transmission, the device prints out a transmission report. Two different settings are available.

1 Press C, 4011 and OK. 2 Use [ to select from the following settings:

ALWAYS—The transmission report will be printed

after each successful fax transfer as well as after interrupted transfers.

ON ERROR—The transmission will only be printed

if the fax transfer was not successfully completed or if it was terminated prematurely.

3 Confirm with OK.

Setting the Paper Format

For automatic adjustment, the format of the inserted paper must be set correctly (see also chapter Setting the Paper Format, page 57).

1 Press C, 4024 and OK. 2 Use [ to select automatic adjustment or whether

you would like to enter a fixed value.

3 Confirm with OK. 4 Enter a Fixed Value: Enter a percentage for the

compression between 70 and 100 percent.

5 Confirm with OK.

Set a Threshold for Pagination

Some fax transmissions contain more lines than can be printed. Using the threshold for pagination, set from which value these lines are printed on the second page. All lines below this value are deleted.

1 Press C, 4027 and OK. 2 Use [ to select from the following settings:

ON—All lines which lie more than three centimetres

outside the page are printed on a second page. All surplus lines below this value are deleted.

OFF—All lines which lie more than one centimetre

outside the page are printed on a second page. All surplus lines below this value are deleted.

3 Confirm with OK.

60 Philips · LaserMFD 6135hfd

Printing Multiple Copies

Notice

Printing Multiple Copies

You can apply settings to your device whereby multiple copies of fax transmissions are printed out upon reception.

1 Press C, 4022 and OK. 2 Enter a value from 1 to 99. 3 Confirm with OK.

Spaltenumbruch

Locking the Device

Locking the De vice

With the locking function, you can prevent unauthorised persons from using your device. Only after entering of the correct code will it be possible to access functions or enter numbers. The lock will turn itself on again after each use of the device.

Entering the PIN Code

Default Access Code

4 Use [ to select

ONLY DIRECT..

5 Confirm with OK.

Lock USB Storage Medium

You use this function to block access to a connected USB storage medium.

1 Press C, 925 and OK. 2 Enter the four-digit PIN code. 3 Confirm with OK. 4 Use [ to select whether you would like to turn the

function on or off.

5 Confirm with OK.

Lock Settings

This function blocks the changing of settings on your device. The settings can be locked with a customizable administrator pin code

EN

Default Access Code

The function is switched off with the factoryinstalled access code (

0000). Change the

access code to switch on the function. If you want to switch the function off enter the factory-installed code

0000 again.

1 Press C, 921 and OK.

Entering the PIN Code

If you have already saved a code, the device will ask you to provide the old code first before you can enter a new code.

2 Enter a four-digit PIN code. 3 Confirm with OK. 4 Enter the code again for confirmation purposes. 5 Confirm with OK.

Locking the Keyboard

This function locks the entire keyboard of the device.

1 Press C, 922 and OK. 2 Enter the four-digit PIN code. 3 Confirm with OK. 4 Use [ to select whether you would like to turn the

function on or off.

5 Confirm with OK.

Locking Manual Dialling

This function blocks the manual dialling of telephone numbers. Numbers from the telephone book can be called. Manual dialling of emergency number is

1 Press C, 923 and OK. 2 Enter the four-digit PIN code. 3 Confirm with OK.

not

possible.

Entering the PIN Code

Default Access Code

The function is switched off with the factoryinstalled access code (

0000). Change the

access code to switch on the function. If you want to switch the function off enter the factory-installed code

0000 again.

1 Press C, 0001 and OK.

Entering the PIN Code

If you have already saved a code, the device will ask you to provide the old code first before you can enter a new code.

2 Enter a four-digit PIN code. 3 Confirm with OK. 4 Enter the code again for confirmation purposes. 5 Confirm with OK.

Activate and deactivate functions

1 Press C, 0002 and OK. 2 Enter the four-digit PIN code. 3 Confirm with OK. 4 Use [ to select whether you would like to turn the

function on or off.

5 Confirm with OK.

Settings · Locking the Device 61

EN

Print Lists and Reports

Printing the Functions List

Press C, 81 and OK to print a list of all functions of your device.

Printing the Telephone Book

Press C, 83 and OK to print a list of all saved entries and groups in the telephone book.

Printing Fax Journal

Fax Journal

The journal contains a list of the last 30 message transmissions. The fax journal is automatically printed after 30 transmissions. You can print out the fax journal at any time.

Printing Fax Journal/Ca ll Log

Press C, 82 and OK.

Printing the Job List

Press C, 84 and OK. The device will print out a list of all pending jobs.

Prints the List of Settings

Press C, 80 and OK to print a list of all settings of your device.

62 Philips · LaserMFD 6135hfd

14 Telephone Lines and Additional Devices

Notice

Switching Caller Line Identification (CLIP) On/Off

Function is not supported in all countries and networ ks

(Function is not supported in all countries and networks)

CLIP Definition

The number of an incoming call appears on the display. For this function to work, the Calling Line Identification Presentation (CLIP) must be activated for your telephone line. Enquire with your telephone company. Caller Line Identification may be associated with a fee.

Setting the Country Correctly

If the Caller Line Identification does not work even though the function is activated for your telephone line, check if you have set the correct country (also see Chapter Settings, page

56)

1 Press C, 057 and OK. 2 Use [ to select whether you would like to turn the

function on or off.

3 Confirm with OK.

Selecting the Dialling Process

Function is not supported in all countries and networ ks

(Function is not supported in all countries and networks)

In some countries you can set the dialling mode to pulse dialling or tone dialling (DTMF tones).

Selecting the Dialling Process

Set up the Public Switch Telephone Network (PSTN)

Function is not supported in all countries and networks

(Function is not supported in all countries and networks)

Public Switch Telephone Network (PSTN)

You can use this function to set your device to connect to the Public Switch Telephone Network (PSTN). To connect to a Private Branch Exchange (PABX) see also chapter on set up Private Branch Exchange (PABX) , page 63.

Set up the Public Switch T elephone Network (PSTN)

Your device is automatically adjusted to the telephone network if you set the country correctly (see also chapter Selecting the Country, page 56). It is possible that further settings are required for the Public Switched Telephone Network (PSTN). Ask your retailer or the technical customer service department.

1 Press C, 032 and OK. 2 Select the desired setting using [. 3 Confirm with OK.

Set up Private Branch Exchange (PABX)

PABX Systems

Private branch exchanges (PABX) are typical in many offices and some households. You must dial an outside line access code in order to get a connection to the public telephone network (PSTN) from a PABX.

Additional Telephone No Extension

EN

Selecting the Dialling Process

Only use pulse dialling if tone dialling is not yet activated for your telephone line.

Additional Telephone No Extension

An additional telephone connected to the device on a telephone socket is not consid-

1 Press C, 053 and OK. 2 Use [ to select the desired dialling process. 3 Confirm with OK.

Set up Private Branch Exchange ( PABX)

You can set up your device for operation on an extension, indicate the length of the internal numbers (direct

ered an extension.

dial number) and save the code which must be selected in order to reach the Public Switched Telephone Network (PSTN) (= outside line access code).

Telephone Lines and Additional Devices · Switching Caller Line Identification (CLIP) On/Off 63

EN

Notice

Outside Line Access Code is Automatically Dialled

Once these settings are in place, you will no longer need to prefix the outside line access code every time you enter an external number. The device will automatically add the outside line access code in front of numbers that are the same length or longer than the configured direct dial numbers.

Set the connection type

1 Press C, 051 and OK. 2 Use [ to set whether you operate your device on

an extension.

3 Confirm with OK.

Setting the Outside Line Access Code

Enter the length of the direct dial number

1 Press C, 0521 and OK. 2 Enter the appropriate length for internal numbers.

Use C to delete individual characters. Assume the longest internal number, then add one digit to that. If your direct dial numbers consist of four digits, then you should input5.

3 Confirm with OK.

Enter the outside line access code

1 Press C, 0522 and OK. 2 Enter the outside line access code with which you

reach the public telephone network. This is usually

0.

Incorrect Outside Line Access Code

In rare cases, the outside line access code may be a different number or a two-digit number. For older telephone systems, the outside line access code can be R (= Flash). Press R to enter this outside line access code. If the connection to the public telephone network is not possible, contact your telephone system supplier.

3 Confirm with OK.

Spaltenumbruch

DSL Connection

In the event that you use a DSL modem: Connect the device to the slot intended for analogue telephones/fax machines! For additional information, please consult the operating manual of your DSL system. Ask your telephone or internet service provider if necessary.

ISDN Connection

Your device is an analogue fax device (Group 3). It is not an ISDN device (Group 4), and therefore it cannot be operated directly on an ISDN connection. In order to do this, you need either an analogue adapter or a connection for analogue terminals. Details for ISDN connections can be found in the instructions provided with the terminal adapter or the dial-up router.

Registering and DeRegistering Additional Cordless Telephones

Function is Optional

(Function is optional and functions only with an original adapter, which you can purchase through our order service. More information: support.service@sagemcom.com)

Configuring the Cordles s Telephone

Normally your cordless telephone is registered with your device in the factory. In the starting mode, press OK. The display shows on which base unit and with which number the cordless telephone is registered.

Additional Cordless Telephones

You can register in all up to 4 cordless telephones with your device. Using only original cordless phones as additional cordless phones ensures optimum use of all functions. You can get original cordless telephones through our order service or at specialist shops.

GAP Compatible

Additional cordless telephone must be GAPcompatible.

Registering Cordless Telephone

You must first bring the cordless telephone and then your device (= base station) in the registration mode to register a cordless telephone. Follow the instructions in the operating instructions of the cordless telephone.

1 Insert the Dect adapter into the USB host port on

the reverse of the device.

64 Philips · LaserMFD 6135hfd

2 A message appears on the display as soon as the

Notice

device is configured as base unit. Bring the cordless telephone into registration mode.

3 Press C, 521 and OK on the device.

Registering Cordless Telephone

The cordless telephone is automatically registered. This process can take a few minutes. Then the number with which it is registered with the device appears on the display of the cordless telephone.

Registering other Cordless Telephones

You can register other cordless telephones with your device in the same manner. If you face any difficulties in registering, de-register all cordless telephones, and re-register them individually.

Display Date and Time

Date and time of the cordless telephone is continually synchronised with the device.

Connecting Additional Devices

Additional Devi ces

You can operate additional devices on a telephone line, such as cordless telephones, answering machines, modems or charge counters.

Connection to the Device

You can connect additional devices directly to your device. Insert the telephone cable of the additional device into the AUX./Ò socket (RJ-11-connection) on the device.

Externe Geräte anschließen

EN

Deregistering Cordless Telephone

Deregistering Cordless Te lephone

You can deregister a cordless telephone either from the device or from the cordless telephone. Follow the instructions in the operating instructions of the cordless telephone.

1 Press C, 522 and OK. 2 Using [ to select which cordless telephone you are

would like to de-register.

3 Confirm with OK. The device disconnects from the

cordless telephone.

Looking for Cordless Telephone

Looking for Cordless Tel ephone

This function helps you in locating cordless telephones, which you have misplaced. For this purpose the cordless telephones must be registered with the device and must be within its range.

1 Press C, 523 and OK. 2 All cordless telephones registered with the device

ring for approx. one minute. You can end the search function by pressing j on the device or pressing the button to hang up on the cordless telephone.

Connection to the Telephone Line

Order of Connections

In order for the fax switch to function, the device must be first in the series if multiple devices are connected to the same telephone socket. Follow the correct order.

Connection to the First Telephone Socket

If you have multiple telephone sockets for the same telephone line, the device must be connected to the first telephone socket.

Using Additional Telephones (Easylink)

Easylink

With the Easylink function you can control your device with additional telephones. To use this function, additional telephones must be set to the tone dialling mode (DTMF/MFV tones) (for this purpose see the operating manual of your additional telephone).

Starting Fax Reception

If you pick up at an additional device and hear that you are receiving a fax (whistling tone or silence), you can start the fax reception by pressing *5 on the additional telephone or pressing o on the device.

Hang up Additional Telephone

Hang up the additional telephone when the ring tone changes. The device has accepted the reception of the fax message.

Telephone Lines and Additional Devices · Connecting Additional Devices 65

EN

Notice

Taking Over the Line

If you pick up on an additional telephone and the device continues to ring or attempts to receive a fax, you can disconnect the device from the line. Press on the additional telephone.

Using an External Answering Machine

Your external answering machine must have parallel recognition for accepting incoming calls. Consult your retailer.

For the best operation, the answering machine must be connected to the AUX./Ò socket of the device. Select EXT/ answering machine mode as the fax reception mode (see also chapter on Setting the Fax Reception Mode, Page 59).

Length of Outgoing Message

The outgoing message must be shorter than ten seconds. Avoid music in your announcement. If the external answering machine has a “conserving function” (i.e. a function that changes the number of rings as soon as new messages have been recorded), switch it off.

Answering Machine Records Fax S ignals

Answering Machine Records Fax Signals

If the external answering machine records fax signals, but your device cannot receive faxes, inspect the connection of the external answering machine

66 Philips · LaserMFD 6135hfd

15 Service

Notice

8VHU0DQXDO 6XSSRUW6LWH 2UGHUFRQVXPDEOHV

>,3$GGUHVV@

+HOS6FDQ )D[ 6HWWLQJV

Disruptions

Display Number of Scanned

Troubleshooting

Should disruptions occur, follow the instructions on the display and on the error report.

Service

Calling the Web Interface

The device's web interface also provides an overview of the device status and various service functions (see also the chapter Web Interface, page 20).

Access Help Pages

Introduction

With the Companion Center SFX software, you can display the device's operating instructions, access service pages on the Internet and order replacement items.

1 Click on Help.

Documents

Display Number of Scanned Pages

Press C, 943 and OK. The number of scanned documents is displayed.

Display Number of Printed Pages

Press C, 944 and OK. The number of printed pages is displayed.

Display Number of Copied Pages

Press C, 945 and OK. The number of copied pages is displayed.

Displaying the Toner Level

Toner Level Memory

Your device registers the extent of toner used for every print-out and calculates the toner level of the toner cartridge on that basis. The toner level is stored in each toner cartridge.

Displaying the Toner Level

Press C, 946 and OK. The toner level of the toner cartridge is indicated by a percentile value between 100 percent (full) and 0 percent (empty).

EN

2 Select the desired function.

Display Counter Levels

You can display different counter levels of the device for your information.

Display the Number of Fax Pages Sent

Press C, 941 and OK. The number of fax pages sent is shown

Display the Number of Fax Pages Received

Press C, 942 and OK. The number of fax pages received is shown

Checking the Firmware Version

1 Press C, 934 and twice OK. 2 The information on the firmware version of the

device is displayed.

3 Confirm with OK.

Spaltenumbruch

Service · Access Help Pages 67

EN

Notice

CAUTION!

DANGER!

CAUTION!

Updating Firmware

Calling the Web Interface

You can also edit the device firmware with the device's web interface (see also the chapter Web Interface, page 20).

Updating Firmware

The firmware defines the basic functions and capabilities of your device. Sometimes also referred to as the device driver. We constantly strive to implement improvements and innovations. Check our homepage www.sagemcom.com for information on the current firmware version available for your device.

Do not interrupt power supply

Do not switch the device off during the print process and do not unplug the device from the power supply. If the Firmware update is not carried out error-free, your device will probably no longer function properly.

Wait until the firmware update is completed before performing more operations on your device.

Settings will be Deleted

2 Connect the USB storage medium with the firmware

file to the USB host connection port.

3 If the device detects the firmware file, a message

appears on the display. Press o to update firmware.

4 This process can take a few minutes. The devices re-

boots twice. On completion of the procedure, the device starts the initial installation process (see also section Initial installation, Page 16).

Removing USB Storage Media!

Never pull out the storage medium while the device is accessing it. If the Firmware update is not carried out error-free, your device will probably no longer function properly.

Settings will be Deleted

By implementing the Firmware update, all changed settings on the device are deleted and restored to factory settings.

1 Load the firmware from the specified internet page

and save the file directly in the root directory of the USB storage medium (= highest directory level). The file shall not be saved in a folder.

Use Only Original Firmware

When carrying out a Firmware update only use the Firmware file for your device from the website: www.sagemcom.com. Using other Firmware files can lead to your device not functioning properly. Sagemcom accepts no liability for device malfunctions which can be traced back to the use of third party Firmware.

Changing the Toner Cartridge

Toner Level Memory

Your device registers the extent of toner used for every print-out and calculates the toner level of the toner cartridge on that basis. The toner level is stored in each toner cartridge. You can use different toner cartridges as well as display the respective toner level of the toner cartridge.

Toner Cartridge 3

Escaping Toner Dust!

Never open a toner cartridge. If toner dust is released into the air, you should avoid allowing it to contact your skin and eyes. Do not inhale the released toner dust. Remove the toner dust from clothing or objects with cold water; hot water would only cause the toner to set. Never remove loose toner dust with a vacuum cleaner.

Use Original Consumable Materials!

Use only original consumable materials. These are available from a specialised retailer or through our order service. Other consumable materials can cause damage to the device.

68 Philips · LaserMFD 6135hfd

Observe Packaging Instructions

CAUTION!

DANGER!

Observe Packaging Instructions

Follow the instructions on the packaging of the consumable materials.

1 Open the upper device cover by gripping the cover

on the arrow marks on the outside and lift upwards,

2 Open the device by lifting the device cover forwards

Do Not Open During a Print Job!

Never open the cover while the device is printing.

Escaping Toner Dust!

Carefully remove the toner cartridge from the device so that no toner dust spills out. Take care where you place the toner cartridge, escaping toner dust may soil the surface.

Store opened or used toner cartridges in their original packing or in a plastic bag in order to prevent toner dust from escaping. Dispose of old toner cartridges by turning them in at specialised shops or at a waste collection site. Never dispose of toner cartridges by throwing them into fire. Toner cartridges should never be allowed into the hands of children.

4 Take the new toner cartridge from the package. 5 Remove the tape and black protective paper, but do

not remove the protective strip from the cartridge yet .

EN

3 Remove the toner cartridge by gripping the handle in

the middle and pulling it forwards out of the device

6 Shake the new toner cartridge back and forth several

times in order to distribute the toner evenly, thereby improving the print quality.

7Only after completely pull off the protection strip

located on the left side of the cartridge.

Service · Changing the Toner Cartridge 69

EN

DANGER!

CAUTION!

DANGER!

Escaping Toner Dust!

Once you have removed the protection strip, do not shake the toner cartridge any more. Otherwise, it is possible that toner dust will be released into the air.

8 Place the toner cartridge into your device. The car-

tridge should snap securely into position.

9 Close the device.

Fixing a Paper Jam

Introduction

Your device is equipped with sensors that quickly recognises a paper jam. If trouble of this sort arises, the feeding of the printer paper is stopped immediately. Check all the following three areas for jammed paper: Paper tray/paper feed, print unit and fuser unit (see also the help below).

Toner Cartridge 5

Escaping Toner Dust!

In case of a paper jam, do not forcefully remove the paper, but rather pull it gently out of the device and throw it away carefully. It is possible that the toner may not be completely set on the print-out, and toner dust could be released into the air. Do not inhale the released toner dust. Remove the toner dust from clothing or objects with cold water; hot water would only cause the toner to set. Never remove loose toner dust with a vacuum cleaner.

Clearing Paper Jam in Paper Tray/

Toner Cartridge Not Inserted Correctly!

If the device cover would not close, the toner cartridge is not inserted correctly. Take the toner cartridge out and insert it again correctly.

10 Close the upper device cover.

Paper Feed

1 Pull the paper tray out of the device.

2 Carefully pull out the paper.

70 Philips · LaserMFD 6135hfd

3 Push the paper tray into the device all the way to the

DANGER!

stopping point.

Escaping Toner Dust!

Carefully remove the toner cartridge from the device so that no toner dust spills out. Take care where you place the toner cartridge, escaping toner dust may soil the surface.

Never open a toner cartridge. If toner dust is released into the air, you should avoid allowing it to contact your skin and eyes. Do not inhale the released toner dust. Remove the toner dust from clothing or objects with cold water; hot water would only cause the toner to set. Never remove loose toner dust with a vacuum cleaner.

EN

Clearing Paper Jam in the Print Unit

1 Open the upper device cover by gripping the cover

on the arrow marks on the outside and lift upwards,

2 Open the device by lifting the device cover forwards

4 Open the paper jam flap.

5 Carefully pull out the paper.

6 Close the paper jam flap.

3 Remove the toner cartridge by gripping the handle in

the middle and pulling it forwards out of the device

Service · Fixing a Paper Jam 71

EN

CAUTION!

DANGER—HEAT!

Notice

7 Place the toner cartridge into your device. The car-

tridge should snap securely into position.

Device Parts are Hot!

The fuser unit and and its surroundings inside the device become hot during operation. Do not touch these parts if you have opened the device. Proceed with care when you are removing a paper jam for instance.

2 Remove the paper guide on the fixer unit by pressing

the tension lever on both sides downwards.

8 Close the device.

Toner Cartridge Not Inserted Correctly!

If the device cover would not close, the toner cartridge is not inserted correctly. Take the toner cartridge out and insert it again correctly.

9 Close the upper device cover.

Fixing Paper Jam in the Duplex Unit/Fuser Unit

3 Carefully pull out the paper.

4 Close the paper jam flap. The fuser levers will auto-

matically fold into starting position when the paper jam cover is closed.

1 Open the paper jam flap on the reverse side of the

device.

Continue Print Job

Press o after the problem has been rectified to continue the print job. Press j to suppress the error message.

72 Philips · LaserMFD 6135hfd

Cleaning

CAUTION!

DANGER!

CAUTION!

Introduction

If lines appear on the printed pages or on the fax transmissions or documents are not properly fed, you should clean the scanner.

Switching Off the Device

Switch the device off and disconnect from the power supply before you clean it.

Switching Off the Device

Switching off the device!

Turn the device off using the on/off switch on the back before you remove the plug from the socket.

Gerät ausschalten

2 Carefully wipe the scanner glass of the flatbed scan-

ner with a lint-free cloth.

EN

3 Close the scanner cover.

Recommissioning

Recommissioning!

Plug the power cable into the electrical outlet. Only after switch the device on using the on/ off switch on the rear.

Instructions for Cleaning!

Use a soft, lint-free cloth. Never use liquid or easily flammable cleansers (sprays, abrasives, polishes, alcohol, etc.). Do not allow any moisture to reach the interior of the device.

Moisten the cloth slightly with cleaning alcohol in order to remove stubborn marks. The cloth must however, never be wet.

Cleaning the Scanner

1 Open the scanner cover.

Calibrating the Scanner

If vertical lines appear on the printed pages or on the fax messages, it is possible the scanner needs to be calibrated.

Instructions for Calibrat ing!

Instructions for Calibrating!

The scanner is calibrated in the factory and normally no new calibration is needed. Do not use this function frequently. Clean the the scanner glass and the scanner film first before calibrating the scanner (see also chapter Cleaning, page 73).

1

Insert a white piece of paper onto the flatbed scanner.

Service · Cleaning 73

EN

CAUTION!

Notice

2 Press C, 931 and OK. 3 Confirm with OK. 4 Wait until calibration is completed and the device

returns to starting mode.

Using Service Codes

Introduction

The service codes delete all the changed settings and your device is reset to factory settings. It may be possible that the device with the changed settings reacts differently than expected.

Using Service Codes

Settings will be Deleted!

Only use the service codes if this is absolutely necessary. Some service codes also delete saved messages and telephone book entries.

1 Press C, 933 and OK. 2 Enter a service code:

70158—Deletes all changed settings. Saved data and telephone book entries remain intact.

70026—Deletes saved faxes, when there are problems with printing.

3 Confirm with OK. 4 Use [ to select 5 Confirm with OK.

YES.

3 Switch the device on using the on/off switch on the

rear.

4 Follow the instructions on the display. If the problem

repeats, please contact our technical customer service or your retailer.

Cancelling Entry

If you have entered the incorrect code, you can cancel the entry with

NO.

Power Cycling

If a problem occurs that cannot be corrected with the instructions in this user manual (see also the help below), follow the steps given here.

1 Switch the device off using the on/off switch on the

rear.

2 Wait at least ten seconds.

74 Philips · LaserMFD 6135hfd

Problems and Possible Causes

General Information Possible Cause(s)

The time and date flash on the display. You must check the time and date after a short power

failure. Confirm with OK.

No fax transmission Check the installation of the device. Check that the de-

vice is connected to the mains voltage. Connect the telephone cable to the socket marked

FAX/Ñ. Insert the telephone plug into your PTT line socket.

If possible test your device in another telephone line before you contact technical customer services.

Follow the instructions on the display.

Problems with Faxing Possible Cause(s)

Fax transmissions are constantly interrupted. It is possible that the recipient's device is not ready to

receive.

Fax transmission to a fax number is not possible. Call the number and check whether the number is a fax

number and whether the connected fax device is ready to receive (whistling tone or silence).

Faxes sent are of poor quality. Modify the resolution.

Test the device by making a copy of the document. If the device is in order, the device of the recipient might be defective.

Test the scanner by printing the functions list (press C, 81 and OK). If the function list is printed perfectly, it is possible the scanner is dirty or defective. Clean the scanner.

EN

Fax recipient receives an empty sheet. Lay the document onto the flatbed scanner with the

written side down.

No fax reception Check whether the manual fax reception mode is set.

The device will not receive faxes on its own (page 59).. It is possible that the fax reception speed needs reducing

(page 60).

You hear a whistling tone or silence in the handset. The call is a fax. Press o on the device. Press *5

on the additional telephone. Hang up.

Problems Printing or Copying Possible Cause(s)

No printing Printing is interrupted.

Paper or document jam, no paper or toner cartridge. Follow the instructions on the display. There could be a small pause after printing several pages.

The device continues printing automatically.

Copy is blank. Insert the documents face down into the document

feeder. No toner cartridge inserted.

The device produces white lines when printing. Clean the toner drum with a soft cloth.

Clean the scanner and the document feeder (see also chapter Cleaning, page 73).

Service · Problems and Possible Causes 75

EN

Problems Printing or Copying Possible Cause(s)

The device produces black lines when printing. Clean the scanner and the document feeder (see also

chapter Cleaning, page 73). The toner cartridge is damaged and must be replaced.

Use only original consumable materials.

The device produces vertical lines when printing. It is possible that the scanner needs calibrating (see also

chapter Calibrating the Scanner, page 73).

The device makes a noise during printing. The toner cartridge is almost empty and must be re-

placed. Use only original consumable materials.

Received faxes and copies are too light. The sender’s device is not set optimally.

If the copy is also too light the toner is almost all gone and must be replaced. Use only original consumable materials.

Spaltenumbruch Spaltenumbruch

76 Philips · LaserMFD 6135hfd

Error Messages and Possible Causes

General Error Messages Possible Cause(s)

INSERT PAPER

MEMORY FULL

REMOVE PAPER

PAPER JAM

WRONG PAPER

PAPER SIZE

Paper must be inserted into the manual paper feed (see also chapter Load Paper into the Manual Paper Feed, page

27).

Fax memory full! If the fax memory is full, no fax messages can be received. Print the stored fax messages so that the device is ready to receive again.

A document jam has occurred: Remove all documents from the document feeder. Remove the document jam (also see chapter Fixing a Document Jam, page).

A paper jam occured: Check all the following three areas for jammed paper: Paper tray/paper feed, print unit and fuser unit (see also chapter Fixing a Paper Jam, page

70). Clear the paper jam. Press o after the problem has been

rectified to continue the print job. Press j to suppress the error message.

Problem with the paper format inserted. Make sure that you are using the proper paper format. Repeat the print job or copy process.

There is no paper in the paper tray or the paper is not loaded correctly. Check the paper tray.

EN

TONER LOW

TONER EMPTY

NON GENUINE

NOT INSTALLED

TONER

DEFECT TONER

PRINT JOB ERROR

COOLING PRINTER

PRINTER SYSTEM ERROR

FUSER UNIT

ERROR

PAPER FEEDER ERROR

LED ERROR

SCANNER ERROR

ROLLER DIRTY

The toner cartridge is almost empty and must be replaced soon. Use only original consumable materials.

Problems with the toner cartridge: Toner cartridge empty, damaged, incorrect or no toner cartridge in device. Check the toner cartridge (see also chapter Chang- ing Toner Cartridge, page 68).

The toner cartridge is empty and must be replaced. Use only original consumable materials.

The toner cartridge is not inserted correctly or can not be detected. Remove the toner cartridge from the device and insert the toner cartridge again. If the error occurs again, the toner cartridge is damaged and must be replaced (see chapter Changing the Toner Cartridge, page

68). Use only original consumable materials.

Error when printing or copying. Print job is aborted. Repeat the print job or copy process.

There could be a small pause after printing several pages. The device continues printing automatically.

Device error! Use the quick help (see also chapter Power Cycling, page 74). If the problem repeats, please contact our technical customer service or your retailer.

Service · Error Messages and Possible Causes 77

USB Storage Medium Error Messages Possible Cause(s)

EN

MEDIA FULL

MEDIA MISSING

WRONG MEDIA

USB OVERLOAD

No storage space is available on the inserted USB storage medium (USB stick, external hard drive, etc.). Purge the data media or delete files to create storage space.

There is no USB storage medium (USB stick, external hard drive) connected to the device. Check whether a USB storage medium is connected. Disconnect this and connect it again.

The inserted USB storage medium cannot be accessed (no read/write access). It is possible the USB storage medium is damaged or uses an unsupported file system. The device only recognises storage media which are formatted with FAT16 or FAT32. NTFS is not supported.

The power consumption is too high or a USB device is defective. All USB devices are deactivated.

1 Remove all connected USB devices. 2 Press o. 3 Insert another USB device into the device. Note with

which USB device the error message occurs.

You can only connect one high power device (USB 2.0) to each USB connection. Do not connect additional devices—such as batteries, fans, charging devices—to your machine.

Error Messages on the Transmission Report

Error Messages on the Transmission Report Possible Cause(s)

General scanner error During the scanning process, an error occurred, for ex-

ample, a document jam (see also chapter on Fixing a Doc- ument Jam, page).

User break The transmission process was interrupted by pressing

the j-key on the transmitting unit.

Busy or no fax answer

Subscriber has disconnected

Non programmed number The recipient’s number is no longer stored in the device.

If the subscriber is busy, the device dials the number again after some time. After six attempts, the transmission process is cancelled. Try again at a later date.

Call the number and check whether the number is a fax number and whether the connected fax device is ready to receive (whistling tone or silence). Press FAX or o to send the message manually.

Ask the recipient whether the device is ready to receive.

This can occur, for example, if you have selected the telephone book entry as a recipient for a fax message which should be sent at a later time and delete the telephone book entry before the time of transmission.

78 Philips · LaserMFD 6135hfd

Error Messages on the Transmission Report Possible Cause(s)

Disconnected

Can't communicate

Subscriber has stopped

Check called number

Transmission failed Fax Transmission: Repeat the transmission process.

Voice contact Call the number and check whether the number is a fax

The transmission process was interrupted. Repeat the transmission process.

Call the number and check whether the number is a fax number and whether the connected fax device is ready to receive (whistling tone or silence). Press FAX or o to send the message manually.

Ask the recipient whether the device is ready to receive. Repeat the transmission process with a lower transmis-

sion speed (see also chapter Reducing Transmission Speed, page 59).

Call the number and check whether the number is a fax number and whether the connected fax device is ready to receive (whistling tone or silence). Press FAX or o to send the message manually.

Ask the recipient whether the device is ready to receive. Fax Reception: Fax reception was interrupted. Ask

the sender to send the fax message again.

number and whether the connected fax device is ready to receive (whistling tone or silence). Press FAX or o to send the message manually.

EN

QUALITY It is possible the error occurred because the recipient’s

number does not support the Error Correction Mode. Fax Transmission: The fax message sent was not re-

ceived properly. Ask the recipient whether the transmission process needs to be repeated.

Fax Reception: If the received fax message is illegible, ask the sender to send the fax message again.

Memory full Fax memory full! If the fax memory is full, no fax messag-

es can be received. Print the stored fax messages so that the device is ready to receive again.

Internal error An error has occurred during printing of the received

fax message. Check whether the device cover is open. Check whether the paper supply is empty (see also

chapter Insert Paper into the Paper Tray, page 25). Check whether cartridge is empty (see also chapter Dis-

playing the Toner Level, page 67 and Changing the Toner Cartridge, page 68).

Check to see whether a paper jam has occurred (see also chapter Fixing a Paper Jam, page 70).

Received document error The received fax message is possibly incomplete Ask the

sender to check the length of the fax message. It is possible the message is too long to be able to transmit in full.

No document to be polled In selected devices, no documents lay ready which could

be retrieved. Perhaps the sender’s device is not ready or the document is no longer available.

Service · Error Messages and Possible Causes 79

EN

Error Messages on the Transmission Report Possible Cause(s)

Incompatible coding Fax transmission to mailbox: The mailbox number en-

tered does not exist at the recipient’s side.

Unknown Mailbox number Fax polling from a mailbox: The mailbox number en-

tered does not exist at the recipient’s side.

80 Philips · LaserMFD 6135hfd

16 Glossary

Asymmetric Digital Subscriber Line (ADSL).

See Digital Subscriber Line (DSL)

Broadcasting

see Sending to Multiple Recipients

call hold

See Call Toggling

Call Toggling

You can switch back and forth between different telephone conversations by using the R key. The inactive telephone conversation is maintained in the interim, and the other party cannot listen in. This additional service must be enabled for your telephone line (see Call Waiting, see Flash Key).

Call Waiting

If another caller places a call to you while you are having a telephone conversation, you will hear a tone. If additional services are enabled for your telephone line, you can toggle back and forth between different telephone calls (see Flash Key; see Call Toggling).

Call-by-Call

Selection of the telephone service provider for each telephone call. It is possible to place telephone calls through different private service providers. By placing prefixes in front of the actual telephone number, one can choose a different service provider for each telephone call without entering into a firm contract relationship.

Caller List

The numbers of the last callers are stored in the caller list. This function requires that the caller identification function be enabled for your telephone line and that the caller not suppress the transmission of his or her telephone number (see Calling Line Identification).

Calling Line Identification (CLIP)

There are two types of Calling Line Identification Presentation (CLIP). If someone calls you, your device will show the caller’s telephone number on the display. If another caller places a call to you while you are having a telephone conversation, you will hear a tone. Your telephone company must offer both services and must enable them for your telephone line. The transmission of your telephone number can be turned on and off temporarily or it can be turned off permanently (Calling Line Identification Restriction, CLIR).

CCITT

Comite Consultatif International Téléphonique et Télégraphique (predecessor of ITU)

CE

Conformité Européenne

Chain Dialling

see Combining Numbers

Chain Dialling

Before the dialling process begins, you can freely combine and edit telephone book entries, manually entered digits, numbers from the redial list or numbers from the caller list. For example, if you have saved the telephone number prefix of an inexpensive telephone service-provider (see Call-by-Call) as a telephone book entry, select this entry and manually enter the desired telephone number or select another number from the telephone book, the redial list or the caller list.

CLIP

Calling Line Identification Presentation (see Calling Line Identification)

CLIR

Calling Line Identification Restriction (see Calling Line Identification)

CNG

Calling Signal (see Fax Signal)

Dialling Pause

Long-distance numbers or telephone numbers with sub-addresses/extensions sometimes require the insertion of a dialling pause to prevent the dialling from occurring too quickly and resulting in a loss of the connection. The second part of the number is dialled only after a short pause.

Digital Subscriber Line (DSL)

Data connection for private households or companies with high transmission speeds (broadband connection) usually for connection to the Internet. Fixed network telephone lines can be used for the DSL connection. Due to the frequency range used, Internet use via DSL can be used simultaneously with the telephone line. For private households, there are usually connections with different transmission speeds: Asymmetric Digital Subscriber Line (ADSL). A high download rate alongside a far lower upload speed.

Direct-Dial Number

Number used to directly dial a specific extension of a private branch exchange.

DTMF

Dual Tone Multi Frequency (see Tone Dialling)

Dual Tone Multi-Frequency (DTMF)

see Tone Dialling

Easylink

The Easylink function offers you additional options for managing external devices that are connected to the same telephone line as your device (starting fax reception, taking over the line, see Additional Devices). To use this function, additional telephones must be set to tone dialling (DTMF tones).

EN

Glossary · Asymmetric Digital Subscriber Line (ADSL). 81

ECM

Error Correction Mode

Hook-Flash Function

See Flash Key

EN

Encoding

The data of your fax transmission are encoded and compressed for the transmission. The minimum standard is MH (Modified Huffmann). Better encoding methods are MR (Modified Read) or MMR (Modified Modified Read).

Error Correction Mode (ECM)

The ECM method reduces transmission errors that result, for example, from bad telephone lines, thereby reducing the duration of transmissions. Both of the connected fax machines must support ECM.

Fax Groups

Fax machines are classified in terms of internationally standardised fax groups based on their transfer type and speed. Connections between two devices of different groups is possible; the lowest common transfer rate is selected. The determination of the speed takes place during the handshake (see Handshake). Fax groups 1 to 3 are analogue fax machines. Nowadays, groups 1 and 2 are hardly to be found any longer; fax machines of group 3—which have a transfer speed that ranges from 9,600 to 33,600¦bps—are currently most standard. Group 4 fax machines are digital devices that function exclusively on ISDN systems. They have a maximum transfer speed of 64,000¦bps.

Fax Polling

With active fax polling, one can retrieve a document from another fax machine. For fax polling from a larger company offering several polling services, you can also enter sub-addresses / direct-dial numbers. In order to do this, you must insert a dialling pause between the fax number and the sub-address (see Dialling Pause).

Fax Signal, CNG Tone (= Calling Signal)

The tone that a fax machine sends out to announce a fax transmission. When the CNG tone occurs, the fax switch of the device recognises an incoming fax call and starts the fax reception.

Fax Switch

The fax switch checks incoming telephone calls and controls the ringing behaviour of the fax machine. According to the selected mode, fax transmissions will be received either automatically or manually.

Flash Key (R-key)

With the flash key, you can make use of additional telephone services if these special functions are enabled for your telephone line. The R key has replaced the hookflash function. (see Call Waiting, Call-toggling).

Handshake

The handshake is the initial and final phase of a fax transmission. After establishing of the connection, fax machines check the group affiliation and features such as size compression or grey tones. After the fax transmission has been completed and before the connection is terminated, the receiving device confirms receipt of the transmission (see Fax Groups).

ISDN

Integrated Services Digital Network

ITU

International Telecommunications Union (UN organisation)

LCD

Liquid Crystal Display

Memory

If there is no paper or toner in your device, the device will store incoming fax transmissions in its memory.

MH

Modified Huffmann (encoding process for faxes, see Encoding)

MMR

Modified Modified Read (encoding process for faxes, see Encoding)

MR

Modified Read (encoding process for faxes, see Encoding)

Outside Line Access Code

The outside line access code is the number or letter that must be dialled before the actual telephone number on a telephone of a private branch exchange in order to establish a connection to the public telephone network (see Private Branch Exchange).

PABX/PBX

Private Automatic Branch Exchange

Polling

see Fax Polling

POTS

Plain Old Telephone Service

Private Branch Exchange

Private branch exchanges are common in larger companies. Even private ISDN systems can be branch exchanges. To establish a connection to the public telephone network from a private branch exchange, one must dial a number or press a key before the actual telephone number; in most cases this is zero (see Outside Line Access Code).

PSTN

Public Switched Telephone Network

Pulse Dialling

A dialling process that is used in older telephone networks. You hear a clicking for each number dialled (see Tone Dialling).

RJ-11

Registered Jack 11 (also called Western plug, standardised telephone plug)

82 Philips · LaserMFD 6135hfd

Scanning

The reading of a document into the fax memory or into the computer in order to send it, copy it or edit it.

Sender Identification (= Header)

The telephone number and name of the sender as well as the date and time of the fax transmission appear in the upper margin of each received fax.

Sending to Multiple Recipients (= Broadcasting)

With this function, you can send a fax message to multiple recipients.

Telephone number suppression (CLIR)

If you call a subscriber, your number appears on the display of the person whom you are calling. You can switch off this function and suppress your number (Caller Line identification Restriction, CLIR).

Time Stamp

The exact date and time of receipt appear in the page header of each received fax. A memory buffer guarantees that exact data are issued even after a power loss. In this way, you can verify exactly when a fax has reached you.

UTC

Coordinated Universal Time (UTC) Coordinated Universal Time is the current standardised universal time used. Starting from Greenwich in London (Zero Meridian), the world is split into time zones. These time zones are indicated with a deviance from UTC (in hours) for instance UTC+1 for Central European Time (CET)

Warm-Up Phase

Normally, the device is in the energy saving mode (see Energy Saving Mode). In the warm-up phase, the device heats up the printing unit until it has reached the necessary operating temperature, after which the copy or fax can be printed out.

EN

Tone Dialling (= Dual Tone Multi-Frequency)

In many countries, tone dialling has replaced pulse dialling, in which each number was sent as a corresponding number of pulses. With tone dialling, a specific tone is assigned to each key (referred to as DTMF tones).

Toner Level Memory

Your device registers the extent of toner used for every print-out and calculates the toner level of the toner cartridge on that basis. The toner level is stored in each toner cartridge. You can use different toner cartridges as well as display the respective toner level of the toner cartridge.

Transfer Speed

CCITT/ITU has published international standards for the transmission of data over telephone lines. All short names begin with V, so these are also referred to as V standards. The most important transmission speeds for fax transmissions are: V.17—7.200 to 14.400 bps, V.21—max. 300 bps, V.22—max. 1.200 bps, V.22 bis— max. 2.400 bps, V.27 ter—max. 4.800 bps, V.29—max.

9.600 bps, V.32 bis—max. 14.400 bps, V.34—max.

33.600 bps

TWAIN

(Tool Without an Interesting Name) With the TWAIN scanner driver you can access the device and scan documents from any application which supports this standard.

USB

Universal Serial Bus (computer port)

Glossary · Scanning 83

17 Appendix

EN

Technical Data

Dimensions

Dimensions (L¦×¦H¦×¦W).................... 430¦×¦346¦×¦393¦mm

Weight

Weight ..........................................................................<¦12¦kg

Mains Connection

Mains Connection .................... 220¦–¦240¦V¦~ / 50¦–¦60¦Hz

Power Consumption

Stand-by Mode

Stand-by Mode .................................................... <¦5,5¦W

Warm Up Phase

Warm Up Phase ................................................<¦980¦W

Printing

Printing.................................................................<¦550¦W

Recommended Ambient

Recommended Ambient..................................... 18¦–¦28¦ºC

Relative Humidity

Relative Humidity ..................30¦–¦70¦% (non-condensing)

Connection Type

Connection Type...........................................PSTN · PABX

Dialling Mode

..................Tone / pulse dialling (country dependent)

Standards

Safety EN 60950-1

Safety....................................................................EN¦60950-1

Laser Safety EN 60825-1

.........................................................................EN¦60825-1

Emissions EN 55022 Class B

Emissions..................................................EN¦55022 Class B

Emissions EN 61000-3-2

..................................................................... EN¦61000-3-2

Emissions EN 61000-3-3

..................................................................... EN¦61000-3-3

Immunity to Electrical Noise EN 55 024

Immunity..................................................................EN¦55024

Scanner

Type Black-and-White

Type............................. Black-and-White · 256 grey tones

Scan Width

Scan Width ................................................................ 216¦mm

Resolution

Resolution Draft

Draft ...............................................Grey tones · 100¦dpi

Resolution Text

Text ......................................Black-and-White · 200¦dpi

Resolution Grey Tones

Grey Tones...................................Grey tones · 200¦dpi

Resolution Photo

Photo..............................................Grey tones · 400¦dpi

Speed

Standard

Standard........................................ 3,9 seconds/A4-page

Fine

Fine ................................................ 3,9 seconds/A4-page

SFine

SFine ............................................10,2 seconds/A4-page

Paper (Manual Paper Feed)

Capacity

Capacity......................................................................1 sheets

Width

Width.................................................................. 98¦–¦216¦mm

Length

Length...............................................................148¦–¦356¦mm

Weight

Weight............................................................... 60¦–¦165¦g/m

Fax

Type Group 3

Type ........................................................................... Group 3

Compatibility

Compatibility....................................................... ITU-T¦T.30

Data Compression

Data Compression....................... MH · MR · MMR · JBIG

Modulation

Modulation........................V.17, V.21, V.27ter, V.29, V.34

Resolution

Standard Resolution

Standard .................................................................100¦dpi

Fax Resolution Fine

Fine ..........................................................................200¦dpi

Resolution Super Fine

Super Fine ..............................................................400¦dpi

Resolution Photo

Photo.......................................................................400¦dpi

Transfer Speed

Transfer Speed .................................................... 33.600¦bps

Copier

Type Black-and-White

Type ............................ Black-and-White · 256 grey tones

Resolution

Resolution Auto

Automatic ................................................... 200¦x¦203¦dpi

Resolution Text

Text.............................................................. 200¦x¦203¦dpi

Resolution Quality

Quality ......................................................... 400¦x¦203¦dpi

Resolution Photo

Photo............................................................ 400¦x¦203¦dpi

Speed

Speed ................................................up to 24 pages/minute

Multiple Copies

Multiple Copies ............................................up to 99 pages

Subject to Change

Technical specifications subject to change without notice.

Spaltenumbruch

Printer

Type Class 1 Laser Printer

Type.....................................................Class 1 Laser Printer

Emulation GDI

Emulation.......................................................................... GDI

Warm-Up Time

Warm-Up Time ...................................................... <¦10¦sec.

Width

Width..........................................................................211¦mm

Resolution Low

Resolution.........................................................600¦x¦600¦dpi

Resolution High

.....................................................................600¦x¦1200¦dpi

Speed

Speed........................................................... 24 pages/minute

Memory

Redial / caller list

Redial / caller list ..................................................50 Entries

Telephone Book

Telephone Book ................................................ 250 Entries

Fax Messages

......................... up to 200 pages (standard test letter)

Paper (Paper Tray)

Capacity

Capacity.................................................................250 sheets

Size

Size.................A4 · A5 · B5 (JIS) · Letter · Legal (13/14¦")

................................................................... Exec · Custom

Weight

Weight ...............................................................60¦–¦105¦g/m

Spaltenumbruch

84 Philips · LaserMFD 6135hfd

Guarantee

(Terms and Conditions for United Kingdom only)

In order to supply the guarantee, you should contact your dealer or Sagemcom Helpdesk. The proof of purchase will be required.

Please make usage of your equipment for the purpose for which it was designed and under normal usage conditions. Sagemcom do not accept any liability for any usage made out of the frame of its original designed purpose and any consequence that may arise from this usage.

Should any malfunctioning arise, the dealer or Sagemcom Helpdesk will advise you what to do.

A) General Guarantee Conditions

Sagemcom undertakes to remedy by repair or exchange at its own convenience, free of charge for labour and replacement parts, any defects in the equipment during the guarantee period of 12—twelve—months (3— three—months for accessories), from the date of original invoice of the Equipment, where those defects are a result of faulty workmanship.

Unless the customer has concluded with Sagemcom a maintenance contract in respect of the equipment which specifically provides for repairs to be carried out at the customer's premises, the repairs will not be carried out on the equipment at the customer premises. The customer must however return the defective equipment at his/her own expense, to the address given by the dealer or Sagemcom Helpdesk.

In case a product needs to be sent in for a repair, it always has to be accompanied by a proof of purchase (which is not altered, written on or in any way be made illegible) showing that the product is still under warrantee. In case no proof of purchase is enclosed, the Sagemcom repair center will use the production date as a reference of establishing the warrantee status of the product.

Apart from all legal obligatory rules, Sagemcom, do not give any Guarantee, either implicit or explicit which is not set force in the present section, and could not be hold responsible for any direct or indirect, material or immaterial damage, in or out of the frame of the present guarantee.

If any provision of this guarantee shall be held to be in whole or in part invalid or illegal due to an obligatory rule applicable to consumers pursuant to their national legislation, such invalidity or illegality shall not impair or affect the remaining provisions or parts of this guarantee.

This guarantee does not affect the Customer statutory rights.

B) Exclusions From Guarantee

Sagemcom shall have no liability under the guarantee in respect of:

•) Damage, defects, breakdown or malfunction due to one or more of the following:

– Failure to properly follow the installation process and instructions for use

– An external cause to the equipment (including but not limited to: lightening, fire, shock, vandalism, inappropriate conditions of electrical network or water damage of any nature)

– Modifications made without the written approval of Sagemcom

– Unsuitable operating conditions, particularly of temperature and humidity

– Repair or maintenance of the equipment by persons not authorized by Sagemcom

•) Wear and tear from normal daily use of the equipment and its accessories

•) Damage due to insufficient or bad packaging of equipment when returned to Sagemcom

•) Usage of new versions of software without previous approval of Sagemcom

•) Work on any equipment or software modified or added without the prior written consent of Sagemcom

•) Malfunctions not resulting from the Equipment or from software installed in user workstations for the purpose of use of the equipment.

Communication problems related to an unsuitable environment including:

– Problems related to access and/or connection to the Internet such as interruptions by access networks or malfunction of the line used by the subscriber or his correspondent

– Transmission faults (for example poor geographical coverage by radio transmitters, interference or poor line quality)

– The local network fault (wiring, servers, workstations) or the failure of the transmission network (such as but not limited to interferences, fault or poor quality of the network)

– Modification of the parameters of the cellular network carried out after the sale of the Product

•) The normal servicing (as defined in the user guide supplied with the equipment) as well as malfunctioning due to servicing not being carried out. Servicing costs are in any event always borne by the customer.

•) Malfunctions resulting from the usage of products, consumables or accessories not compatibles with the equipment.

C) Out of Guarantee Repairs

In the cases set forth in B) as well as after expiry of the guarantee period, the customer must ask the Authorized Sagemcom Repair Centre for a cost estimation.

The repair and delivery costs will be invoiced to the customer.

The foregoing shall apply unless otherwise agreed in writing with the customer and only for the United Kingdom.

Helpdesk: 08 45 - 090 03 15

EN

Appendix · Guarantee 85

EN

The CE symbol confirms conformity with the EU directives that apply to the device.

Declaration of Conformity (DoC)

Hereby, Sagemcom Austria GmbH declares that this SFF 6135 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

WWW

You can find the complete Declaration of Conformity on our website www.sagem-ca.at/doc

Energy Star 2007

Energy Star

As a participant in the ENERGY STAR programme, Sagemcom Austria GmbH has made sure that this machine complies with the ENERGY STAR requirements.

Recycling

Packaging: To facilitate packaging recycling, please conform to your local selective recycling rules.

Batteries: Old batteries have to be deposited in designated collection areas.

WEEE

Product: The crossed out dustbin logo on your product signifies it is classified as Electrical and Electronic Equipment covered by special disposal regulations.

To enforce recycling, recovery of The Waste Electrical and Electronic Equipment (WEEE) and to protect the environment and human health, European regulations requires that you selectively collect waste equipment using one of the following options:

• Your retailer will take your equipment back if you are buying a replacement product.

• Waste equipment can also be deposited in designated collection areas.

Spaltenumbruch

The paper and cardboard packaging used can be disposed of as recyclable paper. Have the plastic wrapping and Styrofoam packaging recycled or dispose of it in the non-recyclable waste, depending on the requirements in your country.

Trademarks: The references mentioned in this manual are trademarks of the respective companies. The lack of the trademarks É and Ë does not justify the assumption that these dedicated terminologies are free trademarks. Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Sagemcom disclaims any and all rights in those marks.

Reproduction Not Permitted

The reproduction of certain documents (e.g. by scanning, printing, copying) is prohibited in many countries. The list of such documents below is not intended to be complete, it only offers a general overview. In case of doubt, consult your legal advisor.

· Passports (personal identification)

· Entrance and exit visa papers (immigration papers)

· Military service documents

· Bank notes, travel checks, payment orders

· Postage stamps, tax stamps (stamped or unstamped)

· Loan papers, certificates of deposit, bonds

· Documents protected by copyright Follow the statutory regulations of your country with

regard to the legal validity of fax transmissions—particularly in connection with the validity of signatures, meeting delivery deadlines or disadvantages resulting from the loss of quality in the transmission, etc.

Take care to maintain the statutory regulations of your country regarding telecommunications secrecy and data privacy.

This product is intended for use on an analogue public telecommunications network (PSTN) and in the country specified on the packaging. Use in other countries can result in faulty functioning.

For more information, please contact the technical service centre for your country. Should problems arise during use of your machine, please contact your retailer first.

Neither Sagemcom nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or failure to strictly comply with Sagemcom operating and maintenance instructions.

Sagemcom shall not be liable for any damages or problems arising from the use of any options or any consumable materials other than those designated as original Sagemcom products or Sagemcom approved products.

Sagemcom shall not be held liable for any damage resulting from electromagnetic interference that occurs from the use of any interface cables other than those designated as Sagemcom products.

86 Philips · LaserMFD 6135hfd

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Sagemcom. The information contained herein is designed only for use with this product. Sagemcom is not responsible, if this information is applied to other devices.

This user manual is a document that does not represent a contract.

Errors, printing errors and changes are reserved. Copyright È 2010 Sagemcom Austria GmbH

EN

Appendix · Declaration of Conformity (DoC) 87
