Register your product and get support at
www.philips.com/welcome
SE170
SE175
EN User manual
Philips Consumer Lifestyle |
|
AQ95-56F-1221_2KR |
2010 |
........................................................ |
........................................................................... |
(Report No.) |
(Year in which the CE mark is affixed) |
EC DECLARATION OF CONFORMITY
We, PHILIPS CONSUMER LIFESTYLE B.V.
TUSSENDIEPEN 4, 9206 AD DRACHTEN, THE NETHERLANDS
Declare under our responsibility that the electrical product(s):
PHILIPS |
CD170, CD175, SE170, SE175 |
....................................................................... |
........................................................... |
(brand name) |
(Type version of model) |
DECT Phone |
|
(Telecommunication Terminal Equipment) |
|
.............................................................................................. |
|
(product description) |
|
To which this declaration relates is in conformity with the following harmonized standards:
(title, number and date of issue of the standard)
EN 301 406 V1.5.1 (07-2003)
EN 301 489-1 V1.8.1 (2008-04) _ EN 301 489-6 V1.2.1 (2002-08)
EN 60950-1:2006
EN 50360:2001
EN 50361:2001
EN 62018:2003
Following the provisions of :
1999/5/EC (R&TTE Directive) 2009/125/EC (EuP Directive)
-EC/1275/2008
-EC/278/2009
And are produced under a quality scheme at least in conformity with ISO 9001 or CENELEC Permanent Documents
The Notified Body |
BABT / 0168 |
performed |
Notified Body Opinion |
|
.................................................... (Name and number) |
................................................(description of intervention) |
|||
|
|
|||
|
N A . |
|
|
|
And issued the certificate, .................. .............................................. |
||||
|
(certificate number) |
|
|
|
Remarks: |
|
|
|
|
|
|
|||
Drachten, The Netherlands |
A.Speelman, Compliance Manager |
|||
04/12/2009 |
|
............................................................................................................... |
||
........................................................... |
|
|||
(place,date) |
|
(signature, name and function) |
||
|
|
|
|
_
_
Philips Consumer Lifystyle |
AMB 544-9056 |
1 |
Important safety instructions |
5 |
|
Declaration of conformity |
5 |
|
Use GAP standard compliance |
6 |
|
Compliance with EMF |
6 |
|
Disposal of your old product and |
|
|
batteries |
6 |
|
|
|
2 |
Your SE170/SE175 |
8 |
|
What is in the box |
8 |
|
Overview of the phone |
9 |
|
Overview of the base station |
10 |
|
Display icons |
11 |
|
|
|
3 |
Get started |
12 |
|
Connect the base station |
12 |
|
Install the handset |
12 |
|

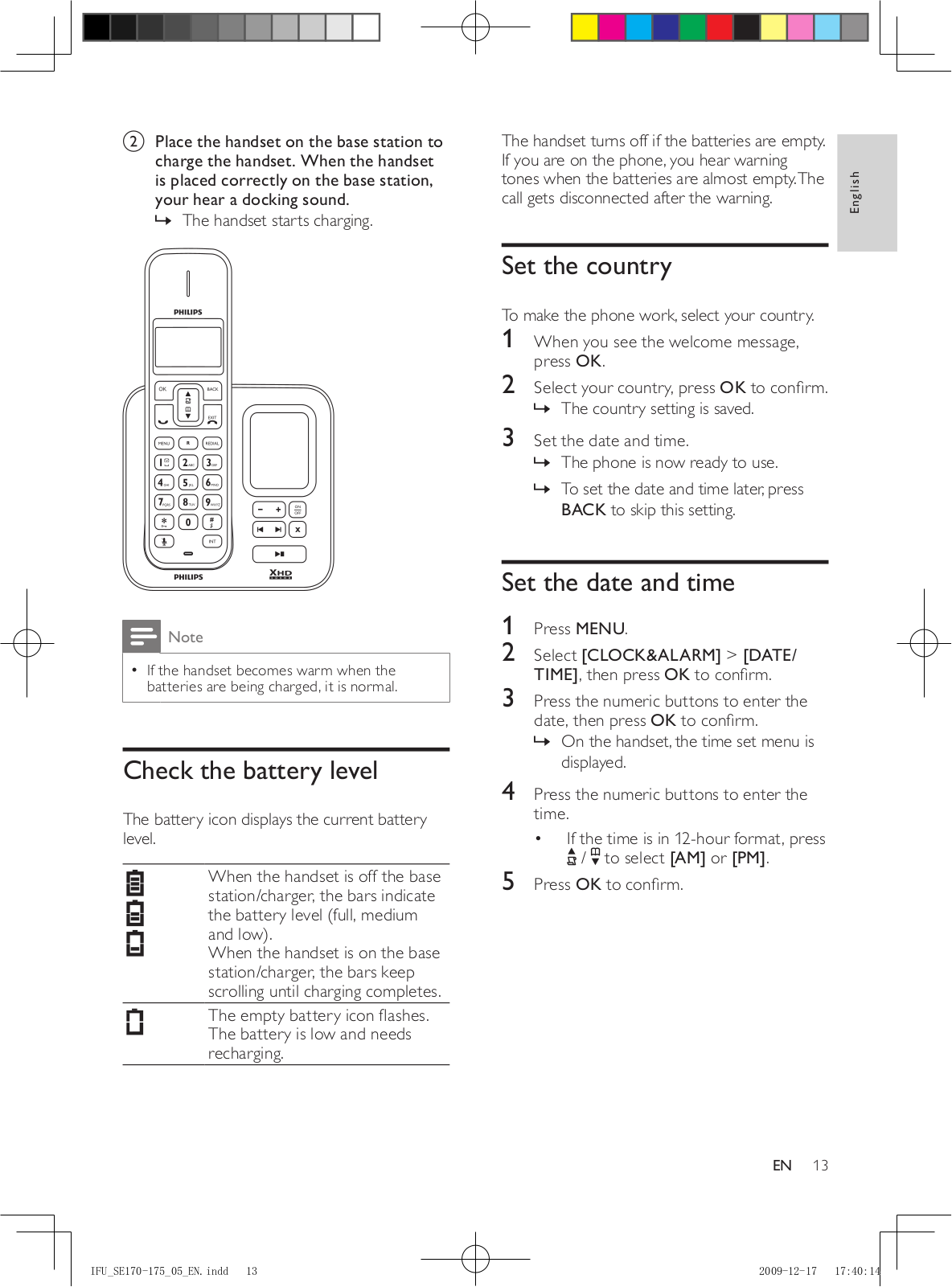

Check the battery level |
13 |
|
Set the country |
13 |
|

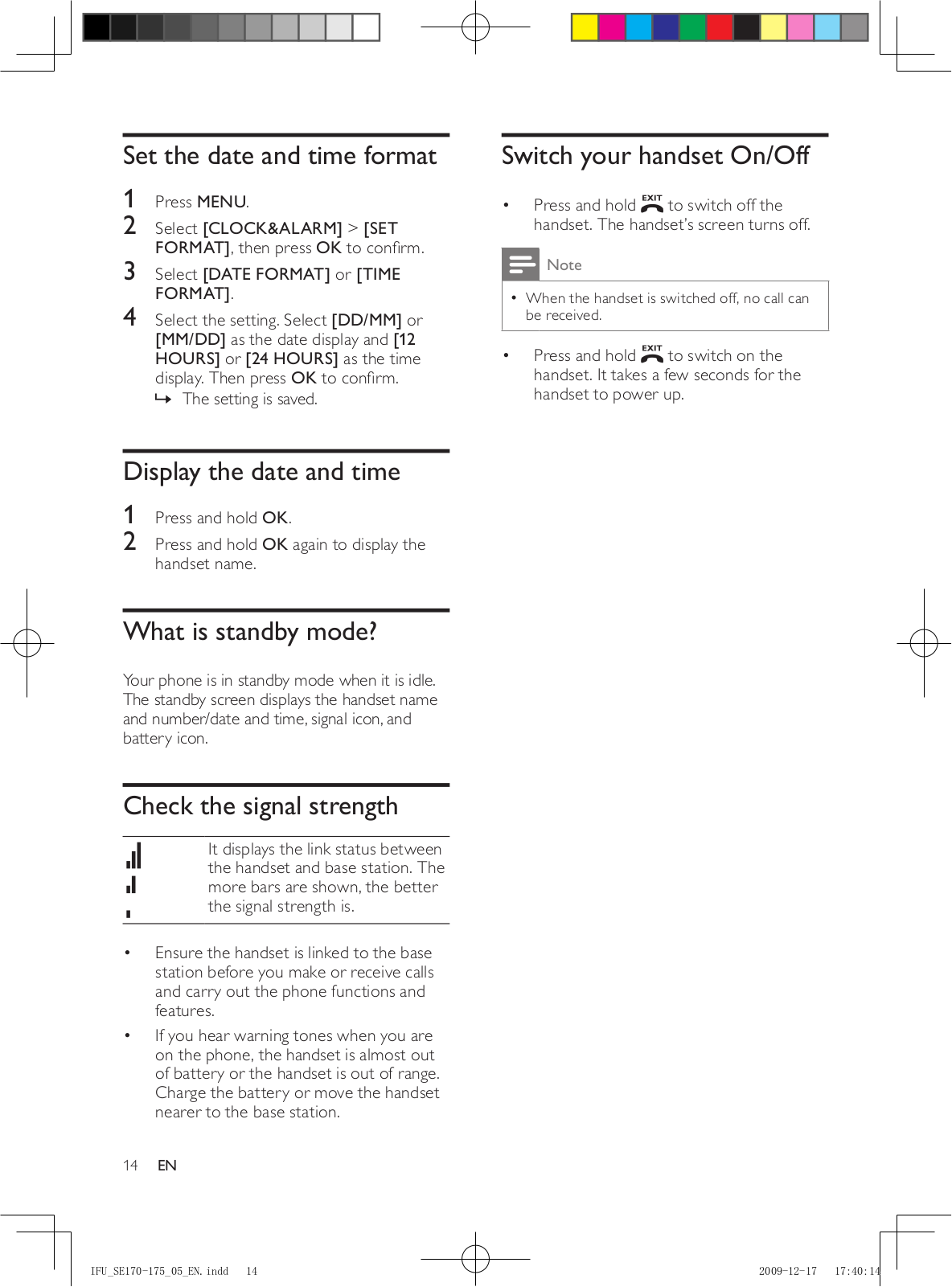

Set the date and time |
13 |
|
Set the date and time format |
14 |
|
Display the date and time |
14 |
|
What is standby mode? |
14 |
|
Check the signal strength |
14 |
|
Switch your handset On/Off |
14 |
|
|
|
4 |

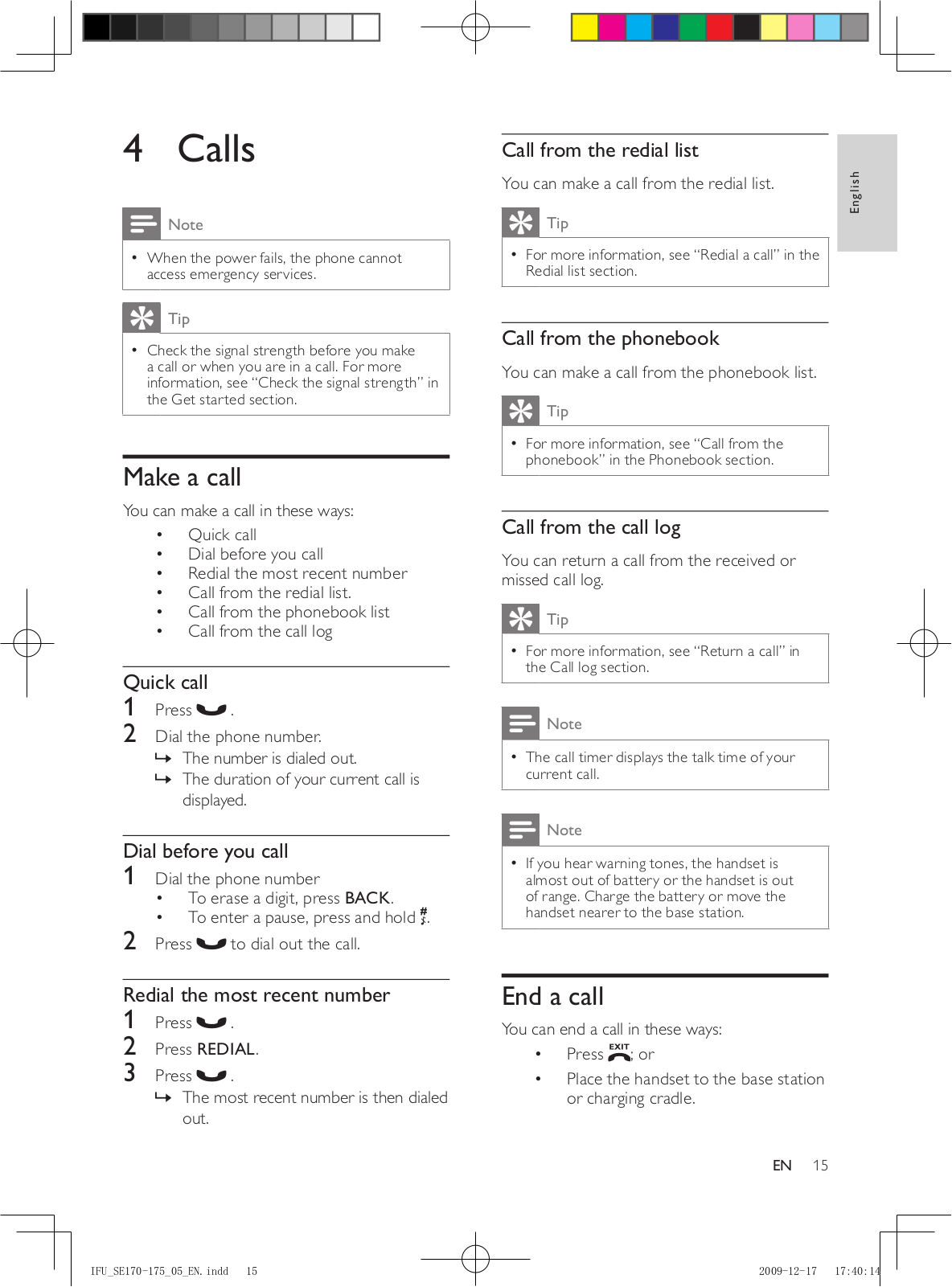

Calls |
15 |
|
Make a call |
15 |
|
End a call |
15 |
|

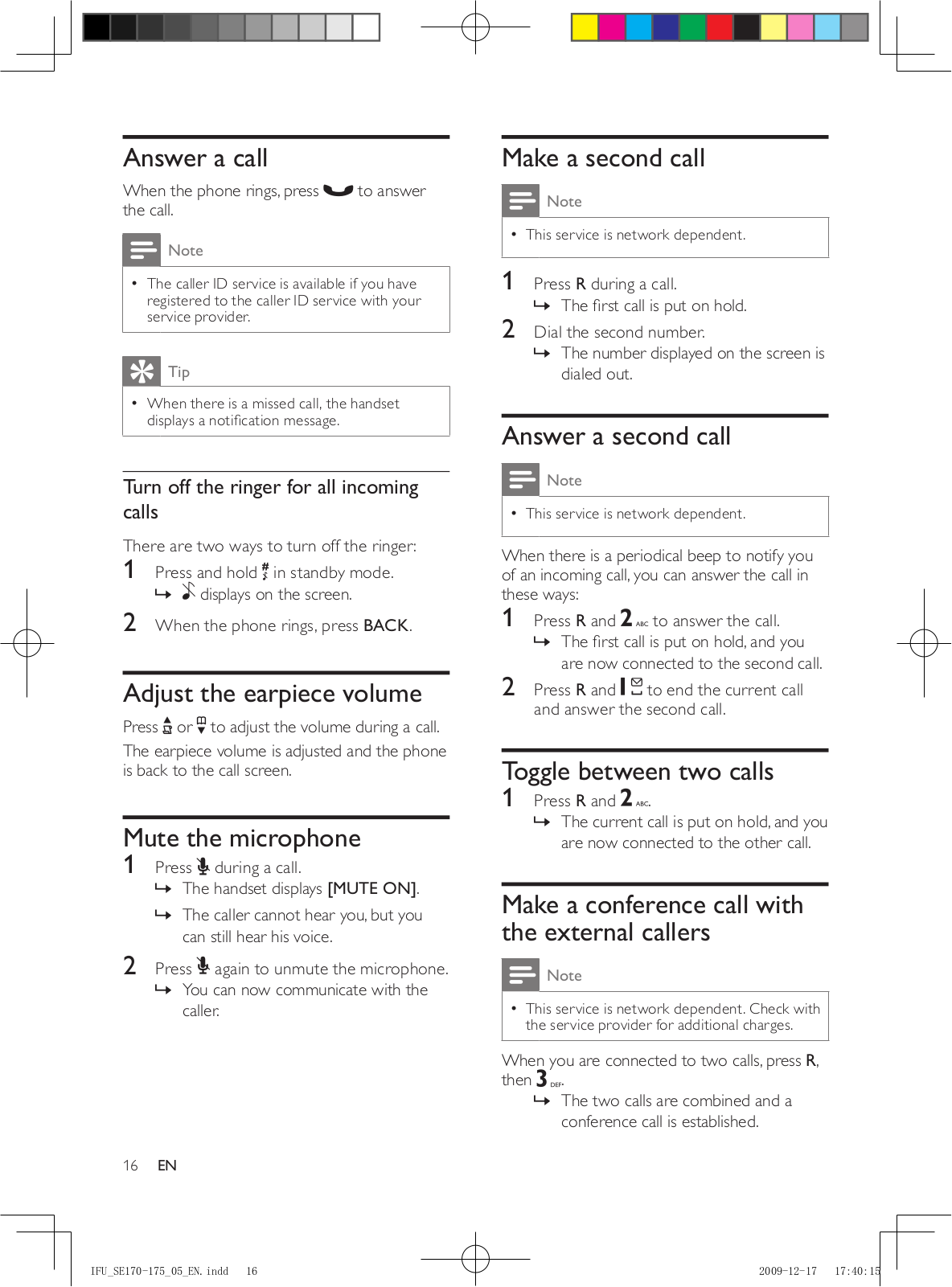

Answer a call |
16 |
|
Adjust the earpiece volume |
16 |
|
Mute the microphone |
16 |
|
Make a second call |
16 |
|
Answer a second call |
16 |
|
Toggle between two calls |
16 |
|
Make a conference call with the |
|
|
external callers |
16 |
|
|
|

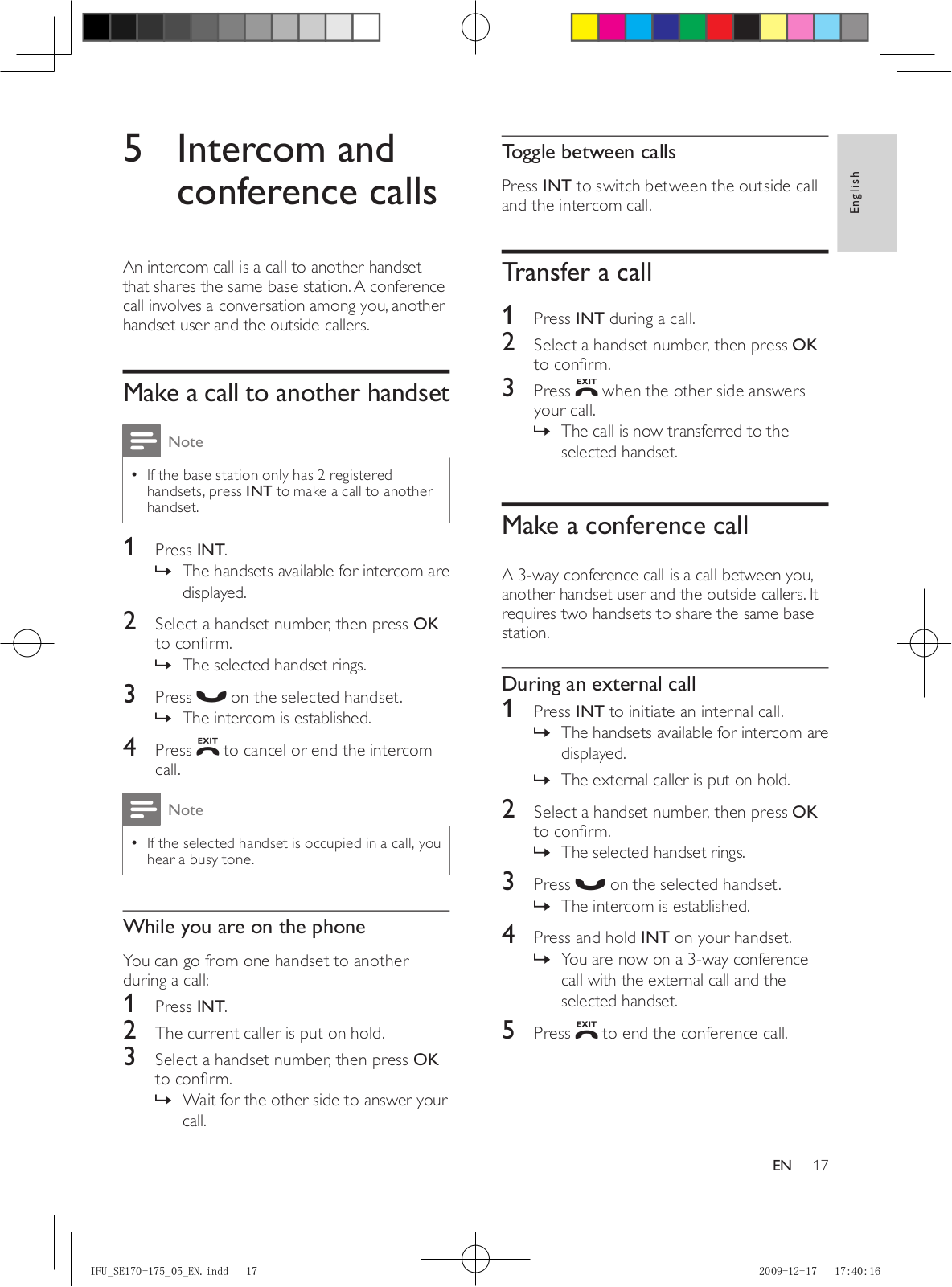

5 Intercom and conference calls |
17 |
|
|
Make a call to another handset |
17 |
|
Transfer a call |
17 |
|
Make a conference call |
17 |
6 |

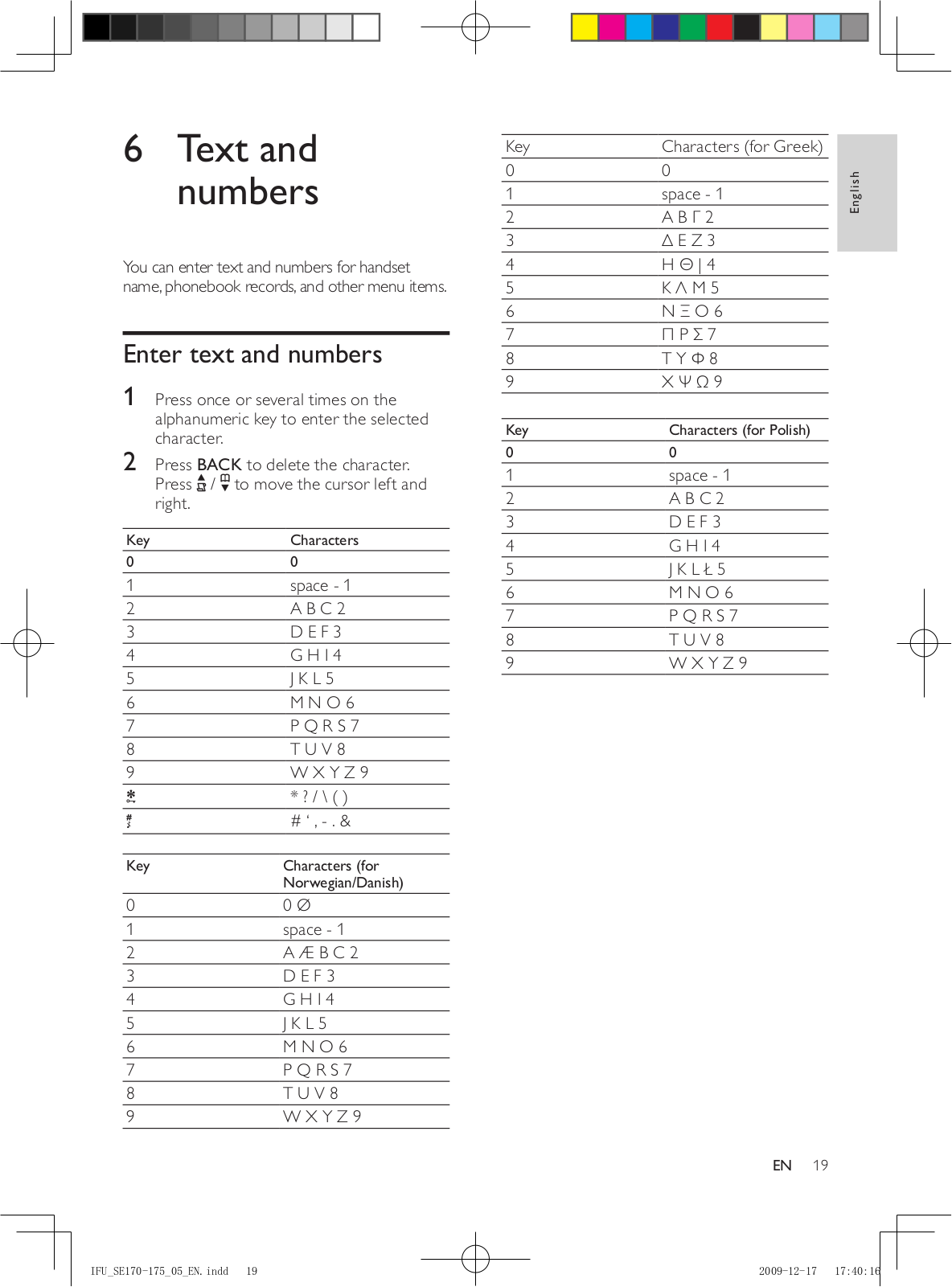

Text and numbers |
19 |
|
Enter text and numbers |
19 |
|
|
|
7 |

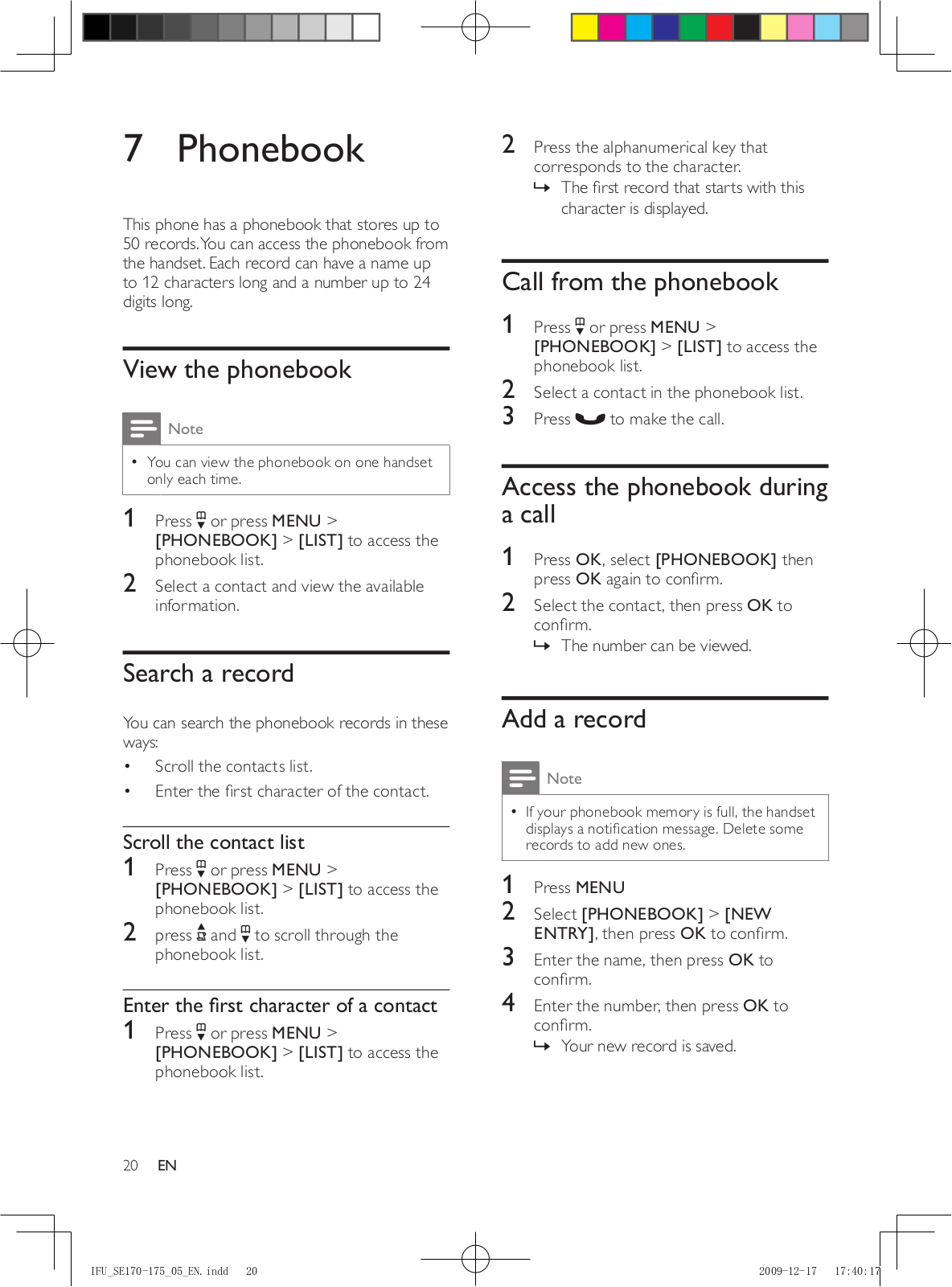

Phonebook |
20 |
|
View the phonebook |
20 |
|
Search a record |
20 |
|
Call from the phonebook |
20 |
|
Access the phonebook during a call |
20 |
|
Add a record |
20 |
|

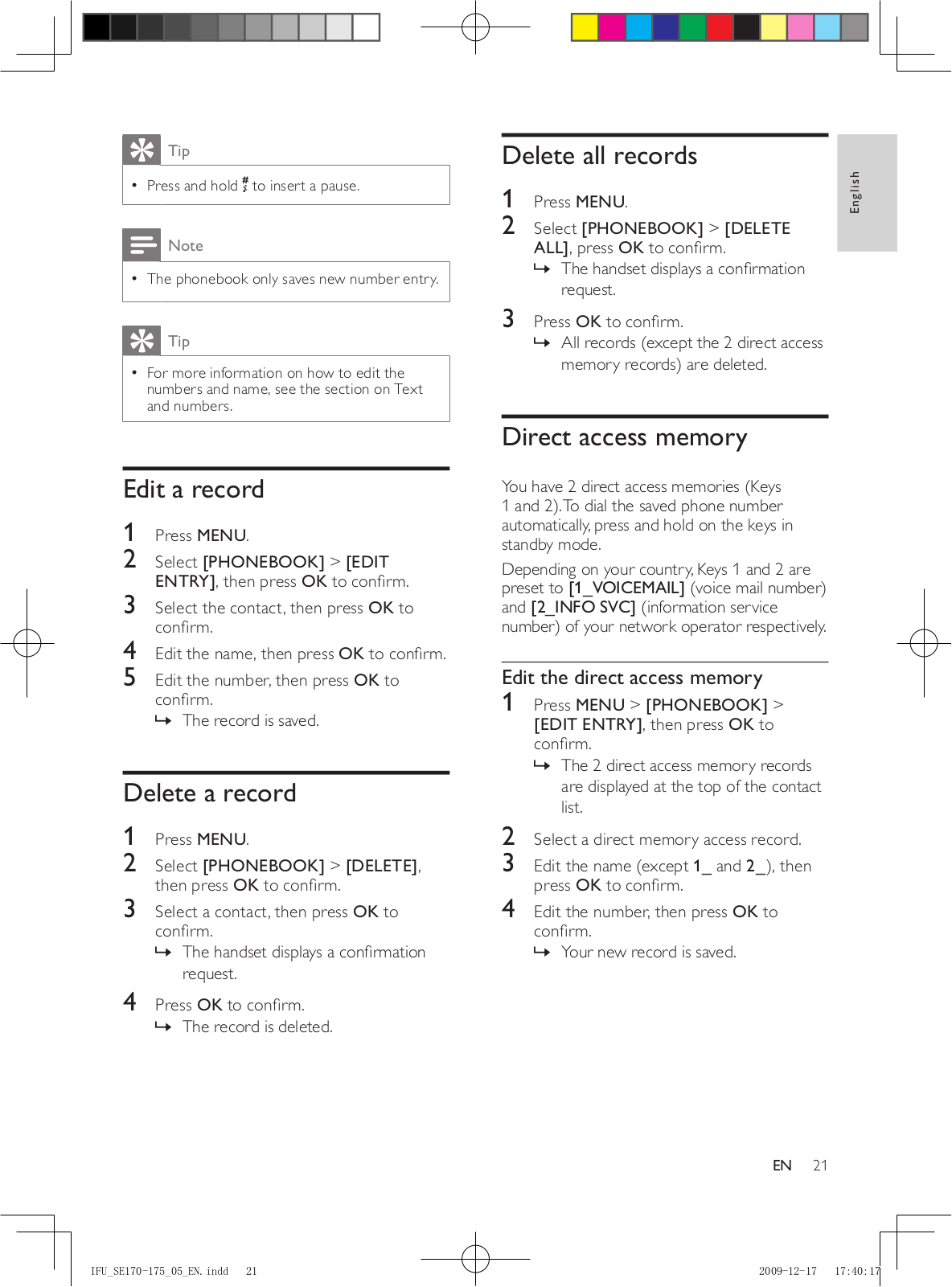

Edit a record |
21 |
|
Delete a record |
21 |
|
Delete all records |
21 |
|
Direct access memory |
21 |
|
|
|
8 |

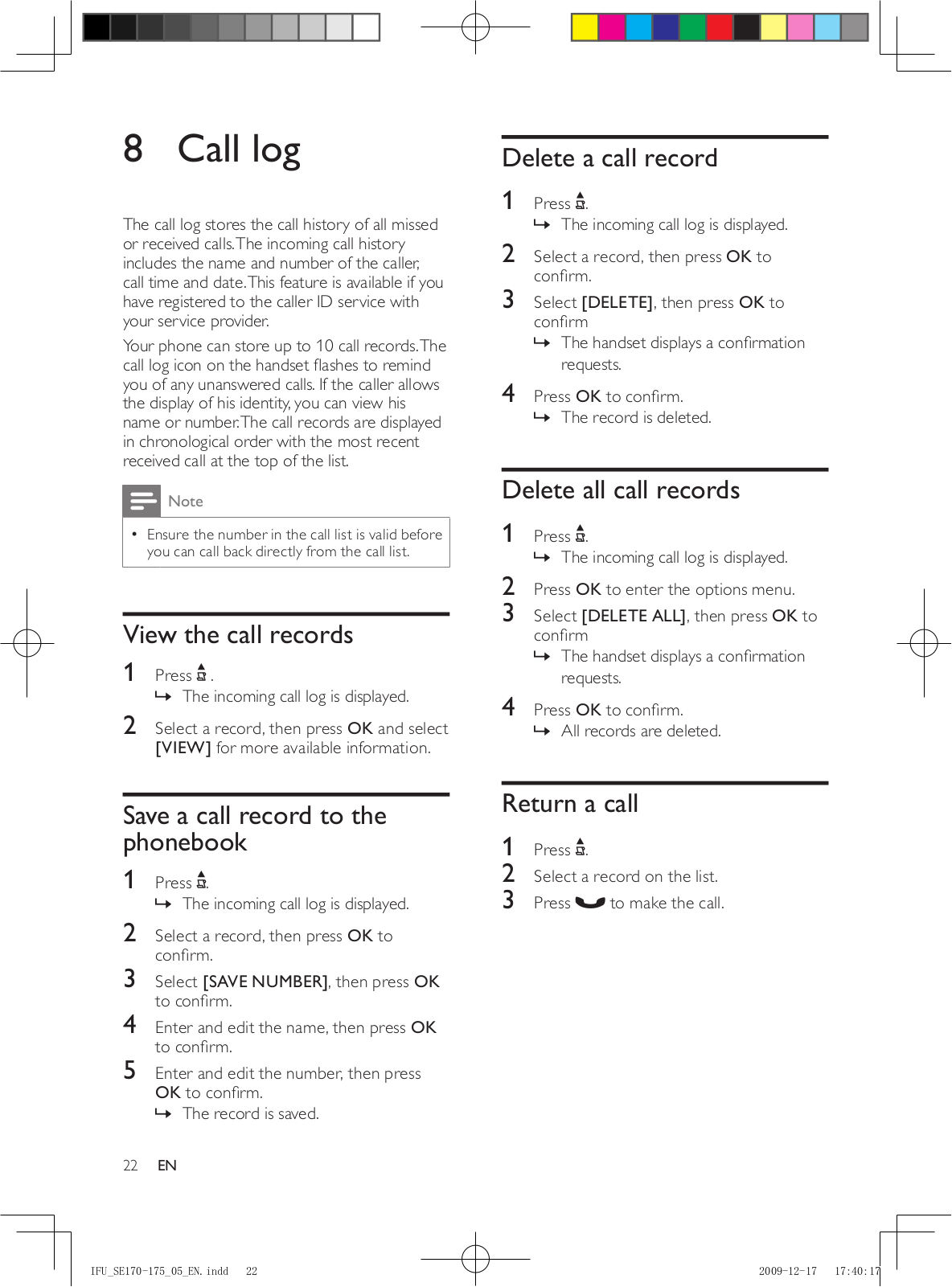

Call log |
22 |
|
View the call records |
22 |
|
Save a call record to the phonebook |
22 |
|
Delete a call record |
22 |
|
Delete all call records |
22 |
|
Return a call |
22 |
|
|
|
9 |

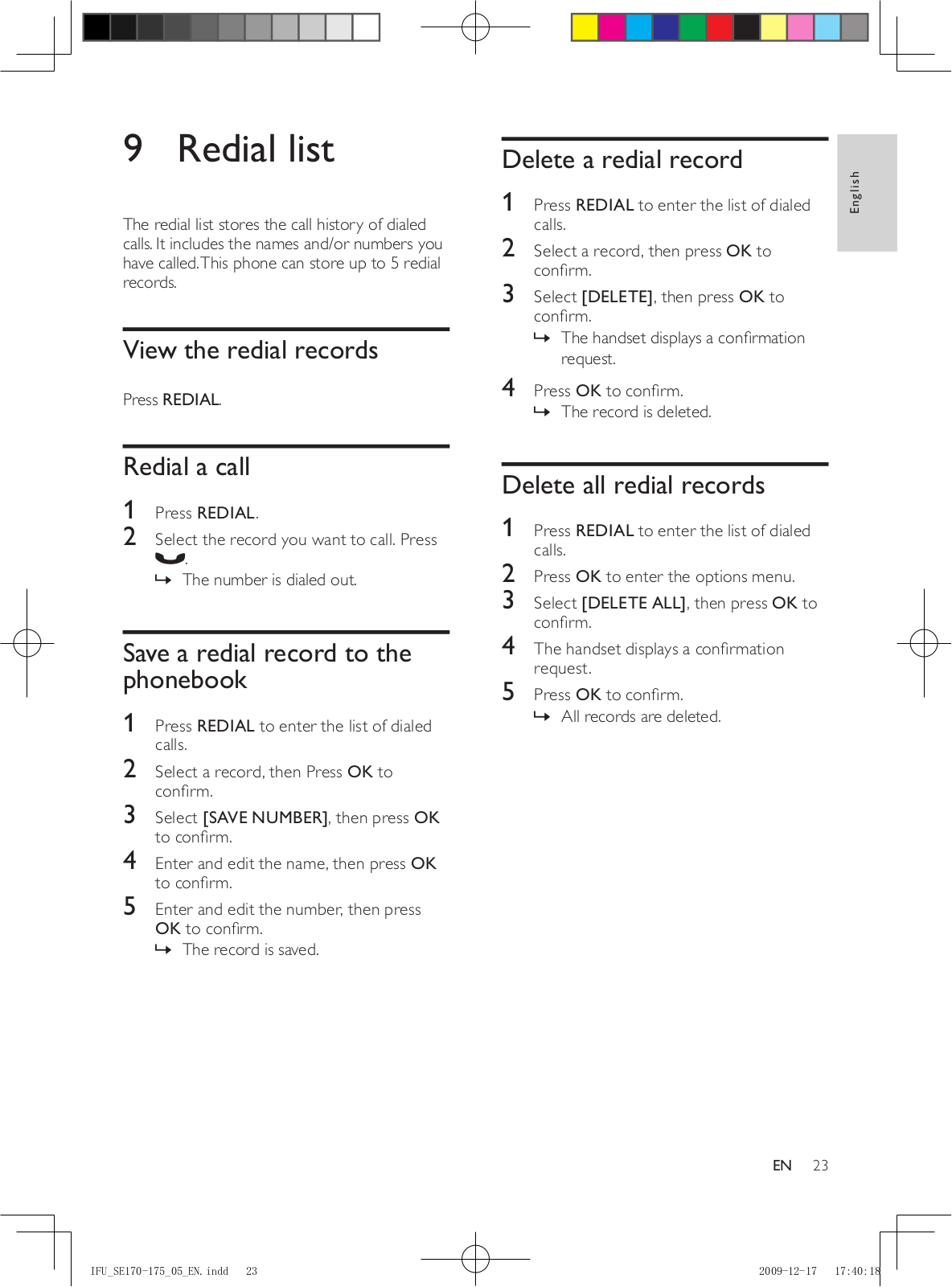

Redial list |
23 |
|
View the redial records |
23 |
|
Redial a call |
23 |
|
Save a redial record to the phonebook |
23 |
|
Delete a redial record |
23 |
|
Delete all redial records |
23 |
|
|
|
10 |

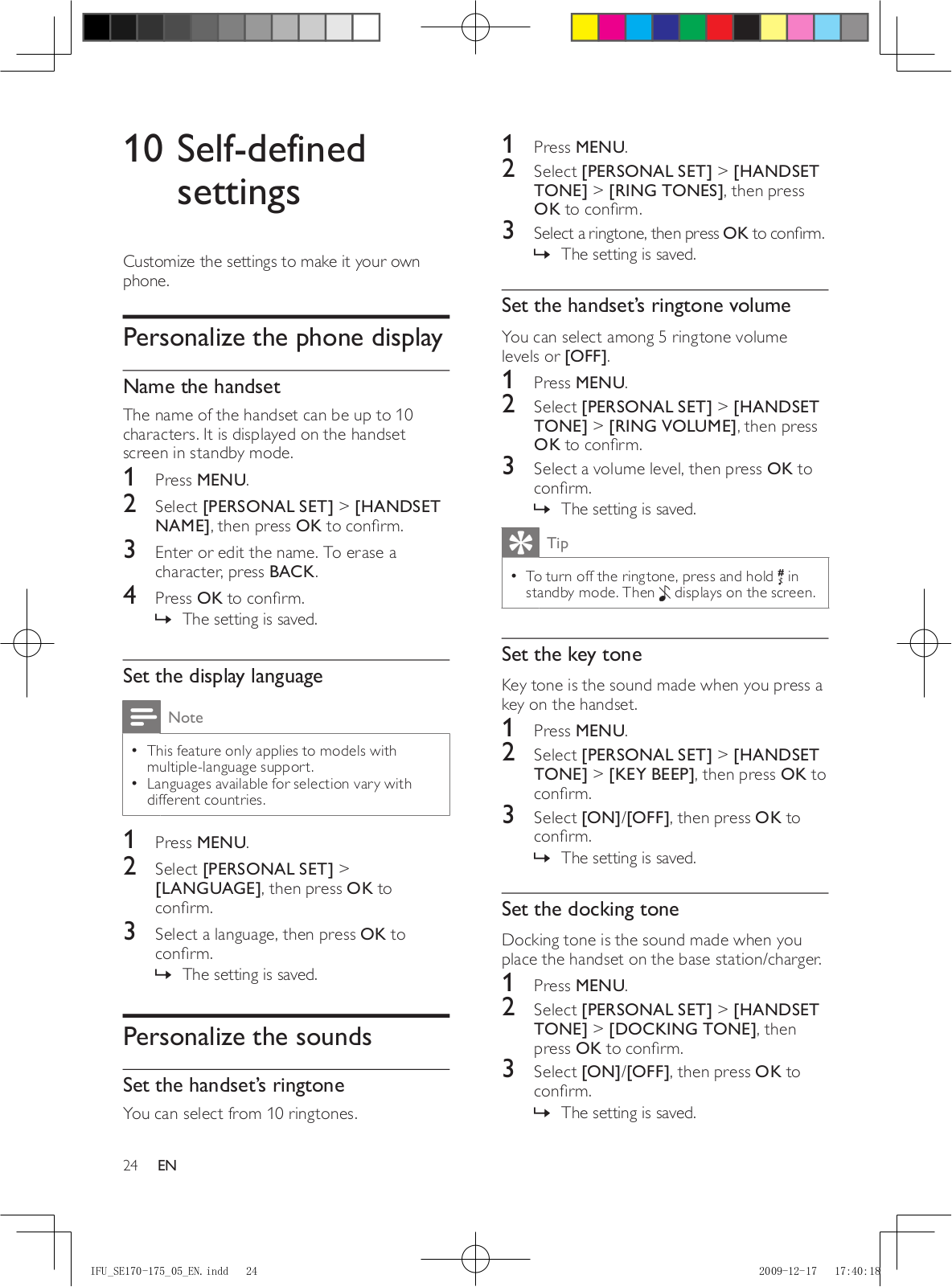

Self-defined settings |
24 |
|
Personalize the phone display |
24 |
|
Personalize the sounds |
24 |
|
|
|
11 |

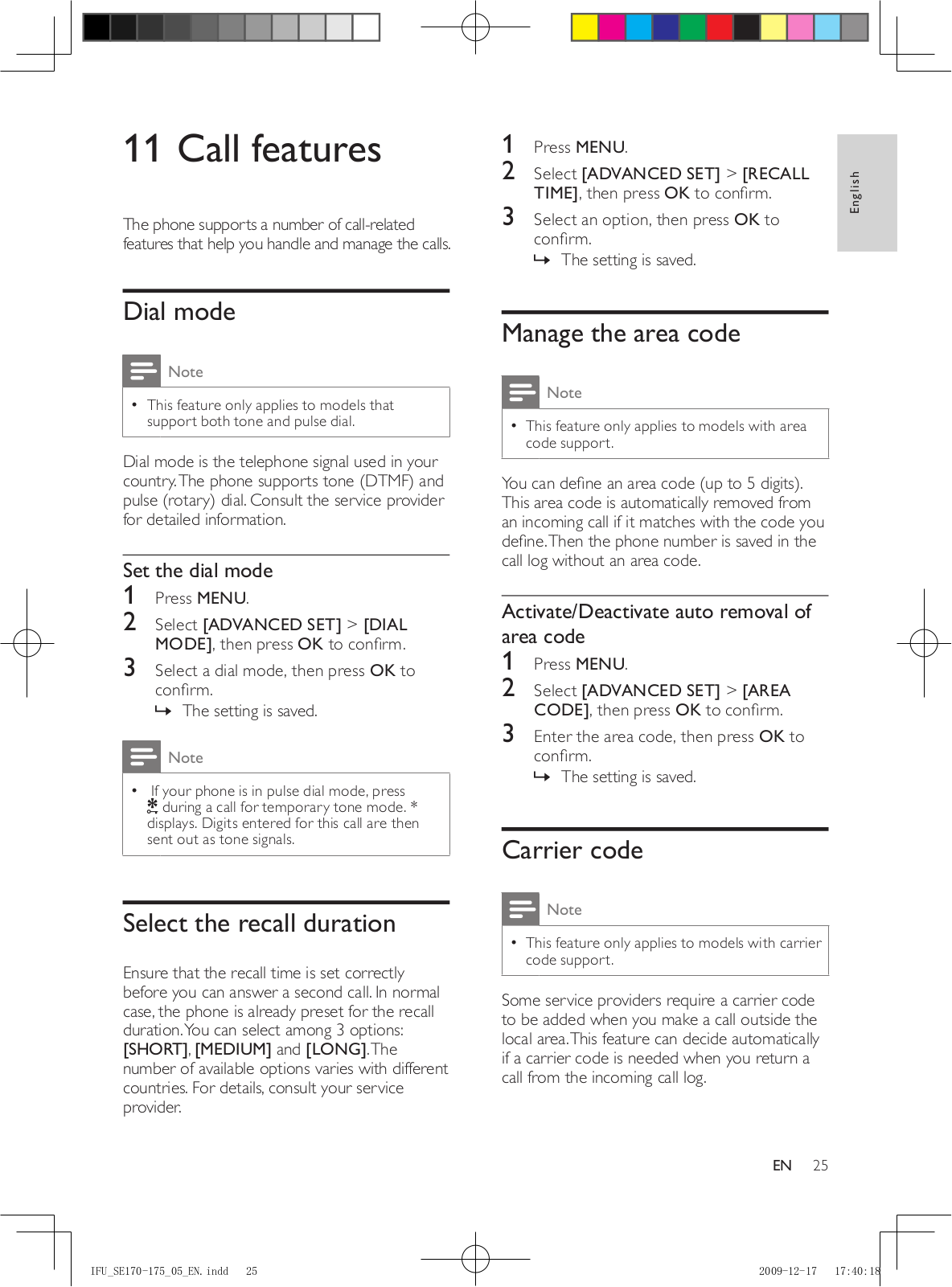

Call features |
25 |
|
Dial mode |
25 |
|
Select the recall duration |
25 |
|
Manage the area code |
25 |
|
Carrier code |
25 |
|

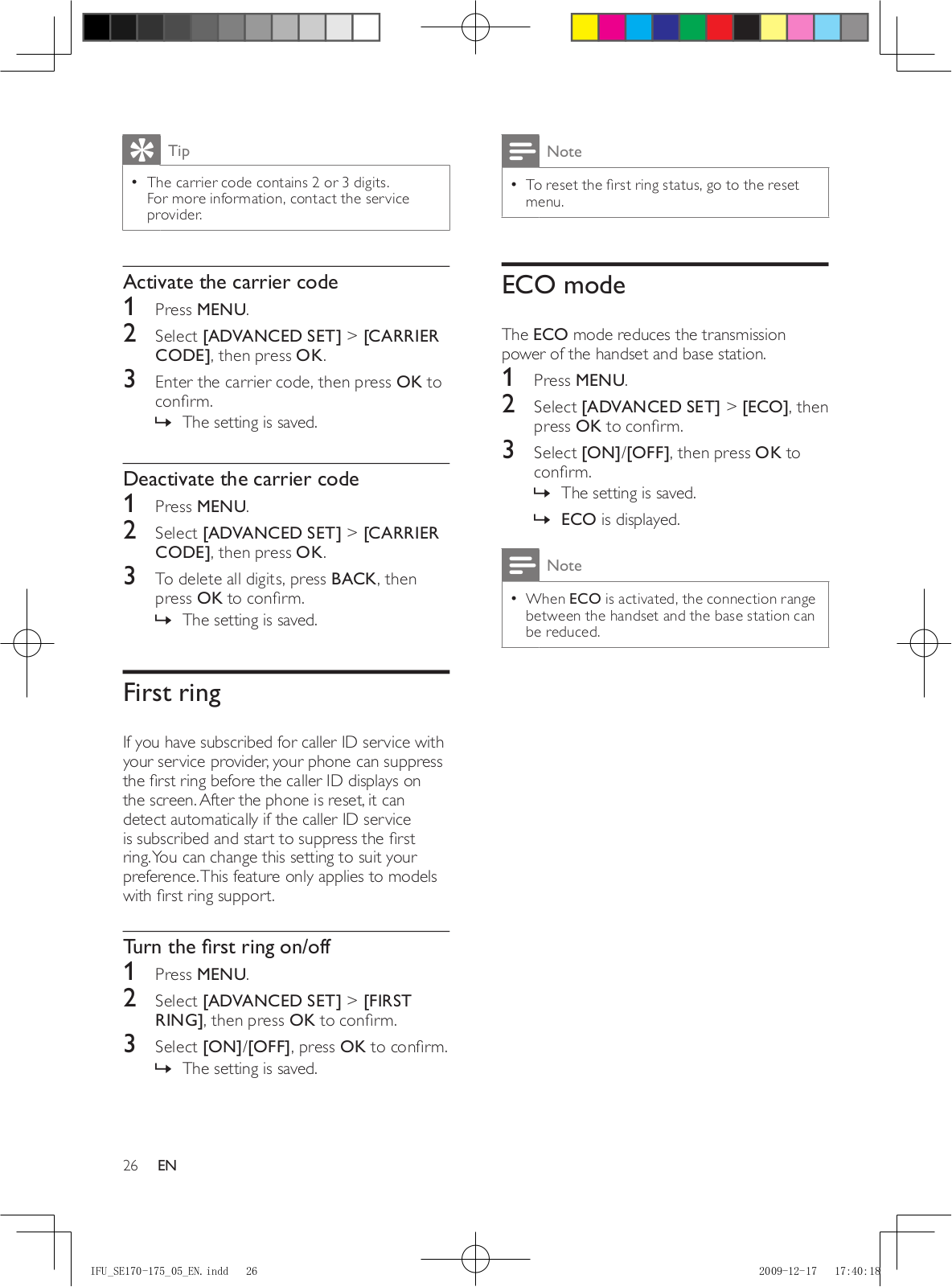

First ring |
26 |
|
ECO mode |
26 |
English
EN 3
12 |

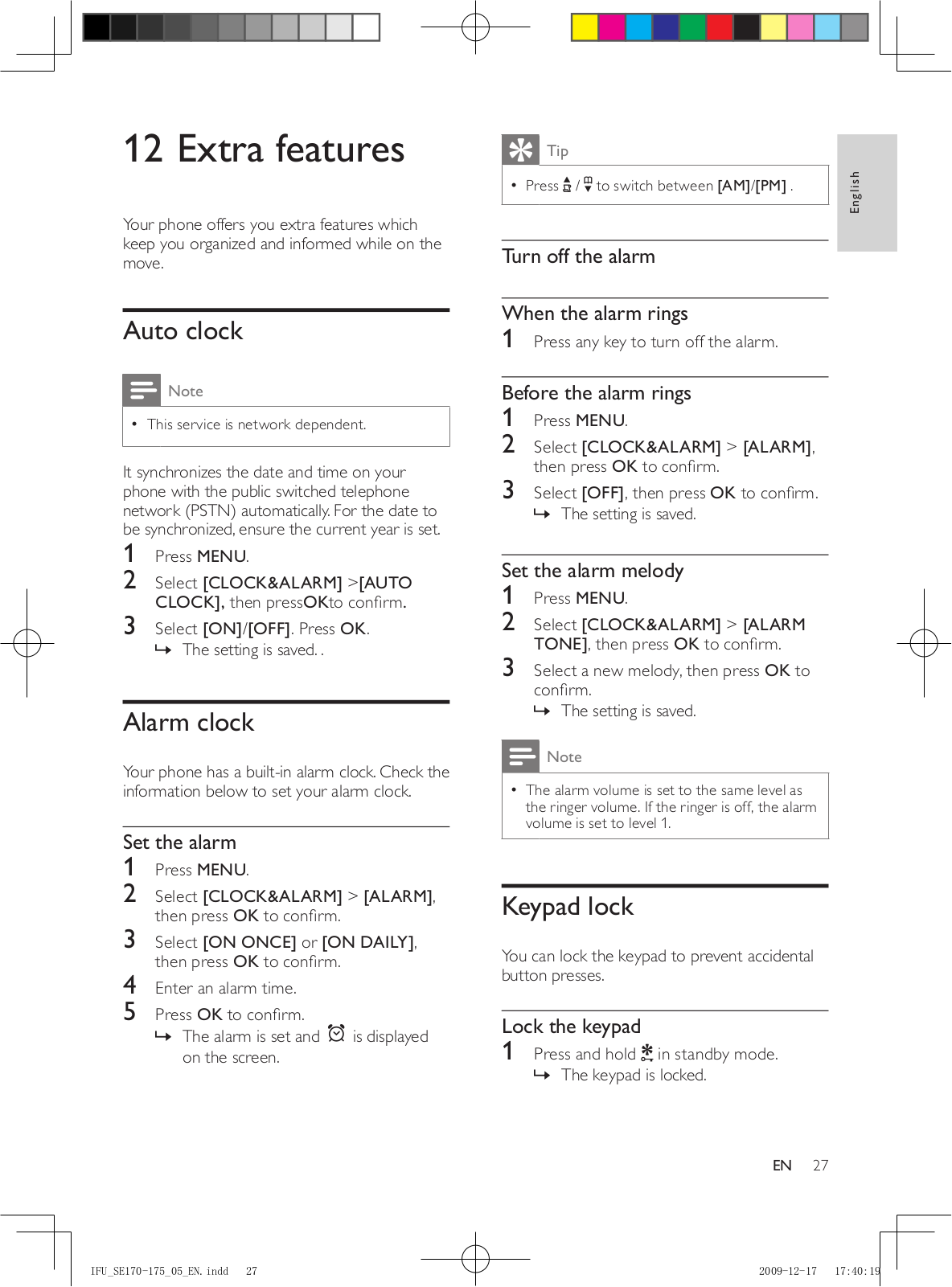

Extra features |
27 |
|
Auto clock |
27 |
|
Alarm clock |
27 |
|
Keypad lock |
27 |
|

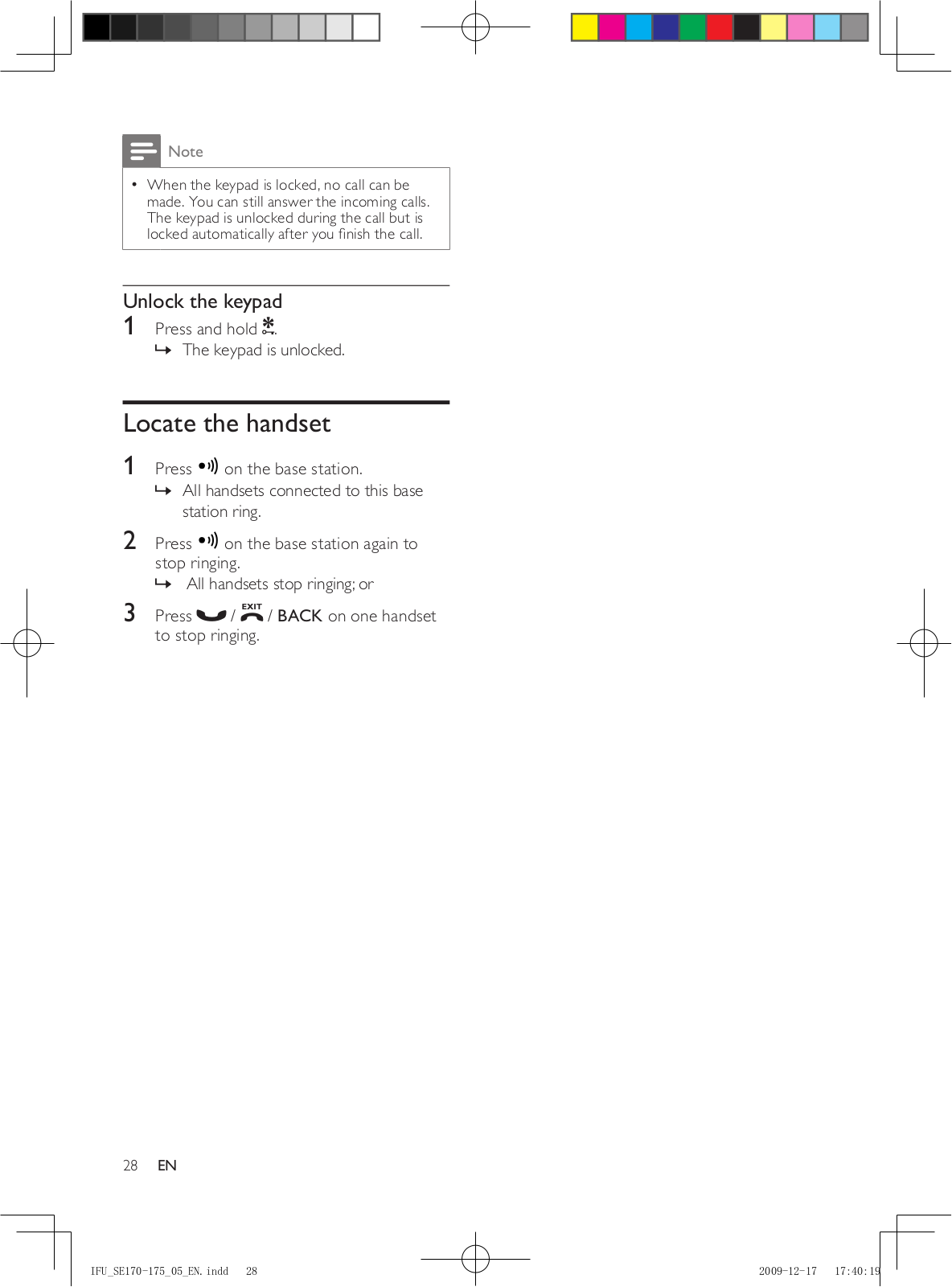

Locate the handset |
28 |
|
|
|
13 |

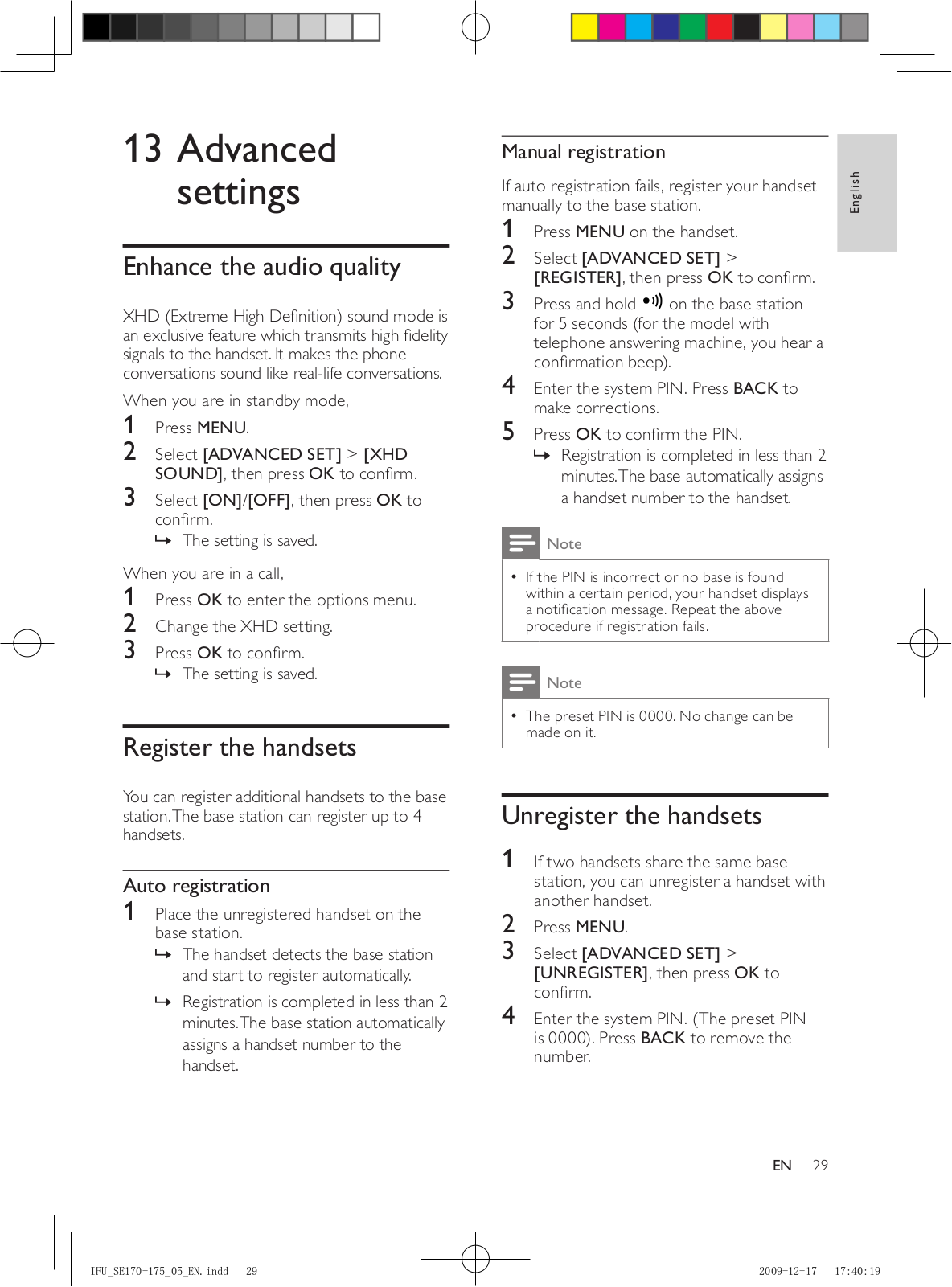

Advanced settings |
29 |
|
Enhance the audio quality |
29 |
|
Register the handsets |
29 |
|
Unregister the handsets |
29 |
|

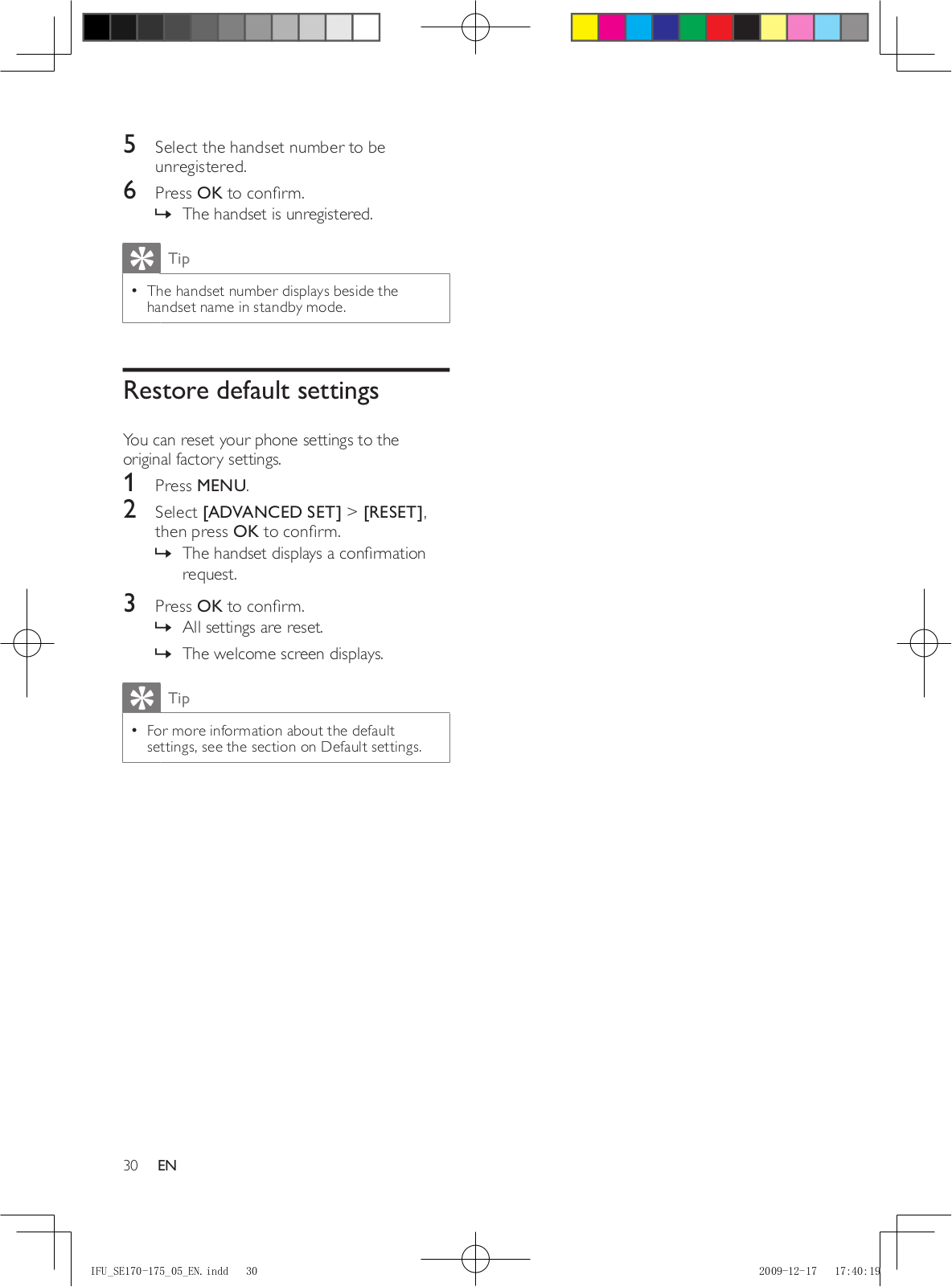

Restore default settings |
30 |
|
|
|
14 |

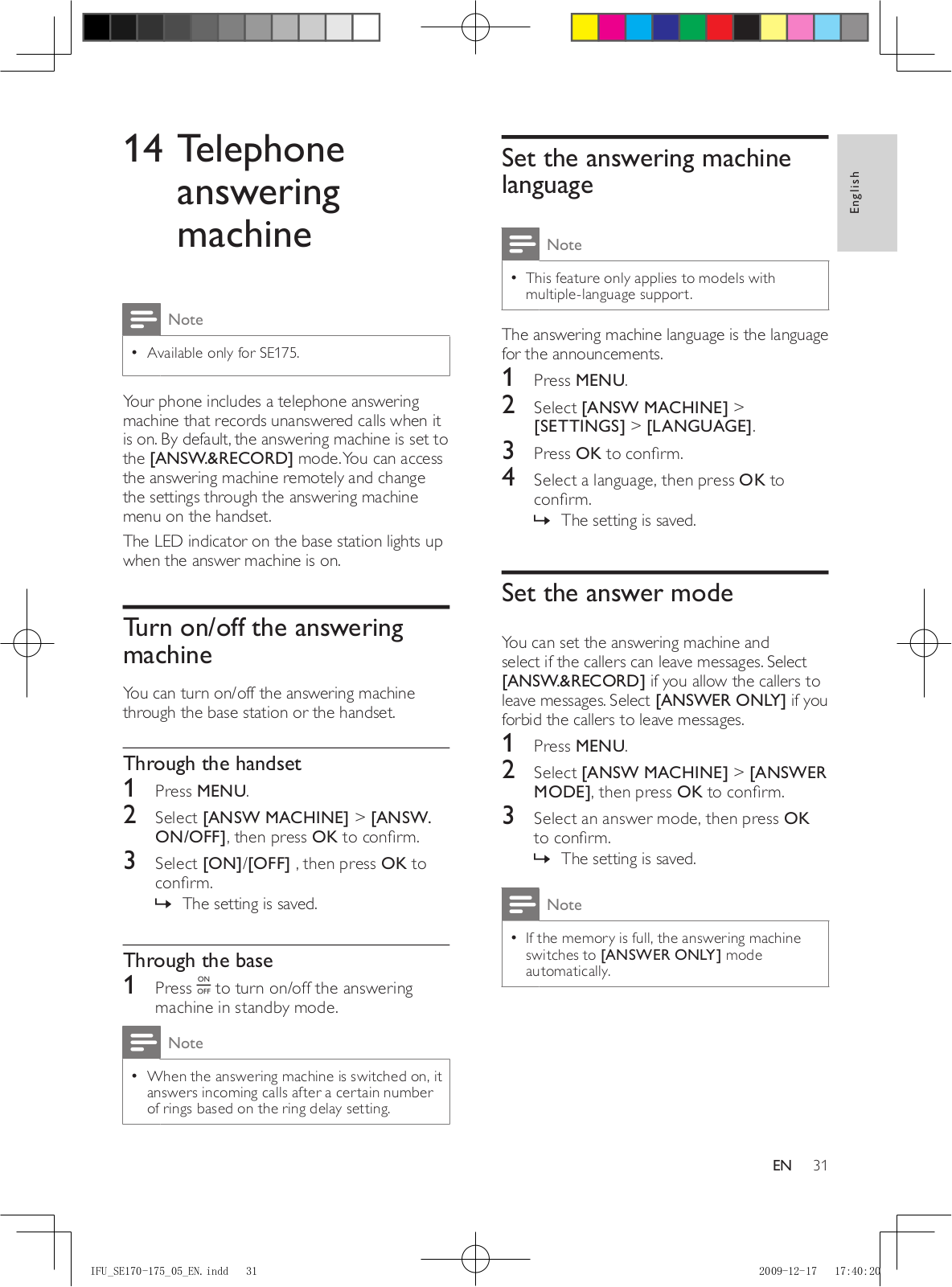

Telephone answering machine |
31 |
|
Turn on/off the answering machine |
31 |
|
Set the answering machine language |
31 |
|
Set the answer mode |
31 |
|

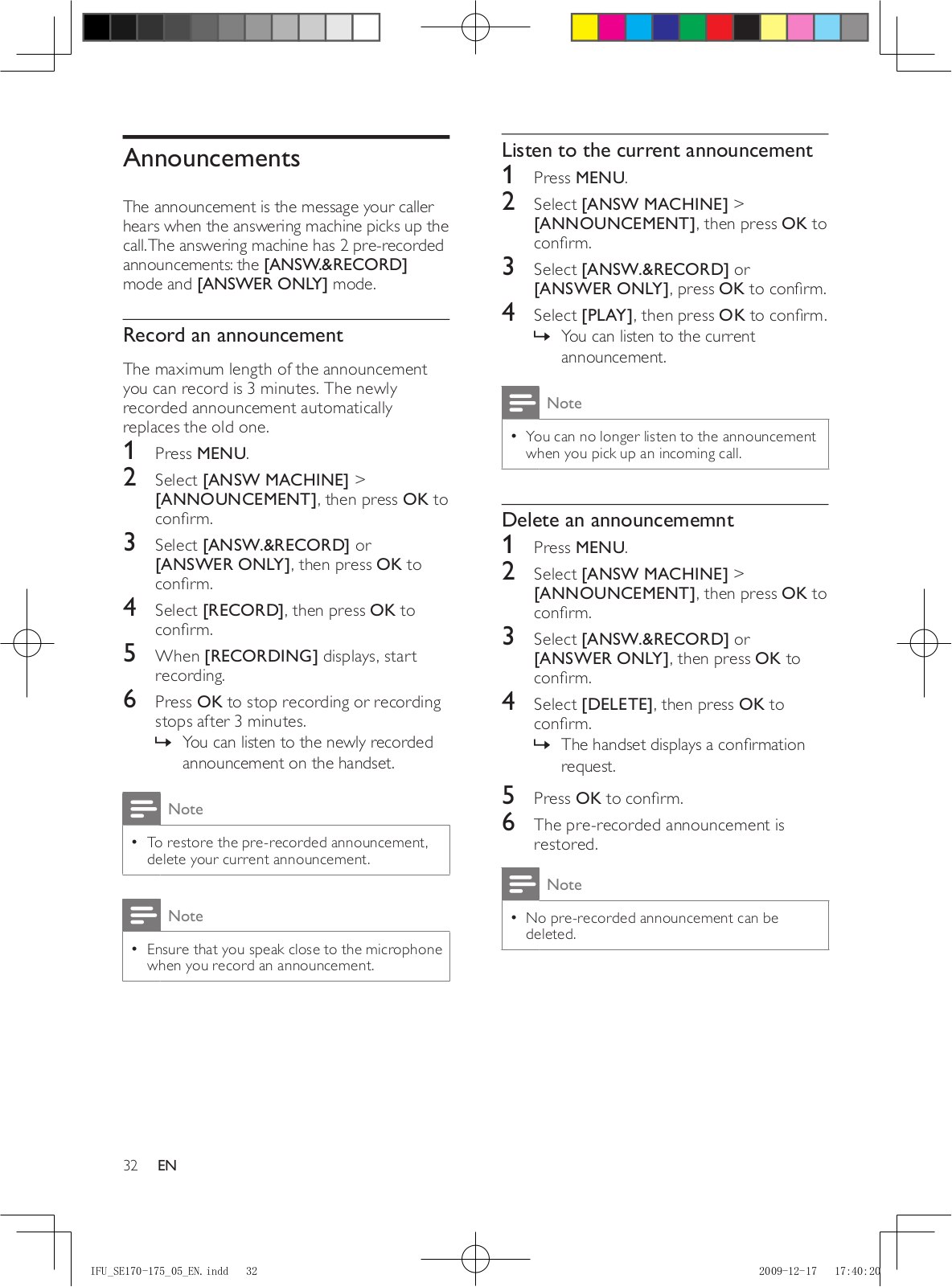

Announcements |
32 |
|

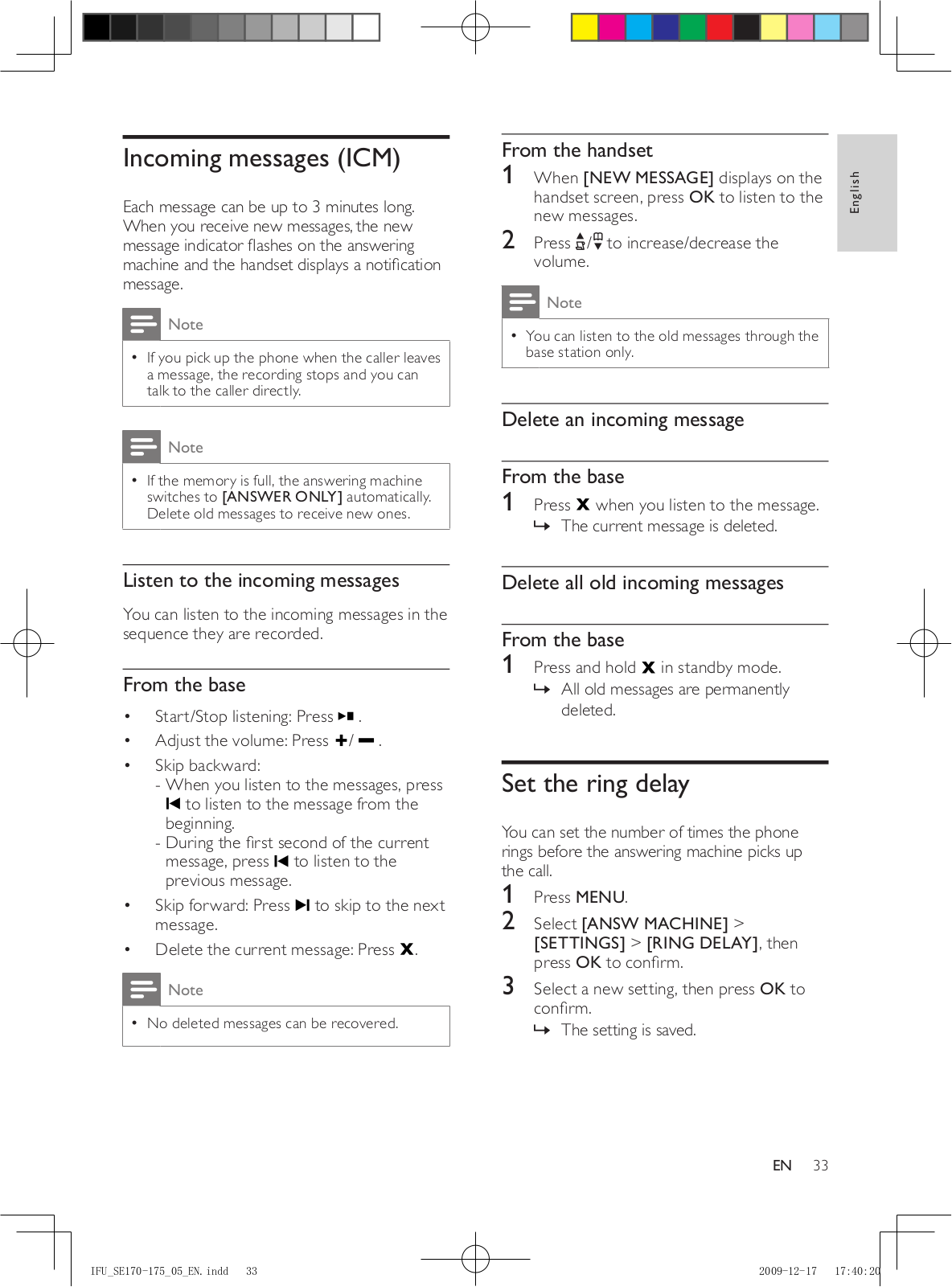

Incoming messages (ICM) |
33 |
|
Set the ring delay |
33 |
|

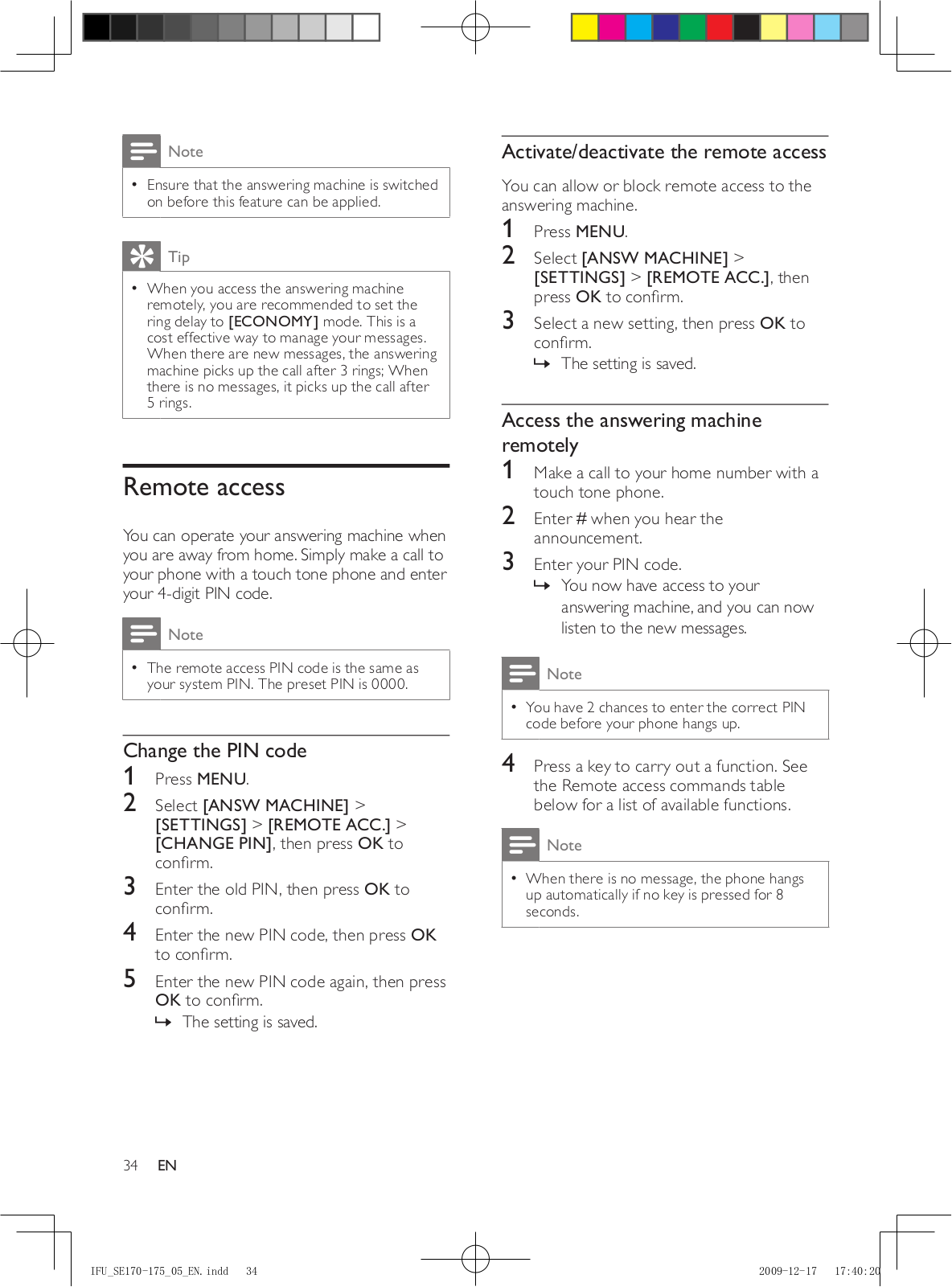

Remote access |
34 |
|

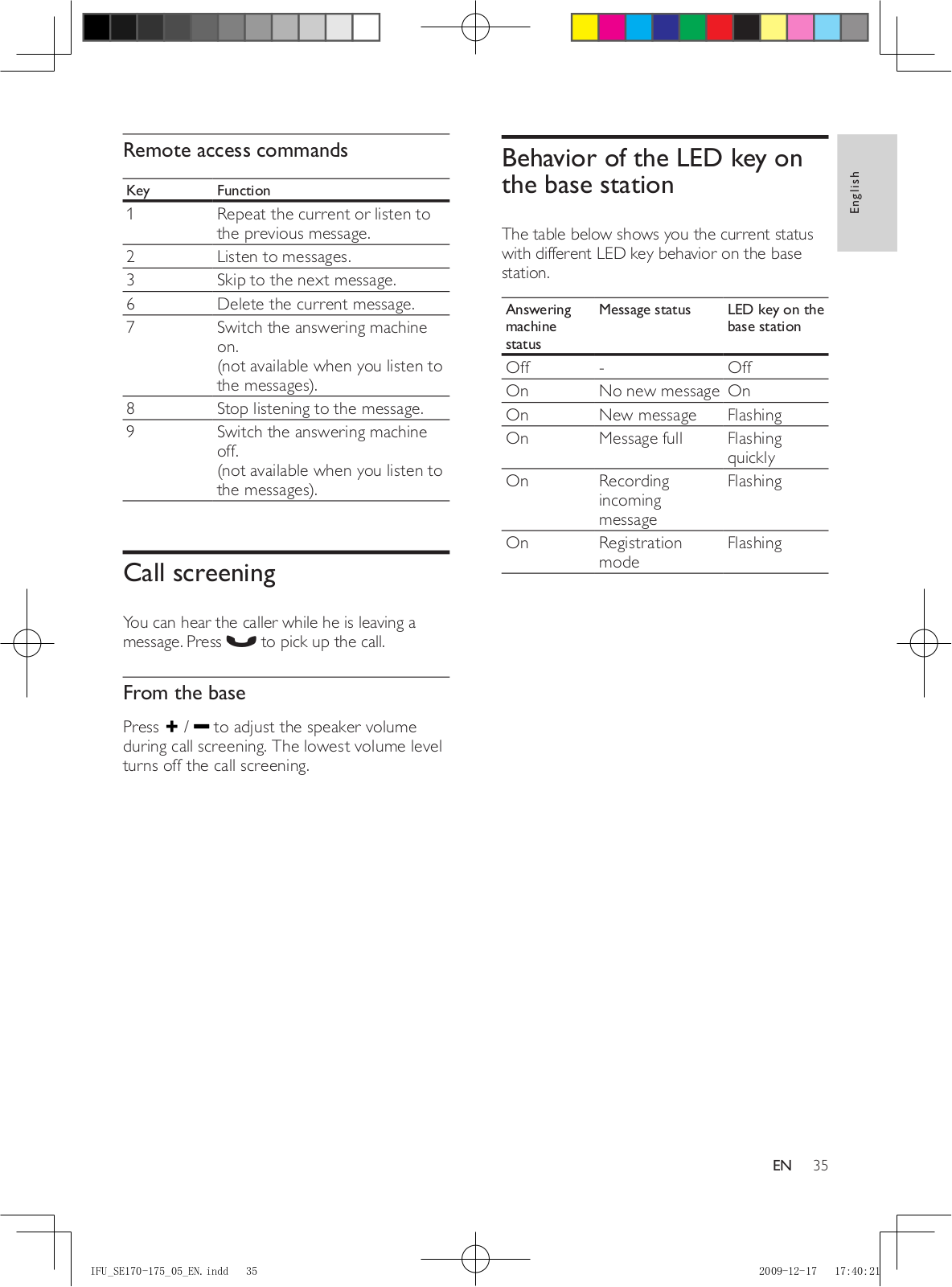

Call screening |
35 |
|
Behavior of the LED key on the base |
|
|
station |
35 |
|
|
|
15 |

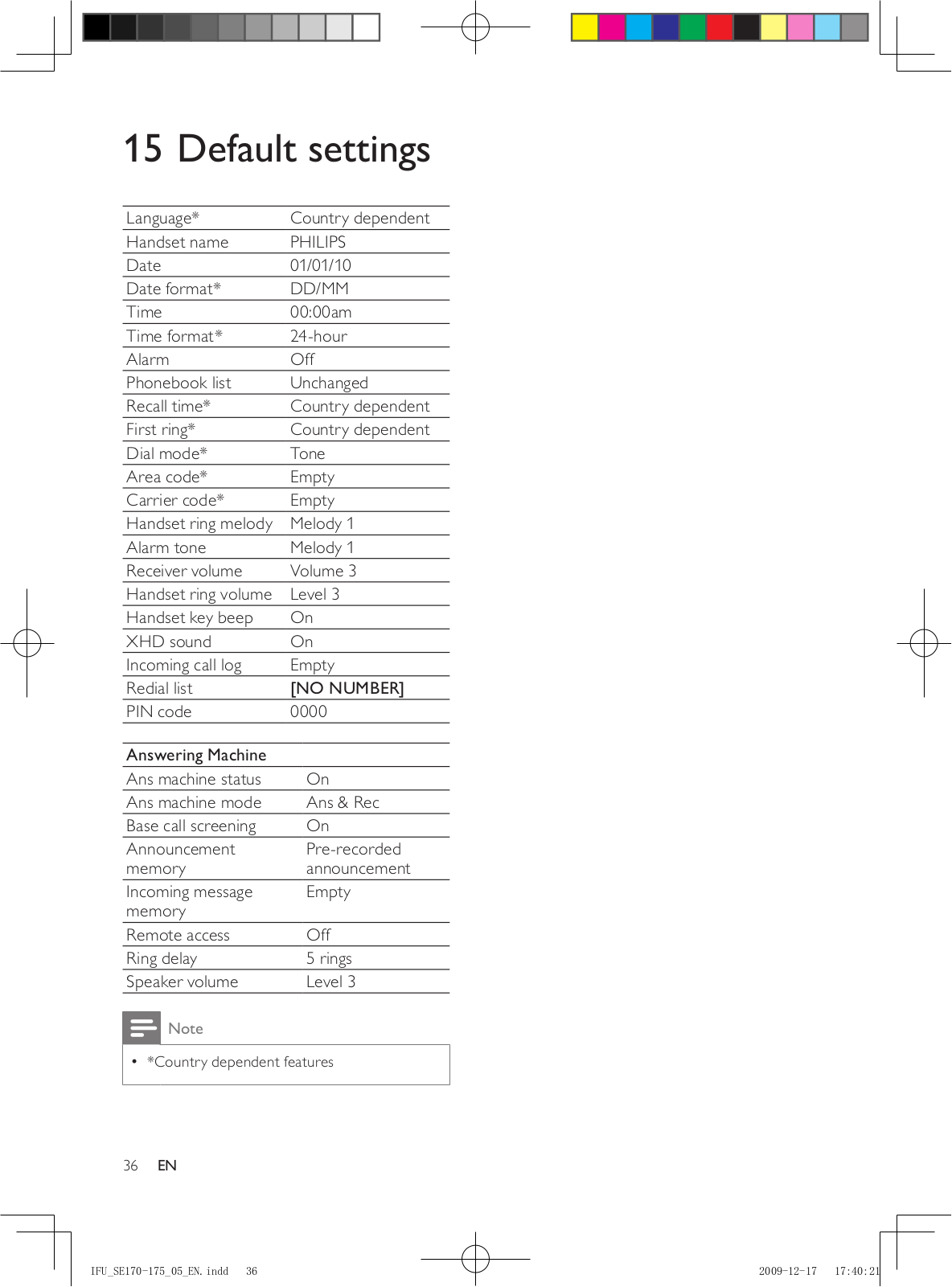

Default settings |
36 |
|
|
|
16 |

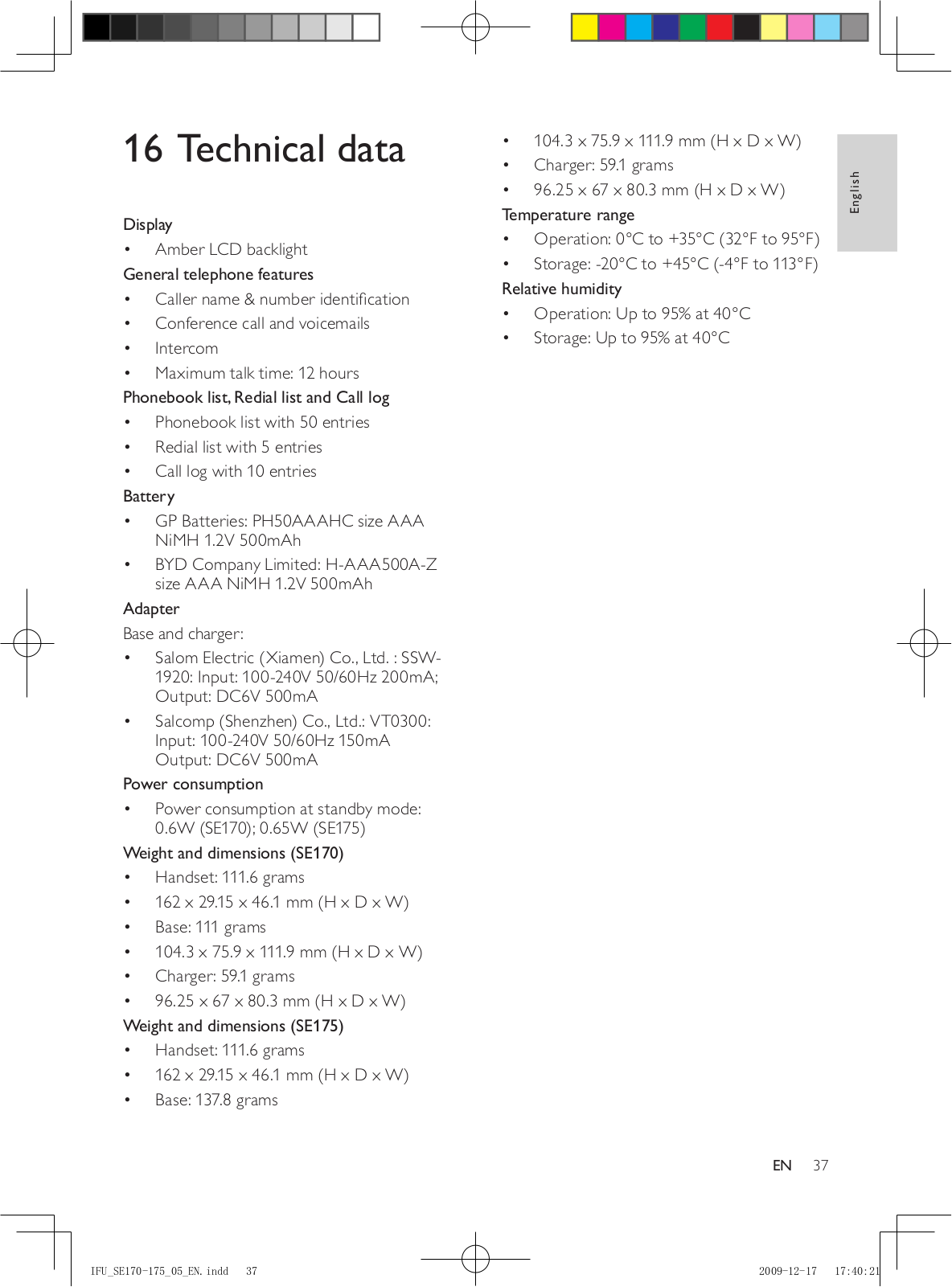

Technical data |
37 |
|
|
|
17 |

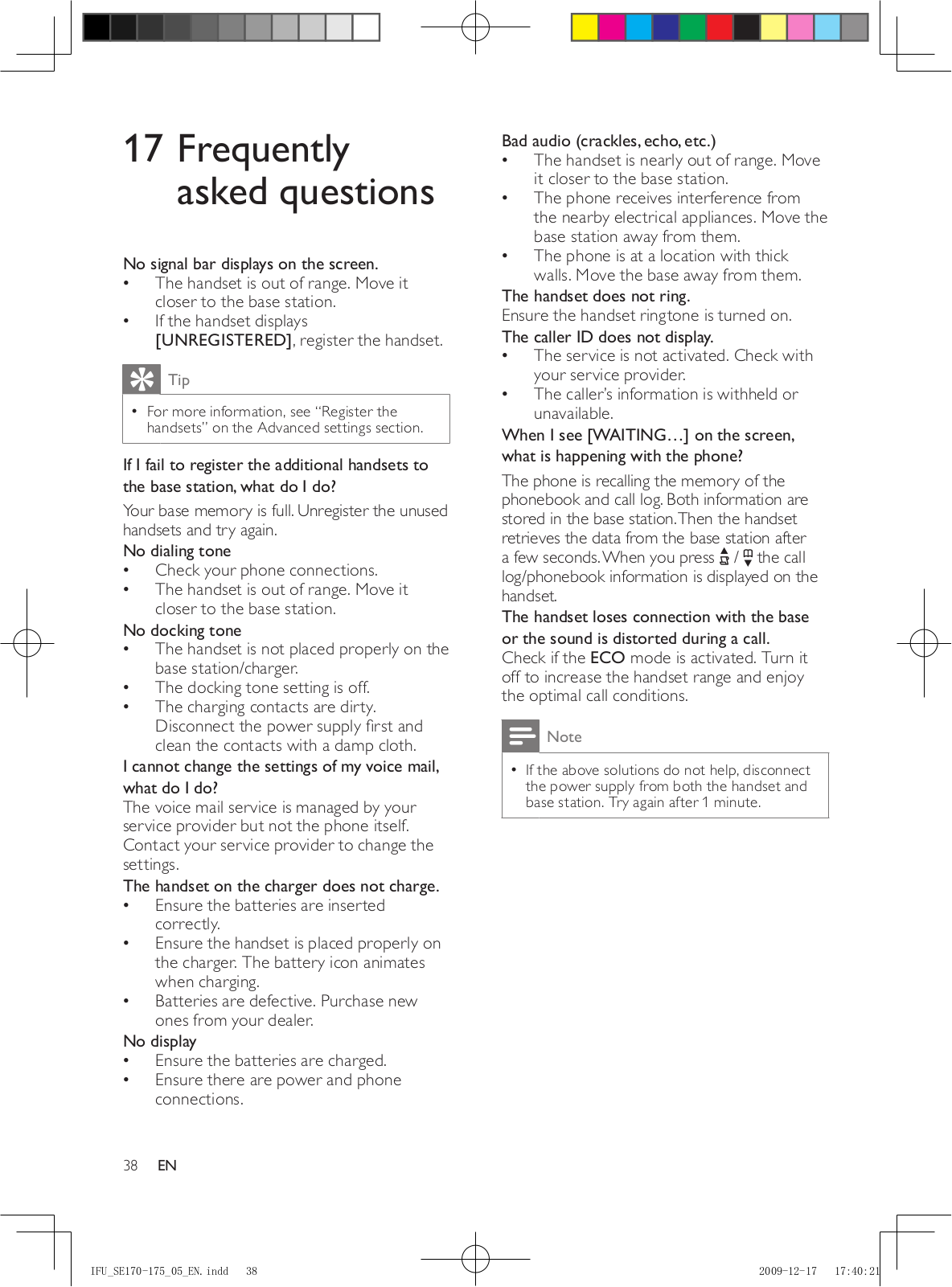

Frequently asked questions |
38 |
4 EN
Power requirements
•This product requires an electrical supply of 100-240 volts AC. In case of power failure, the communication can be lost.
•The voltage on the network is classified as TNV-3 (Telecommunication Network
Voltages), as defined in the standard EN
60950.
Warning
•• The Electrical network is classified as hazardous. The only way to power down the charger is to unplug the power supply from the electrical outlet. Ensure that the electrical outlet is always easily accessible.
To avoid damage or malfunction
Caution
•• Use only the power supply listed in the user instructions.
•• Use only the batteries listed in the user instructions.
•• Do not allow the charging contacts or the battery to come into contact with metal objects.
•• Do not open the handset, base station or charger as you could be exposed to high voltages.
•• Do not allow the charger to come into contact with liquids.
•• Risk of explosion if battery is replaced by an incorrect type.
•• Dispose of used batteries according to the instructions.
•• Always use the cables provided with the product.
•• For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.
•• Handsfree activation could suddenly increase the volume in the earpiece to a very high level: make sure the handset is not too close to your ear.
•• This equipment is not designed to make emergency calls when the power fails. An alternative has to be made available to allow emergency calls.
•• Do not expose the phone to excessive heat |
|
|
caused by heating equipment or direct sunlight. |
|
h |
•• Do not drop your phone or allow objects to |
|
lis |
fall on your phone. |
|
Eng |
•• Do not use any cleaning agents containing |
|
|
alcohol, ammonia, benzene, or abrasives as |
|
|
these may harm the set. |
|
|
•• Do not use the product in places where there |
|
|
are explosive hazards. |
|
|
•• Do not let small metal objects come into |
|
|
contact with the product. This can deteriorate |
|
|
audio quality and damage the product. |
|
|
•• Active mobile phones in the vicinity may cause |
|
|
interference. |
|
|
•• Metallic objects may be retained if placed near |
|
|
or on the handset receiver. |
|
|
|
|
|
About operating and storage temperatures
•Operate in a place where temperature is always between 0°C to +35°C (32°F to 95°F).
•Store in a place where temperature is always between -20°C and +45°C (-4° F to 113° F).
•Battery life may be shortened in low temperature conditions.

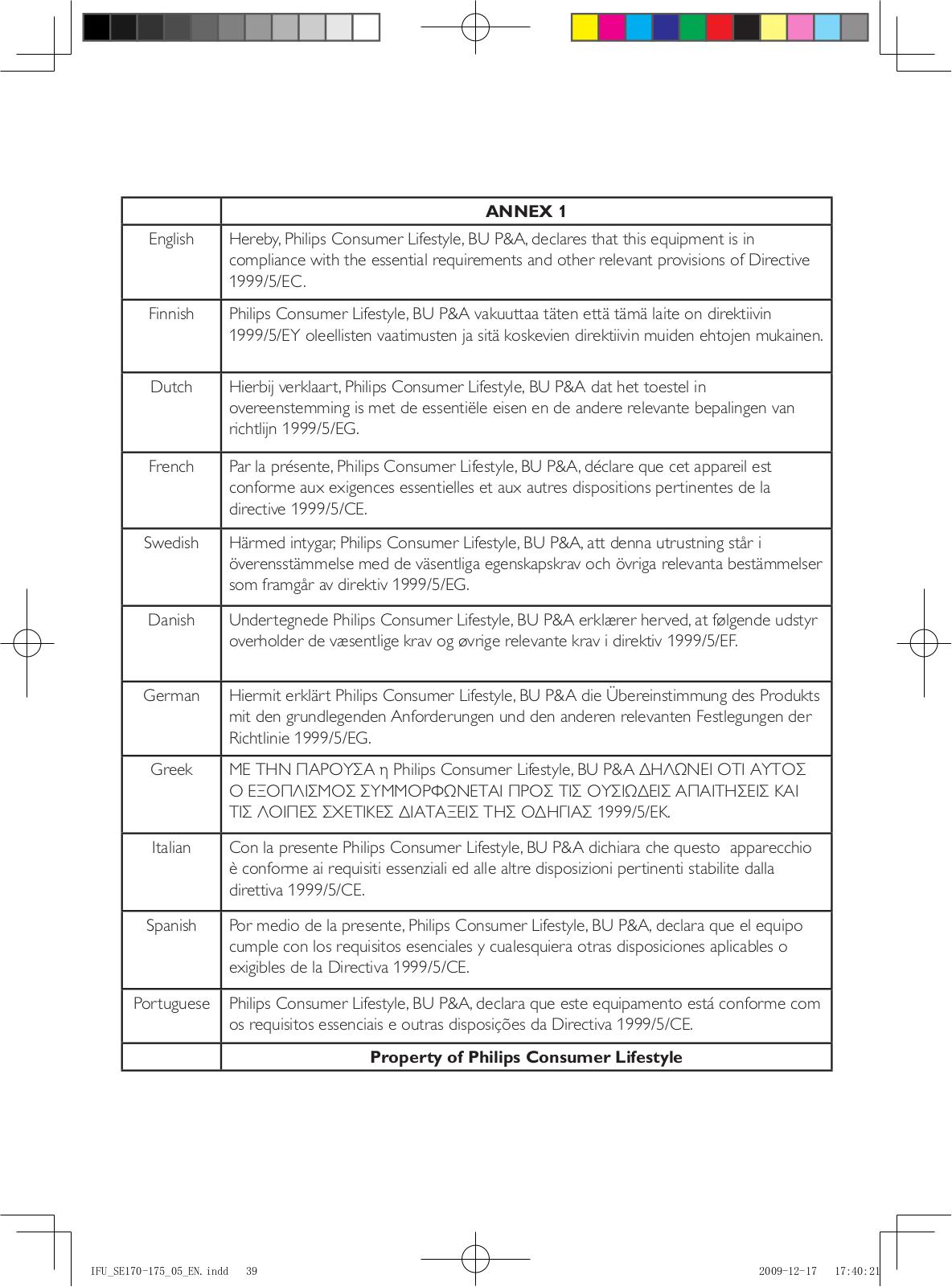

Hereby Philips Consumer Lifestyle, P&A, declares that the SE170/SE175 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
You can find the Declaration of Conformity on www.p4c.philips.com.
This product has been designed, tested and manufactured according the European R&TTE directive 1999/5/EC. Following this directive, this product can be brought into service in the following countries:
EN 5
The GAP standard guarantees that all DECT™ GAP handsets and base stations comply with a minimum operating standard irrespective of their make.The handset and base station are GAP compliant, which means they guarantee the minimum functions: register a handset, take the line, make a call and receive a call.The advanced features may not be available if you use them with other makes.To register and use this handset with a GAP compliant base station of different make,first follow the procedure described in the manufacturer’s instructions, then follow the procedure described in this manual for registering a handset.To register a
handset from different make to the base station, put the base station in registration mode, then follow the procedure described in the handset manufacturer’s instructions.
Koninklijke Philips Electronics N.V. manufactures and sells many products targeted at consumers, which, like any electronic apparatus, in
general have the ability to emit and receive electromagnetic signals.
One of Philips’ leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within
the EMF standards applicable at the time of producing the products.
Philips is committed to develop, produce and market products that cause no adverse health effects.Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.
Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardization for early integration in its products.
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/ EC. Please inform yourself about the local separate collection system for electrical and electronic products.
Please act according to your local rules and do not dispose of your old products with your normal household waste.
Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.
Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste.
Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.
When this logo is attached to a product, it means a financial contribution has been paid to the associated national recovery and recycling system.
6 EN
Environmental information
All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of
packaging materials, exhausted batteries and old equipment.
Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste.
Please inform yourself about the local rules on separate collection of batteries.The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.
English
EN 7
2Your SE170/ SE175
Congratulations on your purchase and welcome to Philips!
To fully benefit from the support that Philips offers, register your product at www.philips. com/welcome.
Handset**
Base station (SE170)
Charger**
Base station (SE175)
Power adapter**
8 EN
English
Line cord*
Guarantee
User Manual
Quick start guide
Note
•• *In some countries, you have to connect the line adapter to the line cord, then plug the line cord to the telephone socket.
Note
•• **In multi-handset packs, there are additional handsets and chargers and power adapters.
EN 9
1Earpiece
2BACK • Delete text or
digits.
• Cancel operation.
3• Scroll up on the menu.
•Increase the earpiece volume.
•Enter the call log.
4• Scroll down on the menu.
•Decrease the earpiece volume.
•Enter the phonebook.
5 |
|
|
• End the call. |
|
|
||
|
|
||
|
|
|
• Exit the menu/ |
|
|
|
operation. |
|
|
|
• Press and hold to |
|
|
|
turn the handset |
|
|
|
on/off. |
6 |
R |
• Send the flash signal. |
|
7 |
REDIAL |
• Enter redial list. |
8• Press and hold to enter a pause to make a predial call (see “Make a call” in the Calls section).
•Press and hold to turn the ringer on/ off.
9 |
INT |
• Make the intercom |
|
|
call. |
|
|
• Press and hold to |
|
|
make a conference |
|
|
call. |
10 |
Microphone |
|
11• Mute/unmute the microphone.
12• Press and hold to lock/unlock keypad.
13MENU • Access the main menu.
14 |
• Make and receive |
|
calls. |
15 OK • Confirm selection.
• Enter the options menu.
16Buzzer
17Battery door
SE170
Key |
Name Descriptions |
||||||||||
1 |
|
• Find handsets. |
|||||||||
|
|
• Enter registration mode. |
|||||||||
SE175 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10 EN
1 |
Loudspeaker |
|
|
2 |
/ |
|
• Increase/decrease |
|
|
|
the speaker |
|
|
|
volume. |
3 |
|
|
• Turn the answering |
|
|
|
machine on/off. |
4 |
|
|
• Delete messages. |
5 |
/ |
• Skip forward/ |
|
|
|
|
backward during |
|
|
|
playback. |
6 |
|
|
• Play messages. |
|
|
|
• Stop messages |
|
|
|
playback. |
7 |
LED |
Flashing at 1 second |
|
|
indicator |
interval: |
|
|
|
|
• Unread messages. |
|
|
|
• Ongoing remote |
|
|
|
operation through |
|
|
|
the handset. |
|
|
|
Fast flashing at 0.5 |
|
|
|
second interval: |
|
|
|
• The answering |
|
|
|
machine memory |
|
|
|
is full. |
|
|
|
Steady On: |
|
|
|
• The answering |
|
|
|
machine is on. |
|
|
|
• Ongoing answering |
|
|
|
machine operation. |
8 |
|
|
• Find handsets |
|
|
|
• Enter registration |
|
|
|
mode |
In standby mode, the icons shown on the main screen tell you what features are available on your handset.
Icon Descriptions
When the handset is off the base station/charger, the bars indicate the battery level (full, medium and low).
When the handset is on the base station/charger, the bars keep scrolling until charging completes.
The empty battery icon flashes and you hear an alert tone. The battery is low and needs recharging..
It displays the link status between the handset and base station. The more bars are shown, the better the signal strength is.
The call is in progress.
The alarm is activated.
The ringer is off.
Call log
Answering machine
There is an unheard voice message.
Scroll up for more options
Scroll down for more options
More digits or characters on the right
ECO The ECO mode is activated.
English
EN 11
Caution
•• Ensure you have read the safety instructions in the “Important” section before you connect and install your handset.
Warning
•• Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the phone.
•• Use only the supplied power adapter to charge the batteries.
Note
•• If you subscribe to the digital subscriber line (DSL) high speed internet service through your telephone line, ensure you install a DSL filter between the telephone line cord and the power socket.. The filter prevents noise and caller ID problems caused by the DSL interference. For more information on the DSL filters, contact your DSL service provider.
•• The type plate is located on the bottom of the base station.
1 Connect each end of the power adapter to:
•the DC input jack at the bottom of the base station;
•the power socket on the wall.
2 Connect each end of the power adapter to (for multi handset packs):
•the DC input jack at the bottom of the extra handset charger.
•the power socket on the wall.
3 Connect each end of the line cord to:
•the telephone socket at the bottom of the base station;
•the telephone socket on the wall.
12 EN
Caution
•• Risk of explosion! Keep batteries away from heat, sunshine or fire. Never discard batteries in fire.
•• Use only the supplied batteries.
•• Risk of decreased battery life! Never mix different brands or types of batteries.
Note
•• Charge the batteries for 16 hours before first use.
Warning
•• Check the battery polarity when inserting in the battery compartment. Incorrect polarity may damage the product.
AThe batteries are pre-installed in the handset. Pull the battery tape off from the battery door before charging.
