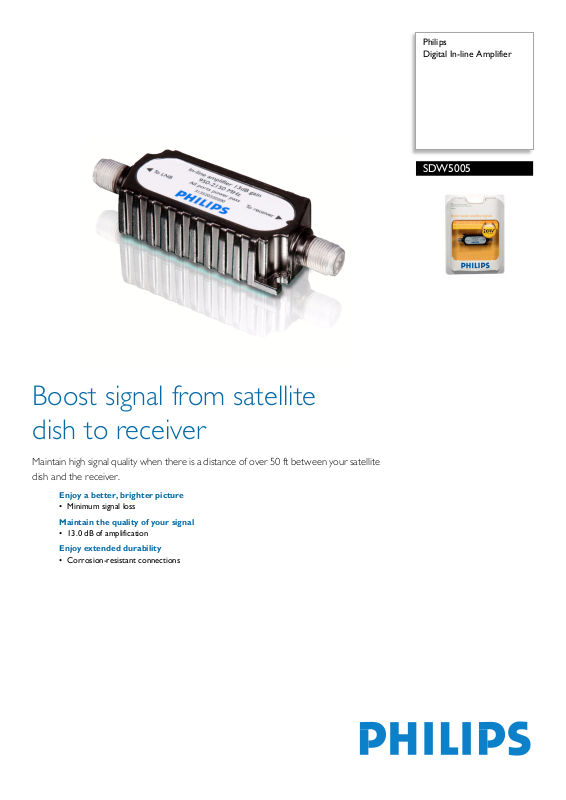

Page 1
For preview purpose only
Philips
Digital In-line Amplifier
SDW5005
Boost signal from satellite
dish to receiver
Mainta in high signa l qua lit y when t here is a distance of over 50 ft between your satellite
dish and the receiver.
Enjoy a better, brighter picture
• Minimum signal loss
Maintain the quality of your signal
• 13.0 dB of amplification
Enjoy extended durability
• Corrosion-resistant connections
Page 2
For preview purpose only
Digital In-line Amplifier
Technical specifications Product highlights
Packaging Data
• Quantity: 1
• EAN/UPC/GTIN: 6 09585 11807 2
• Gross weight: .12 kg
• Net weight: .070 kg
• Length: 200 mm
• Height: 35 mm
Outer Carton
• EAN/UPC/GTIN: 1 06 09585 11807 9
• Quantity: 6
• Gross weight: 1.12 kg
• Tare weight: .4 kg
• Net weight: .72 kg
• Length: 216 mm
• Width: 146 mm
• Height: 197 mm
•
SDW5005/17
13.0 dB of amplification
This boosts the incoming signal to compensate for losses
in the cable over long runs.
Corrosion-resistant connection
24K gold-electroplated connectors create secure and
extremely durable connections that optimize signal
quality and deliver the best picture and data transfer.
Minimum signal loss
Signal information is inevitably lost going from any
digital source to any TV. Minimum signal loss means you
only lose the least amount of that signal information.
Date of issue 2006-11-01
Version: 2.0
12 NC: 9082 100 09435
UPC: 6 09585 11807 2
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
