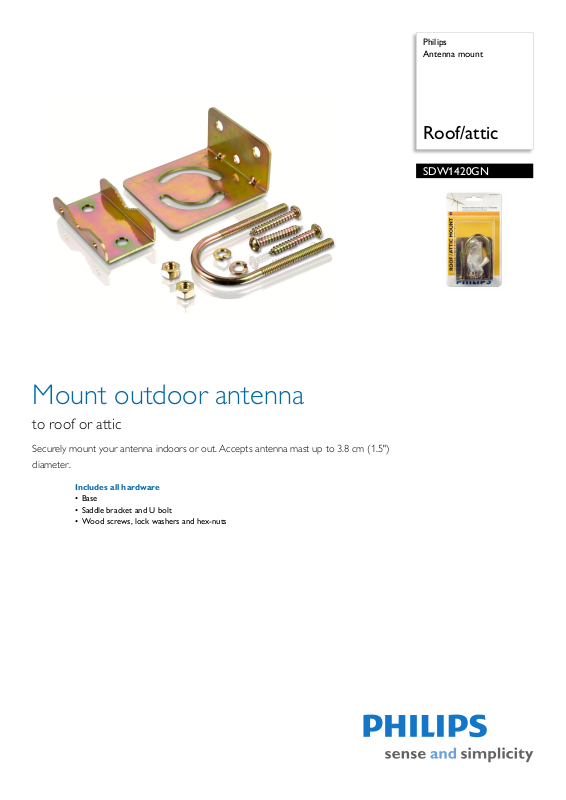

Philips SDW1420GN-17 User Manual

Philips Antenna mount

Roof/attic

SDW1420GN

Mount outdoor antenna

to roof or attic

Securely mount your antenna indoors or out. Accepts antenna mast up to 3.8 cm (1.5") diameter.

Includes all hardware

•Base

• Saddle bracket and U bolt

• Wood screws, lock washers and hex-nuts

Antenna mount

Roof/attic

SDW1420GN/17

Specifications

Inner Carton

• Gross weight: 1.134 kg

•Inner carton (L x W x H): 24.4 x 19.6 x 12 cm

• Nett weight: .908 kg

• Tare weight: .226 kg

Outer Carton

• Gross weight: 7.421 kg

• Outer carton (L x W x H): 46 x 40.9 x 30.4 cm

• Nett weight: 5.448 kg

• Tare weight: 1.973 kg

Packaging dimensions

• Packaging dimensions (W x H x D):

10.7 x 19.6 x 4.4 cm

• Gross weight: .249 kg

• Nett weight: .227 kg

• Tare weight: .022 kg

•

Highlights

Base

The base bolts to the roof or attic to keep the antenna mast in place.

Saddle bracket and U bolt

Two pieces of hardware screw into the base bracket to secure the antenna.

Issue date 2011-06-07

Version: 4.0.12

12 NC: 8670 000 29415 UPC: 6 09585 13158 3
