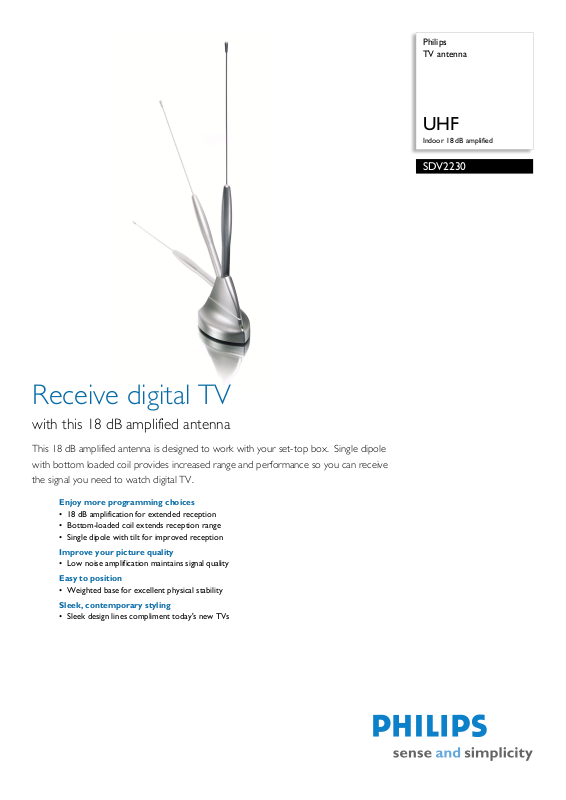

Page 1
Philips
TV antenna
UHF
Indoor 18 dB amplified
SDV2230
Receive digital TV
with this 18 dB amplified antenna
This 18 dB amplified antenna is designed to work with your set-top box. Single dipole
with bottom loaded coil provides increased range and performance so you can receive
the signal you need to watch digital TV.
Enjoy more programming choices
• 18 dB amplification for extended reception
• Bottom-loaded coil extends reception range
• Single dipole with tilt for improved reception
Improve your picture quality
• Low noise amplification maintains signal quality
Easy to position
• Weighted base for excellent physical stability
Sleek, contemporary styling
• Sleek design lines compliment today's new TVs
Page 2
TV antenna
SDV2230/05
UHF Indoor 18 dB amplified
Specifications Product highlights
Tuner / Reception / Transmission
• Tuner bands: UHF
• Antenna cable length: 150 cm
• Gain (antenna + amplifier): 18 dB
Power
• Power LED indicator: Green
• Set Top Box: 5.5V from Set Top Box
• Power Adapter: Included
Dimensions
• Product weight: .22 kg
• Gross weight: .440 kg
• Tare weight: .072 kg
• Net weight: .368 kg
• Product dimensions (W x H): 67 x 375 mm
• Product thickness: 90 mm
Packaging Data
• Quantity: 1
• EAN/UPC/GTIN: 00 26616 02439 1
• Gross weight: .440 kg
• Tare weight: .075 kg
• Net weight: .368 kg
• Length: 419 mm
• Width: 83 mm
• Height: 80 mm
Outer Carton
• EAN/UPC/GTIN: 87 10895 96305 3
• Quantity: 6
• Gross weight: 3.140 kg
• Tare weight: 0.5 kg
• Net weight: 2.64 kg
• Length: 538 mm
• Width: 98 mm
• Height: 445 mm
•
18 dB amplification
18 dB amplification boosts weak signals, expanding your
reception range and allowing you to receive more signals
over a greater distance.
Bottom-loaded coil
The bottom-loaded coil enhances the effectiveness of the
single dipole design for an extended reception range.
Single dipole with tilt
The single dipole with tilt is a simple, single element
design that receives both horizontal and vertical
broadcast signals. As signals may be either horizontally or
vertically polarised, it is important to be able to adjust for
both.
Weighted base
The weighted base stabilises the antenna's position so
you enjoy more positioning choices.
Design lines compliment TVs
Simple, elegant design lines compliment today's new TVs.
Low noise amplification
Together with the adjustable amplification, low noise
amplification ensures you of a great reception range and
improves the quality of your signal.
Issue date 2007-08-04
Version: 3.0
12 NC: 9082 100 07052
EAN: 00 26616 02439 1
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
