Philips SCF314-02 User Manual [en, es, fr]

Twin electronic breast pump Extractor de Leche Electrónico Doble Tire lait Electronique Double

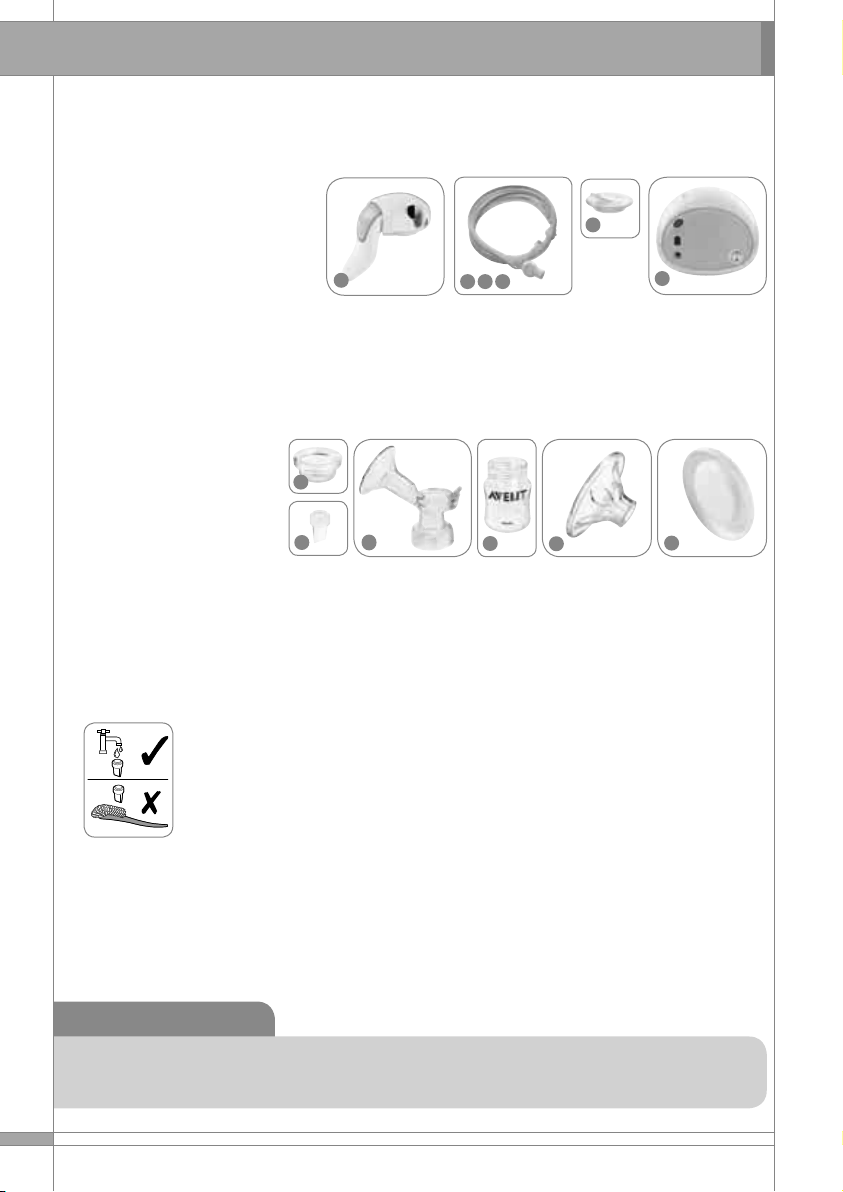

Twin electronic breast pump parts guide

When assembled parts b – g make up an assembled pump body. When the Control handle (a) is added to this assembled pump body, it becomes the First (control) pump. When the Double pumping connector (l) is added to this assembled pump body, it becomes the Second Pump.

First (control) pump Second pump

e e

Pump Motor

1x Control handle

2x Silicone diaphragm

2x White valve

2x Pump body

2x Milk container

(2x 4 oz/125 ml) / Adaptor ring

2x Stand/funnel cover

2x Let-down Massage Cushion

1x Control cable

2x Transparent tube

1x Twin tubing

1x Double pumping connector

1x Pump motor

1x Electric adaptor

1x Wall plug cord

2x Dome cap

2x Extra Soft, Newborn Flow Nipple (0m+)

2x Screw ring

2x Sealing base

2x Sealing disc

All you need to assemble and use the breast pump is shown here. If any of the parts are missing, or if you have any questions, please call customer support at 1.800.54.AVENT or visit www.philips.com/AVENT

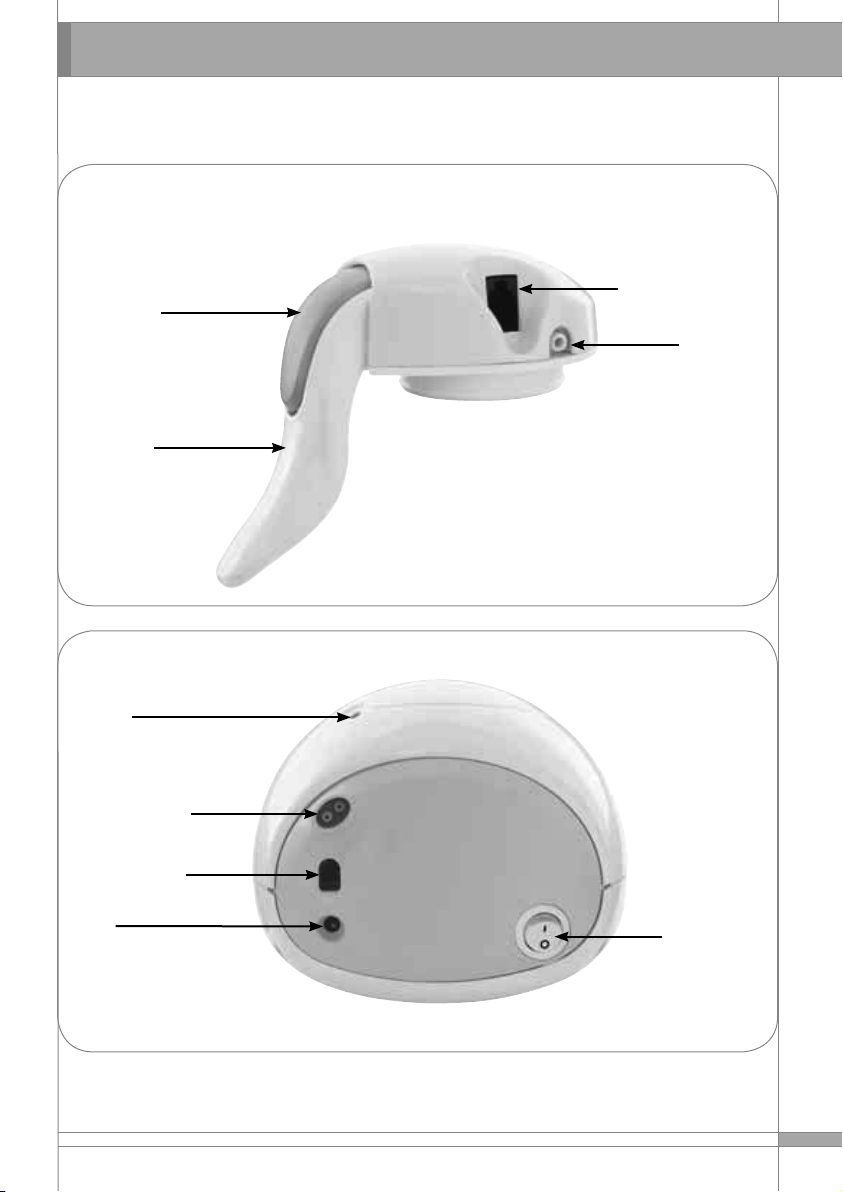

Twin electronic breast pump parts guide – detailed

Control handle

Control cable socket

One-touch memory control

Control handle

NEVER SANITIZE OR IMMERSE IN WATER

Tubing port

Pump motor

Light

Twin tubing port

Control cable socket

Power socket

NEVER SANITIZE OR IMMERSE IN WATER

On/off switch

Need Help? Call us at 1.800.54.AVENT or visit www.philips.com/AVENT

IMPORTANT SAFEGUARDS

When using electrical products, especially when children are present, basic safety precautions should always be followed.

READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT.

WARNING – To reduce the risk of fire, electrocution, or other personal injury:

• The breast pump is intended for repeated use by a single user only.

• Always unplug the breast pump motor from the electrical outlet immediately after use.

• Do not use while bathing.

• Do not place or store the product where it can be pulled or fall into water.

• Do not place or drop the pump motor, control handle, electric adaptor or wall plug cord into water or other liquid.

• Do not reach for a product that has fallen into water. Unplug from electrical outlet immediately.

• Close supervision is necessary when this product is used near children or persons with disabilities.

• Do not allow children or pets to play with the pump motor, tubing, power supply or accessories as these parts may pose a choking or strangulation danger.

• There are no serviceable parts inside the breast pump. Do not attempt to open, service or repair the breast pump yourself.

• Before each use inspect the product, including

mains cord, for signs of damage. Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or has been submerged in water.

• Only use attachments recommended by

Philips AVENT.

• Do not use outdoors with the AC adaptor,

where aerosol spray products are being used, or where oxygen is being administered.

• Equipment not suitable for use in the

presence of flammable anesthetic mixture with air, or with oxygen or nitrous oxide.

• Only use the electric adaptor supplied with

the product.

• Ensure the unit is not exposed to extreme

heat or placed in direct sunlight.

• This product is a personal care item and should not be shared between mothers.

• Do not attempt to remove the pump body from your breast while under vacuum. Turn the unit off and break the seal between your breast and the pump funnel with your finger, then remove the pump from your breast.

• Never use while pregnant, as pumping can induce labor.

• Never use when sleepy or drowsy.

CAUTION – To reduce the risks of injury, device malfunction or failure:

• Do not leave product unattended when plugged into an electrical outlet.

• Never drop or insert any object into any opening or tubing.

• Do not shorten the tubing.

• Make sure the voltage of the electrical adaptor is compatible with the power source.

• First plug the adaptor into the breast pump motor. Then, attach the wall plug cord into the adaptor. Lastly, insert plug into the wall socket.

• Although compliant with applicable EMC

• Wash and sanitize the appropriate pump components before each use.

• Do not continue pumping for more than five minutes at a time if no result is achieved.

• Do not use antibacterial or abrasive cleaners/ detergents when cleaning breast pump parts.

• Never put the control handle or breast pump motor in water or a sterilizer, as you can cause permanent damage to the pump.

• If the pressure generated is uncomfortable or causing pain, turn the unit off, break the seal between the breast and the pump body with your finger and remove the pump from your breast.

SAVE THESE INSTRUCTIONS

directives, this equipment may still be susceptible to excessive emissions and/or may interfere with other more sensitive material.

Need Help? Call us at 1.800.54.AVENT or visit www.philips.com/AVENT

Congratulations!

Soon you will discover what makes this Philips AVENT twin electronic breast pump so uniquely yours. The breast pump is designed with an electronic memory that learns and continues your gentle pumping rhythm. It gives you complete control over your comfort, which means that pumping with your twin electronic breast pump always feels natural and exactly right for you.

Let-down Massage Cushion has petals that flex in and out to gently massage the areola. This is intended to help stimulate a fast, natural milk flow.

One-touch memory control is right at your fingertips. You can stop, start or adjust the speed and suction level without removing your hand from the pump.

Electronic memory learns from you. Just begin a comfortable pumping rhythm, press a button and the twin electronic breast pump automates it.

Pump, store, feed convenience from the Philips AVENT natural feeding system. Products work together, so you never have to transfer milk between containers.

Ultra comfortable, quiet and effective making it easier for you to continue giving your baby the benefits of breast milk.

Please take a few minutes to read through this entire instruction leaflet before using your breast pump for the first time.

PLEASE SAVE THESE INSTRUCTIONS.

Unless advised otherwise by your health professional it is best to wait until your breastfeeding routine is established before expressing – usually around 4 weeks.

What’s Inside:

Electric pumping (single and double)

Twin elecronic breast pump Parts Guide 1-2

Important Safeguards 3 Disassembling Your Electronic Pump 5 Cleaning and Sanitizing Your Pump 6 Preparing to Pump 7-8 Assembling the Pump Body 9-10 Connecting the Electronics 11-12 Pumping with Your Electronic

Breast Pump 13-14

Keeping Parts Clean and Compact for Travel 15

Storing Your Expressed Breast Milk 16-17 Troubleshooting Guide 18 Technical Specifications 19 Limited Warranty 19

Disassembling Your Electronic Pump

Make sure that your breast pump motor is turned off and unplugged before disassembling parts. See section titled, ‘twin electronic breast pump Parts Guide’ on page 1 for a description of the First (Control) Pump and Second Pump.

First (Control) Pump

Second Pump

First (Control) Pump

On the first (control) pump, remove the control handle by pulling it away from the silicone diaphragm.

Second Pump

On the second pump, detach the transparent tube from the double pumping connector. Remove the

double pumping connector by pulling it away from the silicone diaphragm.

Perform steps 3-5 on both the First (Control) Pump and Second Pump.

Remove the silicone diaphragm by pulling it away from the pump body.

Remove the white valve from the pump body.

Remove the Let-down Massage Cushion by gently pulling it away from the funnel

on the pump body.

Cleaning and Sanitizing Your Pump

Make sure that your breast pump is turned off and unplugged before cleaning.

Clean with a Damp Cloth when Necessary:

Control handle (a) Tubing (i/j/k)

Note: The tubes are used for suction and do not carry milk.

Double pumping connector (l)

Pump motor (m)

Caution: NEVER put the control handle or pump motor in water or a sterilizer, as you can cause permanent damage to the pump.

Clean Before Every Use (including first use):

Silicone diaphragm (b) White valve (c)

Pump body (d) Milk container (e) Let-down Massage Cushion

(g)

Funnel cover/white stand (f)

Cleaning Instructions:

Before you use your breast pump for the first time and every time before use: Separate all parts, then wash in the dishwasher or in warm soapy water and rinse. Do not use antibacterial or abrasive cleaners/detergents.

CAUTION: TAKE CARE WHEN CLEANING THE WHITE VALVE, IF IT GETS DAMAGED, YOUR BREAST PUMP WILL NOT FUNCTION PROPERLY. TO CLEAN THE WHITE VALVE, RUB IT GENTLY BETWEEN YOUR FINGERS IN WARM SOAPY WATER.

DO NOT INSERT OBJECTS AS THIS MAY CAUSE DAMAGE.

HELPFUL TIP!

The Philips AVENT steam sterilizers are designed to hold the washable components of the electronic breast pump and the entire manual breast pump.

Need Help? Call us at 1.800.54.AVENT or visit www.philips.com/AVENT

Preparing to Pump

When using your twin electronic breast pump for the first time, it will have retained factory settings stored in the memory as a result of quality control testing. If the blue one-touch memory control is pressed prior to squeezing the control handle upon first use the pump will operate at these settings, which may or may not be comfortable for you. We recommend that prior to engaging the automatic mode, you establish a comfortable rhythm manually, then press the blue one-touch memory control to continue your preferred rhythm.

If you find that you are not expressing a lot of milk the first few times you pump, don’t be discouraged. Learning to express milk, like breastfeeding, takes practice. Here are some tips that might make pumping easier:

1. Choose a time when you’re not rushed and won’t be interrupted.

2. Choose a comfortable chair with a table nearby, so you can set the pump motor within reach.

3. Look at a photograph of your baby to help

encourage let-down.

4. Place a warm cloth on your breasts for a few minutes before you start pumping. This encourages milk flow and can soothe painful breasts.

5. Warmth and relaxation can encourage milk flow. Try expressing after a bath or shower.

6. Try expressing from one breast while your baby is feeding from the other, or continue expressing just after a feed.

7. Reposition the pump on your breasts from time to time. This can stimulate your milk ducts.

How quickly will the milk flow begin?

When pumping with the twin electronic breast pump your milk should begin to flow after a few compressions. If your milk does not begin to flow immediately, relax and continue pumping. CAUTION: DO NOT CONTINUE PUMPING FOR MORE THAN

5 MINUTES AT A TIME IF NO RESULT IS ACHIEVED. Stop, and try expressing milk

at another time of day. If the process becomes painful, stop and consult your health professional or breastfeeding advisor.

How much milk can you expect?

It has been shown that double pumping boosts prolactin levels and stimulates milk production so, if you can, use your breast pump regularly as a double pump. On average you will need to pump for 10 minutes to express 60-120 mls or 2-4 oz of milk. However, this is just a guide and varies from woman to woman. If you find that you regularly express more than 4 oz/125 ml of milk per session, attach a 9 oz/260 ml AVENT breast milk container to the pump body.

Need Help? Call us at 1.800.54.AVENT or visit www.philips.com/AVENT

Preparing to Pump

You can use twin electronic breast pump as a:

Twin electronic pump

Single electronic pump

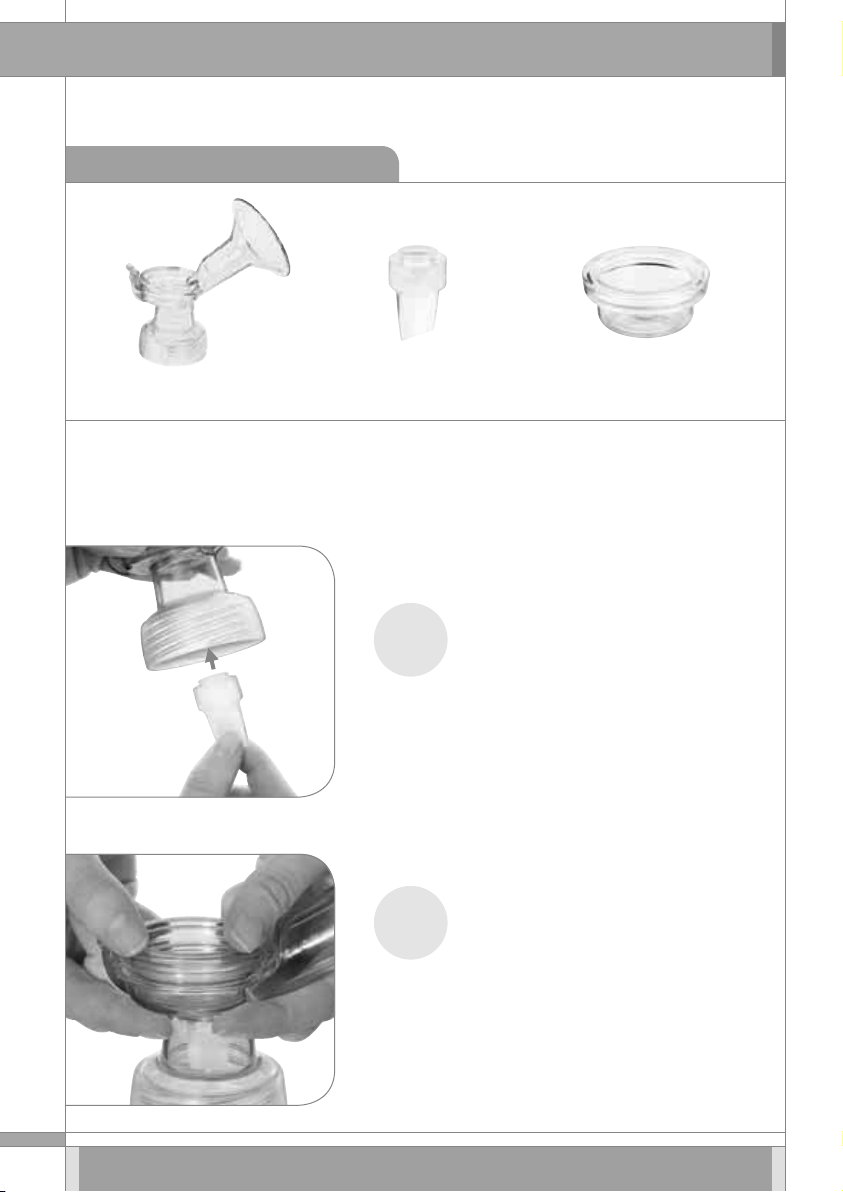

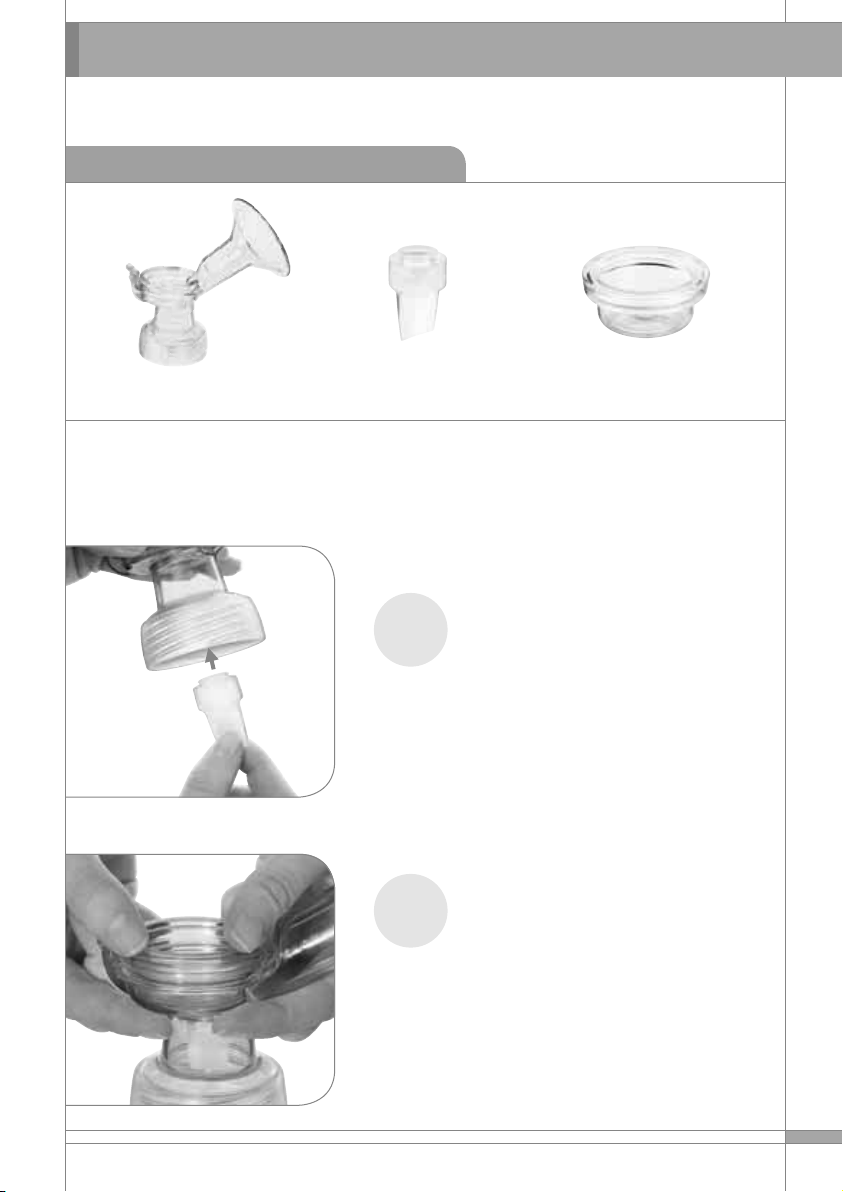

Assembling the Pump Body

Before assembling, make sure that you have correctly washed and sanitized the pump. See section titled ‘Cleaning and Sanitizing Your Pump’ on page 6.

Parts you will need for this step:

Pump body

White valve Clear silicone diaphragm

Double pumping? Assemble two pumps as shown below.

Single pumping? Assemble one pump as shown below.

Insert the white valve into the pump body, so that it fits securely into the small round

hole. Make sure the pointed side of the valve is facing down.

Fit the clear silicone diaphragm into the pump body. Ensure a perfect seal around

the rim by pressing down with your fingers. (This is easier if assembled while

the diaphragm is wet.)

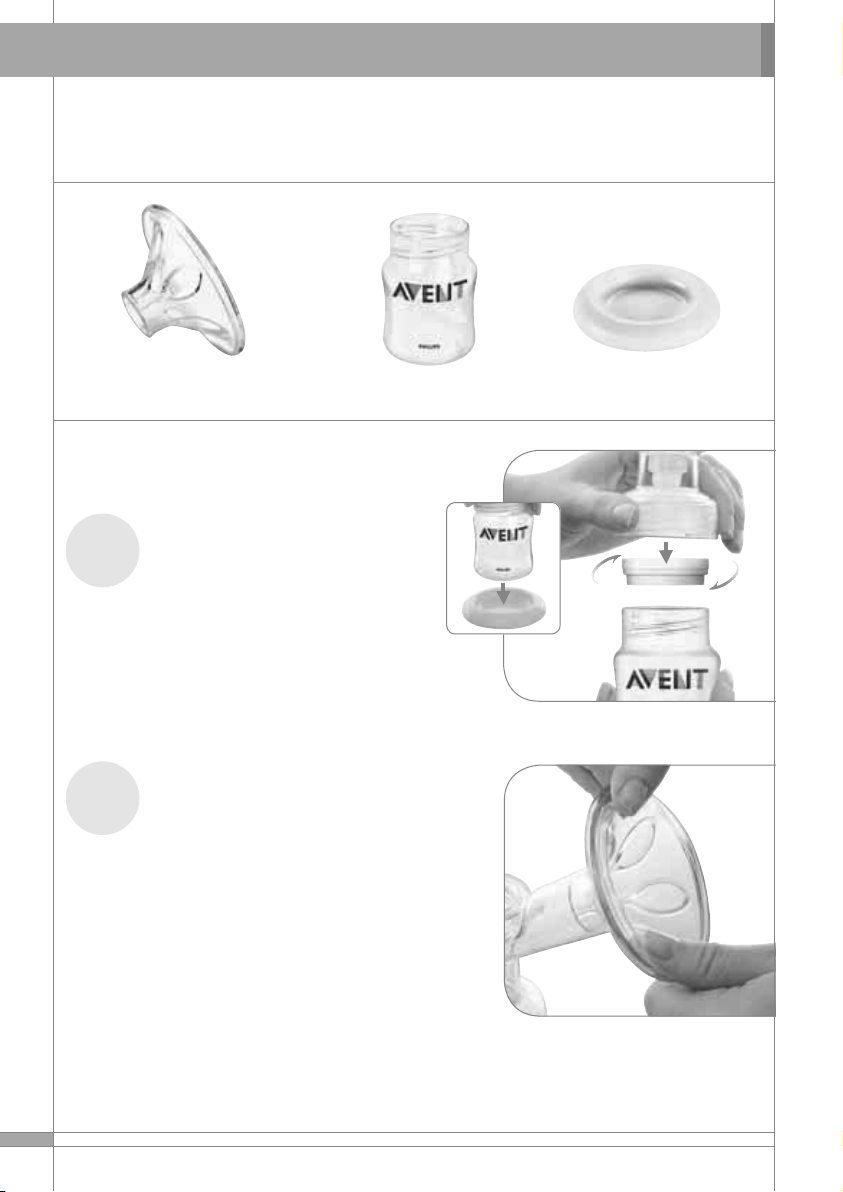

Assembling the Pump Body

Let-down Massage Cushion White standMilk container

Screw the pump body onto the milk container until securely in place.

To ensure that the pump is completely stable, you can use the stand with the 4 oz/125 ml milk container.

The Let-down Massage Cushion has petals that flex in and out to gently massage the area

around the breast. This is intended to help stimulate a fast, natural milk flow.

ALWAYS insert the adapter ring when using a polypropylene bottle

Need Help? Call us at 1.800.54.AVENT or visit www.philips.com/AVENT

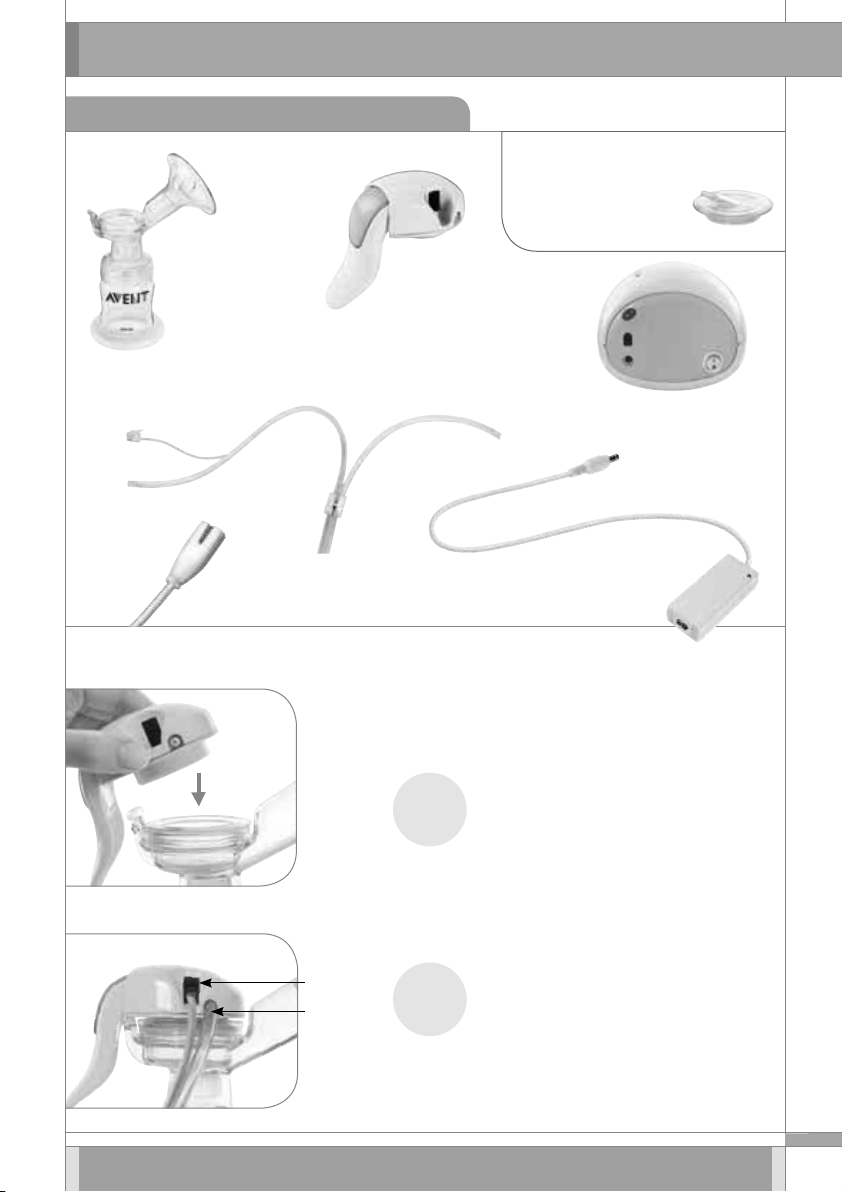

Connecting the Electronics

Parts you will need for this step:

Assembled pump body (see pages 9-10)

Double Pumping?

Double pumping

connector

Control handle

Control

cable

Wall plug cord

First (Control) Pump

Transparent tubing

Control cable socket

Transparent tubing port

Pump motor

Electric

adaptor

See section titled, ‘Twin electronic breast pump Parts Guide’ on page 1 for a description of First (Control) Pump and Second Pump.

Push the control handle onto the assembled pump body so that it sits firmly on top of the silicone diaphragm. This assembly becomes the First (Control) Pump which contains the electronics of the pump.

Click the control cable into the socket on the control handle.

Then securely attach one of the transparent tubes to the port on the control handle.

Need Help? Call us at 1.800.54.AVENT or visit www.philips.com/AVENT

Connecting the Electronics

Double pumping? Complete the next step with your second assembled pump body.

See section titled, ‘Twin electronic breast pump Parts Guide’ on page 1 for a description of First (Control) Pump and Second Pump

Push the double pumping connector onto the pump body so that it sits firmly on top of the silicone

diaphragm. Securely attach the other transparent tube to the double pumping connector. When the breast pump is fully assembled, the Second Pump will mimic simultaneously the speed and suction of the First (Control) Pump.

Single pumping? Complete the next step with the remaining tube.

If you are single pumping, you can keep the transparent tube out of the way by

attaching it to the white clip.

Second Pump

Securely attach the twin tubing to the ports on the pump motor.

Connect the control cable into the adjacent socket.

Connect the electric adaptor to power socket on the pump motor.

Then connect the wall plug cord to the electric adaptor and insert the plug into the wall outlet.

Twin tubing

port

Control cable

socket

Pumping with Your Electronic Breast Pump

Before you begin pumping, make sure that you have correctly washed, sanitized and assembled the pump. Consult the ‘Preparing to Pump’ Section on page 7 for tips on stimulating let-down and milk flow.

Wash your hands thoroughly and make sure your breasts are clean.

Turn on Pump: When the flashing ORANGE light changes to a continuous GREEN light, the pump is ready to use.

If the light is flashing RED, refer to the ‘Troubleshooting Guide’ on page 18.

Form a Seal: Press the pump against your breast, so that your nipple fits into the funnel. A seal should form between the pump and your breast. (If double pumping, press a pump

to each breast.)

Let-down: Let-down is your body’s physiological response to the suckling action of your baby on the breast. This stimulates

the breast to produce milk and send it towards the nipple where it is available for baby.

To initiate let-down, begin by squeezing the handle with shallow quick strokes. This is intended to imitate your baby’s natural suckling pattern. At the same time you are doing this, you are enabling the petals on the Let-down Massage Cushion to flex in and out around the areola, creating a massaging effect. This is intended to help stimulate the natural let-down reflex. Let-down can occur immediately after a few strokes and should not take longer than 5 minutes (refer to page 7 on ‘Preparing to Pump’). You can choose to automate this let-down phase by pressing the blue one-touch memory control or you can continue to pump manually.

Milk Expression: Milk Expression occurs after let-down is achieved and milk begins to flow. It is the phase that

is induced by the baby’s deeper more comfortable suckling rhythm.

If you did not automate the let-down rhythm, please skip to Step 5. If you have automated the let-down phase in Step 3, press the blue one-touch memory control to end the let-down rhythm. You can now begin to establish a comfortable pumping rhythm and level of suction that can be maintained throughout your pumping session.

Pumping with Your Electronic Breast Pump

Your electronic breast pump mimics your pumping: To create a natural breastfeeding rhythm, we suggest you hold down on the handle for

3 seconds, then release and repeat the pattern for the next compression.

Next, press the blue one-touch memory control on the handle. The mode light on the pump motor will change from solid

GREEN to flashing GREEN and your breast pump will mimic the

rhythm of the last two compressions.

Note: You do not need to compress the handle fully, only until it feels comfortable. The further you compress the handle, the more suction the pump will provide. If the pressure is uncomfortable, stop the automated pumping by pressing the One-Touch Memory Control and breaking the seal between your breast and pump funnel with your finger.

Changing the speed and level of suction: Press the blue one-touch memory control on the handle again, and the pump

will revert to manual control. The light will turn from flashing

GREEN to solid GREEN. Establish a comfortable speed and level

of suction. Press the blue one-touch memory control again, and your Electronic Breast Pump will continue the same pumping rhythm.

Ending pumping session: Press the blue one-touch memory control, break the seal between your breast and pump funnel with your finger

and remove the pump from your breast. Turn the pump off and unplug at the power source. Your Electronic Breast Pump will remember and save the speed and suction level of your last two compressions. Unscrew the base after milk is collected. If any milk remains in the pump body, pour it into the base. Do not overfill the base. Wash and re-sanitize all necessary parts before the next use.

Next time you turn your pump on: Resuming Saved Session? Turn on the pump as in Step 1. Complete Step 2. Press the blue one-touch memory control.This engages the

automatic pumping mode. The pump will continue with the rhythm of the last two saved compressions of the milk expression phase. Continue pumping as described in Step 4. Need to re-establish let-down? If you need to establish let-down, turn on the pump as in Step 1. Complete Step 2. Squeeze the handle with shallow quick strokes and proceed as described in Step 3.

CONSULT THE GUIDELINES FOR STORING EXPRESSED BREAST MILK ON PAGE 16 & 17.

HELPFUL TIP!

The light on top of the twin electronic breast pump Motor indicates the pump mode:

Flashing ORANGE Light: Pump is in warm-up mode. Wait for the continuous GREEN light.

Continuous GREEN Light: Manual pumping mode. You control the speed and pressure of the pump.

Flashing GREEN Light: Automatic pumping mode. Your breast pump will mimic your last established pumping rhythm and level of suction.

Flashing RED Light: Consult the ‘Troubleshooting Guide’ on page 18.

Need Help? Call us at 1.800.54.AVENT or visit www.philips.com/AVENT

Keeping Parts Clean and Compact for Travel

Pump

After sanitizing all parts insert the white valve and fit the diaphragm onto the pump body. Clip the funnel cover over the Let-down Massage Cushion and screw the sealing

base onto the bottom of the pump body. Then put the assembled items in the gray drawstring bag.

Sealing base (s) Pump body (d) Let-down Massage Cushion (g) Funnel cover (also used as a stand when pumping)

Breast milk container

After sanitizing all parts, click the

sealing disc into the screw ring

and twist onto the container. Screw ring (r) Sealing disc (t) Milk container/

Adaptor ring (e)

AVENT naturally shaped nipple

Dome cap (p) Screw ring (r) Nipple (q) Sealing base (s)

After sanitizing all parts, insert the

nipple into the screw ring and attach

the dome cap over the top of the

nipple. Screw on the sealing base.

Need Help? Call us at 1.800.54.AVENT or visit www.philips.com/AVENT

Storing Your Expressed Breast Milk

Using Philips AVENT products interchangeably,

you can pump, store and feed with the same

container, preserving valuable nutrients that

can get lost if breast milk is transferred.

After expressing milk into an AVENT container, click a sealing disc into the screw ring and twist onto the container. To feed, just replace the sealing disc with an AVENT naturally shaped nipple.

ALWAYS insert the adapter ring when using a polypropylene bottle

Philips AVENT breast milk storage system:

With your twin electronic breast pump or manual breast pump, you can express milk directly into pre-sterilized breast milk storage system cups. These cups are safe, sturdy and offer protection for pumping, storing and feeding breast milk.

Get Philips AVENT breast milk storage system and Get Going!

• Twist-on lid seals tightly to cup for leak-proof storing or freezing

• Writable and stackable cups make it easy to organize

• Compatible system lets you pump, store and feed using the same cup

• Sturdy cups heat easily and quickly in a bottle warmer

Storing Your Expressed Breast Milk

Guidelines for Storing Expressed Breast Milk

Refrigerate breast milk immediately. Refrigerate for up to 24 hours in the back of the

refrigerator, not in the door.

Freeze for up to 3 months, or 6 months in a zero-degree freezer.

Frozen breast milk can be defrosted overnight in the refrigerator, thawed in warm

water or heated on the lowest setting of a bottle warmer or baby food warmer.

NEVER refreeze breast milk.

If you express small amounts of milk throughout the day, you can top up the milk container

by keeping it in the refrigerator and adding to it. Make sure the milk is used within 24 hours of the first expression, or store it in the freezer.

DO NOT add fresh breast milk to already frozen milk.

ALWAYS discard any milk that is left over at the end of a feed.

Note: Only milk collected with a clean, sanitized pump should be stored to be fed to your baby. Sanitize Breast

Milk Containers before use or express milk directly into pre-sterilized cups.

Never immerse a frozen bottle or liner in boiling water as this may cause it to crack/split.

+ 41 hidden pages
