ENGLISH

IMPORTANT

This baby monitor is intended as an aid. It is not a substitute for responsible and proper adult supervision and should not be used as such.

Never leave your baby alone in your home. Always make sure there is someone present to look after the baby and take care of its needs.

Disclaimer

Please note that you use this baby monitor at your own risk. Koninklijke Philips Electronics NV and its subsidiary companies are not responsible for the operation of this baby monitor or your use of it and therefore do not accept any liability in connection with your use of this baby monitor.

Introduction

Congratulations on your purchase and welcome to Philips Avent! To benet

fully from the support that Philips Avent offers, register your product at www.philips.com/welcome. This short manual contains important information about your uGrow baby monitor and offers brief instructions on how to set up the baby monitor and the app. For more detailed information and the complete user manual, please visit www.philips.com/ugrow.

Important safety information

Read this information carefully before you use the appliance and save it for future reference.

Danger

- Never immerse any part of the baby monitor in water or any other liquid. Do not place the appliance where water or any other liquid can drip or splash onto it. Never use the baby monitor in moist places or close to water.

- Never put any object on top of the baby monitor and do not cover it. Do not block any ventilation openings. Install according to the manufacturer’s instructions.

- Cords present a potential strangulation hazard. Keep cords out of the reach of children (more than 1 metre/3.5 feet away). Never place the baby monitor inside or above the baby’s bed or playpen (Fig. 1).

Warning

- Check if the voltage indicated on the adapter corresponds to the local mains voltage before you connect the appliance.

- Do not modify and/or cut and/or change any part of the adapter, this causes a hazardous situation.

- Only use Philips recommended adapter.

- If the adapter is damaged, have it replaced with one of the original type to avoid a hazard.

- Do not open the housing of the baby monitor to prevent an electric shock.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

- Make sure that you install the baby monitor in such a way that its cord does not obstruct a doorway or passage. Make sure the cord does not

lie on the oor where it presents a tripping hazard.

- Keep the packaging materials (plastic bags, cardboard buffers, etc.) out of the reach of children, as they are not a toy.

- Keep screws and small items out of the reach of the baby.

Caution

- This baby monitor is intended as an aid. It is not a substitute for responsible and proper adult supervision and should not be used as such.

- Make sure the baby monitor and the cord are always out of reach of the baby (at least 1 metre/3.5 feet away) (Fig. 2).

- Use the appliance at a temperature between 0°C (32°F) and 40°C (104°F).

- Do not mount the baby monitor on or above the baby’s bed or playpen.

- Do not install near any heat sources such as radiators, heat registers,

stoves or other apparatus (including ampliers) that produce heat.

- Make sure that your hands are dry when you insert the appliance plug into the appliance and the adapter into the wall socket.

- If you place the baby monitor on a table or low cabinet, do not let the mains cord hang over the edge of the table or worktop. People may trip over cords.

Compliance with standards

- This appliance complies with all applicable standards and regulations

regarding exposure to electromagnetic elds.

- This product complies with the radio interference requirements of the European Community (Fig. 3).

- Philips Consumer Lifestyle hereby declares that this baby monitor is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the EC Declaration of Conformity (DoC) is available online at www.philips.com/support.

Privacy

Philips believes strongly in protecting the privacy of the personally

identiable information you share with us through the app. We also believe

it is important to inform you about the use of those data. Therefore, we encourage you to read the privacy notice in the app carefully.

You can also nd information on our privacy policy on our website.

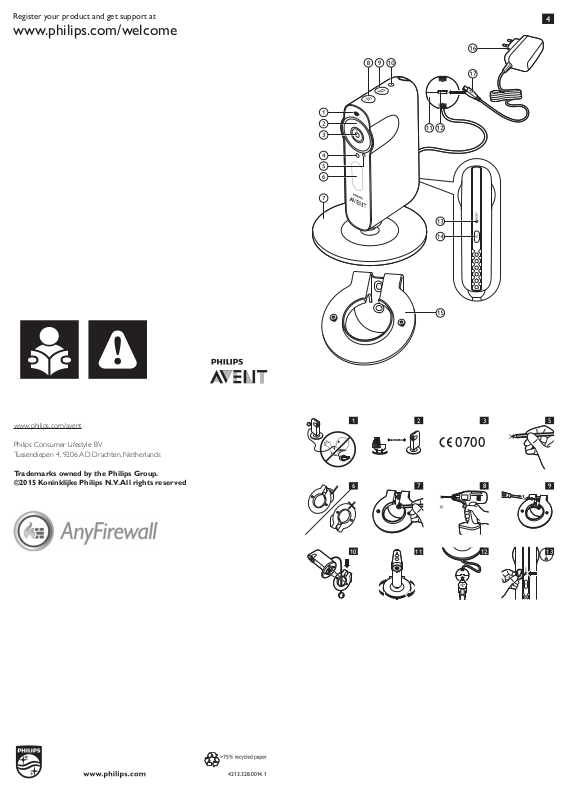

Product overview (Fig. 4)

1 WiFi status light

2 Infrared lights 3 Baby monitor lens 4 Microphone 5 Viewing indicator 6 Nightlight 7 Foot 8 Nightlight button with status indication 9 Lullaby play/pause button with status indication 10 Light sensor 11 Temperature and humidity sensor unit 12 Appliance plug socket 13 Reset button 14 On/off button

15 Wall mounting bracket

16 Adapter 17 Appliance plug

First-time setup

Before you start the set-up procedure, make sure:

- You have wireless Internet access (2.4 GHz WiFi).

- You are close enough to the WiFi router to have a good WiFi signal.

- If you use a WiFi repeater, make sure that your router and your WiFi repeater have the same SSID and that you use the same password for the router and the repeater.

- You have the password of your WiFi network at hand. Always connect the baby monitor to a secure network (see chapter ‘Security and privacy’ in the user manual available online at www.philips.com/ugrow).

- Make sure that your smart device runs on iOS 7 or higher, or Android

4.1 or higher.

1 Download the Philips Avent uGrow Smart Monitor app from

the App Store or Google Play. Use keywords ‘uGrow smart monitor’

or ‘Philips smart monitor’ to nd the app.

2 Launch the app.

3 Follow the set-up instructions in the app.

Mounting the baby monitor on the wall

The baby monitor comes with a wall mounting bracket. Before you mount

the baby monitor on the wall, make sure there is a good WiFi signal at the

point where you want to mount the baby monitor. Follow the instructions below to fasten the wall mounting bracket to the wall and to attach the baby monitor onto the wall mounting bracket. 1 Use a pencil to put a cross on the wall at the place where you want to

mount the baby monitor. (Fig. 5)

2 Hold the wall mounting bracket to the wall. Make sure that one of

the holes is right over the cross that you put on the wall at step 1.

Note: Make sure that the ring of the wall mounting bracket slants downward when you hold it to the wall. If the ring of the wall mounting bracket slants upward, turn the wall mounting bracket the other way around so that it is in the correct position (Fig. 6).

3 Use a pencil to mark the other screw hole on the wall (Fig. 7). 4 Drill 2 holes in the wall at the marks (Fig. 8). 5 Use 2 screws to fasten the wall mounting bracket to the wall.

Tighten the screws with a screwdriver (Fig. 9).

6 Pass the humidity and temperature sensor unit through the hole in the

wall mounting bracket. Then align the slots in the foot of the baby monitor with the projections on the ring. Fit the groove in the foot of the baby monitor onto the raised edge on the inside of the ring (Fig. 10).

7 Turn the foot of the baby monitor clockwise to position the baby monitor

(Fig. 11).
