Philips widescreen flat TV 37PFL5322 37" LCD HD
Ready with Pixel Plus HD
Reference no.: SCC_72028
37PFL5322/12
Symptom
TV has no picture at start-up. Sound is okay.
Cure
RESTRICTIONS:
This info is only applicable to model numbers fitted with a 37" LG display panel LC370WX4-SLB1.
The affected TV model variants are:
- 37PFL3312S/60 (Alt.-BOM 1).
- 37PFL3512D/12 (Alt.-BOM 3).
- 37PFL5322/12 (Alt.-BOM 3).
- 37PFL5522D/12 (Alt.-BOM 3).
- 37PFL5322S/60 (Alt.-BOM 2).
Note: Refer to the 3rd character of the serial number for the "Alt.-BOM" identification.
Page 1 of 2Philips Online Symptom/Cure document - 37PFL5322/12
Close window
Print page
CURE:

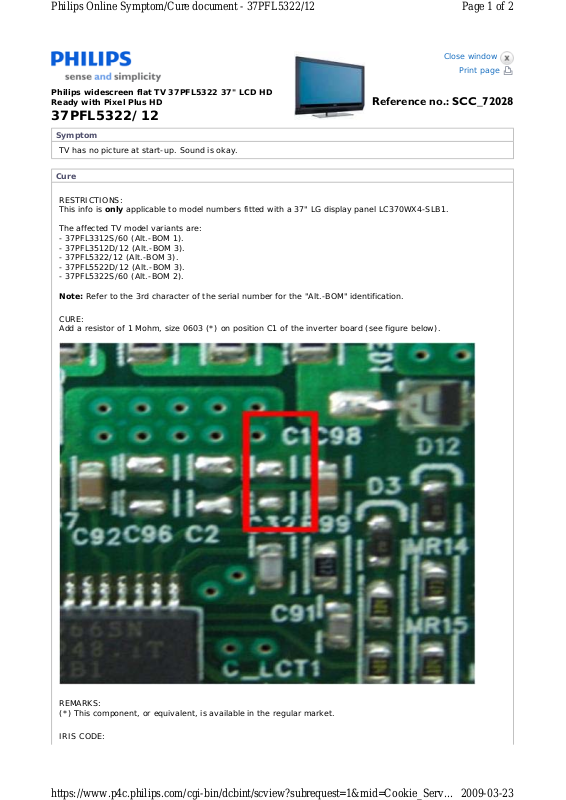

Add a resistor of 1 Mohm, size 0603 (*) on position C1 of the inverter board (see figure below).
REMARKS:
(*) This component, or equivalent, is available in the regular market.
IRIS CODE:
...
2009-03-23https://www.p4c.philips.com/cgi-bin/dcbint/scview?subrequest=1&mid=Cookie_Serv
Page 2
2310
Attachments
No attachment available.
