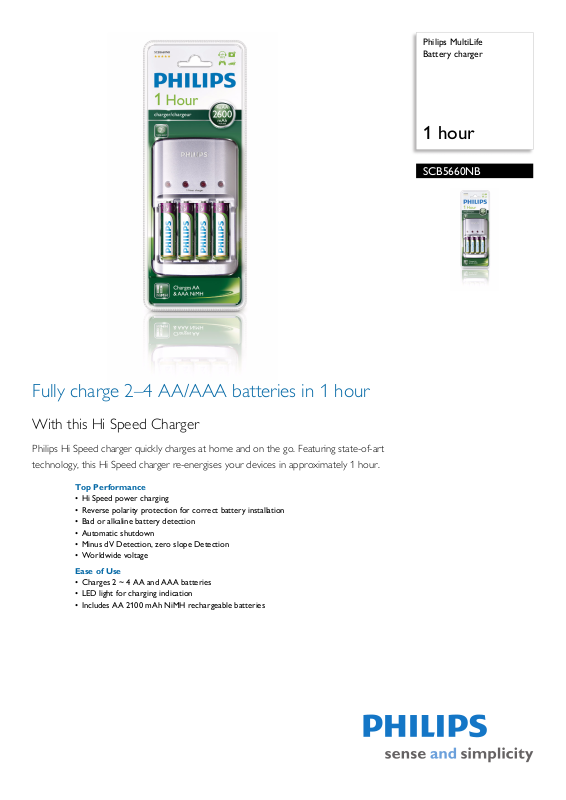

Page 1
Philips MultiLife
Battery charger
1 hour
SCB5660NB
Fully charge 2–4 AA/AAA batteries in 1 hour
With this Hi Speed Charger
Philips Hi Speed charger quickly charges at home and on the go. Featuring state-of-art
technology, this Hi Speed charger re-energises your devices in approximately 1 hour.
Top Performance
• Hi Speed power charging
• Reverse polarity protection for correct battery installation
• Bad or alkaline battery detection
• Automatic shutdown
• Minus dV Detection, zero slope Detection
• Worldwide voltage
Ease of Use
• Charges 2 ~ 4 AA and AAA batteries
• LED light for charging indication
• Includes AA 2100 mAh NiMH rechargeable batteries
Page 2
Battery charger
1 hour
SCB5660NB/12
Specifications
Power
• Batteries included
• Battery capacity: 4 x AA 2700 mAh
• Power supply: 100-240 VAC, 50/60 Hz
Green Specifications
• Heavy metals: Cd free, Hg free, Pb free
• Packaging material: PET
Charging and Control
• Charging indicators: LED
• Control functions: alkaline detection, bad battery
tion, -dV, no overcharging, short-circuit
detec
protection, temperature control, wrong polarity
Outer Carton
• Gross weight: 2.217 kg
• Outer carton (L x W x H): 29 x 27.2 x 15.2 cm
• Net weight: 1.508 kg
• Tare weight: 0.709 kg
• EAN: 87 12581 40117 7
• Number of consumer packages: 4
Packaging dimensions
• Packaging dimensions (W x H x D):
10 x 25.2 x 8.5 cm
• Gross weight: 0.441 kg
• Net weight: 0.377 kg
• Tare weight: 0.064 kg
• EAN: 87 12581 40115 3
• Number of products included: 1
• Packaging type: Blister
Power Input
• Power supply: Corded with AC/DC adapter
• Voltage: 100-240 V
•
Highlights
Bad/alkaline battery detection
This feature will notify when a bad or alkaline battery
is inserted, hence ensuring optimum safety
Hi Speed power charging
The 1 hour Charger enables you to be fully up and
running with maximum power in as little as
approximately 1 hour.
LED light indicates charging
The LED light will turn on to indicate when charging
is in progress, off when charging has been completed
and will flash if a bad battery is inserted
Reverse polarity protection
Reverse polarity protection ensures correct battery
installation in the charger preventing the batteries
from being charged or damaged.
Worldwide voltage
The worldwide voltage makes this charger your
perfect travel companion
Automatic shutdown
The automatic shutdown feature has been designed
to provide peace of mind. When batteries are fully
charged, the charger will switch off, protecting them
from overcharging.
Issue date 2012-05-25
Version: 8.1.6
12 NC: 8670 000 37749
EAN: 87 12581 40115 3
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
