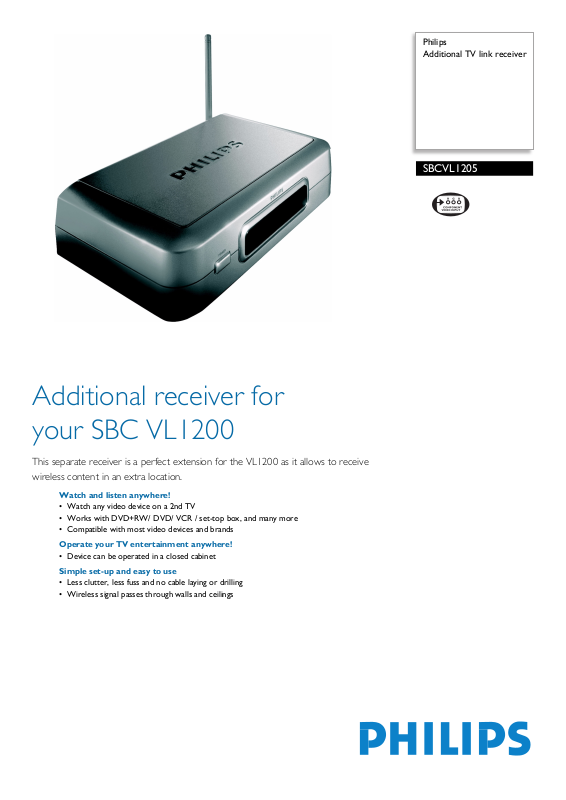

Philips SBCVL1205 BROCHURE
For preview purpose only
Philips
Additional TV link receiver
SBCVL1205
Additional receiver for
your SBC VL1200
This separate receiver is a perfect extension for the VL1200 as it allows to receive
wireless content in an extra location.
Watch and listen anywhere!
• Watch any video device on a 2nd TV
• Works with DVD+RW/ DVD/ VCR / set-top box, and many more
• Compatible with most video devices and brands
Operate your TV entertainment anywhere!
• Device can be operated in a closed cabinet
Simple set-up and easy to use
• Less clutter, less fuss and no cable laying or drilling
• Wireless signal passes through walls and ceilings
For preview purpose only
Additional TV link receiver
Technical specifications Product highlights
Tuner / Reception / Transmission
• Antenna location: Picture & sound: Internal, RC
extender: External
• Frequency range: Picture & sound: 2.4 GHz RC
extender: 433 MHz MHz
• TV system: PAL, SECAM
• Typical range indoor: 15-30 m
• Typical range outdoor: 100 m
• Remote control extender
• Supported IR carrier frequency: 32-40 KHz
Accessories
• AC/DC adaptor: 2x 9VDC, 300mA
Dimensions
• Receiver dimensions (W x H x D):
204 x 65 x 168 mm
• Temperature (operation): +5ºC to +35ºC
Power
• Power consumption: 7W
• Power supply: AC/DC Adapter, 220-240V
Receiver
• SCART out: CVBS out, Audio L+R out
•
SBCVL1205/05
Watch any device on a 2nd TV
The wireless link uses standard SCART and cinch plugs
that are used by almost every brand of audio/video
devices. If your device has one of these standard
connectors it works with the wireless link
Works with DVD and many more
Extend your possibilities for viewing movies, sports
events, live performances and a range of TV channels
anywhere in your home. The wireless TV link is suitable
for transmission of AV content of all brands of PayTV
and Pay-per-View decoders, satellite receivers, set-top
boxes, DVD players, VCRs and camcorders.
Works on almost all brands
The wireless link uses standard SCART and cinch plugs
that are used by almost every brand of audio/video
devices.
Operates in closed cabinet
If you store your audio/video devices in a cabinet, you
cannot operate these devices with a normal IR remote
control. The Philips wireless remote control link allows
you to operate these devices with the cabinet doors
closed thanks to an RF-based link that picks up the
infrared signals of a remote contro l and t ransla tes th em
into RF. The receiver unit then translates them back to
IR.
Wireles means no drilling
A 2.4 GHz wireless link between the receiver and
transmitter means you don't have to lay cables or drill
holes through walls.
Wireless goes through walls
The re 's no need to buy or ren t d uplicate A /V equipment .
The wireless RF system extends your possibilities for
viewing DVD movies and your favourite Satellite or TV
channels anywhere in your home. With a range of up to
30 met ers insi de t he h ous e, i t delivers high-quality video
and stereo audio no matter where your second TV is
located.
Date of issue 2006-06-28
Version: 3.0
12 NC: 9082 100 00746
EAN: 87 10101 70104 2
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
