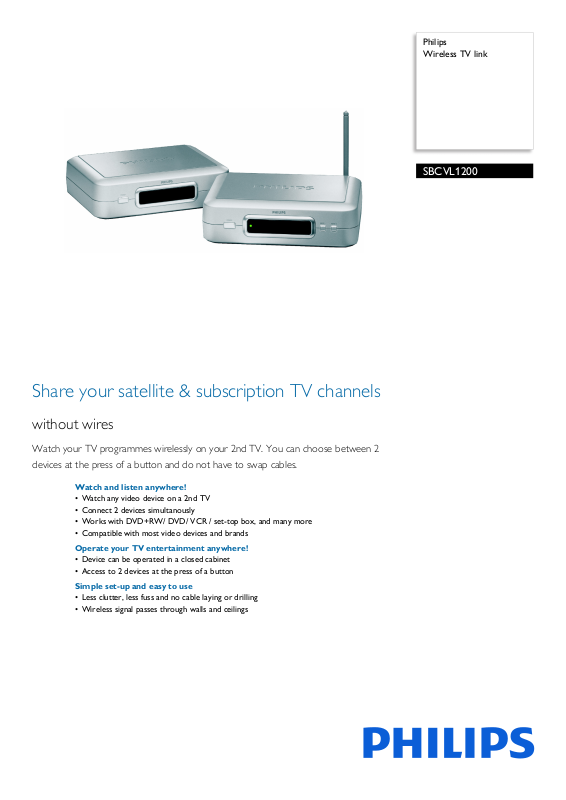

Page 1
Philips
Wireless TV link
SBCVL1200
Share your satellite & subscription TV channels
without wires
Watch your TV programmes wirelessly on your 2nd TV. You can choose between 2
devices at the press of a button and do not have to swap cables.
Watch and listen anywhere!
• Watch any video device on a 2nd TV
• Connect 2 devices simultanously
• Works with DVD+RW/ DVD/ VCR / set-top box, and many more
• Compatible with most video devices and brands
Operate your TV entertainment anywhere!
• Device can be operated in a closed cabinet
• Access to 2 devices at the press of a button
Simple set-up and easy to use
• Less clutter, less fuss and no cable laying or drilling
• Wireless signal passes through walls and ceilings
Page 2
Wireless TV link
SBCVL1200/16
Specifications
Tuner/Reception/Transmission
• Antenna location: Picture & sound: Internal, RC
extender: External
• Frequency range: picture & sound: 2.4 GHz RC
ender: 433 MHz MHz
ext
•TV system: PAL, SECAM
• Typical range indoor: 15-30 m
• Typical range outdoor: 100 m
• Remote control extender
• Supported IR carrier frequency: 32-40 KHz
Accessories
• AC/DC Adaptor: 2x 9VDC, 300mA
• SCART duplicator: 2 pcs on transmitter
Dimensions
• Receiver dimensions (W x H x D):
204 x 65 x 168 mm
• Temperature (operation): +5ºC to +35ºC
• Transmitter dimensions (W x H x D):
4 x 65 x 168 mm
20
Power
• Power consumption: 7 W
• Power supply: AC/DC Adapter, 220-240V
Transmitter
• SCART 1: CVBS in, Audio L+R in
• SCART 2: CVBS in, Audio L+R in
Receiver
• SCART out: CVBS out, Audio L+R out
•
Highlights
Watch any device on a 2nd TV
The wireless link uses standard SCART and cinch
plugs that are used by almost every brand of audio/
video devices. If you device has one of these standard
connectors it works with the wireless link
Connect 2 devices
The easy way to switch between any two devices
without having to reconfigure your entire home
cinema set-up. The wireless TV link has two separate
inputs, each with its own SCART connector,
enabling you to connect two A/V source devices at
the same time.
Works with DVD and many more
Extend your possibilities for viewing movies, sports
events, live performances and a range of TV channels
anywhere in your home. The wireless TV link is
suitable for transmission of AV content of all brands
of PayTV and Pay-per-View decoders, satellite
receivers, set-top boxes, DVD players, VCRs and
camcorders.
Works on almost all brands
The wireless link uses standard SCART and cinch
plugs that are used by almost every brand of audio/
video devices.
Operates in closed cabinet
If you store your audio/video devices in a cabinet,
you cannot operate these devices with a normal IR
remote control. The Philips wireless remote control
link allows you to operate these devices with the
cabinet doors closed thanks to an RF-based link that
picks up the infrared signals of a remote control and
translates them into RF. The receiver unit then
translates them back to IR.
Issue date 2014-02-10
Version: 4.0.5
12 NC: 9082 100 00635
EAN: 87 10101 69560 0
One touch access to 2 devices
There's no need to swap cables at the transmitter to
view any video device on the second TV. Simple
press the input selection button to switch from input
device.
Wireles means no drilling
A 2.4 GHz wireless link between the receiver and
transmitter means you don't have to lay cables or
drill holes through walls.
Wireless goes through walls
There's no need to buy or rent duplicate A/V
equipment. The wireless RF system extends your
possibilities for viewing DVD movies and your
favorite Satellite or TV channels anywhere in your
home. With a range of up to 30 meters inside the
house, it delivers high-quality video and stereo audio
no matter where your second TV is located.
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
