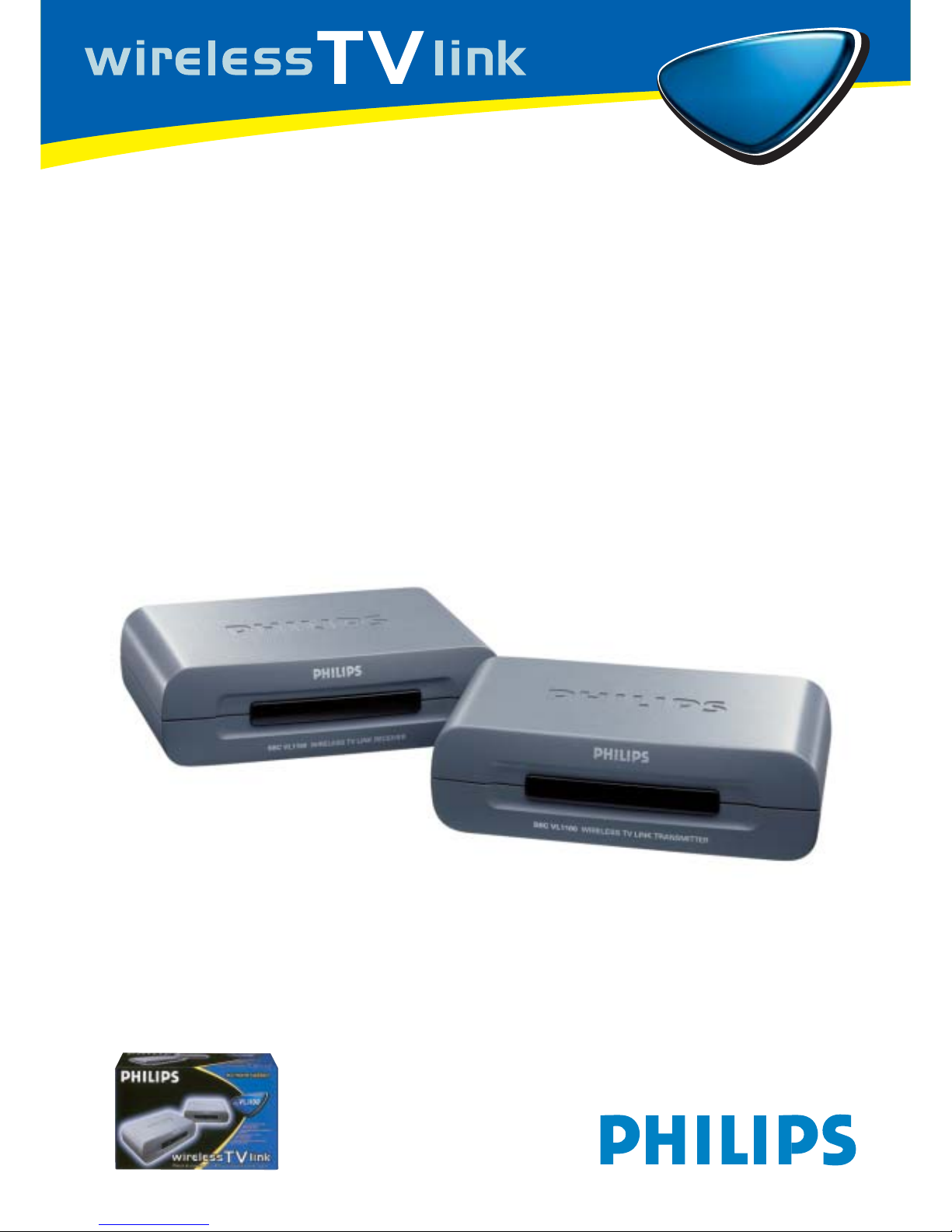

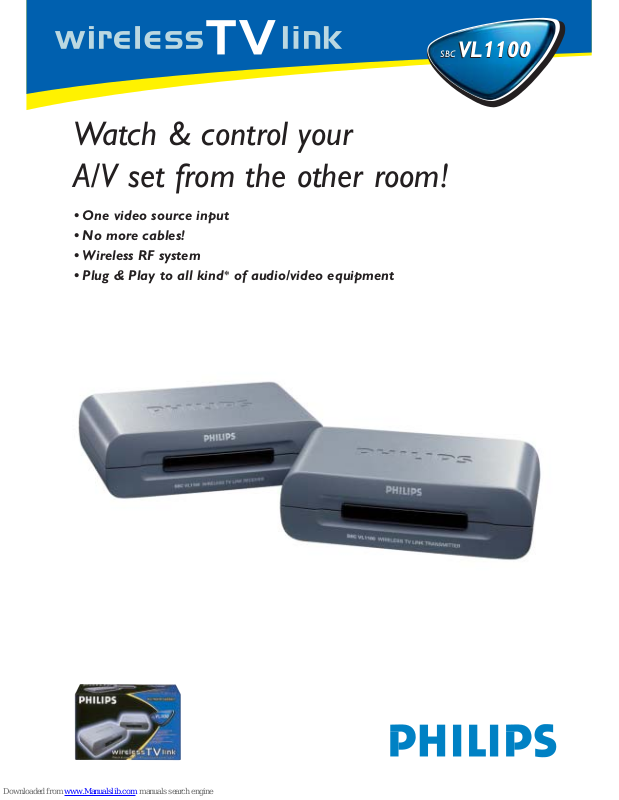

Page 1
Watch & control your
A/V set from the other room!
• One video source input
• No more cables!
• Wireless RF system
• Plug & Play to all kind*of audio/video equipment
SBC VL1100
SBC VL1100
Page 2
Technical specifications
General product information
•Power supply 9V DC via 220-240 VAC/ 50 Hz adapter
•Power consumption 6 Watts
• Operating / storage
temperature 5 to 45ºC / -25 to 55ºC
• Number of A/V
source inputs 1
Wireless Audio/Video performance
• Supported video standards CVBS: PAL/NTSC/SECAM
• Video output 1Vpp into 75ohm
• Signal noise 47dB ± 6dB
• Audio format Stereo (L + R)
•Freq. Range 70 Hz – 20kHz (± 3dB)
• Signal Noise 58dB ± 7dB
•Crosstalk (1kHz) 45dB, min.
• Distortion (1kHz) 2%, max.
RF A/V system information
•Typical range up to 100 m in open air, up to 30 m indoors
• Carrier frequency 2.4 GHz / FM mod.
•Transmission power <10 mW
• Multiple RF channels 4* to allow interference-free operation
• Antenna built-in
* May vary per country according to local regulations
RF Control system information
• IR carrier freq. Range
32-40kHz (universal remote control extender)
• RF carrier frequency 433.92 MHz / AM mod.
• RF transmission power <10 mW
• Antenna built-in
• Wireless Link RC operatable yes
Transmitter unit
• Dimensions (mm) 144 x 41 x 91
•Power on/off switch on the back
•Power indicator Green LED on the front
• RC signal indicator Red LED on the front
•RCA Input 1 CVBS video & stereo audio Left / Right
Receiver unit
• Dimensions (mm) 144 x 41 x 91
•Power on/off switch on the back
•Power indicator Green LED on the front
• RC signal indicator Red LED on the front
•RCA output 1 CVBS video & stereo audio Left / Right
•Capture range of IR receiver up to 7 meters max.
Packaging contents
•1 transmitter unit
•1 receiver unit
•1 SCART to RCA cable (transmitter unit)
•1 RCA to SCART cable (receiver unit)
•2 power supply adapters
•1 RC extender cord (1 IR LEDs)
•1 Instructions for use booklet
• 12 NC VL1100/00 9082 100 01882
• EAN VL1100/00 87 10895 767484
• EAN outer carton VL1100/00 87 10895 769044
Watch & control your A/V set from the
other room!
The Philips SBC VL1100 Wireless TV Link lets you watch, control
and enjoy A/V content on your second TV located anywhere in
your house in crystal clear pictures and stereo sound.There’s no
need to buy or rent duplicate A/V equipment. This way it
extends your possibilities for viewing movies, sports events,
live performances and an incredibly wide range of TV channels
anywhere in your home.
• One video source input
Allows you to connect one video device to watch in
another room.
• No more cables!
No drilling or running cables to watch your video device at
other locations.
• Wireless RF system
Delivers crystal clear pictures & stereo sound to your 2nd TV
through walls and windows.The range is up to 30 meters
indoors.
• Plug & Play to all kind of audio/video equipment*
Use with most brands of TV,VCR, DVD, SAT receiver, PayTV
decoder or any other video device.
* The VL1100 may not work with the following equipment:
Bang & Olufsen, Nokia, Sagem & Pace
Should you have any questions, comments or recommendations about the Wireless TV Link, please call our helpdesk.
Wireless TV Link
SBC VL1100
SBC VL1100
Philips BCU Peripherals & Accessories
Data subject to change without notice
©2003 Royal Philips Electronics
All rights reserved
