Page 1

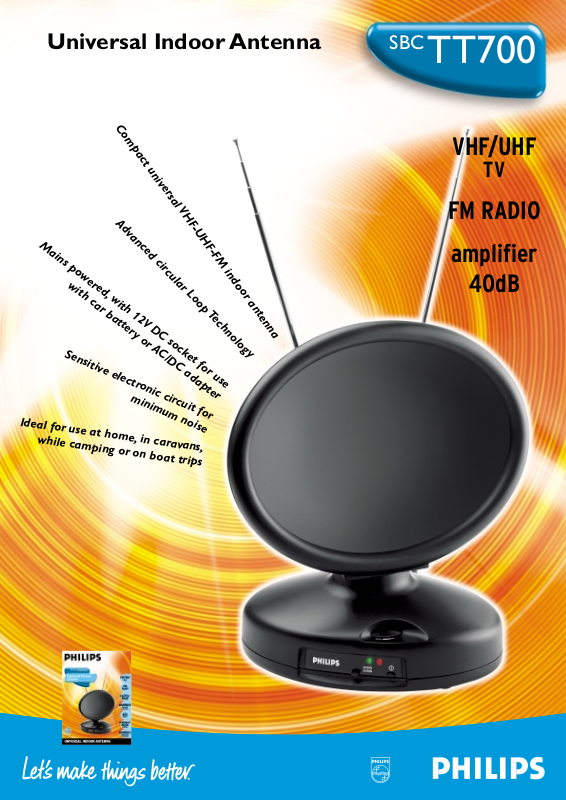

Universal Indoor Antenna
SBC
TT700
Compact universal VHF-UHF-FM indoor antenna
Advanced circular Loop Technology
Mains powered, with 12V DC socket for use
with car battery or AC/DC adapter
Sensitive electronic circuit for
minimum noise
Ideal for use at home, in caravans,
while camping or on boat trips
VHF/UHF
TV
FM RADIO
amplifier
40dB
Page 2
Standard product information
• Telescopic antenna 2
• Turnable parabolic dish Yes
• Polarization Circular incorporated in parabolic ring
• External 75 Ohm antenna input Yes
• Wideband amplifier Yes
• Gain VHF (dB) 40 ± 3
• Gain UHF (dB) 40 ± 3
• Gain control knob Yes
• FM band 88-108 MHz
• Output impedance 75 Ohm
• Antenna cable length (cm) 165
• Signal cable, 75 Ohm with plug (cm) 140
• Mains supply 230-240V AC
• External supply 12 VDC (car battery or AC/DC adapter)
• Int./ext. switch Yes
• On/Off switch Yes
• Standard coax connector DIN 45325
• Power consumption 3VA
• Product weight (gr) 797
• Safety release According to EN 60065
• EMC According to EN 55014 and EN 55104
• VDE approved Yes
Dealer information
Packaging
• Type Closed gift box
• Material Carton
• Dimensions (mm) 335 x 250 x 145
• Weight (gr) 1009
• Instructions For Use Yes, in 13 languages
• 12NC 9082 100 00321
• Barcode (EAN) 87 10101 66402 6
• Country of origin Italy
• Outer carton 10 pcs
• Dimensions (mm) 350 x 510 x 730
• Weight (kg) 11
• Outer carton barcode 87 10101 99545 8
SBC
TT700
Excellent picture quality, wherever you are
The SBC TT700’s built-in amplifier and gain control feature
ensures excellent picture quality at all times. It can be
mains and battery operated (from a car battery or via an
AC/DC adapter), making it ideal for home use or while travelling.The external antenna input enables it to be used with
external systems.
Compact universal VHF-UHF indoor antenna
The compact SBC TT700’s two VHF telescopic antennas are
retractable for convenience, and its UHF parabolic dish is
rotatable for excellent TV reception. Suitable for both analogue and digital TV sets.
Built-in wideband amplifier with gain control for
high-quality reception up to 40 dB
The built-in wideband amplifier’s gain of up to 40 dB for
UHF channels ensures optimum signal reception always,
while the gain control can be adjusted to further enhance
picture quality.
Mains powered, with 12V DC socket for use with
car battery or AC/DC adapter
The SBC TT700 can be mains powered (230-240V AC), and
its 12V DC socket enables it to be powered from a car battery or AC/DC adapter.
Sensitive electronic circuit for minimum noise
Only high-quality electronic components are used to ensure
minimum background noise so that reception is always
excellent quality.
Built-in FM band 88-108 MHz
For exceptionally high-quality radio signals in FM stereo.
Advanced circular Loop Technology
Ensures excellent signal reception of UHF channels.
Ideal for use at home, in caravans, while camping
or on boat trips
Thanks to its compact size and portability.
Elegant Italian design and attractive price tag
Its very elegant Italian design makes this antenna look
great on top of any TV, and customers will also be attracted
to its very competitive price tag.
Rubber pads for extra stability
Soft rubber pads on the base of this antenna provide extra
stability and make it suitable for use on all types of surfaces.
Universal Indoor Antenna
