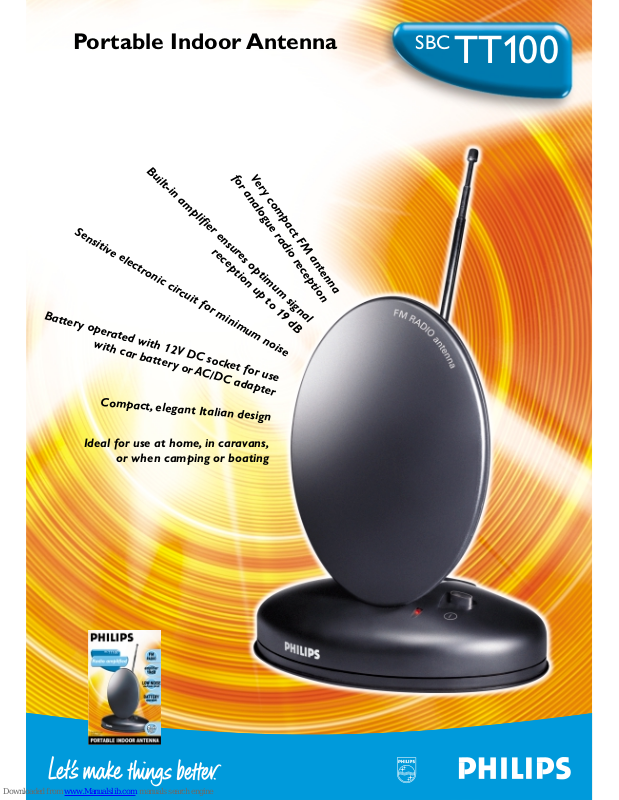

Philips SBCTT100/00, SBCTT100/05, SBCTT100/19, SBC TT100 Specifications

Portable Indoor Antenna

SBC

TT100

Very compact FM antenna

for analogue radio reception

Built-in amplifier ensures optimum signal

reception up to 19 dB

Sensitive electronic circuit for minimum noise

Battery operated with 12V DC socket for use

with car battery or AC/DC adapter

Compact, elegant Italian design

Ideal for use at home, in caravans,

or when camping or boating

Standard product information SBCTT100

• Telescopic antenna 1

• External antenna input No

• Gain (dB) 19 (±3)

• FM band 88 - 108 MHz

• Output impedance 75 Ohm

• Signal cable length (cm) 140

• Power supply Battery operated, 2xLR03 AAA, 1.5V (not included)

• External supply 12 VDC (car battery) or AC/DC adapter

• On/Off switch Yes

• Power indicator Yes

• Standard coax connector DIN 45325

• Power consumption 5 mA (battery)

• Product weight (gr) 220

• Safety release According to EN 60065

• EMC According to EN 55014 and EN 55104

• VDE approved Yes

Dealer information
Packaging

• Type Closed gift box

• Material Carton

• Dimensions (mm) 310 x 172 x 106

• Weight (gr) 345

• Instructions For Use Yes, in 13 languages

• 12NC 9082 100 00155

• Barcode (EAN) 87 10101 650784

• Country of origin Italy

• Outer carton 10 pcs

• Dimensions (mm) 525 x 350 x 315

• Weight (kg) 3.9

• Outer carton barcode 87 10101 982830

SBC

TT100

Stylish, very compact and excellent performance

Designed to receive radio signals, this very compact indoor
antenna combines optimum signal quality with minimum
noise. It is elegantly designed and is ideal for use at home,
in caravans, or when camping or boating.

Very compact FM antenna for analogue radio
reception

The SBC TT100 provides excellent FM radio reception and
is designed for use with analogue audio sets.

Built-in amplifier ensures optimum signal
reception up to 19 dB

The built-in amplifier’s gain of up to 19 dB ensures
optimum FM radio signal reception.

Battery operated with 12V DC socket for use with
car battery or AC/DC adapter

The SBC TT100’s 12V DC socket enables it to be powered
from a car battery or AC/DC adapter, so it’s ideal for use
on holiday trips.

Sensitive electronic circuit for minimum noise

Only high-quality electronic components are used to
ensure minimum background noise so that reception is
always excellent quality.

Rubber pads for extra stability

Soft rubber pads on the base of this antenna provide
extra stability and make it suitable for use on all types of
surfaces.

Compact, elegant Italian design

Makes this antenna look great on top of any audio
system.

Ideal for use at home, in caravans or when
camping or boating

Thanks to its compactness, portability and excellent
performance.

Portable Indoor Antenna
