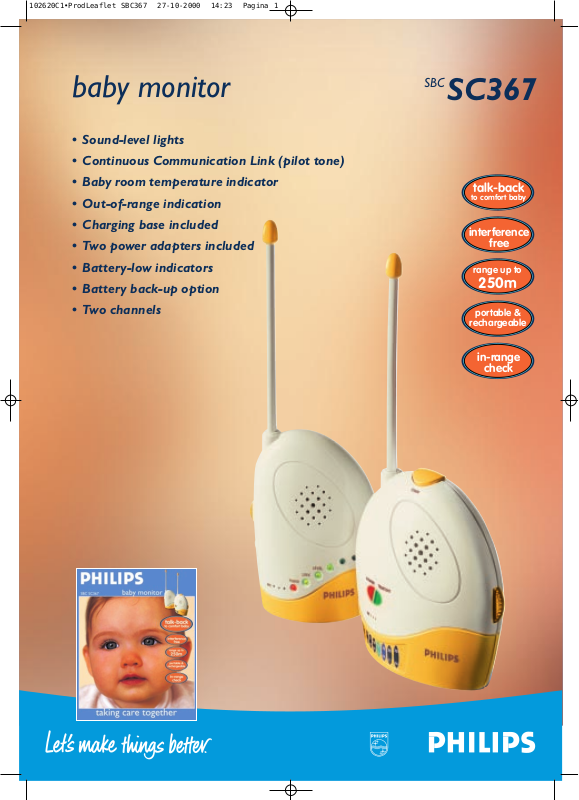

Page 1
baby monitor
interference
free
portable &
rechargeable
in-range
check
250m
range up to
talk-back
to comfort baby
• Sound-level lights
• Continuous Communication Link (pilot tone)
• Baby room temperature indicator
• Out-of-range indication
• Charging base included
• Two power adapters included
• Battery-low indicators
• Battery back-up option
• Two channels
SC367
SBC
102620C1•ProdLeaflet SBC367 27-10-2000 14:23 Pagina 1
Page 2
Standard product information
System information
• Power Supply 4x 1.5V, LR6/AA batteries for Baby unit (not included)
4x 1.2V, LR6/AA NiMH rechargeable batteries for
Parent unit (included)
Power adapter DC 9V, 200mA (2x included)
• Battery operation time Up to 30 hours (Baby unit)
Up to 12 hours (Parent unit)
• Operating voltage DC 9 Volt
• Transmission frequencies (/86&/87 version) Channel A 40.695 MHz
Channel B 40.675 MHz
• Number of pilot tone codes 4
• Operating temperature 0º C to 40º C
• Storage temperature 0º C to 50º C
• Operating range Up to 250 meters (open air)
• Packaging content 1 x Baby unit
1 x Parent unit
1 x charging base
2 x 9V AC/DC power adapter
4 x 1.2V, LR6/AA NiMH rechargeable batteries for Parent
unit
Instructions for use
1 x carton packaging box (with flap)
• 12 NC /86U 9082 100 00408
/87U 9082 100 00407
/16U 9082 100 00486
• EAN / Barcode /86U 87 10101 67322 6
/87U 87 10101 67321 9
/16U 87 10101 67677 7
Packaging information
• Type Corrugated carton window gift box
• Weight 1.32kg
• Material 90% recycled
• Dimensions (cm) 24.0 x 8.2 x 30.5
• Languages packaging /86 English, French, German,Dutch
/87 English, Spanish, Portuguese, Italian
• Languages IFU (12) English, French, Spanish,German, Dutch, Italian,
Portuguese, Greek, Swedish,Norwegian, Finnish,
Danish
Outer carton
• Contents 3
• Dimensions (cm) 31.8x25.5x26.0
• Weight (gross) 4.44 kg
• EAN / Barcode /16U 87 10101 87314 5
/86U 87 10101 87315 2
/87U 87 10101 87316 9
• Country of origin China
This Philips baby monitor & intercom system lets you get on
with your work or simply relax by yourself or with friends,
secure in the knowledge that baby is resting peacefully or
playing happily. Easy to install and use, this model has a
special talk-back feature so you can comfort your baby no
matter where you are in the house.
Talk-back to comfort baby
Reassure your baby by letting it hear the soothing tones of your
voice. Use this feature as an intercom when baby gets older.
Interference free
Advanced technology ensures no interference from other
cordless devices or other brands of baby monitor.
Range up to 250m
Gives you the freedom to bring the Parent unit with you
anywhere around the house.
Portable and rechargeable
Rechargeable batteries in the Parent unit last up to 12 hours
before recharging is needed.
In-range check
The Link light lights continuously when everything is O.K.
and emits an audio and visual alarm if you go outside the
operational range.
Sound-level lights
Let you watch the level of the baby’s sounds with the volume
turned down.
Continuous Communication Link (pilot tone)
Hidden signal that ensures a continuous link between both
units so you only hear your baby’s sounds.
Baby room temperature indicator
Lets you keep a watchful eye on the temperature in baby’s
room.
Out-of-range indication
The Parent unit automatically checks that it is within range and
alerts you if you go outside the reliable operational range.
Charging base included
For quick and easy charging of the batteries.
Two power adapters included
For immediate operation of both units from the mains supply.
Battery-low indicators
Tell you immediately when your batteries are low.
Battery back-up option
Ensures operating reliability at all times.
Two channels
For reliable, interference-free operation.
Two AC power adapters included.
Rechargeable batteries for Parent unit included.
Baby unit batteries optional.
baby monitor
SC367
SBC
102620C1•ProdLeaflet SBC367 27-10-2000 14:23 Pagina 2
