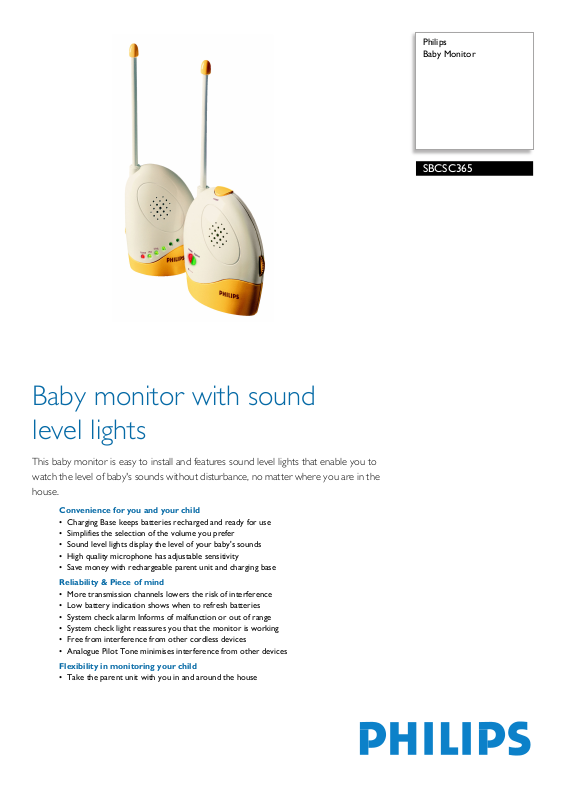

Philips SBCSC365 User Manual
For preview purpose only
Philips
Baby Monitor
SBCSC365
Baby monitor with sound
level lights
This baby monitor is easy to install and features sound level lights that enable you to
watch the level of baby's sounds without disturbance, no matter where you are in the
house.
Convenience for you and your child
• Charging Base keeps batteries recharged and ready for use
• Simplifies the selection of the volume you prefer
• Sound level lights display the level of your baby's sounds
• High quality microphone has adjustable sensitivity
• Save money with rechargeable parent unit and charging base
Reliability & Piece of mind
• More transmission channels lowers the risk of interference
• Low battery indication shows when to refresh batteries
• System check alarm Informs of malfunction or out of range
• System check light reassures you that the monitor is working
• Free from interference from other cordless devices
• Analogue Pilot Tone minimises interference from other devices
Flexibility in monitoring your child
• Take the parent unit with you in and around the house
For preview purpose only
Baby Monitor
Technical specifications Product highlights
Tuner / Reception / Transmission
• Frequency band: 40.675 - 40.690 MHz
• Number of pilot tones: 4
• Pilot tone: Analogue
• Maximum range: 250 m
• Number of channels: 2
Convenience
• Auto out of range warning
• Battery charging indication
• Battery low indication
• Power on indication
• Sound level lights
• System check: Battery check light
•Volume control
Accessories
• AC/DC adaptor: 2x 9V DC 200mA
• Batteries: 4 x AA baby unit not incl.
• Belt clip: Belt clip on parent unit
• Charger: Charging base for parent unit
• User manual
Power
• Battery voltage: 4.8 V
• Operating time on battery: 12 hr
•
SBCSC365/05U
Charging base
Thanks to the built in battery charger in the base, you
get extra freedom (when fully charged) to take the
pa ren t un it wit h yo u ar oun d th e ho me and sta y in touch
with your baby. It' s also a convenient place to store the
parent unit, and ensure it's always ready for use.
Volume control
A handy rotary control sets the volume to the ideal level
to suit your preference.
Sound level lights
Sometimes its a great help to 'see' when your baby
makes a sound. This row of lights provide you with a
clear visual indication.
Adjust microphone sensitivity
Possibility to set the sensitivity of the microphone so you
only hear the sounds you want to hear.
Rechargeable parent unit
Putting the parent unit on the charging base will
automatically start recharging of the batteries, so it's
always ready for portable use.
Number of channels
A choice of channels significantly reduces the risk of
interference or sounds from other baby monitors in the
neighbourhood.
Low battery indication
To know in time when the batteries need to be
recharged or replaced.
System check alarm
The parent unit gives an audible alarm when it is
outside the communication range of the baby unit or
when the communication link is not reliable.
System check light
Green light on the parent unit lights when the
connection between the baby and the parent unit is
reliable and flashes when the parent unit is outside the
range of the baby unit or when the communication link
is not reliable.
Interference free
To ensure that you stay in contact with your baby, the
link between parent unit and baby unit incorporates
technology that shuts out unwanted noise and signals
from other cordless devices. You only hear your baby.
Analogue Pilot Tone
A special tone that is transmitted along with the audio
signal minimises the chance of interference from other
wireless appliances.
Use in & around the house
Rest assured that as you take the parent unit with you
as you move in and around your house, the parent unit
will stay in touch with the baby unit. It keeps you
reassuringly informed and able to respond quickly when
baby calls.
Range in open air
In the open air with no obstacles, the safe distance
between the baby unit and parent unit is greater than
indoors, so you can take the parent unit with you into
the garden or to the neighbour's house without losing
contact.
Date of issue 2006-07-07
Version: 2.0
12 NC: 9082 100 00448
EAN: 87 10101 67410 0
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
