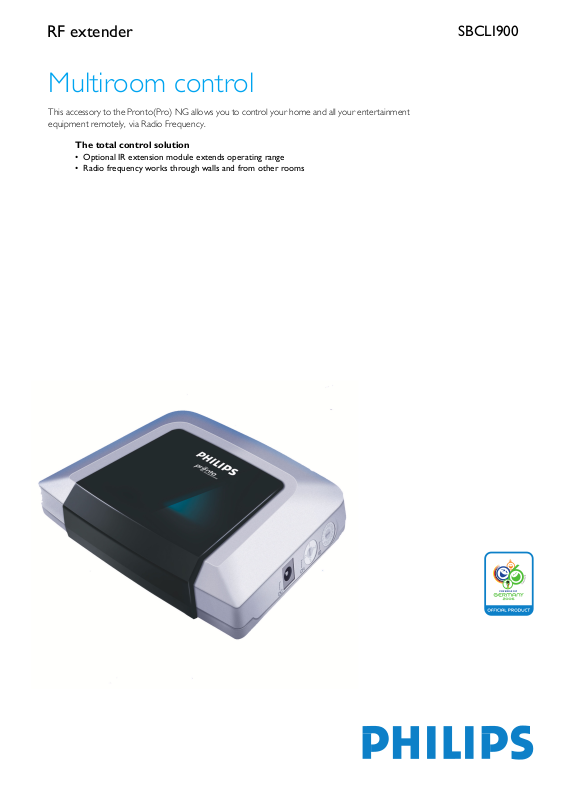

Philips SBCLI-900 Brochure
RF extenderSBCLI900SBCLI900/00RF extendercontinued
RF extender
Multiroom control
This accessory to the Pronto(Pro) NG allows you to control your home and a ll your ent ertai nment
equipment remotely, via Radio Frequency.
The total control solution
• Optional IR extension module extends operating range
• Radio frequency works through walls and from other rooms
SBCLI900
RF extender
SBCLI900/00
Technical specifications
Infrared Capabilities
• Transmitting LEDs: 5
• IR emitter connectors: 4
RF Capabilities
• Adresses (ID's): 16
• Channels: 4
• Communication: 1-way
• Frequency (MHz): 433
Connectivity
• IR emitter connectors: 4
• Power: 230 V 50 Hz power adapter
Convenience
• Error indication
Power
• Mains power: 230V (+/-10/-15%)/50Hz
Dimensions
• Master carton weight: 0.84 kg
• Master carton quantity: 1
• Product dimensions (W x H x D):
110 x 30 x 79 mm
• Product weight: 0.060 kg
• Temperature Range (Operation): 0 - 50 degree
C
Accessories
• AC/DC Adaptor: 12V DC 400mA
• Dual IR emitter wires: 4
•Printed User Guide
Product highlights
IR extension module
An infrared extension module allows you to control
traditional infrared equipment over a radio frequency
network.
Radio frequency
A radio technology that allows you to control
components not in direct line-of-sight, such as through
wall s or ot her ob stacles . Ther e are t wo typ es of R F used
in rem ote con tro ls: RF t o co mpo nent, a nd R F to inf rar ed.
Date of issue 2005-05-11
Version: 2.0
12 NC: 9082 100 01911
EAN: 87 10895 76813 9
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2005 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
