Philips SBCLI-1000-C Brochure

NetXSBCLI1000SBCLI1000/00NetXcontinued

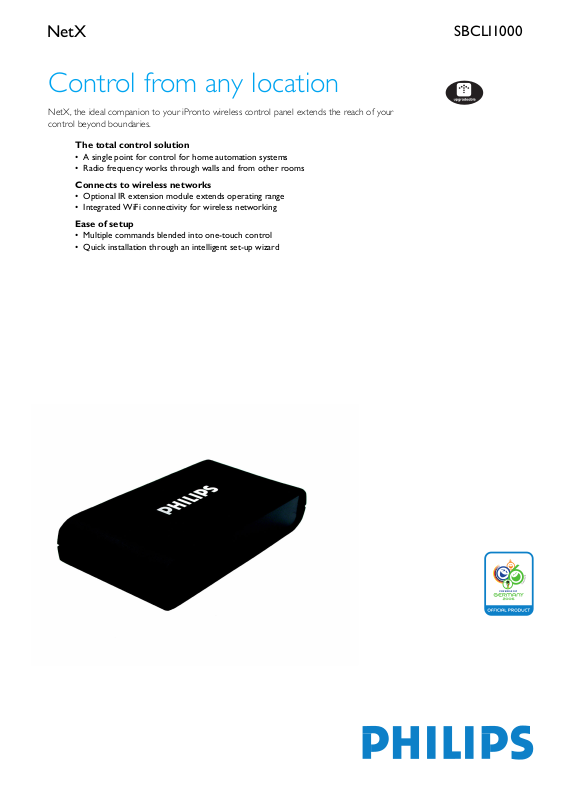

NetX

Control from any location

NetX, the ideal companion to your iPronto wireless control panel extends the reach of your
control beyond boundaries.

The total control solution

• A single point for control for home automation systems

• Radio frequency works through walls and from other rooms

Connects to wireless networks

• Optional IR extension module extends operating range

• Integrated WiFi connectivity for wireless networking

Ease of setup

• Multiple commands blended into one-touch control

• Quick installation through an intelligent set-up wizard

SBCLI1000

NetX

SBCLI1000/00

Technical specifications

Connectivity

• Wireless LAN: 802.11b

• Encryption / security: WEP 128bit

• Network mode: DHCP, Fixed IP

• IR emitter connectors: 4

Infrared Capabilities

• Operating distance: 33 ft (10 m)

• Transmitting LEDs: 5

• IR emitter connectors: 4

Customisation

• Editor application on PC: iProntoEdit

Power

• Mains power: AC 100-240 V 50-60 Hz 500 mA

Dimensions

• Master carton quantity: 1

• Product dimensions (W x H x D):
160 x 85 x 33 mm

• Product weight: 0.2 kg

• Temperature Range (Operation): +5°C/+45°C

Accessories

• AC/DC Adaptor: 5 V 3 A

• Dual IR emitter wires: 4

• Quick start guide

Product highlights

IR extension module

An infrared extension module allows you to control
traditional infrared equipment over a radio frequency
network.

Integrated WiFi

WiFi networking, also known as IEEE 802.11 uses radio
frequency signals to communicate in a similair fashion
as wired computer networks. It uses TCP/IP networking
protocols for the basic communication.

Setup wizard

The setup wizard provides a step by step guide that
tailors the device to perfectly match your home
entertainment system. By learning what equipment you
have, and how it is interconnected, the device creates its
own macros that allow full control of your home
entertainment system.

Home automation control

Control of not only Audio and Video devices but also
other devices in the home such as Lighting, Climate,
Curtains, etc.

One-touch convenience

One-touch convenience allows you to perform multiple
commands with one press of a button via a macro. A
macro combines a string of pre-programmed
commands under one single button. Therefore, it simply
takes one button press to execute a series of functions.

Radio frequency

A radio technology that allows you to control
components not in direct line-of-sight, such as through
walls or ot her obstacl es. There are two ty pes of RF use d
in rem ote con tr ols: R F t o co mp one nt, an d R F to inf ra red .

Date of issue 2005-05-11

Version: 4.0

12 NC: 9082 100 02321
EAN: 87 10895 79157 1

Specifications are subject to change without notice.
