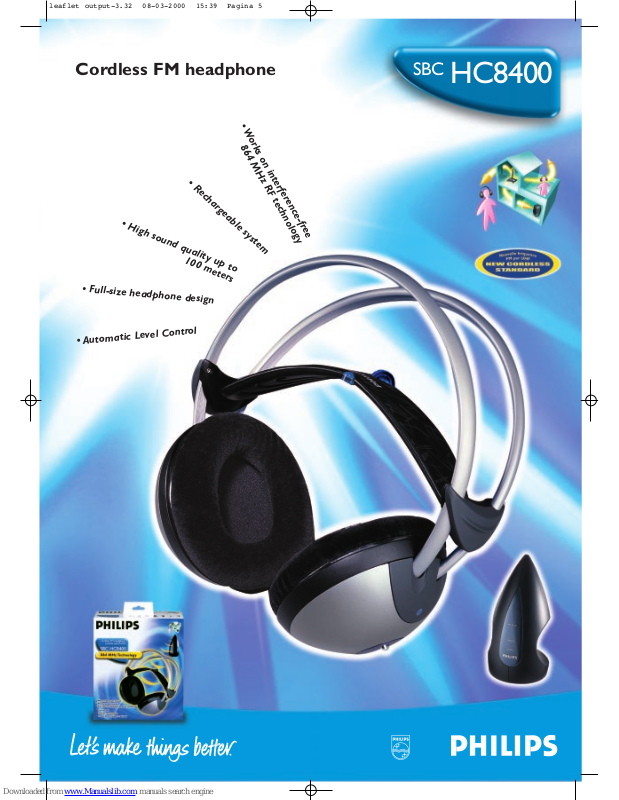

Page 1
• Full-size headphone design
• High sound quality up to
100 meters
• Rechargeable system
• Works on interference-free
864 MHz RF technology
Cordless FM headphone
SBC
HC8400
• Automatic Level Control
leaflet output-3.32 08-03-2000 15:39 Pagina 5
Page 2
Cordless FM headphone
SBC
HC8400
up to 100 meters of free movement;
signals go through walls and doors
Operating on the new 864 MHz RF technology
standard the SBC HC8400 gives you up to 100
meters of moving freedom while enjoying your
favourite sounds, because the signal goes through
walls and doors and is not affected by other RFoperated appliances.
Works on interference-free 864 MHz RF
technology
for high-quality,interference-free sounds anywhere
in and around the house
Rechargeable system
gives up to 15 hours of music on NiCd batteries for
cost-effective operation
High sound quality up to 100 meters
ensures excellent sound quality and total freedom
of movement from the sound source; signals are not
affected by walls or doors
Full-size headphone design
for hours of comfortable listening pleasure
Automatic Level Control
ensures optimum headphone signal reception
Standard product information
System information
• Carrier frequency 863.2 - 864.7 MHz
• Effective linear range Up to 100 meters
• Modulation FM
Transmitter information
• Input sensitivity 150 mV
• Audio input connect 3.5 mm stereo jack
• Audio cable length 2 meter (jack to jack)
• Power supply 12 V, 200 mA
• Mains voltage 200 - 230 V
• Auto shut-off Yes
• ALC Yes
• Cabinet material ABS
• Cabinet colour Black
• Graphics colour Light grey
Receiver information
• Type Electro-dynamic
• Acoustic system Closed
• Frequency range 35 - 18 000 Hz
• Sensitivity 106 dB
• Channel separation > 30 dB
• S/N ratio > 60 dB
• Batteries used 2 x R3,AAA (NiCd)
• Playing time 15 hours (with NiCd batteries)
• Mute Yes
• Volume control Stereo
• Cabinet material ABS
• Cabinet colour Black/metallic
• Graphics colour Silver/black
Packaging information
FM transmitter SBC HC8402
FM Headphone SBC HC8405
AC/DC adapters
Hi-fi audio cable
Rechargeable batteries
Recharge cable
Instructions For Use
3.5 - 6.3 mm stereo adapter
Inner carton
• Type = Carton box
• Size = 305 x 260 x 230 mm
• Qty = 3 pieces
• EAN = 87 10101 97543 6
Product packaging
•Type = giftbox
• Size = 250 x 220 x 98 mm
• Material = 450 gsm ccnb
• 12NC = 9097 210 03435
• EAN = 87 10101 61981 1
Outer carton
• Type = Carton box
• Size = 535 x 320 x 485 mm
• Qty = 12 pieces
• EAN = 87 10101 97544 3
• Weight= 2.8 kg
Country of origin China
Philips Accessories
Data subject to change without notice
4822 021 35581
Printed in The Netherlands
This document is printed on chlorine-free paper.
©1999 Royal Philips Electronics
All rights reserved
http://www.philips.com
