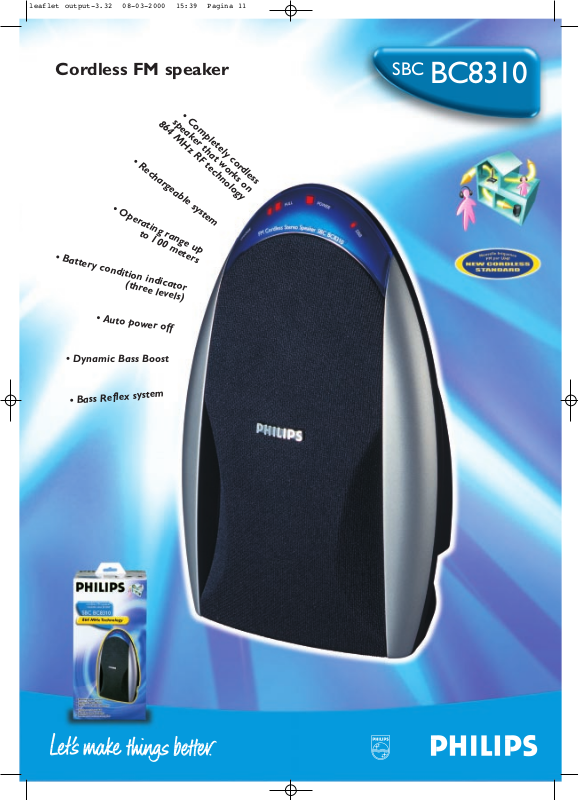

Philips SBCBC8310 User Manual

• Battery condition indicator

(three levels)

• Operating range up

to 100 meters

• Rechargeable system

• Completely cordless

speaker that works on

864 MHz RF technology

Cordless FM speaker

SBC

BC8310

• Auto power off

• Dynamic Bass Boost

• Bass Reflex system

leaflet output-3.32 08-03-2000 15:39 Pagina 11

Cordless FM speaker

Bring your music with you around the house; signals go through walls and doors

Thanks to innovative 864 MHz RF technology you can bring the portable and completely cordless SBC BC8310 anywhere around the house or garden and enjoy the best in sound quality, even up to 100 meters away from the music source.That’s because the transmission signal received by the SBC BC8310 goes through walls and doors and is not affected by other RF-operated appliances.You can also add more of these speakers to the system to give you music wherever you go!

Completely cordless speaker that works on 864 MHz RF technology

for high-quality, interference-free sounds anywhere in and around the house

Rechargeable system

gives up to 12 hours of music on NiCd batteries for cost-effective operation

Operating range up to 100 meters

giving you excellent sound quality anywhere around the house or garden; signals go through walls and doors

Battery condition indicator

indicates how much power is left in your batteries

Auto Power off

automatically switches off the speaker when the transmitter is turned off

Dynamic Bass Boost

for enhancing deep, rich sounds

Bass Reflex system

ensures excellent sound quality, especially in the bass region

Standard product information

• Speaker size 3"

• Acoustic system Bass Reflex

• Frequency range 70 - 20 000 Hz

• Effective range Up to 100 meters

• Carrier frequency Tunable 863.2 - 864.7 MHz

• Modulation FM

• Automatic mute Yes

• Rechargeable Yes

• Batteries included Yes

• PMPO 24 Watts

• Volume control Yes

• On/Off power switch Yes

• Power on indication Yes

• Mono/Stereo switch Yes

• Stereo L/R switch Yes

• Dynamic Bass Boost Yes

• Bass Reflex system Yes

• Bass control No

• Treble control No

• Incredible Sound No

• Auto power off Yes

• Wall mounting possibility No

• Shielded speakers No

• Adjustable listening position No

• Surround Sound No

• Built-in amplifier Yes

• Power supply 8 x R6 (AA) (NiCd)

• Operating time 12 hours with NiCd batteries

• S/N ratio > 60 dB

• Distortion <10% THD

• Material ABS

• Material colour Black

• Graphics colour Grey

• Weight 700g

Packaging information

Speaker SBC BC8310 AC/DC adapter 9V/1000 mA Rechargeable batteries (8) Instructions For Use (12 languages)

Inner carton

• Type = Carton box

• Size = 445 x 178 x 334 mm

• Qty = 3 pieces

• EAN = 87 10101 96954 1

Product packaging

• Type = Giftbox

• Size = 310 x 160 x 140 mm

• Material = 450 gsm ccnb

• 12NC = 9097 210 03323

• EAN = 87 10101 61659 9

Outer carton

• Type = Carton box

• Size = 740 x 464 x 334 mm

• Qty = 12 pieces

• EAN = 87 10101 96955 8

• Weight : 24.2 kg

Country of origin China

Philips Accessories

http://www.philips.com

SBC

BC8310

leaflet output-3.32 08-03-2000 15:39 Pagina 12
