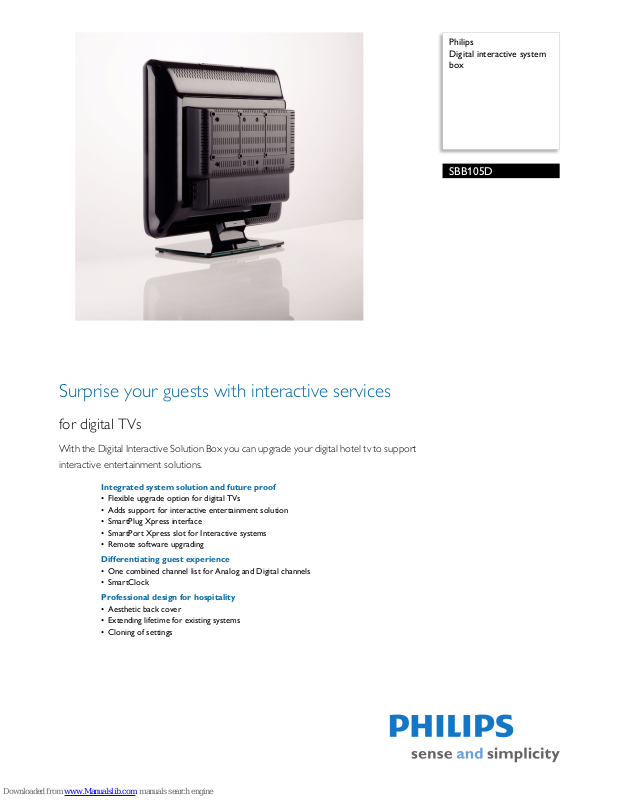

Page 1
Philips
Digital interactive system
box
SBB105D
Surprise your guests with interactive services
for digital TVs
With the Digital Interactive Solution Box you can upgrade your digital hotel tv to support
interactive entertainment solutions.
Integrated system solution and future proof
• Flexible upgrade option for digital TVs
• Adds support for interactive entertainment solution
• SmartPlug Xpress interface
• SmartPort Xpress slot for Interactive systems
• Remote software upgrading
Differentiating guest experience
• One combined channel list for Analog and Digital channels
•SmartClock
Professional design for hospitality
• Aesthetic back cover
• Extending lifetime for existing systems
• Cloning of settings
Page 2
Issue date 2011-02-18
Version: 3.0.8
12 NC: 8670 000 36905
EAN: 87 12581 39425 7
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
Specifications
SBB105D/10
Digital interactive system box
Highlights
Flexible upgrade option
The Express Box 2.0 provides you with a flexible
option to upgrade your existing digital hotel TV.
Adds support for entertainment
The Express Box 2.0 adds support for interactive
entertainment solutions, like video-on demand,
premium TV channels and Internet TV, using existing
32-pin smartcards.
SmartPlug Xpress
The SmartPlug Xpress communication port (RJ-12)
is compatible with all major premium entertainment
services. The protocols enables the TV connection
with external decoders, set-top boxes and PC based
solutions.
SmartPort Xpress slot
The SmartCard Xpress Slot allows third parties to
add new functionality to the TV through application
cards (sold separately).
Remote software upgrading
The TV software that controls hotel-specific
features can be upgraded remotely through a
certified system provider.
One combined channel list
One integrated channel list for digital and analogue
channels. This allows the guest to zapp seemless
between Analogue and Digital channels.
SmartClock
SmartClock offers the possibility to indicate the time
on-screen when zapping though the channels.
Aesthetic back cover
The aesthetic backcover gives your TV a clean and
professional look.
Extending lifetime
You can extend the lifetime of your digital
standalone hotel TV system by upgrading it to an
interactive digital hotel TV.
Cloning of settings
Provides the ability to copy TV settings as well as
analog and digital channel programming from one TV
set to other TV sets. The feature ensures uniformity
between TV sets and significantly reduces installation
time and costs.
Connectivity
• Connectivity Enhancements: RJ12 SmartPlug
connector, SmartCard Expansion Slot, Extra
Power supply 12V/1W, Fast Infrared loop through,
Power on scart
Convenience
• Ease of Installation: Advanced Hotel Mode, Cloning
of TV settings
• VESA Mount: 100 x 100 mm, 200 x 100mm
• Interactive hotel features: Connectivity panel
c
ompatible, Remote diagnostics, Remote software
upgrade, Adjustable subtitle language, Block overthe-air SW download, Smoovie Pay TV
• Clock: Smart Clock
Accessories
• Included accessories: Aesthetic backcover,
External IR receiver, External power adaptor,
Mains power Splitter, Box mounting bracket,
Power supply mounting bracket, RJ48 to 3-pin
cable, Scart to RGB D-sub 15 cable, User Manual,
Warranty Leaflet
• Optional accessories: Set up Remote RC2573GR,
Wireless S
martLoader 22AV1135
Green Specifications
• Passive standby
•SmartPower
Dimensions
• Aesthetic cover (WxHxD): 373.5mm x 246mm x
53mm
• Product weight: 2.85 kg
•Box dimensions (W x H x D):
26
5 x 182 x 396 mm
Related Products
• Compatible with: 20HF5335D, 26HF5335D,
32HF5335D
•
