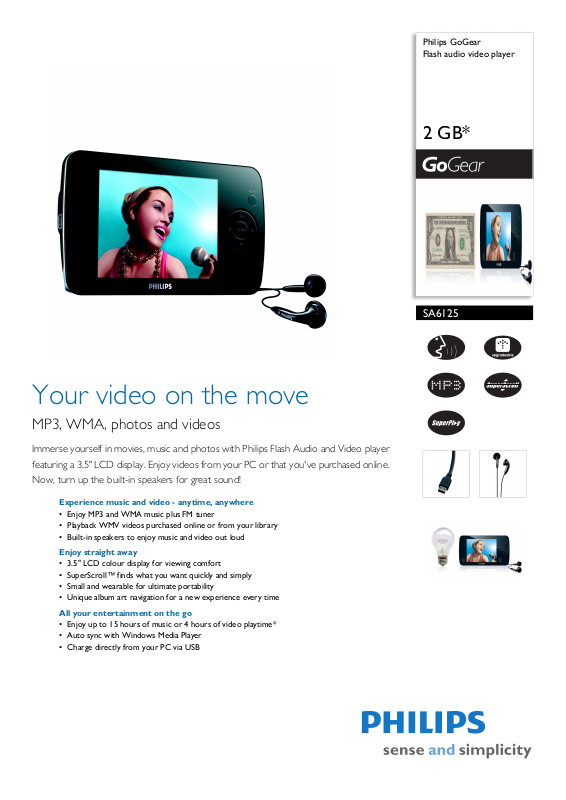

Philips SA6125-02 User Manual

Philips GoGear Flash audio video player

2 GB*

SA6125

Your video on the move

MP3, WMA, photos and videos

Immerse yourself in movies, music and photos with Philips Flash Audio and Video player featuring a 3.5" LCD display. Enjoy videos from your PC or that you've purchased online. Now, turn up the built-in speakers for great sound!

Experience music and video - anytime, anywhere

• Enjoy MP3 and WMA music plus FM tuner

• Playback WMV videos purchased online or from your library

• Built-in speakers to enjoy music and video out loud

Enjoy straight away

• 3.5" LCD colour display for viewing comfort

• SuperScroll™ finds what you want quickly and simply

• Small and wearable for ultimate portability

• Unique album art navigation for a new experience every time

All your entertainment on the go

• Enjoy up to 15 hours of music or 4 hours of video playtime*

• Auto sync with Windows Media Player

• Charge directly from your PC via USB

Flash audio video player

SA6125/02

2 GB*

Specifications Product highlights

Picture/Display

• Backlight

• Lines of text: 7

• Resolution: QVGA, 320 x 240 pixels, 65K colours

• Type: LCD

• Diagonal screen size (inch): 3.5 inch

Sound

• Channel separation: 45 dB

• Equalizer settings: Classic, Jazz, Rock, Funk, Hip Hop, Techno

• Frequency response: 60 - 18k Hz

• Signal to noise ratio: > 85 dB

• Output Power: 2 x 3 mW

• THD: 1%

• Equalizer customisable

Speaker

• Built-in speaker

• Amplifier: Class D amplifier

• Speaker Type: 2 x full-range speaker

• Frequency range: 500 Hz - 18K Hz

• Output Power: 2 x 0.3 W

• Signal/noise ratio: > 60 dB

Audio Playback

• Compression format: MP3, WMA

• ID3 Tag support: Album title and artist name

• MP3 bit rates: 8-320 kbps and VBR

• MP3 sample rates: 8, 11.025, 16, 22.050, 24, 32,

44.1, 48

kHz

• WMA bit rates: 5-320 kbps

• WMA sample rates: 8, 11.025, 16, 22.050, 32,

44.1, 48 kHz

• Digital Rights Management: Windows Media DRM for Portable Devices, Supports download & subscription music services

Audio Capturing

• Audio file format: WAV

• Built-in microphone: mono

• Voice recording: ADPCM

Storage Media

• Built-in memory capacity: 2 GB

• Built-in memory type: NAND Flash

• Music memory capacity, WMA: Up to 900 tracks*

Tuner/reception/transmission

• Tuner Bands: FM

• Station presets: 20

Connectivity

• Headphones: 3.5 mm

• USB: High-speed USB 2.0

Convenience

• Firmware upgradeable

• Function: Keypad lock

• Battery charging indication: On User Interface

• Battery low indication

• SuperPlay

• Superscroll

• Volume control

Accessories

• CD-ROM: Yes, with IFU, Device Manager, Media converter & Windows Media Player

• Headphones: AY3815

• Quick start guide

• USB cable: AY3930

Software

• Device manager: to restore and upgrade

• Media Converter for Philips: Converts the following formats to player: AVI (Microsoft video1 fo rmat ), MP EG- 1, 2, 4, DV D (* .vob ), MO V, W MV, RM etc. Needs QuickTime (for MOV) and WMP10 or above (for WMV) installations.

• Windows Media Player 11

Green Specifications

• Lead-free soldered product

System Requirements

•CD-ROM drive

• Internet connection: Yes (for access to updated support documents, manuals, future firmware and PC software upgrades)

• PC OS: Windows XP (SP2) or Windows Vista

• USB: Free USB port

Dimensions

• Blister dimensions (WxDxH): 196 x 30 x 214 mm

• Packaging type: Clamshell

• Product dimensions (WxDxH): 124 x 12.7 x 74 mm

• Product weight: 0.153 kg

Power

• Battery capacity: 1000mAh

• Battery Type: LI-Polymer

• Play time on internal battery: Up to 20 hours audio or 5 hours video

• Rechargeable: Yes, via USB

Still Picture Playback

• Picture compression format: JPEG

•Slideshow

Video Playback

• Digital Rights Management: Windows Media DRM for Portable Devices, Supports download, subscription & rental video services

• WMV9: Up to 384 kbps, 320 x 240, 30 fps (Other formats supported by using provided converter software)

•

SuperScroll™

Do ubl e ac ti on s ear ch k eys all ow e as y sp eed con tro l when scrolling through large libraries. You can choose to move through your playlist one song or video at a time or just press and hold down a little harder to SuperScroll™ swiftly to your desired file.

Unique album art navigation

Issue date 2009-02-06

Version: 1.0.6

12 NC: 8670 000 34037 EAN: 87 12581 36451 9

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* 1 GB = 1 billion bytes; available storage capacity will be less. * Rechargeable batteries have a limited number of charge cycles and

may eventually need to be replaced. Battery life and number of charge cycles vary by use and settings.

* Windows Media and the Windows logo are trademarks or

registered trademarks of Microsoft Corporation in the United States and/or other countries.

* Actual transfer speed may vary based on your operating system and

software configuration.

* Supports download and subscription services compatible with

WMA DRM10
