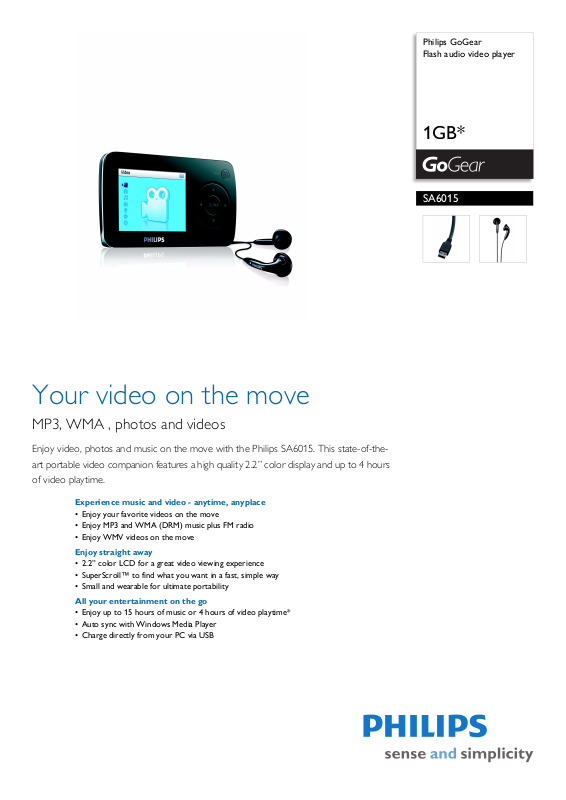

Philips SA6015-97 User Manual
Philips GoGear
Flash audio video player
1GB*
SA6015
Your video on the move
MP3, WMA , photos and videos
Enjoy video, photos and music on the move with the Philips SA6015. This state-of-theart portable video companion features a high quality 2.2” color display and up to 4 hours
of video playtime.
Experience music and video - anytime, anyplace
• Enjoy your favorite videos on the move
• Enjoy MP3 and WMA (DRM) music plus FM radio
• Enjoy WMV videos on the move
Enjoy straight away
• 2.2” color LCD for a great video viewing experience
• SuperScroll™ to find what you want in a fast, simple way
• Small and wearable for ultimate portability
All your entertainment on the go
• Enjoy up to 15 hours of music or 4 hours of video playtime*
• Auto sync with Windows Media Player
• Charge directly from your PC via USB
Flash audio video player
1GB*
SA6015/97
Specifications
Picture/Display
•Backlight
•Lines of text: 7
• Resolution: QVGA, 320 x 240 pixels, 65K colours
•Type: LCD
• Diagonal screen size (inch): 2.2 inch
Sound
• Channel separation: 40 dB
• Equalizer settings: Classic,
Hop, Techno
• Frequency response: 60 - 18k Hz
• Signal to noise ratio: > 85 dB
• Output Power: 2 x 3mW
•THD: 1%
Audio Playback
• Compression format: MP3, WMA
• ID3 Tag support: Album title and artist name
• MP3 bit rates: 8-320 kbps and VBR
• MP3 sample rates: 8, 11.025, 16, 22.050, 24, 32,
.1, 48 kHz
44
• WMA bit rates: 5-320 kbps
• WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1,
kHz
48
• Digital Rights Management
for Portable Devices, Supports download &
subscription music services
Audio Capturing
• Audio file format: WAV
• Built-in microphone: mono
• Voice recording: ADPCM
Jazz, Rock, Funk, Hip
: Windows Media DRM
Accessories
• CD-ROM: Yes , with IFU, Device Manager, Media
converter & Windows Media Player
• Headphones: AY3815
•Quick start guide
• USB cable: AY3930
Software
• Device manager: to restore and upgrade
• Media Converter for Philips
formats to player : AVI(Microsoft video1 format),
MPEG-1,2,4, DVD(*.vob),MOV,WMV,RM etc.
Needs Quicktime (for MOV) and WMP10 or
above (for WMV) installations.
• Windows Media Player 11
: Converts following
Green Specifications
• Lead-free soldered product
System Requirements
•CD-ROM drive
• Internet connection: Yes (for access to updated
upport documents, manuals, future firmware and
s
PC software upgrades)
• PC OS: Windows XP (SP2) or Windows Vista
• USB: Free USB port
Dimensions
• Blister dimensions (WxDxH): 135 x 39 x 195 mm
• Packaging type: Clamshell
• Product dimensions (WxDxH): 93.5 x 53.2 H x
.5 mm
12
• Product weight: 0.075 kg
Highlights
SuperScroll™
Double action search keys allow easy speed control
when scrolling through large libraries. You can
choose to move through your playlist one song or
video at a time or just press and hold down a little
harder to SuperScroll™ swiftly to your desired file.
Storage Media
• Built-in memory capacity: 1 GB
• Built-in memory type: NAND Flash
• Music memory capacity, WMA: Up to 450 tracks*
Tuner/Reception/Transmission
• Tuner Bands: FM
• Station presets: 10
Connectivity
• Headphone: 3.5 mm
•USB: High speed USB 2.0
Convenience
• Firmware upgradeable
• Function: Keypad lock
• Battery charging indicatio
• Battery low indication
•SuperPlay
•Superscroll
•Volume control
n: On User Interface
Power
• Battery capacity: 800mAh
•Battery Type: LI-Polymer
• Playtime on internal battery: Up
or 4 hours video
• Rechargeable: Yes, via USB
to 15 hours audio
Still Picture Playback
• Picture compression format: JPEG
•Slide show
Video Playback
• Digital Rights Management: Windows Media DRM
for Portable Devices, Supports
download,subscription & rental video services
• WMV9: Upto 384kbps, 320x240 , 30fps (Other
ormats supported by using provided converter
f
software)
•
Issue date 2009-04-05
Version: 2.2.11
12 NC: 8670 000 30673
EAN: 87 12581 33940 1
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
