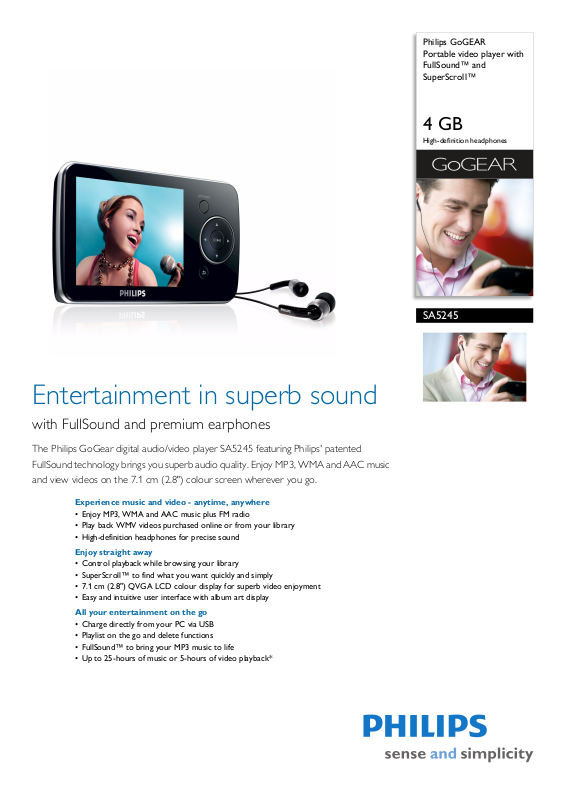

Page 1
Philips GoGEAR
Portable video player with
FullSound™ and
SuperScroll™
4 GB
High-definition headphones
SA5245
Entertainment in superb sound
with FullSound and premium earphones
The Philips GoGear digital audio/video player SA5245 featuring Philips' patented
FullSound technology brings you superb audio quality. Enjoy MP3, WMA and AAC music
and view videos on the 7.1 cm (2.8") colour screen wherever you go.
Experience music and video - anytime, anywhere
• Enjoy MP3, WMA and AAC music plus FM radio
• Play back WMV videos purchased online or from your library
• High-definition headphones for precise sound
Enjoy straight away
• Control playback while browsing your library
• SuperScroll™ to find what you want quickly and simply
• 7.1 cm (2.8") QVGA LCD colour display for superb video enjoyment
• Easy and intuitive user interface with album art display
All your entertainment on the go
• Charge directly from your PC via USB
• Playlist on the go and delete functions
• FullSound™ to bring your MP3 music to life
• Up to 25-hours of music or 5-hours of video playback*
Page 2
Portable video player with FullSound™ and SuperScroll™
4 GB High-definition headphones
Highlights
SA5245/02
High-definition headphones
Designed according to the curvature of the
hu
man canals, these ergonomically designed
headphones with exceptional noise-isolation
feature precisely direct soundwaves from the
speaker to your ear drums with highest
definition.
SuperScroll™
Double action search keys allow easy speed
c
ontrol when scrolling through large libraries.
You can choose to move through your playlist
one song or video at a time or just press and
hold down a little harder to SuperScroll™
swiftly to your desired file.
FullSound™
Philips' innovative FullSound technology
faithfully
MP3 music, dramatically enriching and
enhancing it, so you can experience CD music
restores sonic details to compressed
without any distortion. Based on an audio
post-processing algorithm, FullSound
combines Philips' renowned expertise in music
reproduction with the power of the latest
generation Digital Signal Processor (DSP). The
result is fuller bass with more depth and
impact, boosted voice and instrument clarity,
and rich detail. Rediscover your compressed
MP3 music in true-to-life sound that will touch
your soul and move your feet.
Page 3
Portable video player with FullSound™ and SuperScroll™
4 GB High-definition headphones
Specifications
SA5245/02
Picture/Display
• Diagonal screen size (inch): 2.8 inch
•Lines of text: 7
• Resolution: QVGA, 320 x 240 pixels, 262K colours
•Backlight
•Type: LCD
Sound
• Equalizer customisable
• Frequency response: 20 - 18 k Hz
• Output Power: 2 x 2.4 mW
• Signal to noise ratio: > 84 dB
• THD: 0.05% at 1 kHz
• Channel separation: 45 dB
• Equalizer settings: Classic, D
Hop, Jazz, Lounge, Pop, RnB, Rock, Spoken word
• Sound Enhancement: FullSound
ance, Electronica, Hip
Audio Playback
• MP3 bit rates: 8-320 kbps and VBR
• Compression format: MP3, WMA, AAC
• WMA bit rates: 5-320 kbps
• WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1,
kHz
48
• Digital Rights Management
for Portable Devices, Supports download and
subscription music services
• ID3 Tag support: Album title and artist name
• MP3 sample rates: 16, 32, 44.1, 48, 11.025, 22.050,
, 8 kHz
24
: Windows Media DRM
Still Picture Playback
• Picture Compression Format: JPEG
•Slideshow
•Quick start guide
• Pouch: AY4255
Software
• Device manager: to restore and upgrade
• Media Converter for Phili
following formats to player: AVI, MOV, RM, WMV
etc. Needs Quicktime (for MOV), Realplayer (for
RM) and WMP10 or above (for WMV)
installations.
• Windows Media Player 11
ps: Converts the
Green Specifications
• Lead-free soldered product
System Requirements
• PC OS: Windows XP (SP2) or Windows Vista
• Internet connection: Yes (for access to updated
upport documents, manuals, future firmware and
s
PC software upgrades)
•CD-ROM drive
• USB: Free USB port
Power
• Battery capacity: 880 mAh
• Play time on internal battery: Up to 30 hours' audio
6 hours' video
or
•Battery Type: LI-Polymer
• Rechargeable: Yes, via USB
Dimensions
• Product weight: 0.095 kg
• Product dimensions (WxDxH): 106 x 9.9 x 58 mm
• Packaging type: D-box
Storage Media
• Built-in memory type: NAND Flash
• Built-in memory capacity: 4 GB
Connectivity
• Headphones: 3.5 mm
•USB: High-speed USB 2.0
Convenience
• Battery charging indication: On User Interface
• Battery low indication
• Function: Keypad lock
•Superscroll
•Volume control
• Firmware upgradeable
Accessories
• CD-ROM: Yes, with IFU, Device Manager, Media
converter and Windows Media Player
• Headphones: AY3817
• USB cable: AY3930
Issue date 2012-02-03
Version: 4.0.11
12 NC: 8670 000 36923
EAN: 87 12581 39437 0
Tuner/Reception/Transmission
• Station presets: 20
•Tuner Bands: FM
• RDS: Programme Type, Radio Text, Station
formation, Station Name
In
Video Playback
• MPEG4 SP: Up to 640 kbps in avi format,
320 x 240, 30 fps (Other formats supported by
using pro
• WMV9: Up to 512 kbps, 320 x 240, 30 fps (Other
f
software)
• Digital Rights Management: Windows XP (SP2) or
Windo
vided converter software)
ormats supported by using provided converter
ws Vista
Audio Capturing
• Audio file format: WAV
• Built-in microphone: mono
• Voice recording: ADPCM
• FM radio recording
•
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
* 1 GB = 1 billion bytes; available storage capacity will be less.
* Rechargeable batteries have a limited number of charge cycles and
m
ay eventually need to be replaced. Battery life and number of
charge cycles vary by use and settings.
* Windows Media and the Windows logo are trademarks or
registered trademarks of Microsoft Corporation in the United States
and/or other countries.
* Actual transfer speed may vary based on your operating system and
software configuration.
* Supports download and subscription services compatible with WMA
DRM10
* From Philips
* The BBC iPlayer service is available in the UK only
