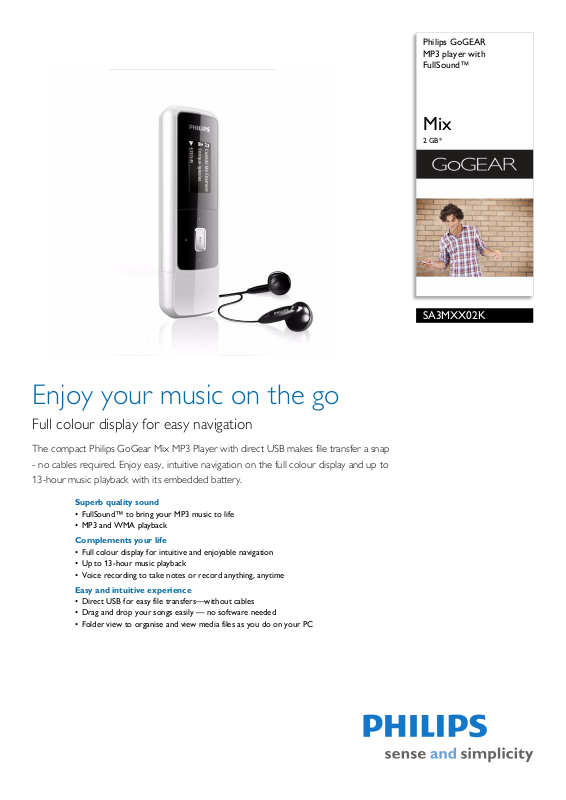

Page 1

Philips GoGEAR MP3 player with FullSound™

Mix

2 GB*

SA3MXX02K

Enjoy your music on the go

Full colour display for easy navigation

The compact Philips GoGear Mix MP3 Player with direct USB makes file transfer a snap

- no cables required. Enjoy easy, intuitive navigation on the full colour display and up to 13-hour music playback with its embedded battery.

Superb quality sound

• FullSound™ to bring your MP3 music to life

• MP3 and WMA playback

Complements your life

• Full colour display for intuitive and enjoyable navigation

• Up to 13-hour music playback

• Voice recording to take notes or record anything, anytime

Easy and intuitive experience

• Direct USB for easy file transfers—without cables

• Drag and drop your songs easily — no software needed

• Folder view to organise and view media files as you do on your PC

Page 2

MP3 player with FullSound™

Mix 2 GB*

Highlights

SA3MXX02K/02

FullSound™

Philips' innovative FullSound technology faithfully restores sonic details to compressed MP3 music, dramatically enriching and enhancing it, so you can experience CD music without any distortion. Based on an audio post-processing algorithm, FullSound combines Philips' renowned expertise in music reproduction with the power of the latest generation Digital Signal Processor (DSP). The result is fuller bass with more depth and impact, boosted voice and instrument clarity, and rich detail. Rediscover your compressed MP3 music in true-to-life sound that will touch your soul and move your feet.

MP3 and WMA playback

Audio compression technology allows large digital music files to be reduced up to 10 times in size without radically degrading their audio quality. MP3 or WMA are two of the compression formats that let you enjoy a world of digital music on your GoGear player. Download MP3 or WMA songs from authorised music sites on the Internet or create your own MP3 or WMA music files by ripping your audio CDs and transferring them onto your player.

Up to 13-hour music playback

This player's long-lasting power comes in the form of 13 hours of continuous music playback on just one single charge.

Voice recording

Voice recording converts your GoGear player into a handy dictation machine. Besides playing music or listening to the radio, you can also record notes or reminders for work or school, record shopping lists and phone numbers – even song lyrics. By pressing the recording button and speaking into the built-in microphone, voice messages are compressed and stored in the built-in internal memory. Voice recording gives you a highly portable voice recorder allowing you to record anything, anytime and anywhere!

Direct USB

automatically recognise the device as a removable USB mass storage device (Windows 98 requires additional drivers), allowing you to easily drag and drop files via Windows Explorer (or Apple Folders) between your computer and device. Simply pack your device with music and data on the go

- every day.

Drag and drop your songs

You can quickly and easily copy your music collection from your PC to your GoGear player. Simply connect your GoGear to your PC while in Windows® Explorer, select the songs or the folders that you want to copy to your player, then drag the selected files to the GoGear's music folder. It is that simple. No additional software installation is needed!

Folder view

Folder view is an optional directory view of the GoGear player that lets you view all the files on your player as if it were a computer. Once you select Folder view, opening any supported file (i.e. music, pictures or videos) is as easy as selecting the file and hitting Play.

Full colour display

Full colour display for intuitive and enjoyable navigation

Devices with direct USB can be plugged directly into the USB port of your PC without the need for a cable. Your computer will

Page 3

MP3 player with FullSound™

Mix 2 GB*

Specifications

SA3MXX02K/02

Picture/Display

•Backlight

•Type: LCD

• Resolution: 128 x 64

•Lines of text: 3

Sound

• Equalizer customisable

• Equalizer settings: Funk, Hip Hop, Jazz, Rock, echno, Classical

• Sound Enhancement: FullSound

• Channel separation: 40 dB

• Frequency response: 40 - 18,000 Hz

• Output power (RMS): 10 mW

• Signal to noise ratio: > 78 dB

Audio Playback

• Compression format: MP3, WMA, FLAC, APE

• ID3 Tag support: Song title, artist, album

• Digital Rights Management

• MP3 bit rates: 8-320 kbps and VBR

• MP3 sample rates: 16, 32, 44.1, 48, 11.025, 22.050,

, 8 kHz

• WMA bit rates: 10-320 kbps and VBR

• WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1,

kHz

Storage Media

• Built-in memory type: NAND Flash

• Mass storage class compliant

• Built-in memory capacity: 2 GB

• Music memory capacity, MP3: Up to 450 tracks*

Connectivity

• Headphones: 3.5 mm

•USB: High-speed USB 2.0

Convenience

• Function: Keypad lock

•Superscroll

• Firmware upgradeable

• Battery charging indication: On user interface

• Charge and play: when connected to a PC

• Customisable volume limit

•Volume control

Accessories

• Headphones: AY3819

•Quick start guide

Green Specifications

• Lead-free soldered product

System Requirements

• USB: Free USB port

• Internet connection: Yes (for access to updated upport documents, manuals, future firmware and

s PC software upgrades)

• PC OS: Windows XP (SP3)/Vista/7

Power

•Battery Type: LI-Polymer

• Rechargeable: Yes, via USB

• Battery capacity: 150 mAh

• Play time on internal battery: Up to 13 hours of

audio

Dimensions

• Packaging type: D-box

• D-box dimensions (WxDxH): 50 x 30 x 178 mm

• Product dimensions (WxDxH): 28.7 x 10.5 x 82

• Product weight: 0.022 kg

Tuner/Reception/Transmission

•Tuner Bands: FM

• Station presets: 30

Audio Capturing

• Built-in microphone: mono

• Voice recording

• Audio file format: WAV

Software

• Device manager: to restore and upgrade

•

Issue date 2012-03-28

Version: 4.0.4

12 NC: 8670 000 75124 EAN: 87 12581 59795 5

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* Storage capacity based on 4 minutes per song and 64 kbps WMA or

128 kbps MP3 encoding.

* Actual transfer speed may vary based on your operating system and

software configuration. * 1 GB = 1 billion bytes; available storage capacity will be less. * Rechargeable batteries have a limited number of charge cycles and

may eventually need to be replaced. Battery life and number of charge cycles vary by use and settings.
