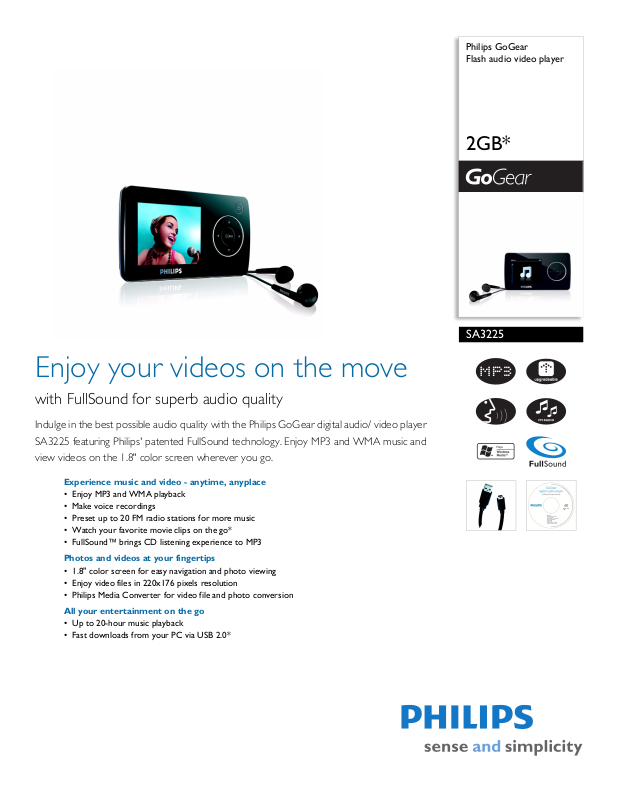

Philips SA32257 User Manual

Philips GoGear Flash audio video player

2GB*

SA3225

Enjoy your videos on the move

with FullSound for superb audio quality

Indulge in the best possible audio quality with the Philips GoGear digital audio/ video player SA3225 featuring Philips' patented FullSound technology. Enjoy MP3 and WMA music and view videos on the 1.8" color screen wherever you go.

Experience music and video - anytime, anyplace

• Enjoy MP3 and WMA playback

• Make voice recordings

• Preset up to 20 FM radio stations for more music

• Watch your favorite movie clips on the go*

• FullSound™ brings CD listening experience to MP3

Photos and videos at your fingertips

• 1.8" color screen for easy navigation and photo viewing

• Enjoy video files in 220x176 pixels resolution

• Philips Media Converter for video file and photo conversion

All your entertainment on the go

• Up to 20-hour music playback

• Fast downloads from your PC via USB 2.0*

Flash audio video player

SA3225/37

2GB*

Specifications Product highlights

Picture/Display

• Backlight

• Diagonal screen size (inch): 1.8 inch

• Lines of text: 5

• Resolution: 176 x 220 pixels

• Type: LCD

Sound

• Equalizer customizable

• Equalizer settings: FullSound, Funk, Hip Hop, Jazz, Rock, Techno, Classical

• Frequency response: 80 - 18 000 Hz

• Output Power: 2 x 3mW

• Signal to noise ratio: > 80 dB

• Channel separation: 35 dB

• Sound Enhancement: FullSound

Audio Playback

• Compression format: MP3, WMA

• ID3 Tag support: Song title, artist, album

• MP3 bit rates: 8-320 kbps and VBR

• WMA bit rates: 5-320 kbps

• WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1, 48 kHz

• MP3 sample rates: 16, 32, 44.1, 48, 11.025, 22.050, 24, 8

kHz

Still Picture Playback

• Picture compression format: JPEG

• Slide show

Storage Media

• Built-in memory type: NAND Flash

• Mass storage class compliant

• Built-in memory capacity: 2 GB

• Music memory capacity, MP3: Up to 450 tracks*

Connectivity

• Headphone: 3.5 mm

• USB: USB 2.0

Convenience

• Battery charging indication: On User Interface

• Battery low indication

• Function: Keypad lock

•Superscroll

•Volume control

• Firmware upgradeable

Accessories

• CD-ROM: Yes , with IFU, Device Manager, Media converter

• Headphones: AY3816

• USB cable: AY3930

• Quick start guide

Software

• Device manager: to restore and upgrade

• Media Converter for Philips: Converts following formats to player : AVI(Microsoft video1 format), MPEG-1,2,4, DVD(*.vob),MOV,WMV,RM etc. Ne eds Qui ckt ime (fo r MOV ) an d WM P10 or above (for WMV) installations.

Green Specifications

• Lead-free soldered product

System Requirements

•CD-ROM drive

• PC OS: Windows 2000 / XP / Vista

• Internet connection: Yes (for access to updated support documents, manuals, future firmware and PC software upgrades)

• USB: Free USB port

Power

• Battery Type: LI-Polymer

• Playtime on internal battery: Up to 20 hours audio or 4 hours video

• Rechargeable: Yes, via USB

Dimensions

• Blister dimensions (WxDxH): 37.5 x 135 x 213 mm

• Packaging type: Clamshell

• Product weight: 0.049 kg

• Product dimensions (WxDxH): 80 x 10.4 x 45

Tuner/Reception/Transmission

• Station presets: 20

• Tuner Bands: FM

Video Playback

• SMV: 850 kbps, 220 x 176, 24 fps

Audio Capturing

• Audio file format: WAV

• Built-in microphone: mono

• Voice recording: ADPCM

•

FullSound™

What is music without heart and soul? Philips’ innovative FullSound technology faithfully restores sonic details to compressed music, dramatically enriching and enhancing it, so you experience truly immersive music – without any distortion.

Issue date 2008-08-19

Version: 2.0.10

12 NC: 8670 000 38543 UPC: 6 09585 15267 0

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* 1GB = 1 billion bytes; available storage capacity will be less. * Rechargeable batteries have a limited number of charge cycles and

may eventually need to be replaced. Battery life and number of charge cycles vary by use and settings.

* Storage capacity based on 4 minutes per song and 64 kbps WMA or

128 kbps MP3 encoding.

* Actual transfer speed may vary based on your operating system and

software configuration.

* Optional versions with or without radio are available
