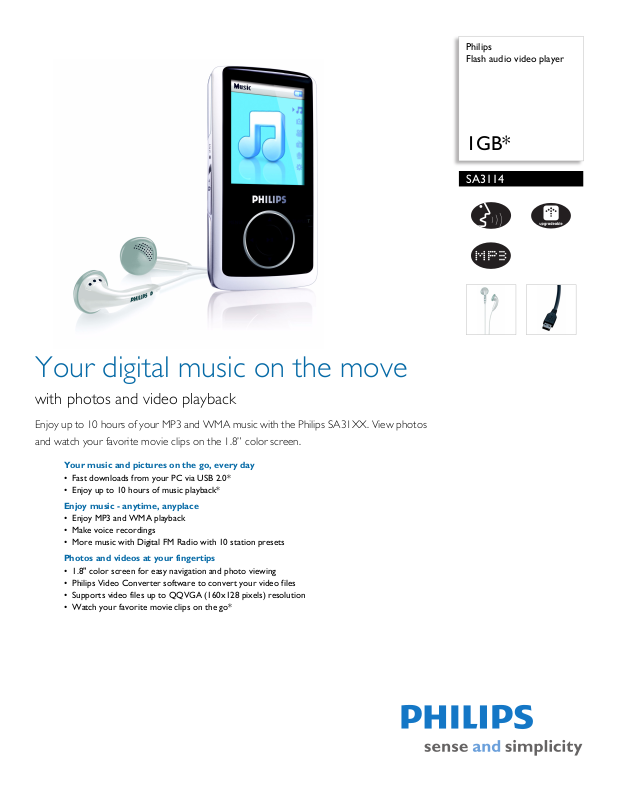

Philips SA3114-37 User Manual

Philips
Flash audio video player

1GB*

SA3114

Your digital music on the move

with photos and video playback

Enjoy up to 10 hours of your MP3 and WMA music with the Philips SA31XX. View photos
and watch your favorite movie clips on the 1.8” color screen.

Your music and pictures on the go, every day

• Fast downloads from your PC via USB 2.0*

• Enjoy up to 10 hours of music playback*

Enjoy music - anytime, anyplace

• Enjoy MP3 and WMA playback

• Make voice recordings

• More music with Digital FM Radio with 10 station presets

Photos and videos at your fingertips

• 1.8" color screen for easy navigation and photo viewing

• Philips Video Converter software to convert your video files

• Supports video files up to QQVGA (160x128 pixels) resolution

• Watch your favorite movie clips on the go*

Flash audio video player

1GB*

Specifications

SA3114/37

Picture/Display

• Backlight

• Lines of text: 7

• Resolution: QQVGA, 160 x 128 pixels, 65K colours

• Type: LCD

• Diagonal screen size (inch): 1.8 inch

Sound

• Channel separation: 40 dB

• Equalizer settings: Classic, Jazz, Rock, Dance, Funk,
Hip Hop

• Frequency response: 80 - 18k Hz

• Signal to noise ratio: > 80 dB

• Output Power: 2 x 3mW

• THD: 0.1%

Audio Playback

• Compression format: MP3, WMA

• ID3 Tag support: Album title and artist name

• MP3 bit rates: 8-320 kbps and VBR

• MP3 sample rates: 8, 11.025, 16, 22.050, 24, 32,

44.1, 48

• WMA bit rates: 5-192 kbps

• WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1,

kHz

48 kHz

Audio Capturing

• Audio file format: WAV

• Built-in microphone: mono

• Voice recording: ADPCM

Storage Media

• Built-in memory capacity: 1 GB

• Built-in memory type: NAND Flash

• Mass storage class compliant

• Music memory capacity, WMA: Up to 450 tracks*

Tuner/Reception/Transmission

• Tuner Bands: FM

• Station presets: 10

•SuperPlay

• Volume control

Accessories

• CD-ROM: Yes , with IFU, Device Manager, Video
Converter & Windows Media Player

• Headphones: AY3812

• USB cable: AY3930

•Printed User Guide

Software

• Device manager: Device Manager to restore and
upgrade

• Media Converter for Philips: Converts following
format to player : Window media video

Green Specifications

• Lead-free soldered product

System Requirements

•CD-ROM drive

• Internet connection: Yes (for access to updated
support documents, manuals, future firmware and
PC software upgrades)

• PC OS: Windows XP, ME, 2000

• USB: Free USB port

Dimensions

• Blister dimensions (WxDxH): 135 x 39 x 195 mm

• Packaging type: Clamshell

• Product dimensions (WxDxH): 79.6 x 42 x 11.9
mm

• Product weight: 0.048 kg

Power

• Battery capacity: 310mAh

• Battery Type: LI-Polymer

• Playtime on internal battery: Up to 10 hours audio
or 2 hours video

• Rechargeable: Yes, via USB

Connectivity

• Headphone: 3.5 mm

• USB: Full speed USB 2.0

Convenience

• Firmware upgradeable

• Function: Keypad lock

• Battery charging indication: On User Interface

• Battery low indication

Issue date 2009-02-12

Version: 1.1.4

12 NC: 8670 000 31692
UPC: 6 09585 13645 8

Still Picture Playback

• Picture compression format: JPEG

• Slide show

Video Playback

• SMV: Upto 450kbps, 160 x 128 , 11fps (Other video
formats supported by using provided converter
software)

•

© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com
