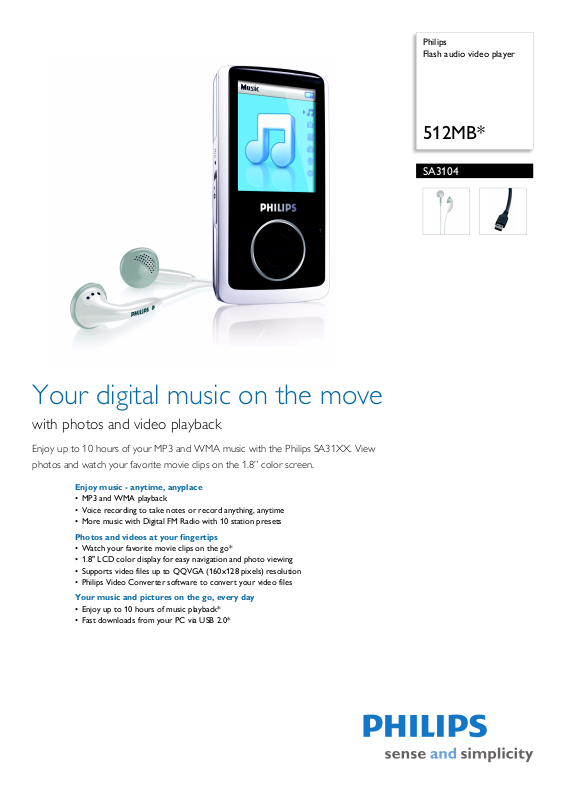

Philips
Flash audio video player
512MB*
SA3104
Your digital music on the move
with photos and video playback
Enjoy up to 10 hours of your MP3 and WMA music with the Philips SA31XX. View
photos and watch your favorite movie clips on the 1.8” color screen.
Enjoy music - anytime, anyplace
• MP3 and WMA playback
• Voice recording to take notes or record anything, anytime
• More music with Digital FM Radio with 10 station presets
Photos and videos at your fingertips
• Watch your favorite movie clips on the go*
• 1.8" LCD color display for easy navigation and photo viewing
• Supports video files up to QQVGA (160x128 pixels) resolution
• Philips Video Converter software to convert your video files
Your music and pictures on the go, every day
• Enjoy up to 10 hours of music playback*
• Fast downloads from your PC via USB 2.0*
![](/html/82/82b8/82b8f2a5a4ec5530a88e7527411ec9f2355c48f42c649d627ba8e6919cb811f9/bg2.png)
Flash audio video player
512MB*
Specifications
SA3104/02
Picture/Display
•Backlight
•Lines of text: 7
• Resolution: QQVGA, 160 x 128 pixels, 65K
lours
co
•Type: LCD
• Diagonal screen size (inch): 1.8 inch
Sound
• Channel separation: 40 dB
• Equalizer settings: Classic, Jaz
Hip Hop
• Frequency response: 80 - 18k Hz
• Signal to noise ratio: > 80 dB
• Output Power: 2 x 3mW
•THD: 1%
z, Rock, Dance, Funk,
Audio Playback
• Compression format: MP3, WMA
• ID3 Tag support: Album title and artist name
• MP3 bit rates: 8-320 kbps and VBR
• MP3 sample rates: 8, 11.025, 16, 22.050, 24, 32,
.1, 48 kHz
44
• WMA bit rates: 5-192 kbps
• WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1,
kHz
48
Audio Capturing
• Audio file format: WAV
• Built-in microphone: mono
• Voice recording: ADPCM
Storage Media
• Built-in memory capacity: 512 MB
• Built-in memory type: NAND Flash
• Mass storage class compliant
• Music memory capacity, WMA: Up to 220 tracks*
Tuner/Reception/Transmission
• Tuner Bands: FM
• Station presets: 10
Connectivity
• Headphone: 3.5 mm
• USB: Full speed USB 2.0
Convenience
• Firmware upgradeable
• Function: Keypad lock
• Battery charging indicatio
n: On User Interface
•Battery low indication
•SuperPlay
•Volume control
Accessories
• CD-ROM: Yes , with IFU, Device Manager, Video
Converter & Windows Media Player
• Headphones: AY3812
•Printed User Guide
• USB cable: AY3930
Software
• Device manager: to restore and upgrade
• Media Converter for Philips
format to player : Window media video
: Converts following
Green Specifications
• Lead-free soldered product
System Requirements
•CD-ROM drive
• Internet connection: Yes (for access to updated
upport documents, manuals, future firmware and
s
PC software upgrades)
• PC OS: Windows XP, ME, 2000
• USB: Free USB port
Dimensions
• Blister dimensions (WxDxH): 135 x 39 x 195 mm
• Packaging type: Clamshell
• Product dimensions (WxDxH): 79.6 x 42 x 11.9
mm
• Product weight: 0.048 kg
Power
• Battery capacity: 310mAh
•Battery Type: LI-Polymer
• Playtime on internal battery: Up
or 2 hours video
• Rechargeable: Yes, via USB
to 10 hours audio
Still Picture Playback
• Picture compression format: JPEG
•Slide show
Video Playback
• SMV: Upto 450kbps, 160 x 128 , 11fps (Other
video formats supported by using provided
converter software)
•
Issue date 2009-03-12
Version: 1.1.6
12 NC: 8670 000 30316
EAN: 87 12581 33747 6
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
