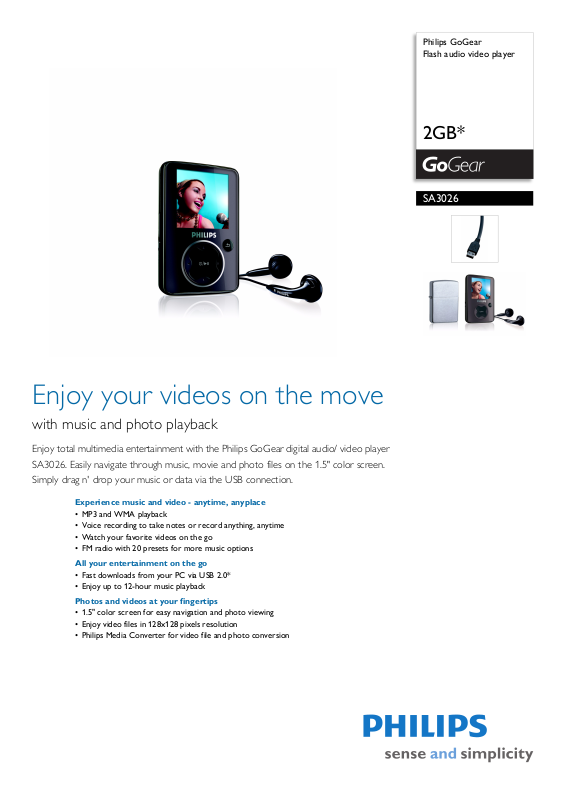

Philips SA3026-55 User Manual

Philips GoGear Flash audio video player

2GB*

SA3026

Enjoy your videos on the move

with music and photo playback

Enjoy total multimedia entertainment with the Philips GoGear digital audio/ video player SA3026. Easily navigate through music, movie and photo files on the 1.5" color screen. Simply drag n' drop your music or data via the USB connection.

Experience music and video - anytime, anyplace

• MP3 and WMA playback

• Voice recording to take notes or record anything, anytime

• Watch your favorite videos on the go

• FM radio with 20 presets for more music options

All your entertainment on the go

• Fast downloads from your PC via USB 2.0*

• Enjoy up to 12-hour music playback

Photos and videos at your fingertips

• 1.5" color screen for easy navigation and photo viewing

• Enjoy video files in 128x128 pixels resolution

• Philips Media Converter for video file and photo conversion

Flash audio video player

2GB*

Specifications

SA3026/55

Picture/Display

•Backlight

• Diagonal screen size (inch): 1.5 inch

•Lines of text: 5

• Resolution: 128 x 128 pixels

•Type: LCD

Sound

• Equalizer settings: Funk, Jazz, Rock, Dance, Hip Hop, Classical

• Frequency response: 80 - 18 000 Hz

• Output Power: 2 x 3mW

• Signal to noise ratio: > 80 dB

•THD: 1%

• Channel separation: 40 dB

Audio Playback

• Compression format: MP3, WMA

• MP3 bit rates: 8-320 kbps and VBR

• WMA bit rates: 5-192 kbps

• ID3 Tag support: Song title, artist, album

• WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1,

kHz

• MP3 sample rates: 16, 32, 44.1, 48, 11.025, 22.050,

, 8 kHz

Still Picture Playback

• Picture compression format: JPEG

•Slide show

Storage Media

• Built-in memory type: NAND Flash

• Mass storage class compliant

• Built-in memory capacity: 2 GB

• Music memory capacity, MP3: Up to 450 tracks*

Accessories

• CD-ROM: Yes , with IFU, Device Manager, Media Converter

• Headphones: AY3816

• USB cable: AY3930

•Quick start guide

Software

• Device manager: to restore and upgrade

• Media Converter for Philips format to player : Window media video

: Converts following

Green Specifications

• Lead-free soldered product

System Requirements

•CD-ROM drive

• PC OS: Windows 2000 / XP / Vista

• Internet connection: Yes (for access to updated

upport documents, manuals, future firmware and

s PC software upgrades)

• USB: Free USB port

Power

• Battery capacity: 310mAh

•Battery Type: LI-Polymer

• Playtime on internal battery: Up or 2 hours video

• Rechargeable: Yes, via USB

to 12 hours audio

Dimensions

• Blister dimensions (WxDxH): 13.5 x 3.8 x 21.3 cm

• Packaging type: Clamshell

• Product dimensions (WxDxH): 43 x 65 x 12.5

• Product weight: 0.039 kg

Connectivity

• Headphone: 3.5 mm

• USB: Full speed USB 2.0

Convenience

• Battery charging indication: On User Interface

• Battery low indication

• Function: Keypad lock

•Volume control

• Firmware upgradeable

Tuner/Reception/Transmission

• Station presets: 20

•Tuner Bands: FM

Video Playback

• SMV: 450 kbps, 128 x 128, 15 fps

Audio Capturing

• Audio file format: WAV

• Built-in microphone: mono

• Voice recording: ADPCM

• FM radio recording: ADPCM

•

Issue date 2009-03-10

Version: 4.0.5

12 NC: 8670 000 38289 EAN: 87 12581 40566 3

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* 1GB = 1 billion bytes; available storage capacity will be less. * Rechargeable batteries have a limited number of charge cycles and

may eventually need to be replaced. Battery life and number of charge cycles vary by use and settings.

* Storage capacity based on 4 minutes per song and 64 kbps WMA or

128 kbps MP3 encoding.

* Actual transfer speed may vary based on your operating system and

software configuration.
