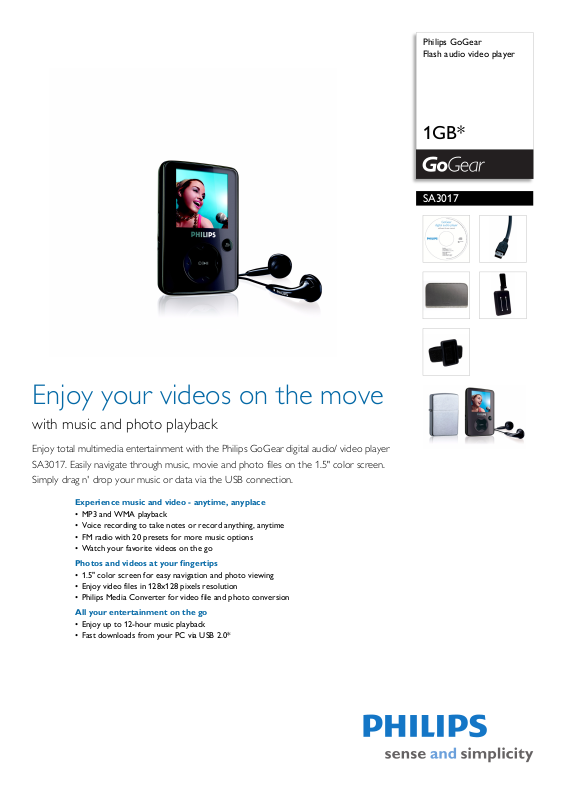

Philips SA3017, SA3017-55 User Manual

Philips GoGear Flash audio video player

1GB*

SA3017

Enjoy your videos on the move

with music and photo playback

Enjoy total multimedia entertainment with the Philips GoGear digital audio/ video player SA3017. Easily navigate through music, movie and photo files on the 1.5" color screen. Simply drag n' drop your music or data via the USB connection.

Experience music and video - anytime, anyplace

• MP3 and WMA playback

• Voice recording to take notes or record anything, anytime

• FM radio with 20 presets for more music options

• Watch your favorite videos on the go

Photos and videos at your fingertips

• 1.5" color screen for easy navigation and photo viewing

• Enjoy video files in 128x128 pixels resolution

• Philips Media Converter for video file and photo conversion

All your entertainment on the go

• Enjoy up to 12-hour music playback

• Fast downloads from your PC via USB 2.0*

Flash audio video player

1GB*

Specifications

SA3017/55

Picture/Display

• Diagonal screen size (inch): 1.5 inch

•Lines of text: 5

• Resolution: 128 x 128 pixels

•Backlight

•Type: LCD

Sound

• Frequency response: 80 - 18 kHz Hz

• Output Power: 2 x 3mW

• Signal to noise ratio: > 80 dB

•THD: 1%

• Channel separation: 40 dB

• Equalizer settings: Funk, Jazz, Rock, Classical, e, Hip Hop

Danc

• Sound Enhancement: FullSound

Audio Playback

• Compression format: MP3, WMA

• MP3 bit rates: 8-320 kbps and VBR

• WMA bit rates: 5-192 kbps

• WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1,

kHz

• ID3 Tag support: Song title, artist, album

• MP3 sample rates: 16, 32, 44.1, 48, 11.025, 22.050,

, 8 kHz

Still Picture Playback

• Picture compression format: JPEG

•Slide show

Storage Media

• Built-in memory type: NAND Flash

• Built-in memory capacity: 1 GB

• Music memory capacity, MP3: Up to 225 tracks*

• Mass storage class compliant

Connectivity

• Headphone: 3.5 mm

• USB: USB 2.0

Convenience

• Battery charging indication: On User Interface

• Battery low indication

• Function: Keypad lock

•Volume control

• Firmware upgradeable

Accessories

• CD-ROM: Yes , with IFU, Device Manager, Media

Converter

• Headphones: AY3816

• USB cable: AY3930

•Quick start guide

•Armband

• Belt clip

•Pouch

Software

• Device manager: to restore and upgrade

• Media Converter for Philips format to player : Windows media video

: Converts following

Green Specifications

• Lead-free soldered product

System Requirements

• Internet connection: Yes (for access to updated support documents, manuals, future firmware and PC software upgrades)

• PC OS: Windows 2000 / XP / Vista

•CD-ROM drive

• USB: Free USB port

Power

• Battery capacity: 310mAh

• Playtime on internal battery: Up or 2 hours video

•Battery Type: LI-Polymer

• Rechargeable: Yes, via USB

to 12 hours audio

Dimensions

• Blister dimensions (WxDxH): 231 x 196 x 29.5 mm

• Product dimensions (WxDxH): 43 x 65 x 12.5 mm

• Product weight: 0.04 kg

• Packaging type: Clamshell

Tuner/Reception/Transmission

• Station presets: 20

• Tuner bands: FM

Video Playback

• SMV: 450 kbps, 128 x 128, 15 fps

Audio Capturing

• Audio file format: WAV

• Built-in microphone: mono

• Voice recording: ADPCM

• FM radio recording: ADPCM

•

Issue date 2009-03-17

Version: 3.0.8

12 NC: 8670 000 41806 EAN: 87 12581 43914 9

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* Avoid extensive use of the set in a volume higher than 85 decibel

because this may damage your hearing.

* Actual transfer speed may vary based on your operating system and

software configuration.

* Rechargeable batteries have a limited number of charge cycles and

may eventually need to be replaced. Battery life and number of charge cycles vary by use and settings.

* Storage capacity based on 4 minutes per song and 64 kbps WMA or

128 kbps MP3 encoding.

* 1GB = 1 billion bytes; available storage capacity will be less.
