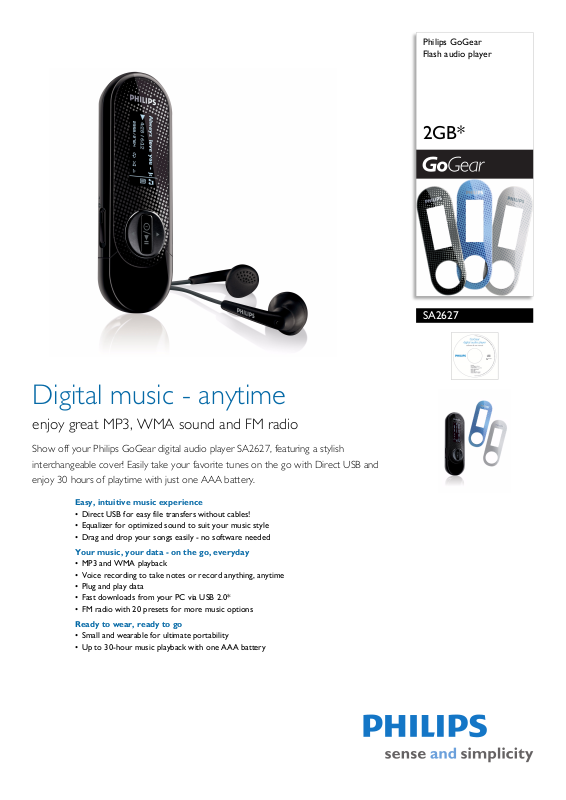

Philips SA2627-37 User Manual

Philips GoGear
Flash audio player

2GB*

SA2627

Digital music - anytime

enjoy great MP3, WMA sound and FM radio

Show off your Philips GoGear digital audio player SA2627, featuring a stylish
interchangeable cover! Easily take your favorite tunes on the go with Direct USB and
enjoy 30 hours of playtime with just one AAA battery.

Easy, intuitive music experience

• Direct USB for easy file transfers without cables!

• Equalizer for optimized sound to suit your music style

• Drag and drop your songs easily - no software needed

Your music, your data - on the go, everyday

• MP3 and WMA playback

• Voice recording to take notes or record anything, anytime

• Plug and play data

• Fast downloads from your PC via USB 2.0*

• FM radio with 20 presets for more music options

Ready to wear, ready to go

• Small and wearable for ultimate portability

• Up to 30-hour music playback with one AAA battery

Flash audio player

2GB*

Specifications

SA2627/37

Picture/Display

•Backlight

•Lines of text: 3

• Resolution: 128 x 48

•Type: LCD

Sound

• Channel separation: 35 dB

• Frequency response: 80 - 18 000 Hz

• Equalizer settings: Classic,
Rock

• Output power (RMS): 2 x 3 mW

• Signal to noise ratio: > 80 dB

Funk, Hip Hop, Jazz,

Audio Playback

• Compression format: MP3, WAV, WMA

• MP3 bit rates: 8-320 kbps and VBR

• ID3 Tag support: Song title, artist, album

• WMA bit rates: 5-320 kbps

• WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1,

kHz

48

• MP3 sample rates: 8, 11.025, 16, 22.050, 24, 32,

.1, 48 kHz

44

Audio Capturing

• Audio file format: WAV

• Built-in microphone: mono

• Voice recording: ADPCM

Storage Media

• Built-in memory capacity: 2 GB

• Built-in memory type: NAND Flash

• Music memory capacity, MP3: Up to 450 tracks*

• Mass storage class compliant

Tuner/Reception/Transmission

• Station presets: 20

• Tuner bands: FM

Connectivity

• Headphone: 3.5 mm

• USB: USB 2.0

Convenience

• Firmware upgradeable

• Function: Keypad lock

• Battery charging indication: On User Interface

•Superscroll

•Battery low indication

•Volume control

Accessories

• CD-ROM: Yes , with IFU, Device Manager, Media
converter

• Headphones: AY3816

•Quick start guide

• USB cable: AY3926

Software

• Device manager: to restore and upgrade

Green Specifications

• Lead-free soldered product

System Requirements

•CD-ROM drive

• Internet connection: Yes (for access to updated

upport documents, manuals, future firmware and

s
PC software upgrades)

• PC OS: Windows 2000 / XP / Vista

• USB: Free USB port

Dimensions

• Blister dimensions (WxDxH): 40 x 196 x 196 mm

• Product dimensions (WxDxH): 91.6 x 29 x 20.3

• Packaging type: Clamshell

Power

•Batteries included

• Battery type: AAA / LR03 Alkaline

• Playtime on external batt

•

ery: Up to 20 hours

Issue date 2009-03-20

Version: 2.0.5

12 NC: 8670 000 39356
UPC: 6 09585 15405 6

© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com

* 1GB = 1 billion bytes; available storage capacity will be less.
* Rechargeable batteries have a limited number of charge cycles and

may eventually need to be replaced. Battery life and number of
charge cycles vary by use and settings.

* Storage capacity based on 4 minutes per song and 64 kbps WMA or

128 kbps MP3 encoding.

* Actual transfer speed may vary based on your operating system and

software configuration.

* Optional versions with or without radio are available
