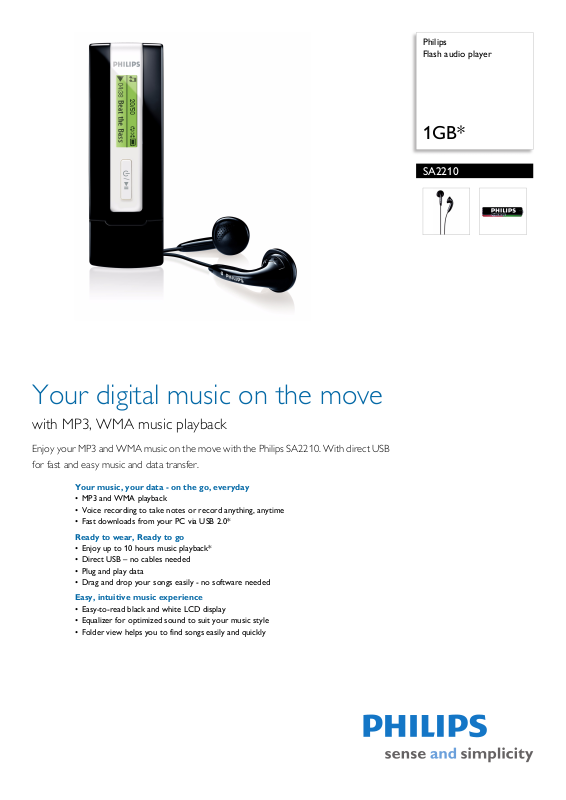

Philips SA2210-02 User Manual

Philips Flash audio player

1GB*

SA2210

Your digital music on the move

with MP3, WMA music playback

Enjoy your MP3 and WMA music on the move with the Philips SA2210. With direct USB for fast and easy music and data transfer.

Your music, your data - on the go, everyday

• MP3 and WMA playback

• Voice recording to take notes or record anything, anytime

• Fast downloads from your PC via USB 2.0*

Ready to wear, Ready to go

• Enjoy up to 10 hours music playback*

• Direct USB – no cables needed

• Plug and play data

• Drag and drop your songs easily - no software needed

Easy, intuitive music experience

• Easy-to-read black and white LCD display

• Equalizer for optimized sound to suit your music style

• Folder view helps you to find songs easily and quickly

Flash audio player

1GB*

Specifications

SA2210/02

Picture/Display

•Backlight

•Lines of text: 2

• Resolution: 32 x 128

•Type: LCD

Sound

• Channel separation: 35 dB

• Equalizer settings: Clas

• Frequency response: 80 - 18 000 Hz

• Output power (RMS): 2 x 3 mW

• Signal to noise ratio: > 80 dB

sic, Jazz, Pop, Rock

Audio Playback

• Compression format: MP3, WAV, Windows Media™ Audio

• ID3 Tag support: Track title and artist name

• MP3 bit rates: 8-320 kbps and VBR

• MP3 sample rates: 8, 11.025, 16, 22.050, 24, 32,

.1, 48 kHz

• WMA bit rates: 64-320 kbps

• WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1,

kHz

Audio Capturing

• Audio file format: WAV

• Built-in microphone: mono

• Voice recording: ADPCM

Storage Media

• Built-in memory capacity: 1 GB

• Built-in memory type: NAND Flash

• Mass storage class compliant

• Music memory capacity, WMA: Up to 460 tracks*

Connectivity

• Headphone: 3.5 mm

•USB: High-speed USB 2.0

Convenience

• Firmware upgradeable

• Function: Keypad lock

Accessories

• Batteries: AAA Alkaline

• Headphones: AY3809

• User Guide on CD-ROM

Software

• Device manager: to restore and upgrade

Green Specifications

• Lead-free soldered product

System Requirements

•CD-ROM drive

• Internet connection: Yes (for access to updated upport documents, manuals, future firmware and

s PC software upgrades)

• PC OS: Windows 2000, Me, XP

• USB: Free USB port

Dimensions

• Blister dimensions (WxDxH): 135 x 38 x 195 mm

• Packaging type: Clamshell

• Product dimensions (WxDxH

): 31 X 19.5 X 91.5

Power

•Batteries included

• Battery type: AAA / LR03 Alkaline

• Playtime on external batt

•

ery: Up to 10 hours

Issue date 2009-03-20

Version: 2.0.7

12 NC: 8670 000 30187 EAN: 87 12581 33622 6

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
