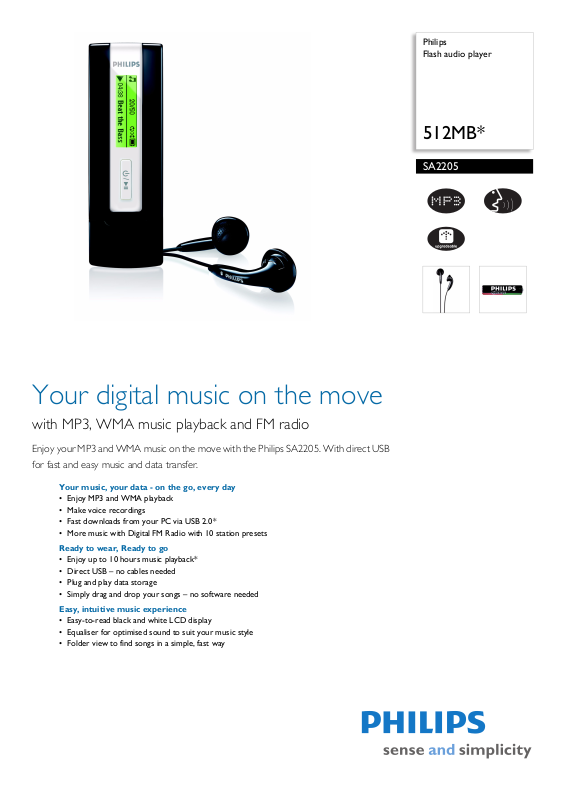

Philips SA2205-02 User Manual

Philips Flash audio player

512MB*

SA2205

Your digital music on the move

with MP3, WMA music playback and FM radio

Enjoy your MP3 and WMA music on the move with the Philips SA2205. With direct USB for fast and easy music and data transfer.

Your music, your data - on the go, every day

• Enjoy MP3 and WMA playback

• Make voice recordings

• Fast downloads from your PC via USB 2.0*

• More music with Digital FM Radio with 10 station presets

Ready to wear, Ready to go

• Enjoy up to 10 hours music playback*

• Direct USB – no cables needed

• Plug and play data storage

• Simply drag and drop your songs – no software needed

Easy, intuitive music experience

• Easy-to-read black and white LCD display

• Equaliser for optimised sound to suit your music style

• Folder view to find songs in a simple, fast way

Flash audio player

512MB*

Specifications

SA2205/02

Picture/Display

• Backlight

• Lines of text: 2

• Resolution: 32 x 128

• Type: LCD

Sound

• Channel separation: 35 dB

• Equaliser settings: Classic, Jazz, Pop, Rock

• Frequency response: 80 - 18 000 Hz

• Output power (RMS): 2 x 3 mW

• Signal to noise ratio: > 80 dB

Audio Playback

• Compression format: MP3, WAV, Windows Media™ Audio

• ID3 Tag support: Track title and artist name

• MP3 bit rates: 8-320 kbps and VBR

• MP3 sample rates: 8, 11.025, 16, 22.050, 24, 32,

44.1, 48

• WMA bit rates: 64-320 kbps

• WMA sample rates: 8, 11.025, 16, 22.050, 32,

kHz

44.1, 48 kHz

Audio Capturing

• Audio file format: WAV

• Built-in microphone: Mono

• Voice recording: ADPCM

Storage Media

• Built-in memory capacity: 512 MB

• Built-in memory type: NAND Flash

• Mass storage class compliant

• Music memory capacity, WMA: Up to 240 tracks*

Tuner/Reception/Transmission

• Tuner Bands: FM

Connectivity

• Headphone: 3.5 mm

• USB: High-speed USB 2.0

Convenience

• Firmware upgradeable

• Function: Keypad lock

Accessories

• Batteries: AAA Alkaline

• Headphones: AY3809

•User Guide on CD-ROM

Software

• Device manager: to restore and upgrade

Green Specifications

• Lead-free soldered product

System Requirements

•CD-ROM drive

• Internet connection: Yes (for access to updated support documents, manuals, future firmware and PC software upgrades)

• PC OS: Windows 2000, Me, XP

• USB: Free USB port

Dimensions

• Blister dimensions (WxDxH): 135 x 38 x 195 mm

• Packaging type: Clamshell

• Product dimensions (WxDxH): 31 x 19.5 x 91.5 mm

Power

•Batteries included

• Battery type: AAA/LR03 Alkaline

• Playtime on external battery: Up to 10 hours

•

Issue date 2009-02-12

Version: 1.0.5

12 NC: 8670 000 30185 EAN: 87 12581 33620 2

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
