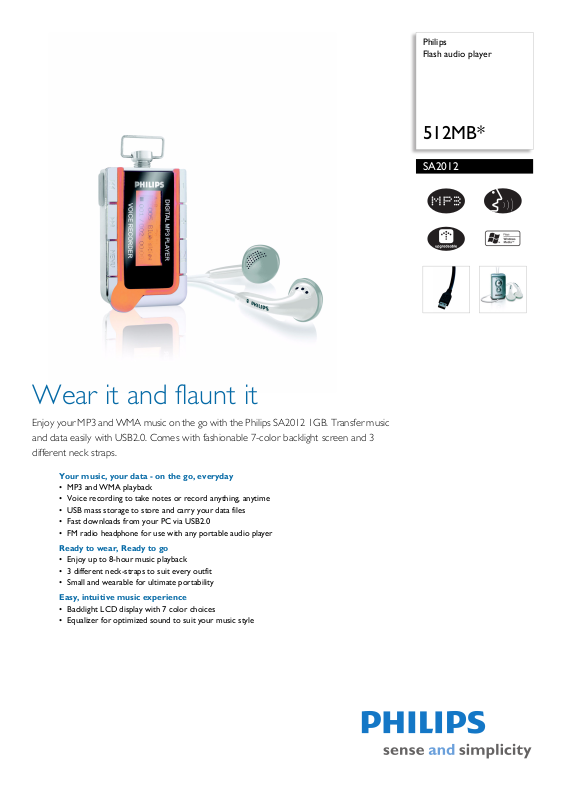

Philips SA2012 User Manual

Philips Flash audio player

512MB*

SA2012

Wear it and flaunt it

Enjoy your MP3 and WMA music on the go with the Philips SA2012 1GB. Transfer music and data easily with USB2.0. Comes with fashionable 7-color backlight screen and 3 different neck straps.

Your music, your data - on the go, everyday

• MP3 and WMA playback

• Voice recording to take notes or record anything, anytime

• USB mass storage to store and carry your data files

• Fast downloads from your PC via USB2.0

• FM radio headphone for use with any portable audio player

Ready to wear, Ready to go

• Enjoy up to 8-hour music playback

• 3 different neck-straps to suit every outfit

• Small and wearable for ultimate portability

Easy, intuitive music experience

• Backlight LCD display with 7 color choices

• Equalizer for optimized sound to suit your music style

Flash audio player

512MB*

Specifications

SA2012/93

Picture/Display

• Type: LCD

• Resolution: 96 x 26

• Lines of text: 2

• Backlight color: 7 colors

Sound

• Equalizer settings: Classic, Jazz, Pop, Rock, Full bass

• Channel separation: 40 dB

• Frequency response: 40 -16K Hz

• Signal to noise ratio: > 85 dB

• Output power (RMS): 2 x 5 mW

Audio Playback

• Compression format: MP3, WAV, Windows Media™ Audio

• ID3 Tag support: Track title and artist name

• MP3 bit rates: 8-320 kbps and VBR

• MP3 sample rates: 8, 11.025, 16, 22.050, 24, 32,

44.1, 48

• WMA bit rates: 5-192 kbps and VBR

• WMA sample rates: 8, 11.025, 16, 22.050, 32,

kHz

44.1, 48 kHz

Audio Capturing

• Voice recording

• Audio file format: WAV

• Built-in microphone: mono

Storage Media

• Built-in memory capacity: 1GB

• Built-in memory type: NAND Flash

• Mass storage class compliant

Tuner/Reception/Transmission

• Tuner Bands: FM

Connectivity

• Headphone: 3.5 mm

• USB: Full speed USB 2.0

Convenience

• Firmware upgradeable

Accessories

• Headphones: AY3813 FM radio headphones

• Neck strap: 3 different neck straps

•USB cable

• CD-ROM: with software and user manuals

• Printed User Guide: English, Simplified Chinese, Traditional Chinese

Software

• Device manager: Firmware Manager to restore and upgrade

Green Specifications

• Lead-free soldered product

System Requirements

• PC OS: Windows ME, 2000, XP

•CD-ROM drive

• Internet connection: Yes (for access to updated support documents, manuals, future firmware and PC software upgrades)

• USB: Free USB port

Dimensions

• Product dimensions (WxDxH): 30 x 13.5 x 50 mm

• Packaging type: D-box

• Box dimensions (W x H x D): 153

x 153 x 46 mm

• Master carton quantity: 8

• Outer carton dimensions WxDxH: 196 x 163 x 326 mm

Power

• Battery capacity: 240 mAh

• Battery Type: Li-ion

• Playtime on internal battery: Up to 8 hours

• Rechargeable: Yes, via USB

•

Issue date 2009-01-29

Version: 2.0.5

12 NC: 8670 000 25751 EAN: 87 12581 30510 9

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com
