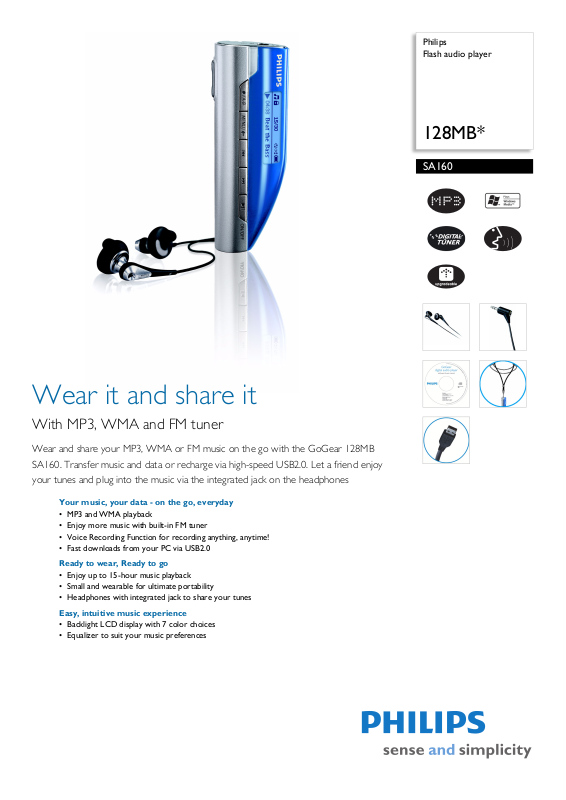

Philips SA193 User Manual

Philips Flash audio player

128MB*

SA160

Wear it and share it

With MP3, WMA and FM tuner

Wear and share your MP3, WMA or FM music on the go with the GoGear 128MB SA160. Transfer music and data or recharge via high-speed USB2.0. Let a friend enjoy your tunes and plug into the music via the integrated jack on the headphones

Your music, your data - on the go, everyday

• MP3 and WMA playback

• Enjoy more music with built-in FM tuner

• Voice Recording Function for recording anything, anytime!

• Fast downloads from your PC via USB2.0

Ready to wear, Ready to go

• Enjoy up to 15-hour music playback

• Small and wearable for ultimate portability

• Headphones with integrated jack to share your tunes

Easy, intuitive music experience

• Backlight LCD display with 7 color choices

• Equalizer to suit your music preferences

Flash audio player

SA160/93

128MB*

Specifications Product highlights

Picture/Display

• Type: LCD

• Display backlight: Multicolor

• Resolution: 128 x 32 pixels

Sound

• Output power (RMS): 2 x 4mW

• Equalizer settings: Classic, Jazz, Pop, Rock, Hip Hop, Funk

• Equalizer customizable

• Frequency response: 30 - 18 000 Hz Hz

• Signal to noise ratio: >80 dB

• Channel separation: 50 dB

Audio Playback

• Compression format: MP3, WAV, Windows Media™ Audio

• ID3 Tag support: Genre title

• MP3 bit rates: 8-320 kbps and VBR

• MP3 sample rates: 8, 11.025, 16, 22.050, 24, 32,

44.1, 48

kHz

• WMA bit rates: 5 - 192

Audio Recording

•FM recording

• Audio file format: WAV

Audio Capturing

• Audio file format: WAV

• Built-in microphone: mono

• Voice recording: ADPCM

Storage Media

• Built-in memory capacity: 128

• Built-in memory type: NAND Flash

• Music memory capacity, MP3: up to 30 MP3 songs(128kbps & 4 min.)

• Music memory capacity, WMA: up to 60 WMA songs (64kbps & 4 min.)

Tuner/Reception/Transmission

• Tuner bands: FM

•Auto store

• Number of Preset Channels: 30

• Frequency range: 87.5 - 108 MHz

Connectivity

• Headphone: 3.5 mm

• USB: USB 2.0

Accessories

• Cables: USB extention cable

• Headphones: SHE775BD with integrated plug

• Neck strap

• Quick start guide

Software

• Music Match Jukebox: Music Match Jukebox

System Requirements

•CD-ROM drive

• Hard disk space: 50 MB

• PC OS: Windows 98SE, 2000 (SP4 or above), ME, XP (SP1 or above)

• RAM memory: 128 MB

•Sound card

• USB: Free USB port

Dimensions

• Box dimensions (W x H x D): 150

x 170 x 64 mm

• Master carton dimensions: 165 x 200 x 210 mm

• Master carton quantity: 3

• Packaging type: D-box

• Product dimensions (WxDxH): 30.2 x 16.5 X85mm

Power

•Batteries included

• Battery type: AAA / LR03 Alkaline

• Battery Playing time (WMA): 15h(1xAAA alkaline battery)

•

Voice Recording Function

Voice Recording Function converts your player into a handy dictation machine. Besides playing music or listening to radio, you can also record notes or re minders for work or school, record shopping lists and phone numbers – even song lyrics. By pressing the recording button and speaking into the built-in microphone, voice messages are compressed and stored either in the builtin internal memory or on to the external memory card. Voice Recording Function gives you a highly portable voice recorder allowing you to record anything, anytime and anywhere!

Integrated jack headphones

Specially designed headphones with an integrated jack, allows listeners to plug in an additional headphones. Two people can enjoy the same music at same time, through their own headphones.

Equalizer

Equalizer allows you to select preset modes that optimize certain frequency bands to enhance specific music styles. Players with Equalizer, utilize graphic equalizing technology to automatically set the optimum sound frequency balance for a chosen music style. The Equalizer allows you to enjoy the optimum sound depending on the music style.

Issue date 2009-01-29

Version: 4.0.8

12 NC: 9073 101 01914 EAN: 87 10895 88322 1

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* 1MB = 1 million bytes; available storage capacity will be less. * Battery life varies by use and settings. * Storage capacity based on 4 minutes per song and 64 kbps WMA or

128 kbps MP3 encoding.

* Windows Media and the Windows logo are trademarks, or

registered trademarks of Microsoft Corporation in the United States and/or other countries.

* Actual transfer speed may vary based on your operating system and

software configuration.

* FM Radio is only available to some regional versions. FM radio is

currently not available in an European version.
