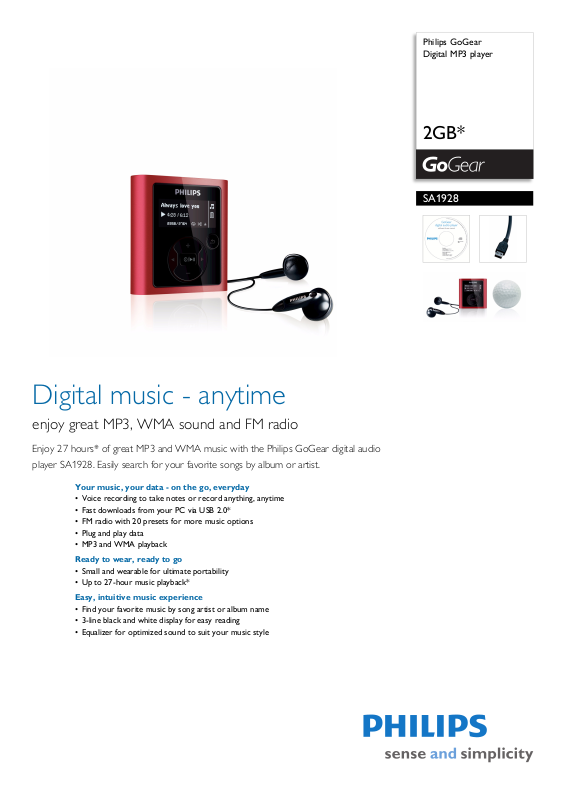

Philips SA1928-97 User Manual

Philips GoGear Digital MP3 player

2GB*

SA1928

Digital music - anytime

enjoy great MP3, WMA sound and FM radio

Enjoy 27 hours* of great MP3 and WMA music with the Philips GoGear digital audio player SA1928. Easily search for your favorite songs by album or artist.

Your music, your data - on the go, everyday

• Voice recording to take notes or record anything, anytime

• Fast downloads from your PC via USB 2.0*

• FM radio with 20 presets for more music options

• Plug and play data

• MP3 and WMA playback

Ready to wear, ready to go

• Small and wearable for ultimate portability

• Up to 27-hour music playback*

Easy, intuitive music experience

• Find your favorite music by song artist or album name

• 3-line black and white display for easy reading

• Equalizer for optimized sound to suit your music style

Digital MP3 player

2GB*

Specifications

SA1928/97

Picture/Display

•Backlight

•Lines of text: 3

• Resolution: 128 x 48

•Type: LCD

Sound

• Channel separation: 35 dB

• Equalizer customizable

• Equalizer settings: Funk, Hip Hop, Jazz, Rock, assical, Techno

• Frequency response: 80 - 18 000 Hz

• Output power (RMS): 2 x 3 mW

• Signal to noise ratio: > 80 dB

Audio Playback

• Compression format: MP3, WAV, WMA

• ID3 Tag support: Song title, artist, album

• MP3 bit rates: 8-320 kbps and VBR

• MP3 sample rates: 8, 11.025, 16, 22.050, 24, 32, .1, 48 kHz

• WMA bit rates: 5-320 kbps

• WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1, kHz

Audio Capturing

• Audio file format: WAV

• Built-in microphone: mono

• Voice recording: ADPCM

• FM radio recording: ADPCM

Storage Media

• Built-in memory capacity: 2 GB

• Built-in memory type: NAND Flash

• Mass storage class compliant

• Music memory capacity, MP3: Up to 450 tracks*

Connectivity

• Headphone: 3.5 mm

• USB: USB 2.0

Convenience

• Firmware upgradeable

• Function: Keypad lock

•Battery low indication

•Volume control

•Superscroll

Accessories

• CD-ROM: Yes, with IFU, Device Manager

• Headphones: AY3822

•Quick start guide

• USB cable: AY3930

Software

• Device manager: to restore and upgrade

Green Specifications

• Lead-free soldered product

System Requirements

•CD-ROM drive

• Internet connection: Yes (for access to updated upport documents, manuals, future firmware and

s PC software upgrades)

• PC OS: Windows 2000 / XP / Vista

• USB: Free USB port

Dimensions

• Packaging type: D-box

• Product dimensions (WxDxH): 44 x 46 x 15.6 mm

• Product weight: 0.034 kg

• Carton dimensions (WxDxH): 12.8 x 3.7 x 14.5 cm

Tuner/Reception/Transmission

• Station presets: 20

• Tuner bands: FM

Issue date 2009-03-20

Version: 2.0.6

12 NC: 8670 000 42097 EAN: 87 12581 44179 1

Power

• Playtime on internal battery: Up to 27 hours

• Rechargeable: Yes, via USB

•Battery Type: LI-Polymer

•

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* 1GB = 1 billion bytes; available storage capacity will be less. * Rechargeable batteries have a limited number of charge cycles and

may eventually need to be replaced. Battery life and number of charge cycles vary by use and settings.

* Storage capacity based on 4 minutes per song and 64 kbps WMA or

128 kbps MP3 encoding.

* Actual transfer speed may vary based on your operating system and

software configuration.

* Optional versions with or without radio are available
