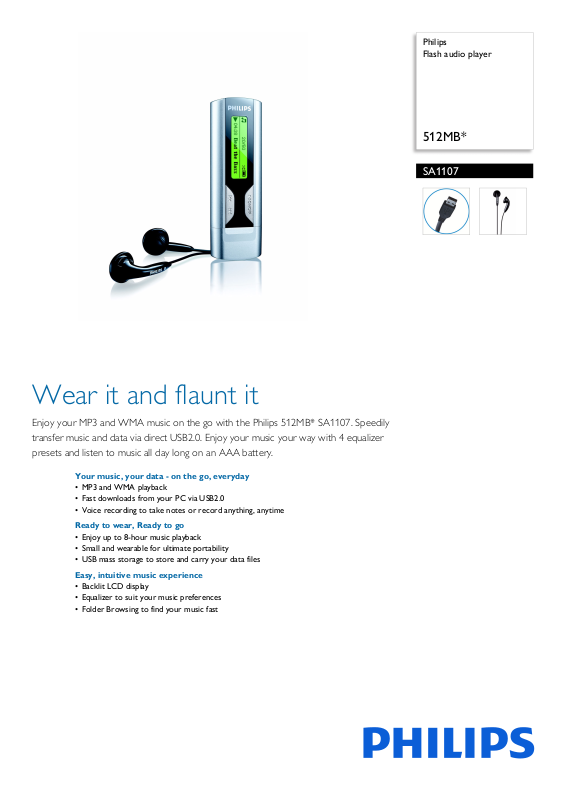

Page 1
Philips
Flash audio player
512MB*
SA1107
Wear it and flaunt it
Enjoy your MP3 and WMA music on the go with the Philips 512MB* SA1107. Speedily
transfer music and data via direct USB2.0. Enjoy your music your way with 4 equalizer
presets and listen to music all day long on an AAA battery.
Your music, your data - on the go, everyday
• MP3 and WMA playback
• Fast downloads from your PC via USB2.0
• Voice recording to take notes or record anything, anytime
Ready to wear, Ready to go
• Enjoy up to 8-hour music playback
• Small and wearable for ultimate portability
• USB mass storage to store and carry your data files
Easy, intuitive music experience
• Backlit LCD display
• Equalizer to suit your music preferences
• Folder Browsing to find your music fast
Page 2
Flash audio player
512MB*
SA1107/02
Specifications
Picture/Display
•Type: LCD
• Resolution: 32 x 128
•Lines of text: 2
•Backlight
• Backlight color: Green
Sound
• Equalizer settings: Classic, Jazz, Pop, Rock
• Channel separation: 45 dB
• Frequency response: 30 - 18 000 Hz
• Output power (RMS): 2 x 4 mW
• Signal to noise ratio: > 85 dB
Audio Playback
• Compression format: MP3, WAV, Windows
Media™ Audio
• ID3 Tag support: Track title and artist name
• MP3 bit rates: 8-320 kbps and VBR
• MP3 sample rates: 8, 11.025, 16, 22.050, 24, 32,
.1, 48 kHz
44
• WMA bit rates: 5-192 kbps
• WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1,
kHz
48
Audio Capturing
• Built-in microphone: mono
• Voice recording: ADPCM
• Audio file format: WAV
Storage Media
• Built-in memory (RAM): 512 MB
• Built-in memory type: NAND Flash
• Music memory capacity, WMA: Up to 250 tracks*
• Mass storage class compliant
Connectivity
• Headphone: 3.5 mm
• USB: Full speed USB 2.0
Convenience
• Firmware upgradeable
• Function: Keypad lock
Accessories
• Headphones: AY3809
• Batteries: AAA Alkaline
• Printed User Guide: English, French, German,
sh, Dutch, Italian
Spani
• User Guide on CD-ROM
• USB cable: USB extension cable
Software
• Device manager: Firmware Manager to restore and
upgrade
Green Specifications
• Lead-free soldered product
System Requirements
• PC OS: 98SE, ME, 2000, XP
• USB: Free USB port
•CD-ROM drive
• Internet connection: Yes (for access to updated
upport documents, manuals, future firmware and
s
PC software upgrades)
Dimensions
• Blister dimensions (WxDxH): 135 x 38 x 195 mm
• Product dimensions (WxDxH): 28.5 x 22.1 x 83
mm
• Product weight: 0.030 kg
Power
•Batteries included
• Battery type: AAA / LR03 Alkaline
• Playtime on external batt
•
ery: Up to 8 hours
Highlights
USB mass storage device
USB mass storage devices offer a convenient way to
save, backup and move your files around. The
devices connect to your computer using a USB
connection and do not require any special software
to be installed (only Windows 98 and Me need
drivers). The device automatically shows up as a
removable drive in Windows Explorer allowing you
to simply drag and drop files to and from the device.
Folder Browsing
You have a lot of music on your player and you want
to find the right song, fast. Folder Browsing is a quick
short-cut to finding and playing your music. Organize
your music into folders on your PC. Give the folders
any name you like, you might use the artist's or
album's name. Then drag and drop the folders to
your device in Windows Explorer. When you're
listening to your player, you can zoom to the songs
by holding the next or previous key to see folder
names scrolling across one by one. Release the
button when you see the folder you're looking for
and the first song will start to play.
Issue date 2014-02-05
Version: 1.0.6
12 NC: 8670 000 29971
EAN: 87 12581 33464 2
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
