Philips S9711-31 User Manual
9000 series
S97XX
20
19
21
23 24
22
4
1
2
3
5
6
7
17
18
25
26
27
30
9
10
12
11
13
14
15
16
28
29
8
empty page before TOC
English 6
Deutsch 39
Français 76
Italiano 112
English
6
Contents
Introduction__________________________________________ 7
Important safety information____________________________ 7
Danger______________________________________________ 7
Warning_____________________________________________ 8
Caution_____________________________________________ 9
Electromagnetic fields (EMF)____________________________ 11
General_____________________________________________ 11
General description (Fig. 1)______________________________ 11
The display__________________________________________ 12
Personal comfort settings_______________________________ 13
Charging_____________________________________________ 13
Battery fully charged__________________________________ 13
Battery low__________________________________________ 14
Remaining battery charge______________________________ 14
Cleaning reminder_____________________________________ 14
Travel lock___________________________________________ 14
Replacement reminder_________________________________ 15
Exclamation mark_____________________________________ 15
Charging_____________________________________________ 16
Charging with the supply unit___________________________ 16
Charging in the SmartClean system (specific types only)_____ 17
Using the appliance___________________________________ 17
Switching the appliance on and off_______________________ 17
Shaving_____________________________________________ 18
Using the click-on attachments__________________________ 20
Cleaning and maintenance_____________________________ 23
Cleaning the shaver in the SmartClean system_____________ 23
Cleaning the shaver under the tap_______________________ 27
Cleaning the click-on attachment________________________ 29
Storage______________________________________________ 30
Replacement_________________________________________ 30
English
English
Replacing the shaving heads____________________________ 30
Replacing the cleansing brush attachment_________________ 32
Ordering accessories__________________________________ 33
Recycling____________________________________________ 33
Removing the rechargeable shaver battery________________ 34
Warranty and support__________________________________ 34
Warranty restrictions___________________________________ 34
Troubleshooting______________________________________ 35
Shaver ______________________________________________ 35
SmartClean system____________________________________ 37
Introduction
Congratulations on your purchase and welcome to
Philips! To fully benefit from the support that
Philips offers, register your product at
www.philips.com/welcome.
Please read this user manual, as it contains
information about the features of this shaver as
well as some tips to make shaving easier and more
enjoyable.
Important safety information
Read this important information carefully before
you use the appliance and its accessories and
save it for future reference. The accessories
supplied may vary for different products.
Danger
- Keep the supply unit dry.
7
English
8
Warning
- To charge the battery, only use
the detachable supply unit
(type HQ8505) provided with
the appliance.
- The supply unit contains a
transformer. Do not cut off the
supply unit to replace it with
another plug, as this causes a
hazardous situation.
- This appliance can be used by
children aged from 8 years and
above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand the hazards
involved. Children shall not play
with the appliance. Cleaning
and user maintenance shall not
be made by children without
supervision.
Caution
English
- Always unplug the shaver
before you clean it under the
tap.
- Always check the appliance
before you use it. Do not use
the appliance if it is damaged,
as this may cause injury. Always
replace a damaged part with
one of the original type.
- Do not open the appliance to
replace the rechargeable
battery.

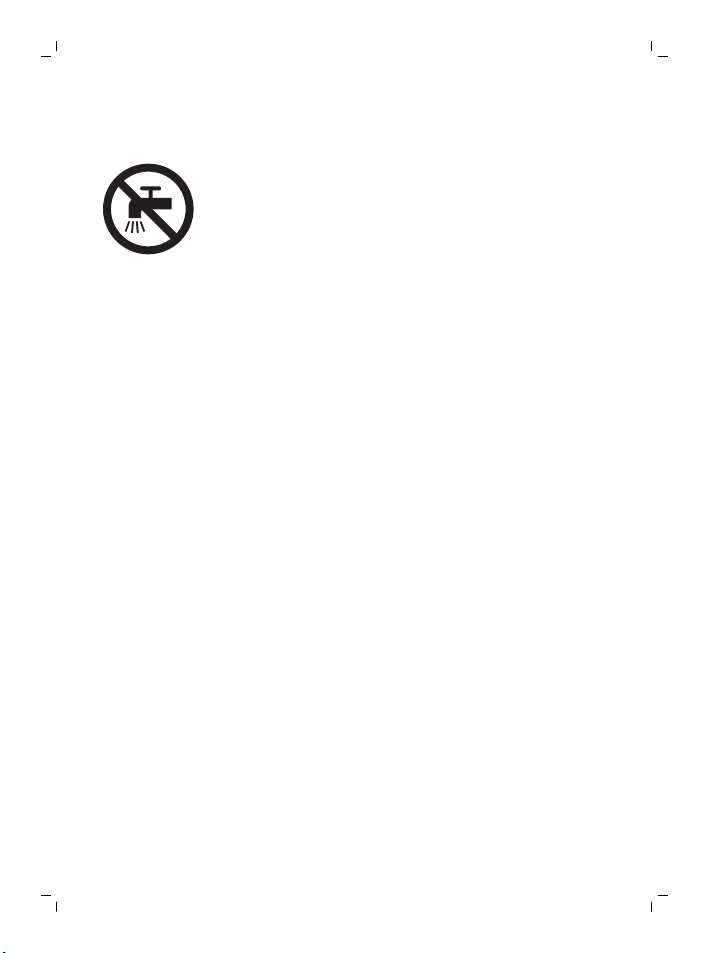

- Never immerse the cleaning
system or the charging stand in
water and do not rinse it under
the tap.
- Never use water hotter than
80°C to rinse the shaver.
- Only use this appliance for its
intended purpose as shown in
the user manual.
- For hygienic reasons, the
appliance should only be used
by one person.
9
10
English
- Never use compressed air,
scouring pads, abrasive
cleaning agents or aggressive
liquids such as petrol or
acetone to clean the appliance.
- If your shaver comes with a
cleaning system, always use
the original Philips cleaning
fluid (cartridge or bottle,
depending on the type of
cleaning system).
- Always place the cleaning
system on a stable, level and
horizontal surface to prevent
leakage.
- If your cleaning system uses a
cleaning cartridge, always make
sure the cartridge compartment
is closed before you use the
cleaning system to clean or
charge the shaver.
- When the cleaning system is
ready for use, do not move it to
prevent leakage of cleaning
fluid.
- Water may drip from the socket
at the bottom of the shaver
when you rinse it. This is normal
and not dangerous because all
electronics are enclosed in a
sealed power unit inside the
shaver.
- Do not use the supply unit in or
near wall sockets that contain
an electric air freshener to
prevent irreparable damage to
the supply unit.
Electromagnetic fields (EMF)
- This Philips appliance complies with all
applicable standards and regulations regarding
exposure to electromagnetic fields.
General
- This shaver is waterproof. It is suitable for use in
the bath or shower and for cleaning under the
tap. For safety reasons, the shaver can
therefore only be used without cord.
- The appliance is suitable for mains voltages
ranging from 100 to 240 volts.
- The supply unit transforms 100-240 volts to a
safe low voltage of less than 24 volts.
English
11
General description (Fig. 1)
1 Protection cap for cleansing brush attachment
2 Click-on cleansing brush attachment
3 Attachment base
4 Comb for beard styler attachment
English
12
The display
5 Click-on beard styler attachment
6 Click-on shaving unit
7 On/off button
8 Socket for small plug
9 Exclamation mark
10 Replacement reminder
11 Travel lock symbol
12 Cleaning reminder
13 Charge symbol
14 Battery charge percentage
15 Personal comfort settings bar
16 + and - buttons for personal comfort settings
17 SmartClean system
18 Cap of SmartClean system
19 On/off button
20 Replacement symbol
21 Cleaning symbol
22 Drying symbol
23 Ready symbol
24 Charge symbol
25 Cleaning cartridge for SmartClean system
26 Supply unit
27 Small plug
28 Retaining ring holder
29 Cleaning brush
30 Pouch
Note: Before you use the shaver for the first time,
remove the protective foil from the display.
Personal comfort settings
The appliance has a feature that allows you to
personalise your settings. You can choose
between three settings depending on your
personal shaving needs (from low to high):
comfort, dynamic or efficiency. When you press
the - or + button, the segment of the personal
comfort settings bar that lights up shows the
currently selected setting. You can press the + or button to select a different setting.
Charging
When the shaver is charging, the battery charge
percentage and the battery symbol flash white.
The battery charge is indicated by the battery
charge percentage shown on the display.
Quick charge: When the battery symbol starts to
flash quickly, the shaver contains enough charge
for one shave.
Battery fully charged
When the battery is fully charged, the battery
charge percentage lights up white continuously.
Note: This appliance can only be used without
cord. When you press the on/off button during or
after charging, you hear a sound to indicate that
the shaver is still connected to the wall socket.
Note: When the battery is full, the display switches
off automatically after 30 minutes.
English
13
English
14
Battery low
When the battery is almost empty, the battery
symbol flashes orange and you hear a sound.
Remaining battery charge
The remaining battery charge is indicated by the
battery charge percentage shown on the display.
Cleaning reminder
Clean the shaver after every shave for optimal
performance. When you switch off the appliance,
the cleaning reminder flashes to remind you to
clean the appliance.
Travel lock
You can lock the appliance when you are going to
travel. The travel lock prevents the appliance from
being switched on by accident.
Activating the travel lock
1 Press the on/off button for 3 seconds to enter
the travel lock mode.
While you activate the travel lock, the travel
lock symbol lights up white continuously. When
the travel lock is activated, the appliance
produces a sound and the travel lock symbol
flashes.
Deactivating the travel lock
1 Press the on/off button for 3 seconds.
The travel lock symbol flashes and then lights
up continuously. The appliance is now ready for
use again.
Note: You can also deactivate the travel lock by
connecting the appliance to the wall socket.
Replacement reminder
For maximum shaving performance, we advise you
to replace the shaving heads every two years.
The appliance is equipped with a replacement
reminder which reminds you to replace the
shaving heads. The shaving unit symbol lights up
white continuously, the arrows flash white and the
appliance beeps to indicate that you have to
replace the shaving heads.
Note: After replacing the shaving heads, you need
to reset the replacement reminder by pressing the
on/off button for 7 seconds.
Exclamation mark
Overheating
If the appliance overheats during charging, the
exclamation mark flashes orange. When this
happens, the shaver switches off automatically.
Charging continues once the temperature of the
appliance has decreased to the normal level.
English
15
1
2
English
16
Blocked shaving heads
If the shaving heads are blocked, the exclamation
mark lights up orange continuously. The
replacement reminder and the cleaning reminder
flash white alternately and you hear a sound. In
this case, the motor cannot run because the
shaving heads are soiled or damaged.
If the shaving heads are soiled, you have to clean
them. If the shaving heads are damaged, you have
to replace them.
Charging
Charge the shaver before you use it for the first
time and when the display indicates that the
battery is almost empty. The battery charge is
indicated by the battery charge percentage shown
on the display.
When you connect the shaver to the wall socket,
you hear a sound.
Charging takes approx. 1 hour. A fully charged
shaver has a shaving time of up to 60 minutes.
Note: You cannot use the appliance while it is
charging.
Charging with the supply unit
1 Make sure the appliance is switched off.
2 Put the supply unit in the wall socket and put
the small plug in the appliance.
3 After charging, remove the supply unit from the
wall socket and pull the small plug out of the
appliance.
1
2
3
English
17
Charging in the SmartClean system (specific types only)
1 Put the small plug in the back of the
SmartClean system.
2 Put the supply unit in the wall socket.
3 Press the top cap to be able to place the shaver
in the holder ('click').
4 Hold the shaver upside down above the holder.
Make sure the front of the shaver points
towards the SmartClean system.
5 Place the shaver in the holder (1), tilt the shaver
backwards (2) and press down the top cap to
connect the shaver (‘click’) (3).
Note: The battery symbol starts to flash to indicate
that the appliance is charging. When the battery is
fully charged, the battery symbol lights up
continuously.
Using the appliance
Note: This appliance can only be used without
cord.
Switching the appliance on and off
- To switch on the appliance, press the on/off
button once.
The display lights up for a few seconds.
- To switch off the appliance, press the on/off
button once.
English
18
Shaving
The display lights up for a few seconds and
shows the remaining battery charge.
Skin adaptation period
Your first shaves may not bring you the result you
expect and your skin may even become slightly
irritated. This is normal. Your skin and beard need
time to adapt to any new shaving system. To allow
your skin to adapt to this new appliance, we advise
you to shave regularly (at least 3 times a week)
and exclusively with this appliance for a period of
3 weeks.
Shaving tips
- Select your personal comfort settings (see ‘The
display’).
- To ensure the best result, we advise you to pretrim your beard if you have not shaved for 3
days or longer.
Dry shaving
1 Switch on the appliance.
The display lights up for a few seconds.
2 Move the shaving heads over your skin in
circular movements to catch all hairs growing in
different directions. Exert gentle pressure for a
close comfortable shave.
Note: Circular movements provide better
shaving results than straight movements.
3 Clean the appliance after use.
Wet shaving
You can also use this appliance on a wet face with
shaving foam or shaving gel.
To shave with shaving foam or shaving gel, follow
the steps below:
English
1 Apply some water to your skin.
2 Apply shaving foam or shaving gel to your skin.
3 Rinse the shaving unit under the tap to ensure
that the shaving unit glides smoothly over your
skin.
4 Switch on the appliance.
5 Move the shaving heads over your skin in
circular movements to catch all hairs growing in
different directions. Exert gentle pressure for a
close comfortable shave.
Note: Rinse the shaving unit regularly to ensure
that it continues to glide smoothly over your
skin.
6 Dry your face.
7 Clean the appliance after use.
Note: Make sure you rinse all foam or shaving
gel off the appliance.
19
English
20
Using the click-on attachments
Note: Attach the click-on cleansing brush
attachment on the attachment base first, before
placing it on the appliance.
Removing or attaching the click-on attachments
1 Make sure the appliance is switched off.
2 Pull the attachment straight off the appliance.
Note: Do not twist the attachment while you
pull it off the appliance.
3 Insert the lug of the attachment into the slot in
the top of the appliance. Then press down the
attachment to attach it to the appliance (‘click’).
Using the beard styler attachment with comb
You can use the beard styler attachment with the
comb attached to style your beard at one fixed
setting, but also at different length settings. You
can also use it to pre-trim any long hairs before
shaving for a more comfortable shave.
The length settings on the beard styler attachment
correspond to the remaining hair length after
cutting and range from 1 to 5mm.
1 Attach the attachment to the appliance ('click').
2
1
English
21
2 Slide the comb straight into the guiding grooves
on both sides of the beard styler attachment
(‘click’).
3 Press the length selector and then push it to the
left or right to select the desired hair length
setting.
4 Switch on the appliance.
5 Move the appliance upwards while you exert
gentle pressure. Make sure the front of the
comb is in full contact with the skin.
6 Clean the attachment after use.
Using the beard styler attachment without comb
You can use the beard styler attachment without
the comb to contour your beard, moustache,
sideburns or neckline to a length of 0.5mm.
1 Pull the comb off the beard styler attachment.
Note: Grab the comb in the center to pull it off
the beard styler attachment. Do not pull at the
sides of the comb.
2 Switch on the appliance.
3 Hold the beard styler attachment perpendicular
to the skin and move the appliance downwards
while you exert gentle pressure.
4 Clean the attachment after use.
20 sec.
22
English
Using the cleansing brush attachment
Use the rotating cleansing brush attachment with
your daily cleansing cream. The cleansing brush
attachment removes oil and dirt, contributing to a
healthy and oil-free skin. We advise you to use it
no more than twice a day. Start with the lowest
personal comfort setting to familiarize yourself
with the attachment.
Do not use the appliance on damaged or irritated
skin or on wounds.
1 Place the attachment on the attachment base.
2 Attach the attachment to the appliance ('click').
3 Moisten the attachment with water.
Note: Do not use the appliance with a dry brush
attachment, as this can irritate the skin.
4 Moisten your face with water and apply a
cleanser to your face.
5 Place the attachment on your cheek.
6 Switch on the appliance.
7 Gently move the attachment across your skin
from the nose towards the ear. Do not push the
attachment too hard onto the skin to make sure
the treatment remains comfortable.
Note: Do not cleanse the sensitive area around
your eyes.
20 sec.
20 sec.
English
8 After approx. 20 seconds move the appliance
to your other cheek and start cleansing this part
of your face.
9 After approx. 20 seconds move the appliance
to your forehead and start cleansing this part of
your face. Gently move the brush head from left
to right.
Note: We advise you to not overdo the
cleansing and to not cleanse any zone longer
than 20 seconds.
10 After the treatment, rinse and dry your
face.Your face is now ready for the next step of
your daily skincare routine.
11 Clean the attachment after use.
Cleaning and maintenance
Cleaning the shaver in the SmartClean system
SmartClean system Plus has two phases: the
rinsing phase and the drying phase.
23
Preparing the SmartClean system for use
Caution: Do not tilt the SmartClean system to
prevent leakage.
Note: Hold the SmartClean system while you
prepare it for use.
2
1
24
English
Note: If you clean the shaver in the SmartClean
system once a week, the SmartClean cartridge
lasts approximately three months.
1 Put the small plug in the back of the
SmartClean system.
2 Put the supply unit in the wall socket.
3 Press the button on the side of the SmartClean
system (1) and lift the top part of the
SmartClean system (2).
4 Pull the seal off the cleaning cartridge.
5 Place the cleaning cartridge in the SmartClean
system.
6 Push the top part of the SmartClean system
back down (‘click’).
1
2
3
English
25
Using the SmartClean system
Caution: Always shake excess water off the
shaver before you place it in the SmartClean
system.
1 Press the top cap to be able to place the shaver
in the holder ('click').
2 Hold the shaver upside down above the holder.
Make sure the front of the shaver points
towards the SmartClean system.
3 Place the shaver in the holder (1), tilt the shaver
backwards (2) and press down the top cap to
connect the shaver ('click') (3).
The battery symbol starts to flash, which
indicates that the shaver is charging.
4 Press the on/off button on the SmartClean
system to start the cleaning program.
During the rinsing phase, the rinsing symbol
flashes. When the rinsing phase is done (after
approx. 10 minutes), the rinsing symbol lights up
continuously.
2
1
26
English
After the rinsing phase, the drying phase starts
automatically. During this phase, the drying
symbol flashes. When the drying phase is done
(after approx. 4 hours), the drying symbol lights up
continuously.
When the cleaning program is done, the ready
symbol lights up continuously.
30 minutes after the cleaning program and
charging are done, the SmartClean system
switches off automatically.
The battery symbol lights up continuously to
indicate that the shaver is fully charged. Charging
takes approx. 1 hour.
Note: If you press the on/off button of the
SmartClean system during the cleaning program,
the program aborts. In this case, the rinsing or
drying symbol goes out.
Note: If you remove the supply unit from the wall
socket during the cleaning program, the program
aborts.
Replacing the cartridge of the SmartClean system
Replace the cleaning cartridge when the
replacement symbol flashes orange or when you
are no longer satisfied with the cleaning result. If
you clean the shaver in the SmartClean system
once a week, the SmartClean cartridge lasts
approximately three months.
1 Press the button on the side of the SmartClean
system (1) and lift the top part of the
SmartClean system (2).
2 Remove the cleaning cartridge from the
SmartClean system and pour out any remaining
cleaning fluid.
You can simply pour the cleaning fluid down
the sink.
3 Throw away the empty cleaning cartridge.
4 Unpack the new cleaning cartridge and pull off
the seal.
5 Place the cleaning cartridge in the SmartClean
system.
6 Push the top part of the SmartClean system
back down (‘click’).
Cleaning the shaver under the tap
Clean the shaver after every shave for optimal
performance.
Caution: Be careful with hot water. Always check
if the water is not too hot, to prevent burning
your hands.
Never dry the shaving unit with a towel or tissue,
as this may damage the shaving heads.
1 Switch on the shaver.
English
27
28
English
2 Rinse the shaving unit under a warm tap.
3 Switch off the shaver. Pull the shaving head
holder off the bottom part of the shaving unit.
4 Rinse the hair chamber under the tap.
Note: You can also clean the hair chamber with
the cleaning brush.
5 Rinse the shaving head holder under a warm
tap.
6 Carefully shake off excess water and let the
shaving head holder dry.
7 Attach the shaving head holder to the bottom
part of the shaving unit (‘click’).
Cleaning the click-on attachments
Caution: Never dry the beard styler attachment
with a towel or tissue, as this may damage the
trimming teeth.
Cleaning the beard styler attachment
Clean the beard styler attachment every time you
have used it.
1 Pull the comb off the beard styler attachment.
Note: Grab the comb in the centre to pull it off
the beard styler attachment. Do not pull at the
sides of the comb.
2 Switch on the appliance.
3 Rinse the beard styler attachment and the
comb separately under a warm tap.
4 After cleaning, switch off the appliance.
5 Carefully shake off excess water and let the
beard styler attachment and comb dry.
6 For optimal performance, lubricate the teeth of
the attachment with a drop of sewing machine
oil regularly.
Cleaning the cleansing brush attachment
Clean the cleansing brush attachment every time
you have used it.
1 Switch off the appliance.
English
29
2yrs
English
30
2 Detach the brush head from the attachment
base.
3 Clean the parts thoroughly with warm water
and soap.
4 Dry the cleansing brush attachment with a
towel.
Storage
- Store the appliance in the pouch supplied.
Note: Make sure the appliance is dry before you
store it in the pouch.
- Put the protection cap on the cleansing brush
attachment to protect it from dirt accumulation.
Replacement
Replacing the shaving heads
For maximum shaving performance, we advise you
to replace the shaving heads every two years.
Replace damaged shaving heads immediately.
Always replace the shaving heads with original
Philips shaving heads (see 'Ordering accessories').
Replacement reminder
Loading...
