Philips S9531, S9311 User Manual

Download

Page 1

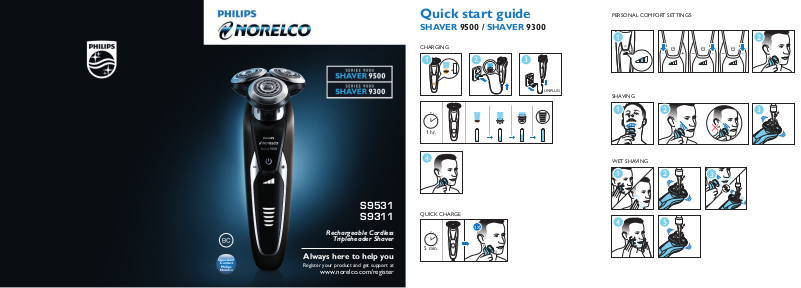

Quick start guide

SHAVER 9500 / SHAVER 9300

CHARGING

1 2 3

PERSONAL COMFORT SETTINGS

Question?

Contact

Philips

Norelco

S9531 S9311

Rechargeable Cordless

Tripleheader Shaver

Always here to help you

www.norelco.com/register

1 hr.

QUICK CHARGE

5 min.

UNPLUG

SHAVING

WET SHAVING

1 2

4 5

Page 2

TRIMMING

CLEANING SHAVER

PREPARING SMARTCLEAN SYSTEM

1 2

±4 hrs.

TRAVEL LOCK

4321

10 min.

3 sec.

QUESTIONS?

See user manual or www.philips.com/norelco

Page 3

ENGLISH 4

Congratulations on your purchase and welcome to Philips Norelco!

To fully benefit from the support that Philips Norelco offers, register your product at www.norelco.com/register

S9531/S9311

Page 4

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

When using an electric appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

DANGER

To reduce the risk of electric shock:

1. Do not reach for a corded shaver/SmartClean System that has fallen into water. Unplug immediately.

2. Power plug and the accessories connected to it are not for immersion or for use in shower.

3. Do not use an extension cord with this appliance.

4. Do not place or store a SmartClean System where it can fall or be pulled into a tub or sink. Do not place or drop a SmartClean System into water or other liquid.

5. Always unplug this shaver/SmartClean System from the electrical outlet immediately after use, except when shaver/ SmartClean System is (re)charging.

6. Unplug and remove power supply cord from shaver

before cleaning.

7. The batteries used in this device may present a fire or

chemical burn hazard if mistreated. Do not disassemble, heat above 100ºC (212°F) or incinerate.

WARNING

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is necessary when this shaver/SmartClean System is used by, on, or near children or invalids.

2. Use this shaver/SmartClean System for its intended

household use as described in this manual. Do not use attachments or a cleaning cartridge not recommended by Philips Electronics North America Corporation.

3. Never operate this shaver/SmartClean System if it has a damaged cord or charging plug, if it is not working properly, if it has been dropped or damaged, or dropped into water while plugged in. For assistance call 1-800-243-3050.

4. Keep the shaver/SmartClean System, cord and charging plug away from heated surfaces.

5. Never drop or insert any object into any opening.

6. Do not use the adapter in or near a power outlet that contains an electric air freshener to prevent damage to the adapter.

7. Do not clean, charge or plug in shaver/SmartClean System outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.

8. Do not use this shaver with a damaged or broken comb, as facial injury may occur.

9. Always attach plug to shaver/SmartClean System first, then plug into outlet and then put razor in SmartClean System. Be certain plug is inserted firmly into shaver, up to mark indicated on plug. To disconnect, turn SmartClean System off, remove charging plug from outlet.

10. Never put the shaver/SmartClean System in direct sunlight or store at a temperature above 140°F (60°C).

11. Keep the cord dry at all times. Do not handle with wet

hands.

12. To prevent possible damage to the cord, do not wrap cord

around the shaver/SmartClean System.

13. Do not attempt to open the appliance to replace the battery.

Page 5

ENGLISHENGLISH

14. Only use the power plug and other accessories supplied with the appliance.

SAVE THESE INSTRUCTIONS

IMPORTANT: The power plug contains a transformer. Do

not cut off the power plug to replace it with another plug, as this will cause a hazardous condition.

45 - DAY MONEY-BACK GUARANTEE

To enjoy the closest and most comfortable shave from your new Philips Norelco Men’s Shaver, the shaver should be used exclusively for 3 weeks. This allows your hair and skin enough time to adapt to the Philips Norelco Shaving System. If, after that period of time, you are not fully satisfied with your Philips Norelco Men’s Shaver, send the product back along with dated sales receipt and we’ll refund you the full purchase price. The shaver must be shipped prepaid by insured

mail, insurance prepaid, have the original sales receipt, indicating purchase price, the date of purchase, and the money-back guarantee return authorization form enclosed. We cannot be responsible for lost mail.

The shaver must be postmarked no later than 45 days from the date of purchase. Philips Norelco reserves the right to verify the purchase price of the shaver and limit refunds not to exceed suggested retail price.

To obtain money-back guarantee return authorization form, call 1-800-243-3050 for assistance. Delivery of refund check will occur 6–8 weeks AFTER receipt of returned product.

Table of Contents

Features ...................................................... 8-10

Multi-Level Display ................................12-14

Charge Meter ............................................... 14

Before First Use ........................................... 15

Charging ...................................................15-17

Recharging ..................................................... 17

Quick Charge ............................................... 18

Put It To The Test & Shaving Tips ..............18

How to Shave

With An Electric Shaver .......................19-21

Trimming ..................................................21-23

Travel Lock ..............................................23-24

Cleaning .................................................... 24-31

Replacing the Shaving Unit ..................32-35

Maintenance ..................................................36

Storage ............................................................ 36

Assistance ...................................................... 37

Disposal .......................................................... 37

Accessories ...................................................38

Warranty ........................................................39

Page 6

Features

ENGLISHENGLISH

Contour Detect Technology

Shaving Unit

• Hair Chamber

captures shaven hair

Electronic On/Off Button

Personal Comfort Settings Bar

Cleaning Indicator

Travel Lock

Multi-Level Display

• Shows remaining power level of battery

• Battery Charge, Full & Low Indicators

Replacement Shaving Unit Indicator

Click-on Precision

Trimmer

Automatic Worldwide

Voltage 100V to 240V AC

Travel Pouch

Retaining Ring Holder

Rechargeable 1-hour full charge for up to 50 min.

of cordless shaving time

Quick Charge

Cordless - To shave

without a cord

Full 2-Year Warranty

45-Day Money-Back

Guarantee

Blocked Shaving Heads Indicator

Page 7

ENGLISH

Features

SmartClean System

SmartClean System Cap

Shaver Holder

On/Off Button

Cleaning Cartridge Replacement Indicator

Cleaning Indicator

Drying Indicator

Cleaning Cartridge Release Button

Ready Indicator

Charging Indicator

Cleaning Cartridge

Page 8

ENGLISH

 The display provides the following information:

◗ Charging Indicator

an electrical outlet, you will hear a beep and the bottom charging light blinks. As charging continues, more and more lights will blink to indicate what level the battery has been charged.

Multi-Level Display

◗ Remove any sticker or protective foil from

the display before using shaver.

- As soon as you connect the power cord to

-Quick charge: When the shaver contains enough energy for one shave, the bottom charging light lights up white continuously.

◗ Full Charge Indicator

- When the battery has been fully charged,

all charging lights light up continuously.

After approximately 30 minutes the display automatically switches off again.

- If the on/off button is pressed during or after

charging, the shaver will beep indicating the

shaver is still connected to the electrical outlet.

◗ Remaining Battery Capacity

- The remaining battery capacity is indicated by

the number of charging lights that are on.

ENGLISH

◗ Low Battery Indicator

- When the battery is almost empty (5 or less

shaving minutes left), the bottom charging light blinks orange and you will hear a beep.

◗ Personal Comfort Settings

Choose between three speed settings that best fit your skin and hair type: slow for a more skinfriendly shave, normal for a thorough shave and fast for a high powered shave. Press the – or + buttons to select your personal comfort settings.

◗ Replacement Shaving Unit Indicator

Every year, depending on your shaving behavior, the replacement shaving unit indicator lights up white continuously, the arrows blink white and you will hear a beep. See 'Replacing the Shaving Unit' section for instructions to reset the shaver. This reminds you that with new shaving heads you will guarantee yourself optimal shaving performance.

◗ Blocked Shaving Heads Indicator

If the display shows a blinking replacement shaving unit and faucet, an orange exclamation mark and the shaver beeps, clean the shaver thoroughly before continuing to shave (see ‘Cleaning’). After cleaning, if the blinking replacement shaving unit and faucet with exclamation mark remain on the display, immediately replace the shaving unit (see ‘Replacing the Shaving Unit’).

1312

Page 9

ENGLISH

◗ Cleaning Indicator

For optimal shaving performance, we recommend cleaning the shaver after EACH use. The blinking faucet will remind you the shaving unit needs to be cleaned. This happens after each shave.

ENGLISH

Before First Use

◗ Charge the shaver before you start using it

(see ‘Charging’). Make sure the shaver is switched off before you start charging it.

◗ Remove any sticker or protective foil from

the display before using shaver.

1514

◗ Travel Lock

The shaver is equipped with a travel lock function. You can use the travel lock function when you are going to store the shaver for a longer period or if you are going to take the shaver with you when traveling. See ‘Travel Lock’ section for instructions on how to use this function.

Charge Meter

◗ Charge Meter monitors amount of remaining

battery power available. Remaining battery capacity is based on the amount of power consumed shaving per minute and is

dependent upon your skin and beard type, whether you use pre-shave lotion, and how often the trimmer is used. ◗ Initially your shaver may need to go through 2

or 3 full charge/recharge cycles before

remaining battery capacity indicators begin to

display your accurate battery power left.

Important

◗ Only use the power cord or SmartClean

System provided to charge the shaver.

◗ The power plug transforms 100-240V AC to

less than 24V DC.

Charging

 ◗ Charging, recharging or storing at

temperatures below 40ºF/4,5ºC or higher than 95ºF/35ºC adversely affects lifetime of

batteries. ◗ Charging or recharging requires one full hour. ◗ A fully charged shaver has a shaving time of up

to 50 minutes. ◗ You may recharge when the display indicates

the battery is almost empty. ◗ This shaver will not operate corded directly

from the electrical outlet. ◗ Do not charge shaver in a pouch.

Page 10

ENGLISH

1716

1 Connect cord directly to shaver (1) and

◗ An adaptor plug may be necessary for power

connect the power plug into any 100V to 240V AC outlet (2). Use only the power cord provided.

cord usage in some foreign countries. Use an attachment plug adaptor of the proper configuration for the power outlet.

The power cord will automatically convert to work on 100V to 240V AC systems.

3 Hold the shaver head side down above the

shaver holder.

4 Place the shaver into the holder (1), push

shaver back (2) and press down the top cap to connect the shaver (3) (click).

The shaver will only fit in the SmartClean System in one direction.

5 The battery and on/off symbol blinks to

2 The display on the shaver will indicate

shaver is charging.

indicate the shaver is charging.

6 Charging requires one full hour. A fully

3 Charging requires one full hour. A fully

charged shaver has a cordless shaving time of up to 50 minutes.

Charging Shaver with SmartClean System

1 Connect the small plug to the SmartClean

System. Connect the power plug into any 100V to 240V AC outlet. Use only the power cord provided.

2 Press the top cap to open the SmartClean

System.

1 Recharging requires one full hour.

charged shaver has a cordless shaving time of up to 50 minutes.

7 Press the top cap (1), pull the shaver

forward (2) and lift shaver from holder (3).

Recharging

Recharge when the display indicates the battery is almost empty.

Page 11

ENGLISH

1918

Quick Charge

When batteries are totally depleted, recharging the shaver for approximately 3-5 minutes gives enough energy for a 3-minute cordless shave.

Put It To The Test & Shaving Tips

◗ 21 Day Trial and Conversion Process. It is a fact

that your skin and beard need time to adjust to a new shaving system.

◗ Use your new shaver exclusively for 3 weeks to

fully enjoy the closeness of a Philips Norelco shave.

◗ At first you may not get as close a shave as you

expect, or your face may even become slightly

irritated. This is normal since your beard and skin will need time to adjust. Invest 3 weeks and you’ll soon experience the full joy of your

new shaver. ◗ Stick with it! If you alternate shaving methods

during the adjustment period, it may make it

more difficult to adapt to the Philips Norelco

shaving system. ◗ If you are still not convinced after 21 days,

Philips Norelco will refund you the full

purchase price as long as the request is

received within 45 days of purchase.

How To Shave With An Electric

Shaver

C◗ This symbol on the shaver indicates that the

shaver can be used in the bath or shower.

◗ Make sure the SmartClean System does not

get wet or near water.

◗ For hygienic reasons, the shaver should only

be used by one person.

◗ Use this shaver for its intended household use

as described in this manual.

Shaving

◗ For best results pre-trim your beard if you

have not shaved for 3 days or longer.

C 1 Turn shaver ON by pressing the on/off

button once. Shave against the direction of beard growth using only circular movements.

The shaver display will light up briefly.

Select your personal comfort setting before

using shaver. (See 'Multi-Level Display' chapter).

2 Stretch your skin with your free hand so

blades can lift and cut whiskers. Gently press shaver to skin so the floating heads can follow the contours of your face. DO NOT press too hard. Too much pressure can pinch the skin into the combs.

Page 12

ENGLISH

3 Turn shaver OFF by pressing the on/off

button once.

The display lights up for a few seconds and then shows the remaining battery capacity.

4 Clean the shaver after each use (see

chapter ‘Cleaning’).

C 5 Place the shaver in the SmartClean System

to protect shaver heads.

Wet Shaving

You can also use the shaver on a wet face with shaving foam or gel.

C 1 Apply some water to your skin.

C 2 Apply shaving foam or gel to your skin.

3 Rinse the shaving unit under the tap

to ensure that the shaving unit glides smoothly over your skin.

4 Press the on/off button once to switch on

the shaver.

C 5 Move the shaving heads in circular

movements over your skin.

NOTE: Rinse the shaver under the tap regularly to ensure that it continues to glide smoothly over your skin.

6 Dry your face and thoroughly clean

the shaver after each use (see chapter ‘Cleaning’).

NOTE: Make sure you rinse all foam or gel off the shaver.

7 Place the shaver in the SmartClean System

to protect heads.

Trimming

To Groom Sideburns and Moustache:

1 Pull the shaving unit straight off the shaver.

NOTE: Do not turn the shaving unit while you pull it off the shaver.

2 Insert the raised notch of the trimmer into

the slot in the top of the shaver. Press the trimmer down to attach it to the shaver. You will hear a ‘click’.

Page 13

ENGLISH

3 Turn shaver ON.

The display lights up for a few seconds.

4 Hold trimmer to exact hairline desired.

5 Trim beard, moustache or sideburns using

Move trimmer downward with gentle pressure.

the trimmer.

6 Turn shaver OFF when finished.

The display lights up for a few seconds and then shows the remaining battery capacity charge percentage.

7 Thoroughly clean the trimmer after using

(see ‘Cleaning’).

8 Pull the trimmer straight off the shaver.

NOTE: Do not turn or twist the trimming unit while you pull it off the shaver.

9 Insert the raised notch of the shaving unit

into the slot in the top of the shaver. Press the shaving unit down to attach it to the shaver. You will hear a ‘click’.

10 Place the shaver in the SmartClean System

3 se

 ◗ The travel lock symbol lights up white

◗ The shaver beeps and the lock symbol blinks.

2 The travel lock has now been activated.

1 Press the ON/OFF button for 3 seconds.

to protect heads.

Travel Lock

If you are going to store the shaver for a longer time period or if traveling, it is possible to lock the shaver. The travel lock prevents the shaver from being switched on by accident.

Activating the travel lock

1 Press the ON/OFF button for 3 seconds.

continuously.

Deactivating the travel lock

Page 14

ENGLISH

C 2 The lock symbol blinks and then lights up

continuously. The shaver is now ready for use.

The shaver unlocks automatically when charging in the SmartClean System or when connected to an electrical outlet.

Cleaning

◗ Always clean your shaver after each use. ◗ Regular cleaning guarantees better shaving

results.

◗ Never clean, remove or replace shaving unit

while motor is on.

◗ Do not apply pressure to shaving head combs.

Do not touch shaver heads with hard objects as this may dent or damage precision-made slotted combs.

◗ Do not use shaver if shaving head combs are

damaged or broken. Facial injury may occur.

◗ Do not use abrasives, scourers or aggressive

liquids such as gasoline or acetone to clean the shaver.

Cleaning the Shaving Unit

◗ Regular cleaning guarantees better shaving

results.

◗ While rinsing shaving heads, water may drip

out of the base of shaver. This is a normal occurrence.

C 1 For best results rinse the shaving unit by

running under hot water for a few minutes.

2 Pull the top portion of the shaving unit

straight off the shaver.

3 Rinse the hair chamber under the tap.

4 Rinse the shaving unit under hot tap water.

BE CAREFUL TO TEST WATER FIRST SO AS NOT TO BURN OR SCALD HANDS.

The shaving heads may be quickly cleaned after each use by rinsing with hot water. Water from the tap should be on a hot setting, BUT BE CAREFUL TO TEST WATER FIRST SO AS NOT TO BURN OR SCALD HANDS.

5 Carefully shake off excess water and let

the shaving unit air dry completely.

Page 15

ENGLISH

NOTE: Do not wipe or dry the shaving unit with a towel or tissue. This could damage the shaving heads.

6 Press the top portion of the shaving unit

down to attach it to the shaver head holder. You will hear a ‘click’.

Preparing SmartClean System For Use

CAUTION: Keep cleaning cartridge(s) out of

reach of children. Do not take internally. Avoid contact with eyes. In case of eye contact, thoroughly flush with cold water. If irritation persists, get medical attention.

Important

◗ Only use this shaver, Smart

cleaning cartridge provided to charge or clean shaver.

◗ Other Philips Norelco shavers may not work

with this

◗ For optimal cleaning results, replace the

cleaning cartridge every 3 months.

◗ To avoid evaporation, do not expose cleaning

solution to direct sunlight.

◗ The SmartClean System thoroughly cleans but

does not disinfect your shaver, therefore, do not share shaver with others.

◗ The charging plug converts 100-240V AC to

less than 24V DC.

SmartClean System.

Clean System

and

◗ Place the

stable and fluid-resistant surface to avoid any leakage. Be careful not to tip or move the SmartClean System

◗ Use this appliance for its intended household

use as described in this manual.

1 Place the SmartClean System on a flat, level

To prevent leaking, do not tilt the SmartClean System.

SmartClean System

surface.

on a flat,

when it is ready for use.

C 2 While holding the SmartClean System with

one hand, press the button located on the side of the SmartClean System (1) and lift the SmartClean System (2).

C 3 Remove the seal off the cleaning cartridge.

NOTE: ONLY USE PHILIPS NORELCO SMARTCLEAN CARTRIDGE (MODEL JC302) WITH THE SMARTCLEAN SYSTEM.

◗ When the cleaning cartridge filter is full, the

replacement symbol blinks indicating the cleaning cartridge should be replaced. See 'Replacing the SmartClean System Cartridge'.

C 4 Place the cleaning cartridge in the

SmartClean System.

Page 16

ENGLISH

C 5 While holding the SmartClean System with

one hand, gently push the top part of the SmartClean System back down. You will hear a 'click'.

When the SmartClean System is ready for use, do not move appliance to prevent leakage.

Cleaning the Shaver in the SmartClean System

C 4 Shake off any excess water from shaver

C 5 Hold the shaver head side down above the

removed from the cleaning cartridge (see ‘Preparing SmartClean System For Use’).

before placing in the SmartClean System.

shaver holder.

C ◗ SmartClean System has two phases: a cleaning

phase and a drying phase.

◗ If the shaver does not contain enough power

for one (1) shave, the SmartClean System may not work properly. Charge the shaver in the

SmartClean System

SmartClean System to clean your shaver.

◗ If you use the shaver with shaving foam or gel,

quickly rinse under hot water before cleaning in the SmartClean System.

1 Connect the small plug to the

System

. Connect the power plug into any 100V to 240V AC outlet. Use only the power cord provided.

before using the

SmartClean

C 6 Place the shaver into the holder (1), push

7 The battery symbol slowly blinks to

shaver back (2) and press down the top cap to connect the shaver (3) (click).

The shaver will only fit in the SmartClean System in one direction.

indicate shaver is charging.

C 8 Press the ON/OFF button on the

SmartClean System to start the cleaning cycle. (click).

The cleaning symbol will blink.

C 2 Press the top cap to open the SmartClean

System.

3. Place the SmartClean System on a flat, level surface. Make sure the seal has been

◗ The cleaning cycle takes approximately 10

minutes. When completed, the cleaning symbol will light up continuously and the drying phase starts automatically.

Page 17

ENGLISH

C ◗ During the drying phase, the drying symbol

blinks.

◗ The drying phase takes approximately 4 hours.

When completed, the drying symbol will light up continuously.

◗ Do not press the ON/OFF button while the

cleaning cycle is running. If this does occur, the

cleaning cycle will stop and the cleaning or drying symbol goes off . The cleaning cycle can be re-started by pressing the ON/OFF button

once. ◗ If the power plug is disconnected before the cleaning cycle is complete, reconnect the plug into the outlet and the cleaning cycle can be

re-started by pressing the ON/OFF button

once.

◗ The SmartClean System automatically turns

off 30 minutes after the cleaning and drying phases are complete.

C 11 Place the shaver in the SmartClean System

to protect shaver heads.

Cleaning the Trimmer

Clean the trimmer after each use.

C 1 Attach the trimmer to shaver.

2 Turn shaver ON.

C NOTE: When the cleaning car tridge filter is full,

the replacement symbol blinks orange. (See

'Replacing the SmartClean System Cartridge').

C 9 When the entire cleaning cycle is complete

and the shaver is hygienically clean, the ready symbol lights up continuously.

The battery symbol on the shaver will light up to indicate the shaver is fully charged.

C 10 Press the top cap (1), pull the shaver

forward (2) and lift shaver from SmartClean holder (3).

C 3 Rinse the trimmer under hot water. BUT

BE CAREFUL TO TEST WATER FIRST SO AS NOT TO BURN OR SCALD HANDS.

4 Turn shaver off. Shake off excess water and

allow trimmer to air dry thoroughly.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with one drop of mineral oil every 6 months.

Page 18

ENGLISH

Replacing the Shaving Unit

◗ Replace the shaving unit once a year for

optimal shaving results. ◗ Replace damaged or worn shaver heads with

model SH90 Philips Norelco shaver heads

only.

Replacement Shaver Head Assembly Indication

C ◗ The shaving unit symbol lights up continuously,

the arrows blink and you will hear a beep

when the shaver is turned off to remind you

to replace your shaving unit to obtain optimal

shaving results.

ENGLISH

C 4 Remove the shaving heads from the

shaving head holder and discard.

DO NOT discard the retaining ring.

C 5 Place new shaving heads in the holder.

Make sure the notches on both sides of the shaving heads fit exactly onto the projections in the shaving head holder.

C 6 Place the retaining ring holder on the

retaining ring (1), place it on the shaving head (2) and turn clockwise (3) to reattach the retaining ring.

1 2

C 1 Pull the top portion of the shaving unit

straight off the shaver.

C 2 Place the retaining ring holder on the

3 Remove the retaining ring from the

retaining ring (1), turn counterclockwise (2) and lift it off the shaving head (3).

retaining ring holder and repeat the process for the other retaining rings.

C NOTE: Each retaining ring has two recesses that

fit exactly into the projections of the shaving head holder. Turn the ring clockwise until you hear a click to indicate the ring is fixed into place.

7 Repeat this process for the other retaining

rings.

C 8 Hold the shaving head holder in your hand

and place the retaining ring on the shaving head holder (1). Turn clockwise (2) to reattach the retaining ring.

Do not place the shaving head holder on a surface, as damage may occur.

Page 19

ENGLISH

9 Attach the shaving head holder to the

bottom part of the shaving unit (click).

3 Discard the empty cleaning cartridge.

Contact your local town or city officials for recycling information.

C 10 To reset the shaver, press and hold the On/

7 se

Off button for approximately 7 seconds. You will hear 2 beeps.

This shaver/SmartClean System has no other user-serviceable parts. For assistance call 1-800243-3050.

C 4 Remove the seal off the new cleaning

cartridge.

C 5 Place the new cleaning cartridge in the

Replacing the SmartClean System Cleaning Cartridge

SmartClean System.

C ◗ For optimal cleaning results, replace the

cleaning cartridge when the replacement

indicator blinks orange or every 3 months.

C 1 While holding the SmartClean System

with one hand, press the cartridge release button on the side of the SmartClean System (1) and lift the SmartClean System (2).

C 6 While holding the SmartClean System with

one hand, gently push the top part of the SmartClean System back down. You will hear a 'click'.

When the SmartClean System is ready for use, do not move appliance to prevent leakage.

C 2 Remove the empty cleaning cartridge and

pour any remaining cleaning fluid out of the cleaning cartridge.

You can safely pour the cleaning fluid down the sink.

Page 20

ENGLISH

Maintenance

◗ Always remove shaver from the SmartClean

System before cleaning appliance. ◗ The SmartClean System and shaver

wiped clean using a damp cloth. ◗ Water from the tap should be on a warm

setting to clean any washable parts.

may be

NOTE: DO NOT place or clean any parts of the

SmartClean System in a dishwasher.

Storage

◗ The shaver can be placed in the travel pouch

or SmartClean System for safe storage. ◗ Be sure shaver is turned off. Remove cord

from outlet before storing in a safe, dry

location where it will not be crushed, banged,

or subject to damage. ◗ Do not wrap power cord around shaver or

SmartClean System when storing. ◗ Store cord in a safe location where it will not

be cut or damaged. ◗ Do not place or store SmartClean System

where it can fall or be pulled into a tub or

sink, water or other liquid while plugged in.

Assistance

◗ For assistance, visit our website:

www.philips.com/support or call 1-800-243-3050.

◗ Online information is available 24 hours a day,

7 days a week.

Disposal

◗ This Philips Norelco shaver contains a

rechargeable Lithium-Ion battery

which must be disposed of properly. ◗ Contact your local town or city officials for battery disposal information or call 1-800-822-8837 or www.rbrc.com for battery

drop-off locations. ◗ Your product is designed and manufactured

with high quality materials and components,

which can be recycled and reused. For

recycling information, please contact your

local waste management facilities or visit

www.recycle.philips.com. ◗ For assistance, visit our website, www.philips.com/support or call toll free:

1-800-243-3050.

Page 21

ENGLISH

3938

Accessories

◗ Replacement Shaving Unit

Model SH90 - For maximum shaver

performance, replace your Philips Norelco

shaver heads once a year. ◗ Replacement Cleaning Cartridge Model JC302 - Philips Norelco SmartClean

Cleaning Cartridge, 2-Pack Model JC303 - Philips Norelco SmartClean

Cleaning Cartridge, 3-Pack

◗ SmartClick Cleansing Brush Model RQ585 - Philips Norelco SmartClick

Cleansing Brush

◗ Philips Norelco Shaver Accessories may be purchased at a store near you, or on our

website www.philips.com/store

FULL TWO YEAR WARRANTY

Philips Electronics North America Corporation warrants each new Philips Norelco Product, Models S9531/ S9311 (except cutters and combs) against defects in materials or workmanship for a period of two years from the date of purchase, and agrees to repair or replace any defective product without charge. IMPORTANT: This warranty does not cover damage resulting from accident, misuse or abuse, lack of reasonable care, the affixing of any attachment not provided with the product or loss of parts or subjecting the product to any but the specified voltage.*

NO RESPONSIBILITY IS ASSUMED FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

In order to obtain warranty service, simply go to www.philips.com/norelco or call 1-800-243-3050 for assistance. It is suggested that for your protection you return shipments of product by insured mail, insurance prepaid. Damage occurring during shipment is not covered by this warranty. NOTE: No other warranty, written or oral, is authorized by Philips Electronics North America Corporation. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion and limitations may not apply to you. * Read enclosed instructions carefully.

Manufactured for: Philips Consumer Lifestyle A division of Philips Electronics North America Corporation P.O.Box 10313, Stamford, CT 06904

This symbol on the product’s nameplate means it is listed by Underwriters’ Laboratories, Inc.

Norelco and Tripleheader are registered trademarks of Philips Electronics North America Corporation.

PHILIPS is a registered trademark of Koninklijke Philips N.V.

4222 002 5878 1
