Philips S8980 User Manual

S8980

1

1

9

8

2

7

6

5

3

4

10

11 12

English 6

简体中文 25

English

6

Introduction

Congratulations on your purchase and welcome
to Philips! To fully benet from the support that
Philips oers, register your product at

www.philips.com/welcome.

General description

1 Click-on shaving unit
2 Handle
3 Socket for small plug
4 Battery charge indicator with 1 light
5 Battery charge indicator with 3 lights
6 Unplug for use symbol
7 Travel lock symbol
8 Replacement reminder
9 Cleaning reminder
10 Supply unit
11 Small plug
12 Pouch

Important safety information

Read this important information carefully before
you use the appliance and save it for future
reference.

Danger

- Keep the supply unit dry.

Warning

English

- The appliance is a Class III
construction.

- To charge the battery, only
use the detachable supply unit
(type HQ8505) provided with
the appliance.

- The supply unit contains a
transformer. Do not cut o the
supply unit to replace it with
another plug, as this causes a
hazardous situation.

- This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge
if they have been given
supervision or instruction
concerning use of the appliance
in a safe way and understand
the hazards involved.

7

8

English

Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision.

- Always unplug the shaver
before you clean it under the
tap.

- Always check the appliance
before you use it. Do not use
the appliance if it is damaged,
as this may cause injury. Always
replace a damaged part with
one of the original type.

- Do not open the appliance
to replace the rechargeable
battery.

Caution

English

- Never immerse the cleaning
system or the charging stand in
water and do not rinse it under
the tap.

- Never use water hotter than
80°C to rinse the shaver.

- Only use this appliance for its
intended purpose as shown in
the user manual.

- For hygienic reasons, the
appliance should only be used
by one person.

- Never use compressed air,
scouring pads, abrasive
cleaning agents or aggressive
liquids such as petrol or
acetone to clean the appliance.

- If your shaver comes with a
cleaning system, always use the
original Philips cleaning uid
(cartridge or bottle, depending
on the type of cleaning system).

9

10

English

- Always place the cleaning
system on a stable, level and
horizontal surface to prevent
leakage.

- If your cleaning system uses a
cleaning cartridge, always make
sure the cartridge compartment
is closed before you use the
cleaning system to clean or
charge the shaver.

- When the cleaning system is
ready for use, do not move it
to prevent leakage of cleaning
uid.

- Water may drip from the socket
at the bottom of the shaver
when you rinse it. This is normal
and not dangerous because
all electronics are enclosed in
a sealed power unit inside the
shaver.

- Do not use the supply unit in or
near wall sockets that contain
an electric air freshener to
prevent irreparable damage to
the supply unit.

Electromagnetic elds (EMF)

- This Philips appliance complies with all
applicable standards and regulations regarding
exposure to electromagnetic elds.

General

- This shaver is waterproof. It is suitable for use
in the bath or shower and for cleaning under
the tap. For safety reasons, the shaver can
therefore only be used without cord.

- The appliance is suitable for mains voltages
ranging from 100 to 240 volts.

- The supply unit transforms 100-240 volts to
a safe low voltage of less than 24 volts.

The display

Charging

Battery charge indicator with 3 lights
(specic types only)

Quick charge: When you connect the shaver to
the wall socket, the lights of the battery charge
indicator light up one after the other repeatedly.
When the appliance contains enough energy for
one shave, the bottom light of the battery charge
indicator starts to ash slowly.

English

11

English

12

While the appliance continues to charge, rst the
bottom light of the battery charge indicator ashes
and then lights up continuously. Then the second
light ashes and then lights up continuously,
and so on until the appliance is fully charged.

Battery fully charged

Battery fully charged

When the battery is fully charged, all lights of
the the battery charge indicator light up white
continuously.

Note: This appliance can only be used without
cord. If you press the on/o button during
charging, the 'unplug for use' symbol ashes white
to remind you that you have to disconnect the
appliance from the power outlet.

Note: When the battery is full, the display switches
o automatically after 30 minutes.

Battery low

When the battery is almost empty, the battery
charge indicator ashes orange.

When the battery is almost empty, the bottom light
of the battery charge indicator ashes orange.

Remaining battery charge

Battery charge indicator

The remaining battery charge is shown by the
lights of the battery charge indicator that light up
continuously.

’Unplug for use’ reminder

The appliance is equipped with an ‘unplug for
use’ reminder. The ‘unplug for use’ symbol ashes
to remind you that you have to disconnect the
appliance from the supply unit before you can
switch it on.

Cleaning reminder

Clean the shaver after every shave for optimal
performance. When you switch o the appliance,

the cleaning reminder ashes to remind you to
clean the appliance.

Travel lock

You can lock the appliance when you are going to
travel. The travel lock prevents the appliance from
being switched on by accident.

Activating the travel lock

1 Press the on/o button for 3 seconds to enter

the travel lock mode.

3 sec.

English

13

While you activate the travel lock, the travel
lock symbol lights up continuously. When the
travel lock is activated, the travel lock symbol
ashes.

Deactivating the travel lock

1 Press the on/o button for 3 seconds.

English

14

The travel lock symbol ashes and then lights
up continuously. The appliance is now ready

for use again.

Replacing shaving heads

For maximum shaving performance, we advise
you to replace the shaving heads every two years.

The appliance is equipped with a replacement
reminder which reminds you to replace the
shaving heads. The shaving unit symbol lights up
and the arrows ash to indicate that you have to
replace the shaving heads.

Note: After replacing the shaving heads, you need
to reset the replacement reminder by pressing the
on/o button for 7 seconds.

Charging

Charge the shaver before you use it for the rst
time and when the display indicates that the
battery is almost empty.

Charging takes approx. 1 hour.A fully charged

shaver has a shaving time of up to 50 minutes.

Note: You cannot use the appliance while it is
charging.

Charging with the supply unit

1 Make sure the appliance is switched o.
2 Put the supply unit in the wall socket and put

the small plug in the appliance.

3 After charging, remove the supply unit from the

2

1

wall socket and pull the small plug out of the
appliance.

Using the appliance

Note: This appliance can only be used without cord.

Switching the appliance on and o

- To switch on the appliance, press the on/o
button once.

- To switch o the appliance, press the on/o
button once.

Shaving

Skin adaption period

Your rst shaves may not bring you the result you
expect and your skin may even become slightly
irritated. This is normal. Your skin and beard need
time to adapt to any new shaving system.
We advise you to shave regularly (at least 3 times
a week) and exclusively with this shaver for a
period of 3 weeks to allow your skin to adapt to
the new shaver.

Dry shaving

1 Switch on the appliance.
2 Move the shaving heads over your skin in

circular movements.

Note: Circular movements provide better shaving
results than straight movements.

English

15

3 Clean the appliance after use

(see 'Cleaning and maintenance').

Wet shaving

You can also use this appliance on a wet face with
shaving foam or shaving gel.

16

English

To shave with shaving foam or shaving gel, follow
the steps below:

1 Apply some water to your skin.

2 Apply shaving foam or shaving gel to your skin.

3 Rinse the shaving unit under the tap to ensure

that the shaving unit glides smoothly over your
skin.

4 Switch on the appliance.

5 Move the shaving heads over your skin in

circular movements.

Note: Rinse the shaving unit regularly to ensure
that it continues to glide smoothly over your skin.

6 Dry your face.

7 Clean the appliance after use (see 'Cleaning

and maintenance').

Note: Make sure you rinse all foam or shaving gel
o the appliance.

Cleaning and maintenance

The accessories supplied may vary for dierent
products. The box shows the accessories that have
been supplied with your appliance.

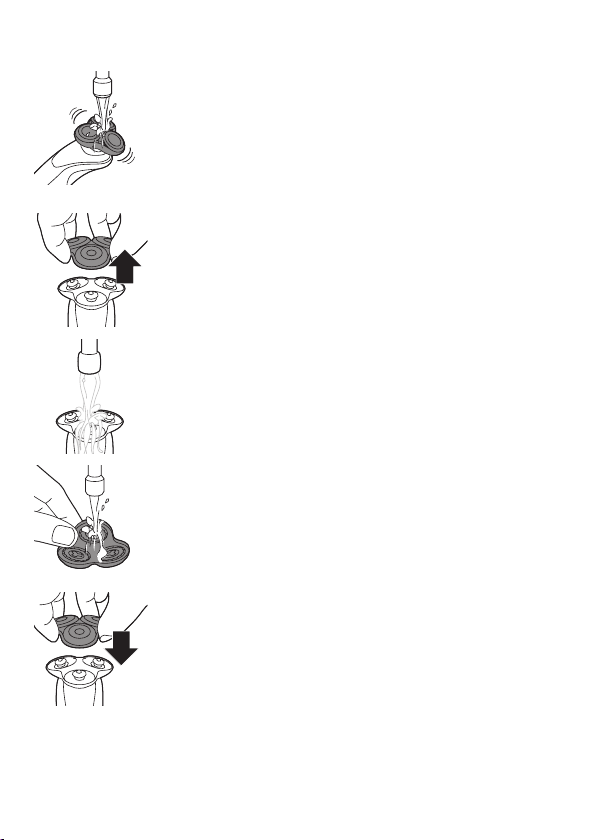

Cleaning the shaver under the tap

Clean the shaver after every shave for optimal
performance.

Caution: Be careful with hot water. Always check
if the water is not too hot, to prevent burning
your hands.

Never dry the shaving unit with a towel or tissue,
as this may damage the shaving heads.

1 Switch on the appliance.
2 Rinse the shaving unit under a warm tap.

3 Switch o the appliance. Pull the shaving head

holder o the bottom part of the shaving unit.

English

17

4 Rinse the hair chamber under the tap.

English

18

5 Rinse the shaving head holder under a warm

tap.

6 Carefully shake o excess water and let the

shaving head holder dry.

7 Attach the shaving head holder to the bottom

part of the shaving unit (‘click’).

Storage

Shaver

1 Store the appliance in the pouch (if supplied).

Note: Make sure the appliance is dry before you
store it in the pouch.

Replacement

Replacing the shaving heads

For maximum shaving performance, we advise

2yrs

you to replace the shaving heads every two years.
Replace damaged shaving heads immediately.
Always replace the shaving heads with original
Philips shaving heads (see 'Ordering accessories').

Replacement reminder

English

The replacement reminder indicates that the
shaving heads need to be replaced.The shaving
unit symbol and arrows light up when you switch
o the appliance.

1 Switch o the appliance.

2 Pull the shaving head holder o the bottom

part of the shaving unit.

19

2

3 Turn the retaining rings anticlockwise and

remove them.

1

4 Remove the shaving heads from the shaving

head holder.

5 Throw away the used shaving heads

immediately to avoid mixing them with the new
shaving heads.

6 Place the shaving heads in the shaving head

holder.

Note: Make sure the notches on both sides of the
shaving heads t exactly onto the projections in
the shaving head holder.

20

English

1

7 Place the retaining rings back onto the shaving

2

heads and turn them clockwise to reattach the
retaining ring.

- Each retaining ring has two recesses that t
exactly into the projections of the shaving head
holder. Turn the ring clockwise until your hear a
click to indicate that the ring is xed.

1

Note: Hold the shaving head holder in your hand
when you reinsert the shaving heads and reattach
the retaining rings. Do not place the shaving head
holder on a surface when you do this, as this may
cause damage.

8 Attach the shaving head holder to the bottom

part of the shaving unit (‘click’).

9 To reset the replacement reminder, press and

hold the on/o button for approx. 7 seconds.

Ordering accessories

To buy accessories or spare parts, visit
www.shop.philips.com/service or go to your
Philips dealer. You can also contact the Philips
Consumer Care Centre in your country (see the
worldwide guarantee leaet for contact details).

The following accessories and spare parts are
available:

- HQ8505 supply unit

- SH90 Philips shaving heads

- HQ110 Philips shaving head cleaning spray

Note: The availability of the accessories may dier
by country.

English

Recycling

- Do not throw away the product with the
normal household waste at the end of its life,
but hand it in at an ocial collection point for
recycling. By doing this, you help to preserve
the environment.

- This product contains a built-in rechargeable
battery which shall not be disposed of with
normal household waste. We strongly advise
you to take your product to an ocial collection
point or a Philips service centre to have a
professional remove the rechargeable battery.

- Follow your country’s rules for the separate
collection of electrical and electronic products
and rechargeable batteries. Correct disposal
helps prevent negative consequences for the
environment and human health.

Removing the rechargeable appliance battery

Warning: Only remove the rechargeable battery
when you discard the appliance. Before you
remove the battery, make sure that the appliance
is disconnected from the mains and that the
battery is completely empty.

Warning: Take any necessary safety precautions
when you handle tools to open the appliance.

21

Caution: Be careful, the battery strips are sharp.

1 Remove the screw in the back panel with a

screwdriver. Then remove the back panel.

English

22

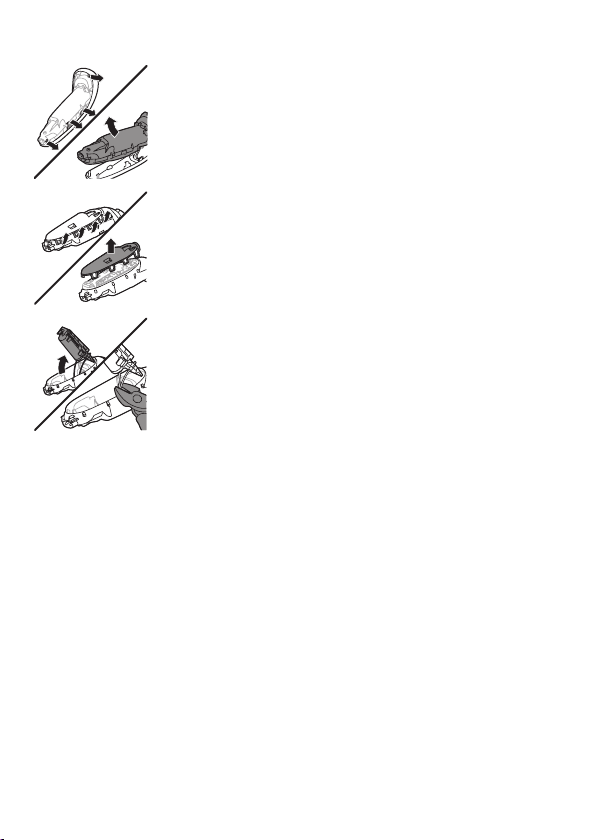

2 Bend the hooks aside and remove the power

unit.

3 Break the snap hooks and remove the front

panel of the power unit.

4 Take out the battery holder and cut the battery

tags with a pair of cutting pliers.

Guarantee and support

If you need information or support, please visit
www.philips.com/support or read the separate
worldwide guarantee leaet.

Guarantee restrictions

The shaving heads (cutters and guards) are
not covered by the terms of the international
guarantee because they are subject to wear.

Troubleshooting

This chapter summarizes the most common
problems you could encounter with the appliance.
If you are unable to solve the problem with the
information below, visit www.philips.com/support
for a list of frequently asked questions or contact
the Consumer Care Center in your country.

Shaver

Problem Possible cause Solution

English

23

The appliance
does not work
when I press the
on/o button.

The rechargeable

The travel lock is

The appli­ance does not
shave as well as
it used to.

Hairs or dirt obstruct

The appliance is
still attached to the
wall socket. For
safety reasons, the
appliance can only
be used without
cord.

battery is empty.

activated.

The shaving unit is
soiled or damaged
to such an extent
that the motor
cannot run.

The shaving heads
are damaged or
worn.

the shaving heads.

Unplug the appliance and
press the on/o button to
switch on the appliance.

Recharge the battery
(see 'Charging').

Press the on/o button for
3 seconds to deactivate the
travel lock.

Clean the shaving heads
thoroughly or replace
them. Also see 'Hairs or dirt
obstruct the shaving heads'
for a detailed description of
how to clean the shaving
heads thoroughly.

Replace the shaving heads.

Clean the shaving heads
in the regular way or clean
them thoroughly.

English

24

Problem Possible cause Solution

To clean the shaving heads

I replaced
the shaving
heads, but the
replacement
reminder is still
showing.

A shaving
head symbol
has suddenly
appeared on the
display.

Water is leaking
from the bottom
of the appliance.

You have not reset
the appliance.

This symbol is
a replacement
reminder.

During cleaning,
water may collect
between the inner
body and the
outer shell of the
appliance.

thoroughly, remove the
shaving heads from the
shaving head holder one
by one. Then separate the
cutter from its guard and
rinse each matching set
under the tap. After rinsing,
place the cutter back into
its corresponding guard.
Finally, put the shaving
heads back into the
shaving head holder.

Reset the appliance by
pressing the on/o button
for approx. 7 seconds.

Replace the shaving heads
(see 'Replacement').

This is normal and not
dangerous because all
electronics are enclosed in
a sealed power unit inside
the appliance.

介绍

基本说明

重要安全信息

危险

简体中文

感谢您的惠顾，欢迎光临飞利浦！ 为了让您能充分享
受飞利浦提供的支持，请在 www.philips.com/welcome
上注册您的产品。

1 卡入式剃须刀头部件
2 手柄
3 小插头插座
4 电池充电指示灯（1 级指示）
5 电池充电指示灯（3 级指示）
6 “拔出插头即可使用”符号
7 旅行锁符号
8 更换提醒
9 清洗提示
10 电源部件
11 小插头
12 存储袋

使用产品之前，请仔细阅读本重要信息，并妥善保管以
供日后参考。

25

- 保持电源部件干燥。
警告符号注释：禁止用在打开的水
龙头下进行清洗。

26

警告

简体中文

- 本产品为 III 级构造。

- 要给电池充电，请仅使用该产
品随附的可拆卸电源部件（类型
HQ8505）。

- 电源部件中包含一个变压器。
请勿自行更换电源部件的插头，
否则将导致严重后果。
如果电源软线损坏，必须用专用软
线或从其制造商或维修部买到的专
用组件来更换。“

- 本产品适合由 8 岁或以上年龄的
儿童以及肢体不健全、感觉或精神
上有障碍或缺乏相关经验和知识的
人士使用，但前提是有人对他们使
用本产品进行监督或指导，以确保
他们安全使用，并且让他们明白相
关的危害。 切勿让儿童玩弄本产
品。 不要让儿童在无人监督的情
况下对本产品进行清洁和保养。

- 在自来水龙头下清洗剃须刀之前，
务必拔掉其电源插头。

警告

简体中文

27

- 使用前，请务必检查产品。 请勿
使用损坏的产品，否则可能对人体
造成伤害。 请务必用原装型号更
换损坏的部件。

- 切勿拆开本产品更换充电电池。

- 切勿将清洁系统或充电座浸入水
中，也不要在水龙头下冲洗。

- 切勿使用温度高于 80°C 的热水
冲洗剃须刀。

- 只能将本产品用于用户手册中所示
的原定用途。

- 出于卫生的目的，本产品只能供一
个人使用。

- 切勿使用压缩气体、钢丝绒、
研磨性清洁剂或腐蚀性液体
（例如汽油或丙酮）来清洁产品。

- 如果剃须刀随附清洁系统，应始
终使用原装飞利浦清洁液（滤芯或
瓶，取决于清洁系统类型）。

- 清洁系统必须放在稳定、平坦的水
平表面上，以防漏液。

简体中文

28

电磁场 (EMF)

概述

- 如果清洁系统采用清洁滤芯，
在使用清洁系统进行清洁或为剃须
刀充电之前，应始终确保滤芯仓已
关闭。

- 清洁系统准备就绪时，切勿移动，
以免清洁液漏出。

- 冲洗剃须刀时，水可能从产品底部
的插口漏出。 这是正常的，
而且没有危险，因为所有电子元件
都封闭在剃须刀内部的密封电源部
件中。

- 请勿在包含电动空气清新器的墙壁
插座上或其周围使用电源部件，以
免电源部件受到不可修复的损坏。

- 本 Philips 产品符合所有有关暴露于电磁场的适用标
准和法规。

- 该剃须刀具有防水性能。 适合在沐浴或淋浴时使
用，也可以放在水龙头下清洗。 出于安全原因，
该剃须刀在使用时不能连接电线。
符号注释：适合于在洗澡或淋浴时使用。允许在盛水
的浴缸、淋浴、洗脸盆或其他器皿附近使用本器具。

- 本产品适合在 100 - 240 伏的电源电压下工作。

- 该电源部件可将 100-240 伏的电压转换为 24 伏以
下的安全低电压。

显示屏

充电

电池已完全充满

电池电量不足

简体中文

29

具有 3 级指示的电池充电指示灯（仅限于特定
型号）

快速充电： 将剃须刀连接到电源插座时，电池充电指
示灯将逐个亮起并重复循环。 产品包含的电量足够完
成一次剃须时，底部的电池充电指示灯开始缓慢闪烁。

产品如果继续充电，底部的电池充电指示灯先是闪烁，
然后持续亮起。 然后，第二个指示灯闪烁，之后持续
亮起，以此类推，直至本产品充满电。

电池已完全充满

电池充满电后，所有电池充电指示灯都将呈白色持续
亮起。

注意： 本产品只能在不接电源的情况下使用。 充电期
间按开/关按钮，“拔出插头即可使用”符号呈白色闪
烁，提醒您需断开产品与电源插座的连接。

注意： 电池充满电后，显示屏会在 30 分钟后自动关
闭。

当电池的电量几乎耗尽时，电池充电指示灯会呈橙色
闪烁。

当电池电量几乎耗尽时，电池充电指示灯的底灯会呈
橙色闪烁。

简体中文

30

电池剩余电量

电池充电指示灯

剩余的电池电量由持续亮起的充电指示灯来表示。

“拔出插头即可使用”提醒

产品配有“拔出插头即可使用”提醒。 “拔出插头即
可使用”符号闪烁，提醒您需先断开产品与电源部件的
连接才能启动产品。

清洗提示

每次剃须后请清洁剃须刀，以获得更好性能。 关闭产
品时，清洗提示符号闪烁，提醒您需要清洁产品。

旅行锁

您可以在携带剃须刀旅行之前将其锁住。旅行锁可防止
剃须刀被意外打开。

启用旅行锁

3 sec.

1 按住开/关按钮 3 秒钟以进入旅行锁模式。

启用旅行锁后，旅行锁符号会持续亮起。 旅行锁启用
后，旅行锁符号将闪烁。

更换剃须刀头

充电

用电源部件充电

1

2

简体中文

31

禁用旅行锁

1 按开/关按钮 3 秒钟。

旅行锁符号闪烁，然后持续亮起。 现在可以再次使

用本产品。

为获得更好剃须效果，建议每两年更换一次剃须刀头。
本产品配有更换提示，它会提醒您更换剃须刀头。
剃须刀头部件符号亮起，箭头闪烁，表示需要更换剃
须刀头。

注意： 更换剃须刀头后，您需要通过按开/关按钮 7 秒
来重置更换提醒。

首次使用剃须刀之前，或当显示屏指示电池电量几乎耗
尽时，请先为剃须刀充电。

充电约需 1 小时。充满电的剃须刀最长剃须时间 可达

50 分钟。

注意： 不能在充电时使用本产品。

1 确保产品电源已关闭。
2 将电源部件插入电源插座，然后将小插头插入本产

品。

3 充电之后，从电源插座上拔下电源部件，并从产品

上拔下小插头。

简体中文

32

使用本产品

打开或关闭产品

剃须

注意： 本产品只能在不接电源的情况下使用。

- 要启动产品，请按一下开/关按钮。

- 要关闭产品，请按一下开/关按钮。

皮肤适应期

前几次剃须可能不会带给您预期效果，并且您的皮肤可
能会受到轻度刺激。 这是正常的。 您的皮肤和胡须需
要时间适应任何新的剃须系统。 建议您在 3 周时间内
定期（至少每周 3 次）仅使用本产品剃须，以便让您
的皮肤适应新的剃须刀。

干用剃须

1 启动产品。
2 将剃须刀头在您的皮肤上作迂回运动。
注意： 划圈动作比直线动作的剃须效果更好。

3 使用 (请参见 '清洁和保养')后要清洁本产品。

湿剃

您也可以先用剃须泡沫或剃须啫喱将脸弄湿，
然后再用此剃须刀进行剃须。

要用剃须泡沫或剃须啫喱剃须，请按照下面的步骤执
行操作：

1 用水润湿一下皮肤。

2 在皮肤上涂上剃须泡沫或剃须啫喱。

3 在 水龙头下冲洗一下剃须刀头部件，确保剃须刀头

部件可以在您的皮肤上顺畅滑动。

4 启动产品。

5 将剃须刀头在您的皮肤上作迂回运动。
注意： 定期冲洗剃须刀头部件，确保其能够继续在您

的皮肤上顺畅滑动。
6 擦干面部。

7 使用 (请参见 '清洁和保养')后要清洁本产品。
注意： 确保冲洗干净本产品上的所有泡沫或剃须啫

喱。

清洁和保养

在水龙头下冲洗剃须刀

每次剃须后请清洁剃须刀，以获得更好性能。

警告： 使用热水要当心。 切记先检查水温是否太高，
以防烫手。

简体中文

33

警告： 不要用毛巾或纸巾擦拭剃须刀头部件，因为这
样可能会损坏剃须刀头。

34

简体中文

1 启动产品。
2 用温水冲洗剃须刀头部件。

3 关闭产品。 将剃须刀头支架从剃须刀头部件的底

部抽离。

4 在水龙头下冲洗胡茬储藏室。

5 用温水冲洗剃须刀头支架。
6 小心甩干多余的水，然后使剃须刀头支架干燥。

7 将剃须刀头支架安装到剃须刀头部件的底部

（可听到“咔哒”一声）。

存放

剃须刀

更换

更换剃须刀头

2yrs

简体中文

1 将产品存放在软袋中（如有提供）。
注意： 将本产品存放到软袋之前，应确保其干燥。

为获得更好剃须效果，建议每两年更换一次剃须刀头。

立即更换损坏的剃须刀头。 务必使用原装飞利浦剃须
刀头进行更换 (请参见 '订购配件').

35

更换提醒

更换提醒表示需要更换剃须刀头。关闭产品时，
剃须刀头部件符号和箭头亮起。

1 关闭产品。

2 将剃须刀头支架从剃须刀头部件的底部抽离。

2

1

3 逆时针旋转固定环并将其取下。

36

简体中文

4 从剃须刀头支架上卸下剃须刀头。
5 立即扔掉用过的剃须刀头，以免与新的剃须刀头混

淆。

6 将剃须刀头装到剃须刀头支架中。
注意： 确保剃须刀头两侧的槽口正好卡入剃须刀头支

架上的凸起部位。

1

7 将固定环放回剃须刀头上，然后顺时针旋转以重新

2

安装固定环。

- 每个固定环均具有两个凹槽，正好能够装入剃须刀
头支架的凸缘上。 顺时针旋转固定环，直至听到
“咔哒”一声，表明固定环已就位。

1

注意： 当您重新插入剃须刀头并重新安装固定环时，
请将剃须刀头支架握在手中。 当您执行此操作时，切
勿将剃须刀头支架放在平面上，否则可能会造成损坏。

8 将剃须刀头支架安装到剃须刀头部件的底部

（可听到“咔哒”一声）。

9 要重置更换提醒，请按住开/关按钮约 7 秒钟。

订购配件

要购买附件或备件，请访问 www.shop.philips.com/
service 或联系您的飞利浦经销商。 您还可以联系所在

国家/地区的飞利浦客户服务中心（请参阅全球保修卡
了解详细联系信息）。

可选配以下附件和备件：

- HQ8505 电源部件

- SH90 飞利浦剃须刀头

- HQ110 飞利浦剃须刀头清洁喷雾剂

注意： 配件可用性可能因国家/地区而异。

回收

- 弃置本产品时，请不要将其与一般生活垃圾放在一
起，应将其交给政府指定的回收中心。 这样做将有
利于环保。

- 此产品包含内置充电电池；请勿将充电电池与一般
生活垃圾一起弃置。 强烈建议您将自己的产品送到
官方收集点或飞利浦服务中心，让专业人士移除充
电电池。

- 遵循您的国家/地区有关分类回收电子电气产品和充
电电池的规定。 正确弃置产品有助于避免对环境和
人类健康造成不良后果。

取出可充电的产品电池

警告： 仅在丢弃本产品时方可取出充电电池。 卸下电
池之前，请确保产品与电源断开连接并且电池电量已
耗尽。

简体中文

37

警告： 当您使用工具打开产品时，请采取必要的安全
保护措施。

警告： 注意，电池带非常锋利。

简体中文

38

保修和支持

保修条款

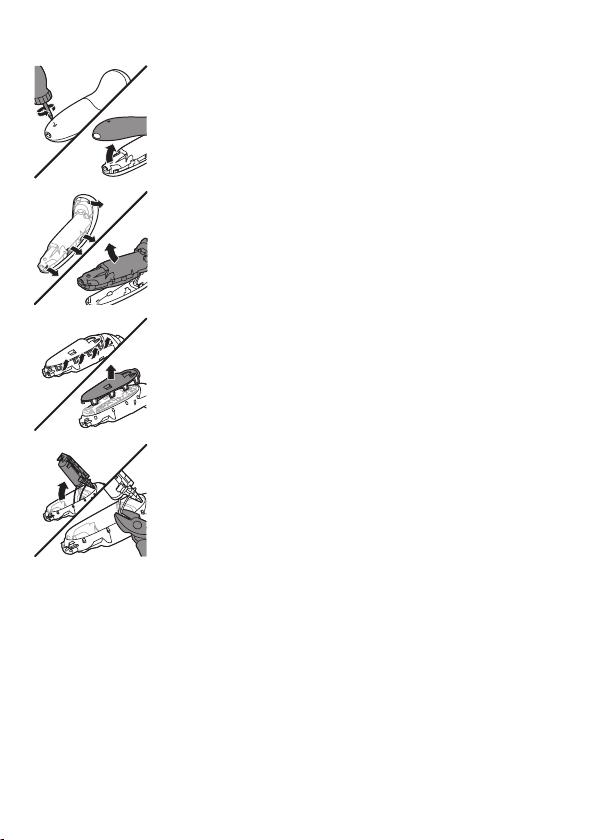

1 使用螺丝刀取出后面板中的螺钉。 拆除后面板。

2 将钩子向外掰，取出电源部件。

3 脱开安全钩，取下电源部件的前面板。

4 取出电池舱，用一把钢丝钳剪下电池标签。

如果您需要信息或支持，请访问 www.philips.com/
support 或阅读单独的全球保修卡。

由于剃须刀头（刀片和网罩）属于易磨损物品，因此不
在国际保修条款的涵盖范围之列。

故障种类和处理方法

本章归纳了使用本产品时最常见的一些问题。如果您无
法根据以下信息解决问题，请访问 www.philips.com/
support 查阅常见问题列表，或联系您所在国家/地区的
客户服务中心。

剃须刀

问题 可能的原因 解决方法

简体中文

39

按下开/关钮时，
产品不工作。

产品仍然连接着电源
插座。 出于安全原
因，该产品在使用时
不能连接电线。

拔掉产品插头并按开/关按钮
打开产品。

问题 可能的原因 解决方法

充电电池的电量已

旅行锁已被激活。 按住开/关按钮 3 秒钟以禁用

产品 的剃须效果
没有以前好。

毛发或污垢堵塞了剃

要彻底清洁剃须刀头，请将剃

耗尽。

剃须刀头部件被污染
或损坏，导致马达无
法运行。

剃须刀头已损坏或
磨损。

须刀头。

给电池充电 (请参见 '充电')。

旅行锁。

彻底清洁剃须刀头或将其更
换。 有关如何彻底清洗剃
须刀头的详细说明，另请参
阅“毛发或污垢堵塞了剃须
刀头”。

更换剃须刀头。

对剃须刀头进行常规或彻底
清洁。

须刀头从剃须刀头支架上逐一
卸下。 然后，分离刀片和网
罩，并在水龙头下冲洗每个刀
片和网罩套装。 冲洗后，将
刀片放回对应的网罩中。 最
后，将剃须刀头装回到剃须刀
头支架中。

简体中文

40

问题 可能的原因 解决方法

我更换了剃须刀
头，但仍然显示更
换提醒。

显示屏上突然出现
剃须刀头符号。

水从产品底部漏出。在清洁过程中，水可

保留备用
发行日期: 01/03/2016

产品尚未重置。 按住开/关按钮大约 7 秒钟以

此符号是更换提醒。 更换剃须刀头 (请参见 '更

能聚集在产品的机身
内部与外壳之间。

重置产品。

换')。

这是正常现象，而且没有危
险，因为所有电子元件都封
闭在产品内部的密封电源部
件中。

www.philips.com

>75% recycled paper

4222.002.5915.1
