Philips s5000 series, S7720, S7530, S7780 User Manual
S5000 series
S5571, S5570, S5560,
S5380, S5370
1
English 6
简体中文 38
English
6
General description
1 Protection cap for cleansing brush attachment
(S5571/68, S5570/43, S5570/33, S5560/33 only)
2 Click-on cleansing brush attachment (S5571/68,
S5570/43, S5570/33, S5560/33 only)
3 Comb for beard styler attachment
(S5571/68, S5570/33, S5560/33 only)
4 Click-on beard styler attachment
(S5571/68, S5570/33, S5560/33 )
5 Click-on trimmer attachment
(S5571/68, S5570/43, S5380/04, S5370/04 only)
6 Protection cap for shaving unit
(S5380/04, S5370/04 only)
7 Click-on shaving unit
8 On/o button
9 Turbo button
10 Handle
11 Socket for small plug
12 Battery charge indicator with 3 lights
13 Unplug for use symbol
14 Travel lock symbol
15 Replacement reminder
16 Cleaning reminder
17 Cleaning cartridge for SmartClean system
(S5570/33, S5560/33 only)
18 SmartClean system (S5570/33, S5560/33 only)
19 Cap of SmartClean system
(S5570/33, S5560/33 only)
20 On/o button
21 Replacement symbol
22 Rinsing symbol
23 Ready symbol
24 Battery symbol
25 Supply unit
26 Small plug
27 Pouch (S5570/43, S5570/33, S5560/33 only)
The accessories supplied may vary for dierent
products. The box shows the accessories that have
been supplied with your appliance.
English
7
Introduction
Congratulations on your purchase and welcome
to Philips! To fully benet from the support that
Philips oers, register your product at
www.philips.com/welcome.
Important safety information
Read this important information carefully before
you use the appliance and its accessories and save
it for future reference. The accessories supplied
may vary for dierent products.
Danger
- Keep the supply unit dry.
- Forbidden to clean under a running tap.
Warning
- To charge the battery, only use the detachable
supply unit (HQ8505) provided with the appliance.
- The supply unit contains a transformer. Do not
cut o the supply unit to replace it with another
plug, as this causes a hazardous situation.
- This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning
and user maintenance shall not be made by
children without supervision.
English
8
- Always unplug the shaver before you clean it
under the tap.
- Always check the appliance before you use
it. Do not use the appliance if it is damaged,
as this may cause injury. Always replace a
damaged part with one of the original type.
- Do not open the appliance to replace the
rechargeable battery.
Caution
- Never immerse the cleaning system or the
charging stand in water and do not rinse it
under the tap.
- Never use water hotter than 80°C to rinse the
shaver.
- Only use this appliance for its intended purpose
as shown in the user manual.
- For hygienic reasons, the appliance should only
be used by one person.
- Never use compressed air, scouring pads,
abrasive cleaning agents or aggressive
liquids such as petrol or acetone to clean the
appliance.
- If your shaver comes with a cleaning system,
always use the original Philips cleaning uid
(cartridge or bottle, depending on the type of
cleaning system).
- Always place the cleaning system on a stable,
level and horizontal surface to prevent leakage.
- If your cleaning system uses a cleaning
cartridge, always make sure the cartridge
compartment is closed before you use the
cleaning system to clean or charge the shaver.
- When the cleaning system is ready for use, do
not move it to prevent leakage of cleaning uid.
English
9
- Water may drip from the socket at the bottom
of the shaver when you rinse it. This is normal
and not dangerous because all electronics
are enclosed in a sealed power unit inside the
shaver.
- Do not use the supply unit in or near wall
sockets that contain an electric air freshener to
prevent irreparable damage to the supply unit.
Electromagnetic elds (EMF)
- This Philips appliance complies with all
applicable standards and regulations regarding
exposure to electromagnetic elds.
General
- Suitable to be used in the shower. It is allowed
to use this appliance close to a bathtub, shower
or other containers lled with water.
- This shaver is waterproof. It is suitable for use
in the bath or shower and for cleaning under
the tap. For safety reasons, the shaver can
therefore only be used without cord.
- The appliance is suitable for mains voltages
ranging from 100 to 240 volts.
- The supply unit transforms 100-240 volts to a
safe low voltage of less than 24 volts.
The display
Charging
Note: If you press the on/o button during
charging, the 'unplug for use' symbol ashes white
to remind you that you have to disconnect the
appliance from the wall socket.
English
10
Battery charge indicator with 3 lights
Quick charge: When the battery is empty and you
connect the appliance to the wall socket, the lights
of the battery charge indicator light up one after
the other repeatedly. When the appliance contains
enough energy for one shave, the bottom light of
the battery charge indicator starts ashing slowly.
While the appliance continues to charge, rst the
bottom light of the battery charge indicator ashes
and then lights up continuously. Then the second
light ashes and then lights up continuously, and
so on until the appliance is fully charged.
Battery fully charged
Note: When the battery is full, the display switches
o automatically after 30 minutes.
Note: This appliance can only be used without cord.
Battery charge indicator with 3 lights
When the battery is fully charged, all lights
of the battery charge indicator light up white
continuously.
Battery low
Battery charge indicator with 3 lights
When the battery is almost empty, the bottom light
of the battery charge indicator ashes orange.
English
11
Remaining battery charge
Battery charge indicator with 3 lights
The remaining battery charge is shown by the
lights of the battery charge indicator that light up
continuously.
’Unplug for use’ reminder
The appliance is equipped with an ‘unplug for
use’ reminder. The ‘unplug for use’ symbol ashes
to remind you that you have to disconnect the
appliance from the supply unit before you can
switch it on.
Cleaning reminder
Clean the shaver after every shave for optimal
performance. When you switch o the appliance,
the cleaning reminder ashes to remind you to
clean the appliance.
Travel lock
You can lock the appliance when you are going to
travel. The travel lock prevents the appliance from
being switched on by accident.
Activating the travel lock
1 Press the on/o button for 3 seconds to enter
the travel lock mode.
3 sec.
English
12
While you activate the travel lock, the travel
lock symbol lights up continuously. When the
travel lock is activated, the travel lock symbol
ashes.
Deactivating the travel lock
1 Press the on/o button for 3 seconds.
The travel lock symbol ashes and then lights
up continuously. The appliance is now ready for
use again.
Replacement reminder
For maximum shaving performance, we advise you
to replace the shaving heads every two years. The
appliance is equipped with a replacement reminder
which reminds you to replace the shaving heads.
The shaving unit symbol and arrows light up to
indicate that you have to replace the shaving heads.
Note: After replacing the shaving heads, you need
to reset the replacement reminder by pressing the
on/o button for 7 seconds.
Turbo setting (specic types only)
The appliance is equipped with a Turbo or Turbo+
setting. This setting is intended for quicker and
more intense shaving and makes hard-to-reach
areas easier to shave.
English
13
Activating the Turbo setting
1 To activate the Turbo setting, press the Turbo
button once when the appliance is switched on.
Deactivating the Turbo setting
1 To deactivate the Turbo setting, press the Turbo
button once.
Charging
Charge the shaver before you use it for the rst
time and when the display indicates that the
battery is almost empty.
Charging takes approx. 1 hour.
Note:You cannot use the appliance while it is
charging.
Charging with the supply unit
1 Make sure the appliance is switched o.
2 Put the supply unit in the wall socket and put
the small plug in the appliance.
3 After charging, remove the supply unit from the
wall socket and pull the small plug out of the
appliance.
Charging in the SmartClean system (specic types only)
1 Put the small plug in the back of the SmartClean
system.
2 Put the supply unit in the wall socket.
3 Press the top cap to be able to place the shaver
in the holder ('click').
English
14
4 Hold the shaver upside down above the
holder. Make sure the front of the shaver points
towards the SmartClean system.
5 Place the shaver in the holder (1), tilt the shaver
backwards (2) and press down the top cap to
connect the shaver (‘click’) (3).
The battery symbol starts to ash to indicate
that the appliance is charging. When the battery
is fully charged, the battery symbol lights up
continuously.
Using the appliance
Note: This appliance can only be used without
cord.
Switching the appliance on and o
1 To switch on the appliance, press the on/o
button once.
2 To switch o the appliance, press the on/o
button once.
Battery charge indicator with 3 lights: The display
lights up for a few seconds to show the remaining
battery status.
1
2
English
15
Shaving
Skin adaptation period
Your rst shaves may not bring you the result you
expect and your skin may even become slightly
irritated. This is normal. Your skin and beard need
time to adapt to any new shaving system. To allow
your skin to adapt to this new appliance, we advise
you to shave regularly (at least 3 times a week)
and exclusively with this appliance for a period of
3 weeks.
Dry shaving
1 Switch on the appliance.
2 Move the shaving heads over your skin in
circular movements to catch all hairs growing in
dierent directions. Exert gentle pressure for a
close comfortable shave.
Note: Do not press too hard, this can cause skin
irritation.
3 Clean the appliance after use (see 'Cleaning
and maintenance').
Wet shaving
You can also use this appliance on a wet face with
shaving foam or shaving gel.
To shave with shaving foam or shaving gel, follow
the steps below:
1 Apply some water to your skin.
English
16
2 Apply shaving foam or shaving gel to your skin.
3 Rinse the shaving unit under the tap to ensure
that the shaving unit glides smoothly over your
skin.
4 Switch on the appliance.
5 Move the shaving heads over your skin in
circular movements to catch all hairs growing in
dierent directions. Exert gentle pressure for a
close comfortable shave.
Note: Do not press too hard, this can cause skin
irritation.
Note: Rinse the shaving unit regularly to ensure
that it continues to glide smoothly over your skin.
6 Dry your face.
7 Clean the appliance after use (see 'Cleaning
and maintenance').
Note: Make sure you rinse all foam or shaving
gel o the appliance.
Turbo setting (specic types only)
The appliance is equipped with a Turbo or Turbo+
setting. This allows you to shave hard-to-reach
areas more quickly.
1 Switch on the appliance.
English
17
2 To activate the Turbo setting, press the Turbo
button once when the appliance is switched
on.
3 Move the shaving heads over your skin in
circular movements to catch all hairs growing in
dierent directions. Exert gentle pressure for a
close comfortable shave.
Note: Circular movements provide better
shaving results than straight movements.
4 To deactivate the Turbo setting, press the
Turbo button once.
Using the click-on attachments
Note: The accessories supplied may vary for
dierent products. The box shows the accessories
that have been supplied with your appliance.
Removing or attaching the click-on
attachments
1 Make sure the appliance is switched o.
2 Pull the attachment straight o the appliance.
Note: Do not twist the attachment while you
pull it o the appliance.
3 Insert the lug of the attachment into the slot in
the top of the appliance. Then press down the
attachment to attach it to the appliance (‘click’).
Using the trimmer attachment
You can use the trimmer attachment to groom
your sideburns and moustache.
English
18
1 Attach the attachment to the appliance ('click').
2 Switch on the appliance.
3 Hold the trimmer attachment perpendicular to
the skin and move the appliance downwards
while you exert gentle pressure.
4 Clean the attachment after use (see 'Cleaning
and maintenance').

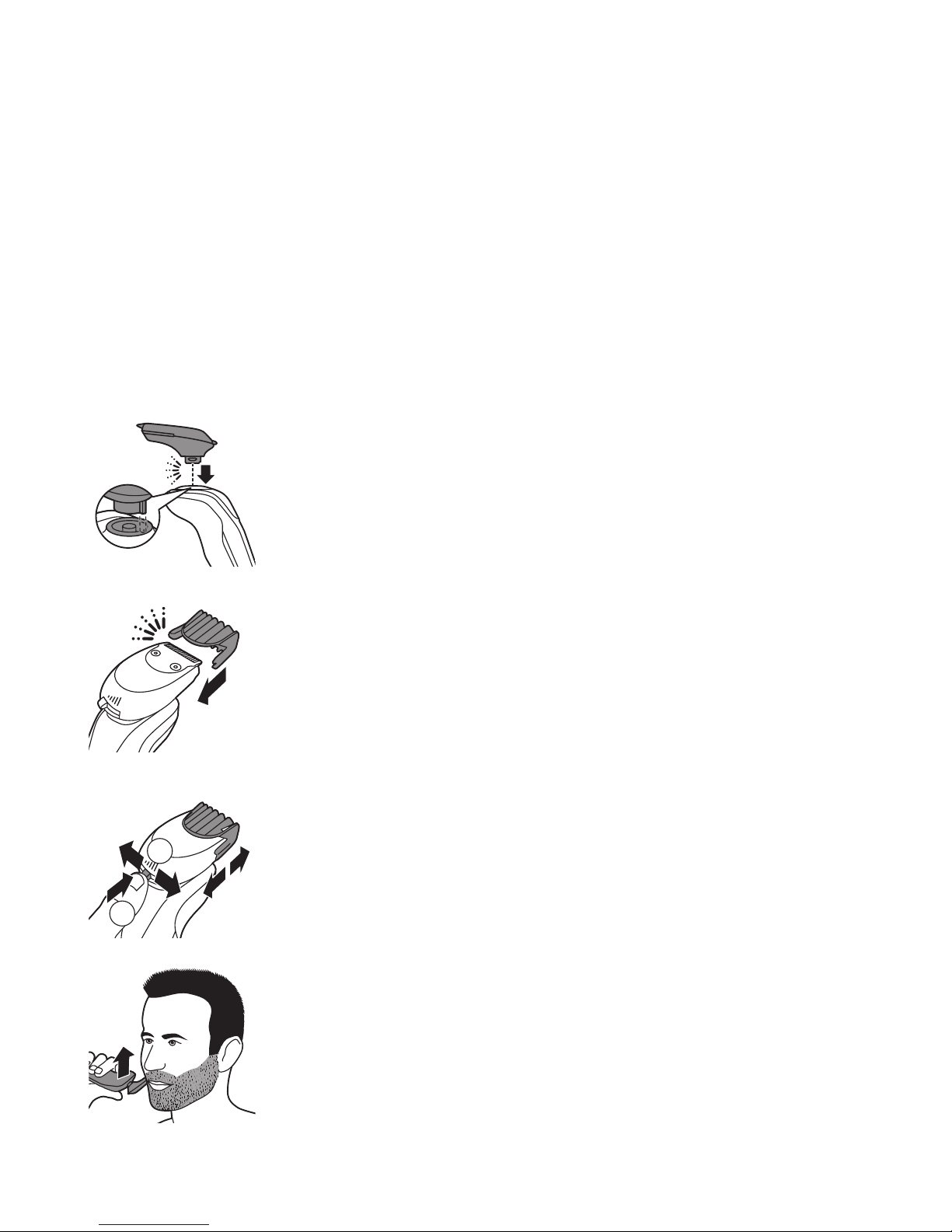

Using the beard styler attachment with comb
You can use the beard styler attachment with the
comb attached to style your beard at one xed
setting, but also at dierent length settings. You
can also use it to pre-trim any long hairs before
shaving for a more comfortable shave.
The length settings on the beard styler attachment
correspond to the remaining hair length after
cutting and range from 1 to 5mm.
1 Attach the attachment to the appliance ('click').
2 Slide the comb straight into the guiding grooves
on both sides of the beard styler attachment
(‘click’).
English
19
3 Press the length selector and then push it to
the left or right to select the desired hair length
setting.
4 Switch on the appliance.
5 Move the appliance upwards while you exert
gentle pressure. Make sure the front of the
comb is in full contact with the skin.
6 Clean the attachment after use (see 'Cleaning
and maintenance').
Using the beard styler attachment without
comb
You can use the beard styler attachment without
the comb to contour your beard, moustache,
sideburns or neckline to a length of 0.5mm.
1 Pull the comb o the beard styler attachment.
Note: Grab the comb in the center to pull it o
the beard styler attachment. Do not pull at the
sides of the comb.
2 Switch on the appliance.
3 Hold the beard styler attachment perpendicular
to the skin and move the appliance downwards
while you exert gentle pressure.
4 Clean the attachment after use (see 'Cleaning
and maintenance').
Using the cleansing brush attachment
Use the rotating cleansing brush attachment with
your daily cleansing cream. The cleansing brush
attachment removes oil and dirt, contributing to a
healthy and oil-free skin.
2
1
English
20
1 Attach the attachment to the appliance ('click').
2 Moisten the attachment with water.
Note: Do not use the appliance with a dry brush
attachment, as this can irritate the skin.
3 Moisten your face with water and apply a
cleanser to your face.
4 Place the attachment on your cheek.
5 Switch on the appliance.
6 Gently move the attachment across your skin
from the nose towards the ear. Do not push the
attachment too hard onto the skin to make sure
the treatment remains comfortable.
Note: Do not cleanse the sensitive area around
your eyes.
7 After approx. 20 seconds move the appliance
to your other cheek and start cleansing this part
of your face.
20 sec.
20 sec.
English
21
8 After approx. 20 seconds move the appliance
to your forehead and start cleansing this part
of your face. Gently move the brush head from
left to right.
Note: We advise you to not overdo the
cleansing and to not cleanse any zone longer
than 20 seconds.
9 After the treatment, rinse and dry your face.
Your face is now ready for the next step of your
daily skincare routine.
10 Clean the attachment after use (see 'Cleaning
and maintenance').
Cleaning and maintenance
Note: The accessories supplied may vary for
dierent products. The box shows the accessories
that have been supplied with your appliance.
Cleaning the shaver in the SmartClean system
(specic types only)
Preparing the SmartClean system for use
Caution: Do not tilt the SmartClean system to
prevent leakage.
Note: Hold the SmartClean system while you
prepare it for use.
Note: If you clean the shaver in the SmartClean
system once a week, the SmartClean cartridge
lasts approximately three months.
1 Put the small plug in the back of the SmartClean
system.
2 Put the supply unit in the wall socket.
20 sec.
English
22
3 Press the button on the side of the SmartClean
system (1) and lift the top part of the
SmartClean system (2).
4 Pull the seal o the cleaning cartridge.
5 Place the cleaning cartridge in the SmartClean
system.
6 Push the top part of the SmartClean system
back down (‘click’).
Using the SmartClean system
Caution: Always shake excess water o the
shaver before you place it in the SmartClean
system.
1
2
English
23
1 Press the top cap to be able to place the shaver
in the holder ('click').
2 Hold the shaver upside down above the
holder. Make sure the front of the shaver points
towards the SmartClean system.
3 Place the shaver in the holder (1), tilt the shaver
backwards (2) and press down the top cap to
connect the shaver ('click') (3).
The battery symbol starts to ash, which
indicates that the shaver is charging.
4 Press the on/o button on the SmartClean
system to start the cleaning program.
During the rinsing phase, the rinsing symbol
ashes. When the rinsing phase is done (after
approx. 10 minutes), the rinsing symbol lights up
continuously.
When the cleaning program is done, the ready
symbol lights up continuously.
30 minutes after the cleaning program and
charging are done, the SmartClean system
switches o automatically.
The battery symbol lights up continuously
to indicate that the shaver is fully charged.
Charging takes approx. 1 hour.
1
2
Loading...
